Description

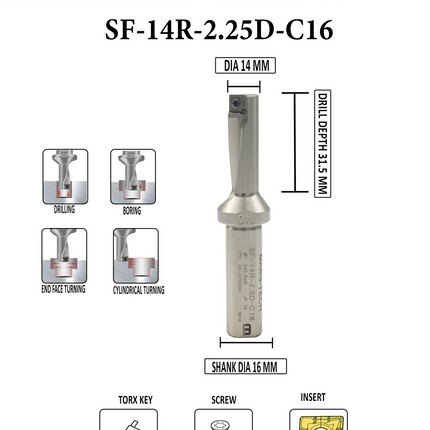

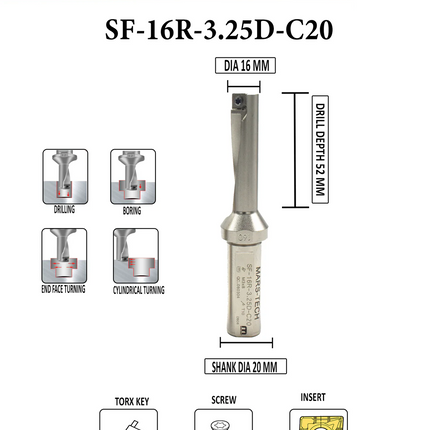

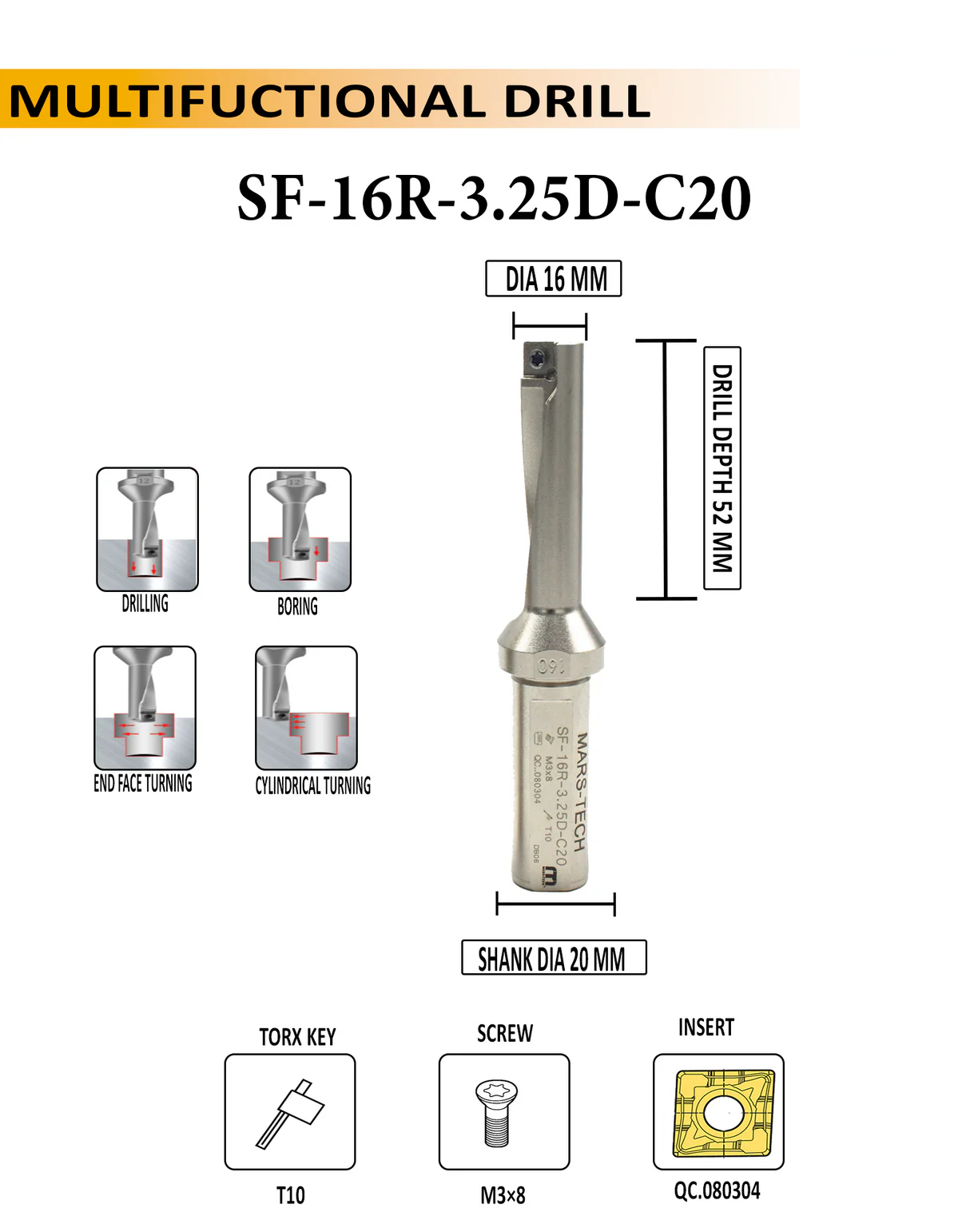

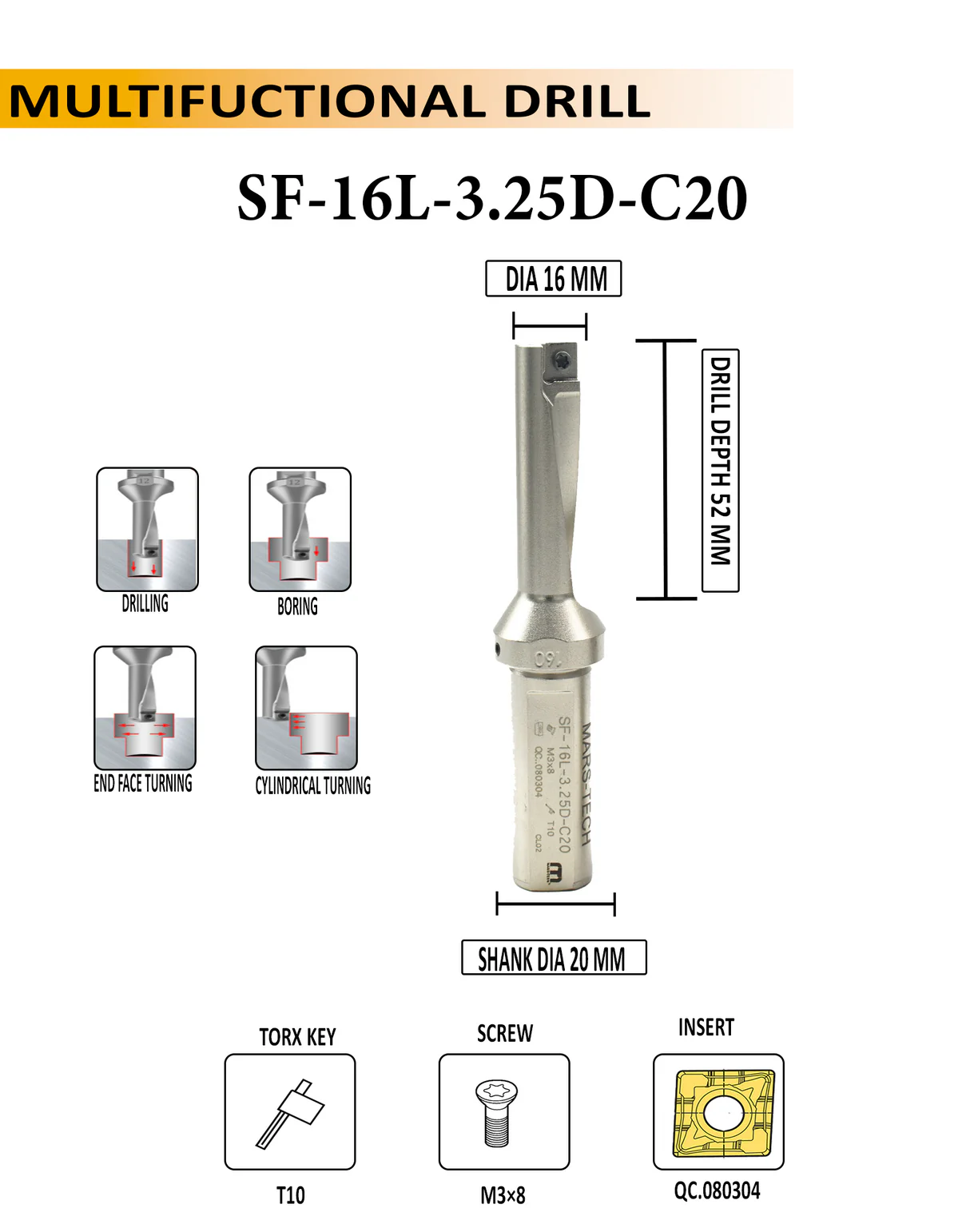

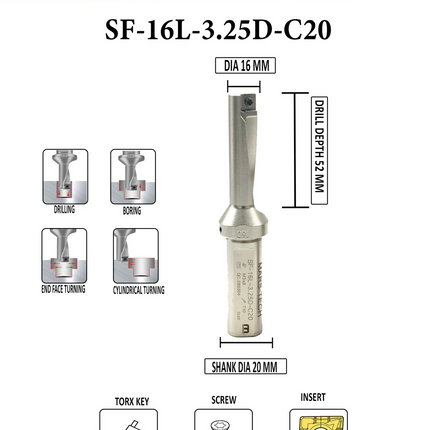

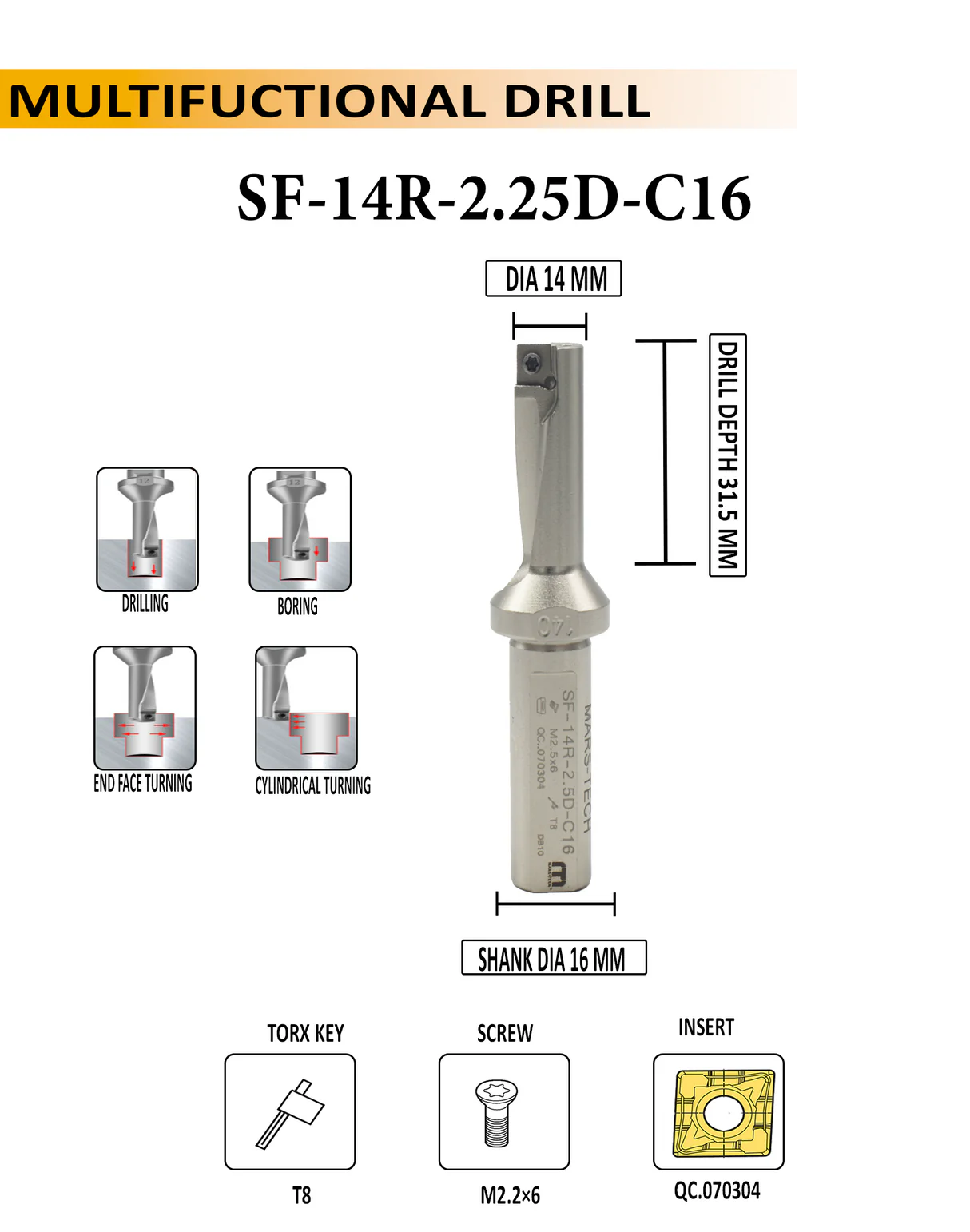

All-in-One Multifunction Drill Tool
(Drilling, External Turning, Facing, and Internal Boring Operations)
Insert Type: QCMT080204 – Special Fit
Overview:

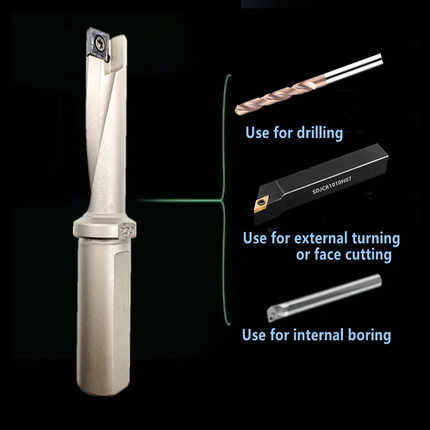

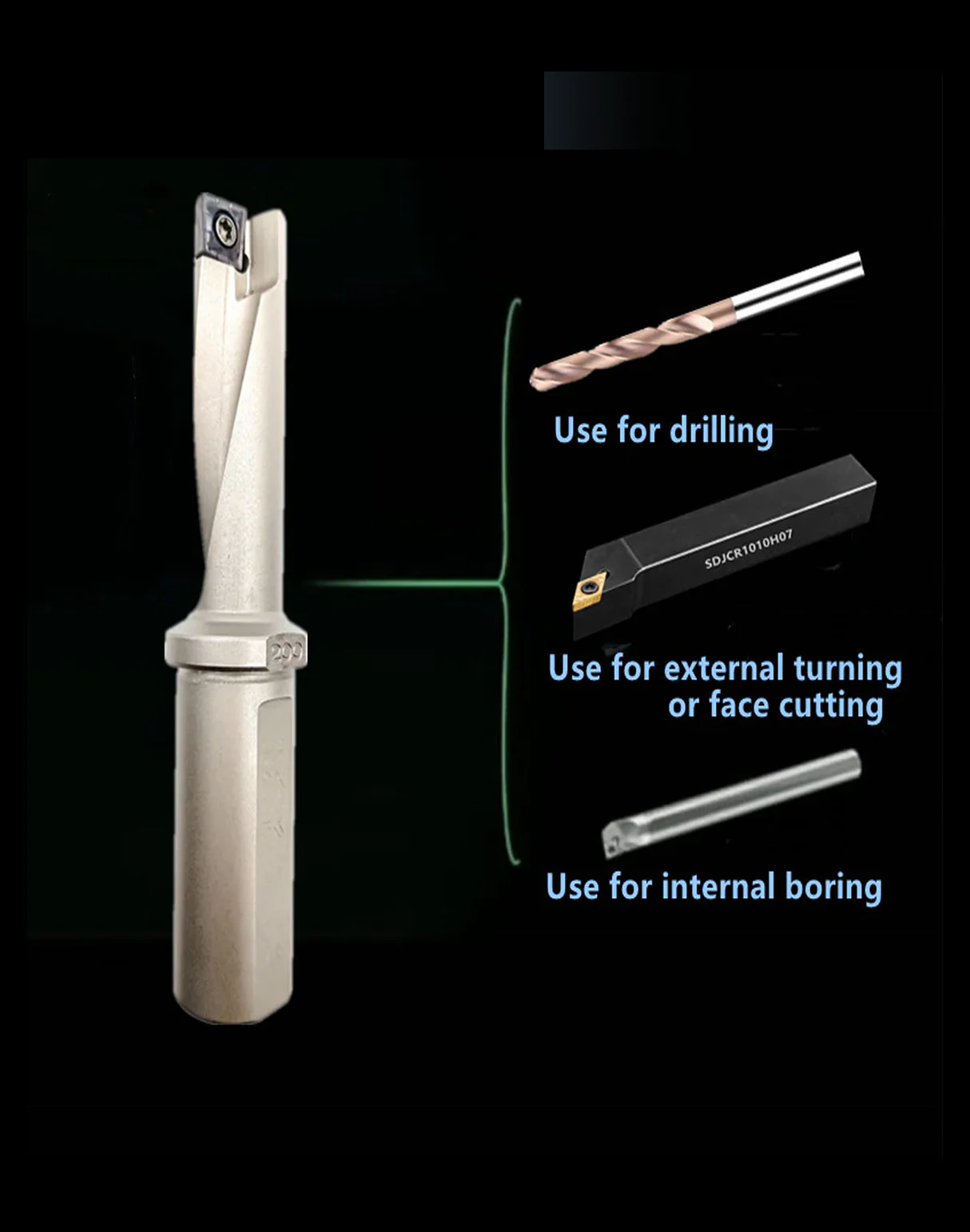

The All-in-One Multifunction Drill is a highly versatile machining tool designed to consolidate multiple operations—drilling, external turning, internal boring, and facing—into a single setup. This multi-functional capability increases productivity, reduces cycle time, and enhances precision by minimizing tool changes and re-indexing.
Key Features:
-
Multi-Functional Capability:
-
Drilling: Delivers efficient penetration with excellent chip evacuation.
-
External Turning: Supports precision turning operations on outer diameters.
-
Facing: Allows smooth surface finishing of workpiece faces.
-
Internal Boring: Capable of enlarging and finishing pre-existing holes with high accuracy.
-
Special Insert Compatibility – QCMT080204:
-

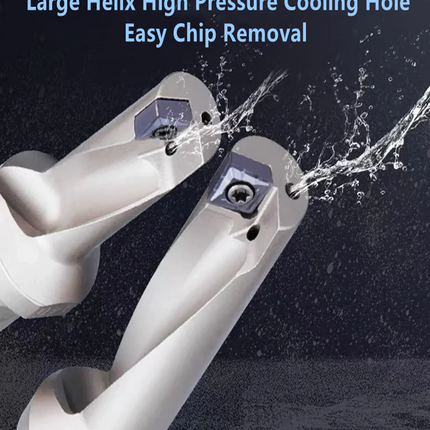

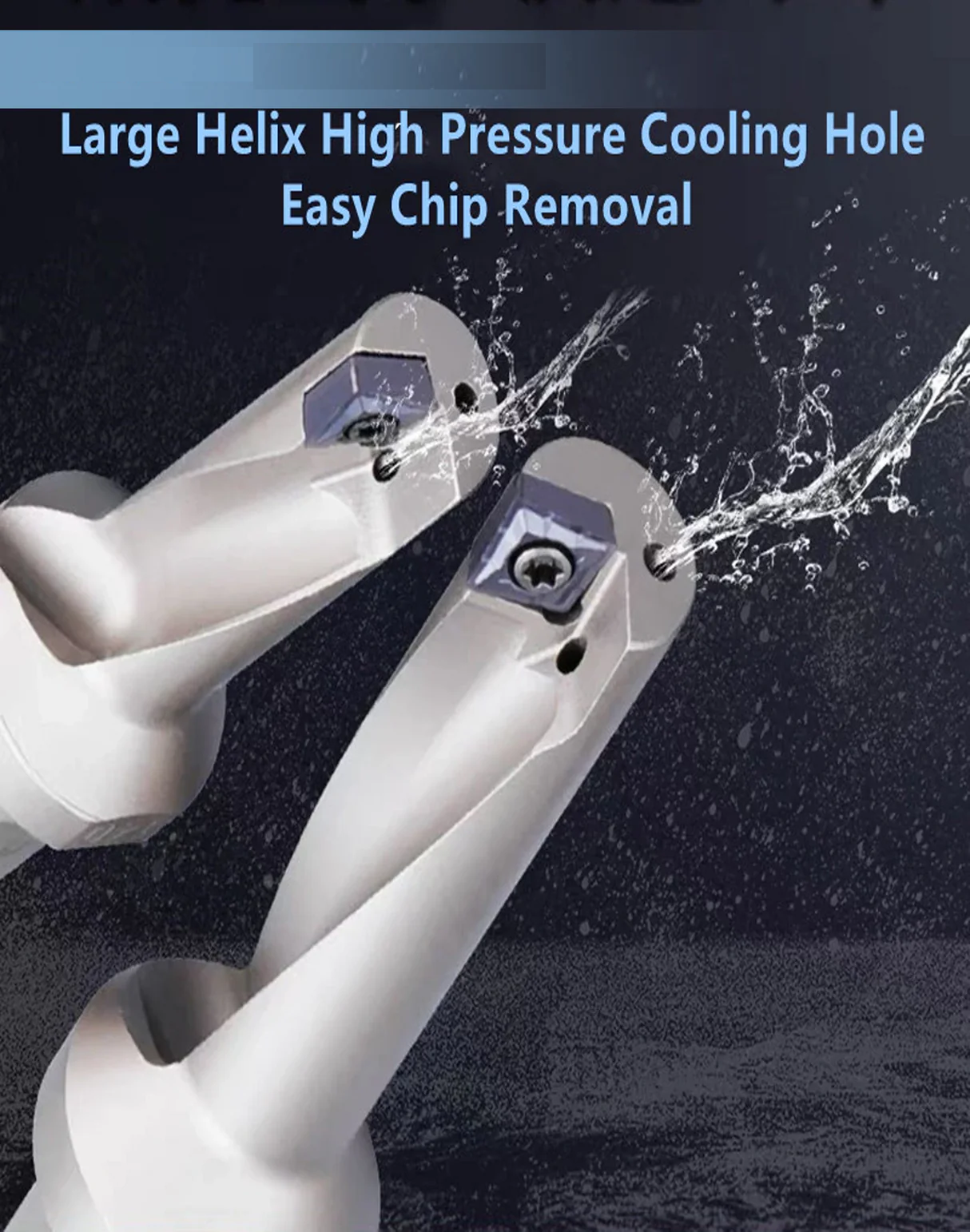

Through Coolant Design:
-
The tool body incorporates internal coolant channels.
-
Ensures direct coolant delivery to the cutting zone for improved tool life and thermal management.
-
Aids in chip evacuation, especially during deep-hole drilling or boring.
-
High Rigidity & Accuracy:
-
Time & Cost Efficiency:
Technical Specifications:
| Parameter |
Details |
| Insert Type |
QCMT080204 TK4515 |
| Operations Supported |
Drilling, Turning, Facing, Boring |
| Coolant Supply |
Internal Through Coolant |
| Tool Material |
High-strength alloy steel |
| Shank Type |
Cylindrical or customized based on holder system |
| Applicable Machines |
CNC lathes, turn-mill centers, multitasking machines |
| Ideal For |
Batch production, complex parts, and setups requiring high flexibility |
Advantages:
-
Reduces tool change and indexing time
-
Improves machining accuracy by limiting repositioning
-
Saves on tooling costs and machine downtime
-
Simplifies toolpath programming for multi-operation cycles
