Lathe Dogs

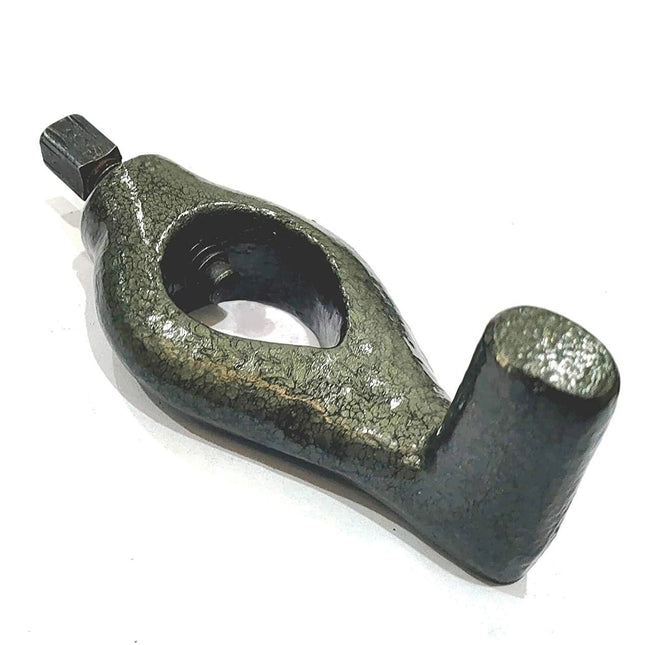

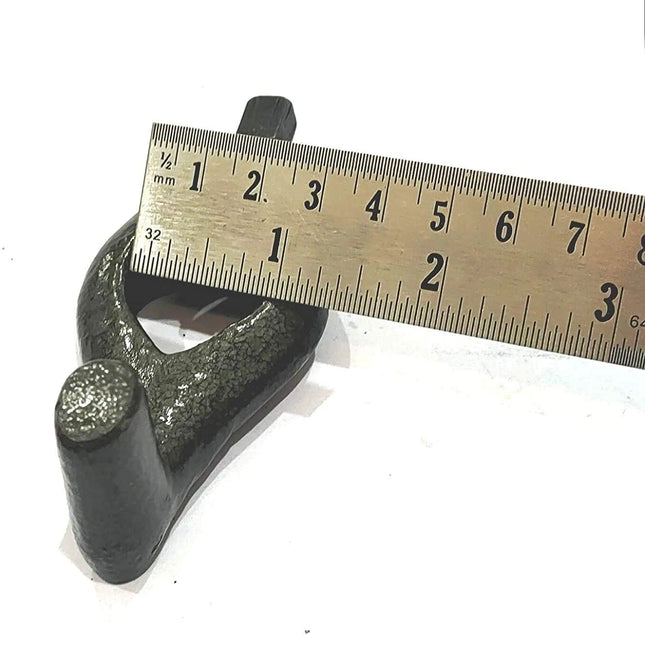

A high-grade cast iron bent-style lathe dog is a device used in metalworking on a lathe machine. Its primary purpose is to hold a workpiece securely in place while it's being machined. The lathe dog typically consists of two parts: a body that clamps onto the workpiece, and a tail that fits into a slot on the lathe's driving plate or faceplate. This arrangement allows the workpiece to rotate along with the lathe spindle, enabling precise cutting and shaping operations. The lathe dog helps prevent the workpiece from rotating independently, ensuring accuracy and consistency in machining processes.. Here's a detailed description: Material: Constructed from high-grade cast iron, ensuring durability, strength, and resistance to wear and tear even under heavy usage. Design: The bent-style design typically features a curved or angled shape, allowing it to securely grip the workpiece while minimizing interference with the cutting tool or lathe components. Jaws: Equipped with strong, precision-machined jaws that provide a firm grip on the workpiece without causing damage. The jaws may have serrated surfaces to enhance grip and prevent slippage during machining. Adjustability: Some models may feature adjustable jaws or clamping mechanisms to accommodate various sizes of workpieces, offering versatility in application. Accuracy: Designed with precision tolerances to ensure accurate centering and alignment of the workpiece, resulting in precise machining operations and high-quality finished products. Compatibility: Designed to fit specific lathe spindle sizes and configurations, ensuring compatibility with a wide range of lathes and machining setups. Surface Finish: Finished with smooth surfaces and edges to minimize friction and wear on the workpiece while ensuring ease of installation and removal. Heat Resistance: Capable of withstanding high temperatures generated during machining processes without deformation or loss of gripping effectiveness. Size Range: Available in various sizes to accommodate different workpiece diameters and configurations, providing flexibility for diverse machining requirements. Safety Features: May include features such as safety stops or guards to prevent accidental contact with rotating parts during operation, ensuring operator safety. Overall, a high-grade cast iron bent-style lathe dog is an essential tool for machinists and metalworkers, offering reliable performance, precision, and durability in a wide range of turning applications. Internal ref.BA

Read more less
