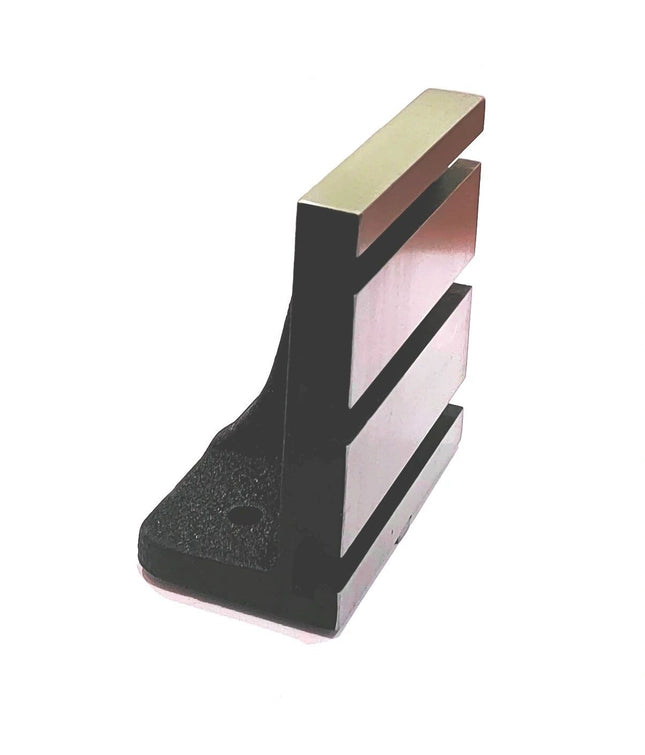

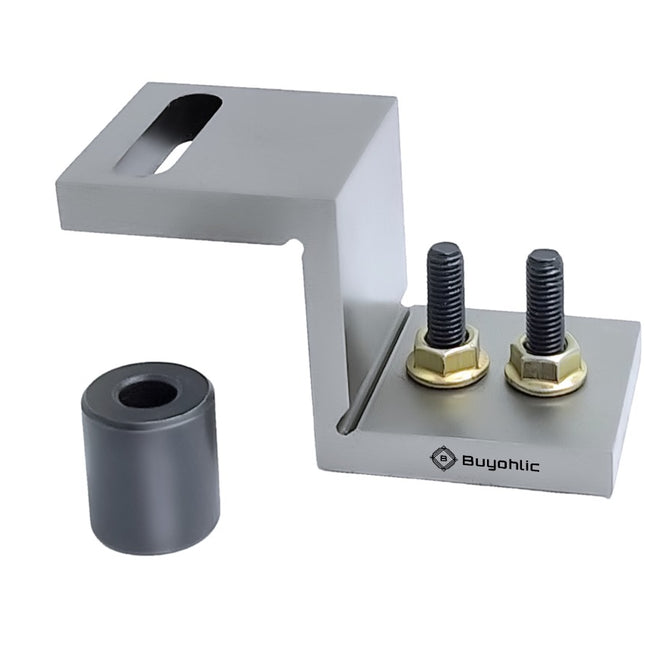

Used For:  An angle plate is a work holding device used as a fixture in metalworking. A Z-type Angle plate is used to hold vertical slides square to the table during marking out operations. Versatile Mounting Solution: Specifically designed for mounting vertical slides onto machine tools such as milling machines and lathes, this Z-type angle plate provides a versatile and sturdy platform for various machining operations. Precision Machining: Crafted from high-quality materials with precision machining, ensuring exceptional accuracy and stability during vertical slide mounting, allowing for precise machining of workpieces with minimal deflection. Optimal Design: The Z-type configuration offers optimal stability and rigidity, minimizing vibration and ensuring consistent machining performance, even during heavy-duty operations. Secure Fixation: Features secure mounting holes and clamping surfaces, allowing for easy and secure attachment of the vertical slide to the angle plate, enhancing operator safety and workflow efficiency. Adjustable Angle: Incorporates adjustable angle features, enabling operators to set the desired inclination for the vertical slide, facilitating customized machining setups and accommodating various machining requirements and workpiece geometries. Durable Construction: Built to withstand the rigors of machining environments, the angle plate is constructed from durable materials, ensuring long-term reliability and performance under demanding conditions. Enhanced Stability: Equipped with robust mounting points and reinforced structures, the angle plate provides enhanced stability and support for the vertical slide, minimizing movement and ensuring precise machining results. Efficient Workflow: Designed for quick and easy installation, the angle plate streamlines workflow processes, allowing for swift setup and adjustment of the vertical slide, minimizing downtime and maximizing machining productivity. Wide Range of Applications: Suitable for a variety of machining applications, including milling, drilling, and grinding, across diverse industries such as automotive, aerospace, and tool manufacturing, offering versatility for different machining needs. Compatibility: Compatible with a range of vertical slides and machine tools, ensuring compatibility and ease of integration into existing machining setups, making it an ideal solution for both small-scale workshops and industrial manufacturing facilities. Quality Assurance: Manufactured to stringent quality standards and subjected to thorough inspection processes, the angle plate guarantees superior quality, reliability, and performance, meeting the stringent demands of precision machining applications {Internal Reference: HM}

Read more less

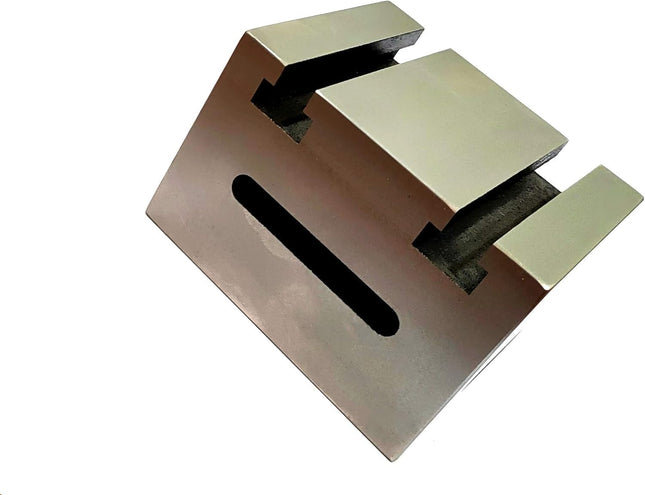

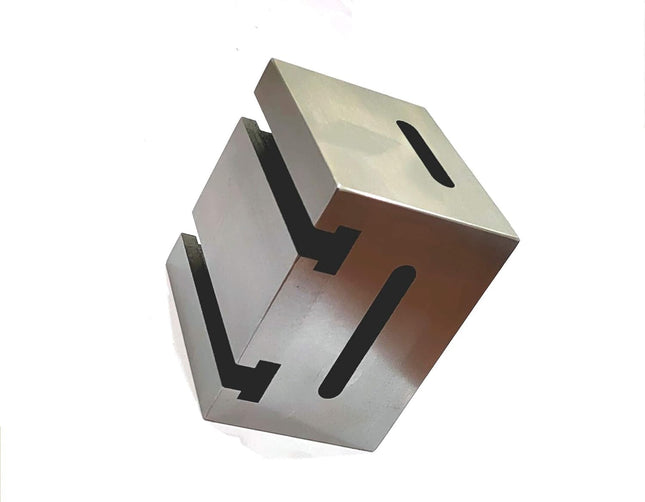

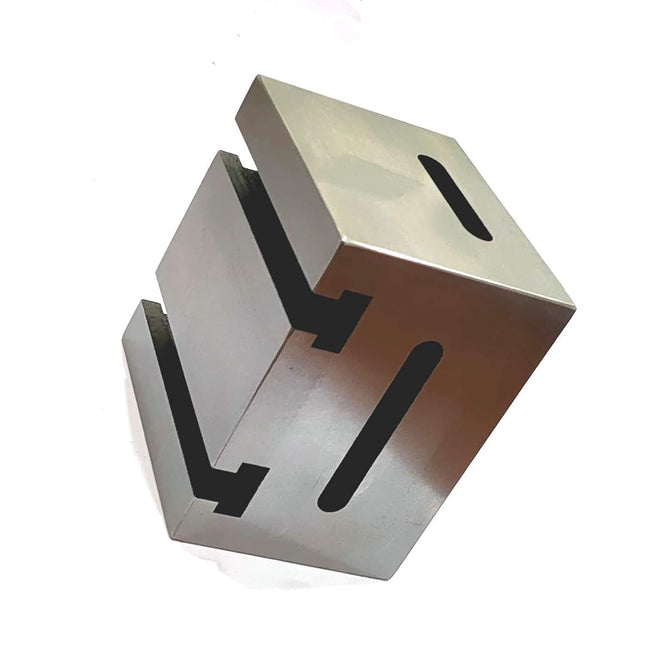

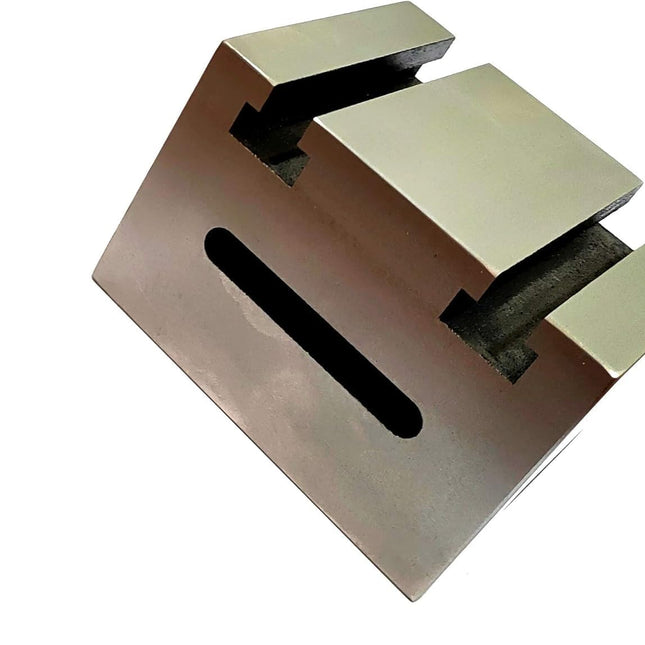

Caste Iron Box Type T Slot Angle Plate (4" x 3-3/8" x 2-3/4" (100 x 85 x 60 mm)) ✅ Precision-Machined T-Slots: Features precision-machined T-slots for secure clamping and precise positioning of workpieces. ✅ Durable Cast Iron Construction: Crafted from high-quality close-grain cast iron for long-lasting durability and resistance to wear and tear. ✅ Versatile Metalworking Tool: Ideal for various applications including milling, grinding, and inspection. ✅ Compact and Convenient Size: Measures 4" x 3-3/8" x 2-3/4" (100 x 85 x 60 mm), making it perfect for workbenches and smaller setups. ✅ Secure Mounting Options: Equipped with 4 x 9 mm slots on all sides for easy and secure mounting of clamps, fixtures, and accessories. ✅ High-Precision Manufacturing: All faces are precision machined and ground to be square and parallel for accurate results. ✅ T-Slot Dimensions: Features T-slot size of 18 mm (width at base) x 8 mm (thickness) x 10 mm (wide at top) for versatile clamping capabilities.

Read more less

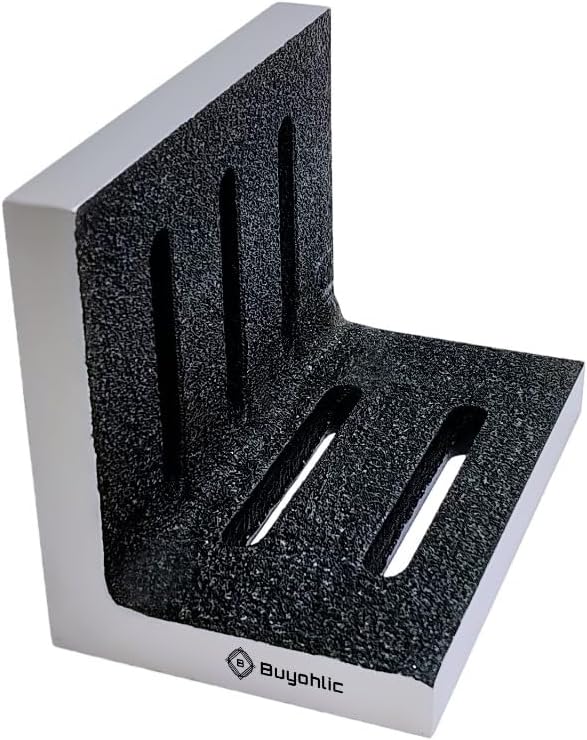

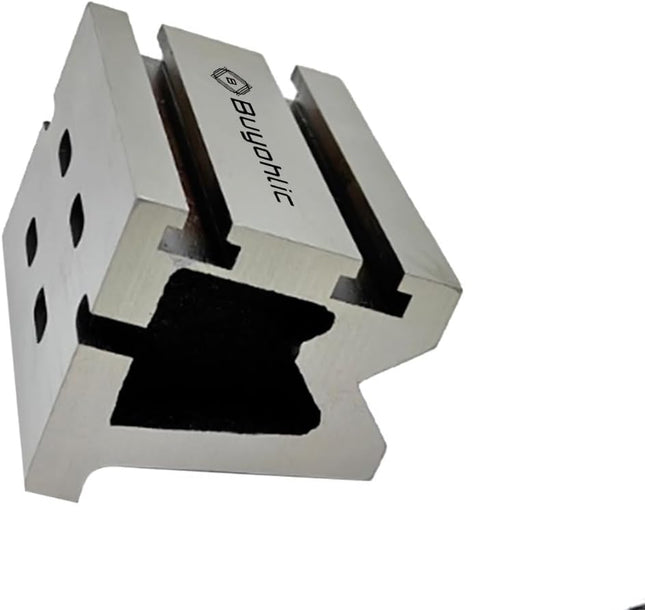

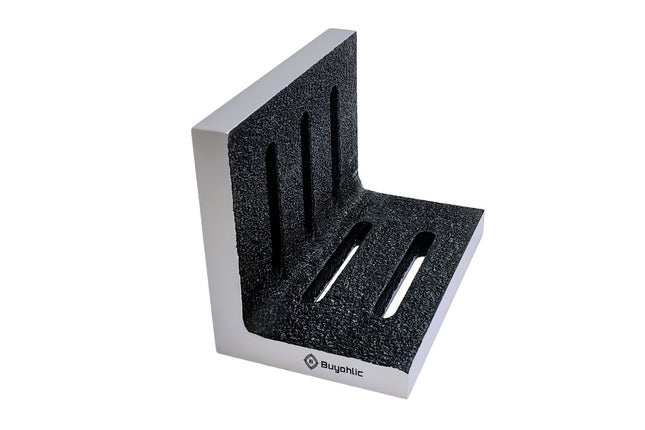

An angle plate is a precision tool used in metalworking, machining, and engineering for holding workpieces at a precise angle, usually 90 degrees, to ensure accurate machining. It's commonly used to hold parts or components during milling, drilling, or welding operations. Key Features: High-Quality Material: Made from graded cast iron, these angle plates offer exceptional stability and wear resistance, making them ideal for precision engineering tasks. Stress Relieved: Each angle plate undergoes a stress-relief process to eliminate internal stresses, ensuring dimensional stability and reducing the risk of deformation over time. Vee Slot Design: The Vee slots are precision-machined for holding cylindrical workpieces securely, providing accurate alignment during machining, drilling, or inspection. Slotted & T-Slotted: Features slotted and T-slotted surfaces, offering versatile clamping options for various workpiece sizes and shapes. The slots are precisely aligned for easy attachment of clamps and other fixtures. Precision Machined Surfaces: The working surfaces are ground to close tolerances, ensuring accurate angles and flatness, crucial for high-precision machining and inspection tasks. Corrosion Resistant: The cast iron surface is treated for enhanced resistance against corrosion, ensuring longevity and reliable performance in various working conditions. Versatile Applications: Ideal for use in tool rooms, inspection departments, and workshops, these angle plates are perfect for holding, positioning, and inspecting workpieces at a precise angle Product Code      Size (In inches)      Size (In mm)     30-AP-801  3" x 3" x 5"  75 x 75 x 125 mm 30-AP-803  4" x 4" x 6"  100 x 100 x 150 mm  30-AP-805  5" x 5" x 7"  125 x 125 x 175 mm 30-AP-807  6" x 6" x 8"  150 x 150 x 200 mm

Read more less

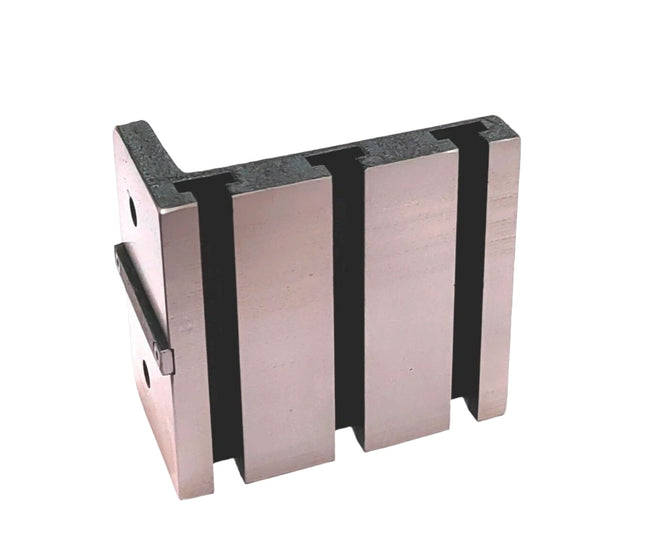

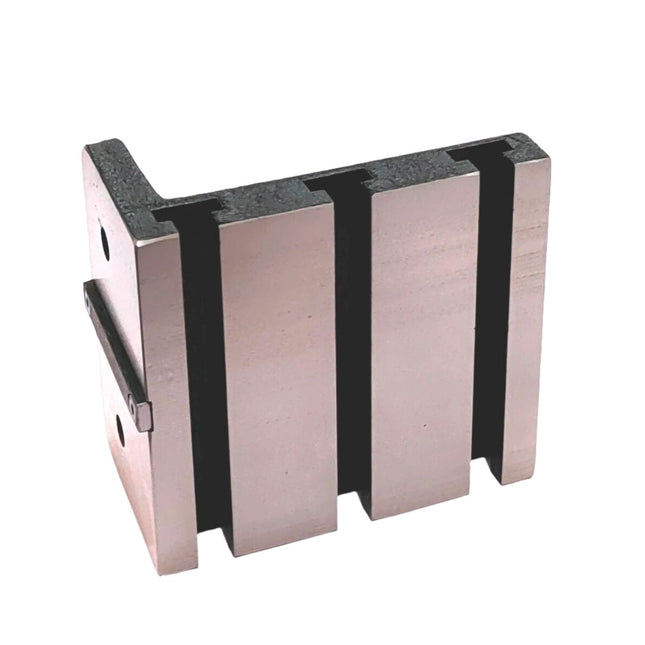

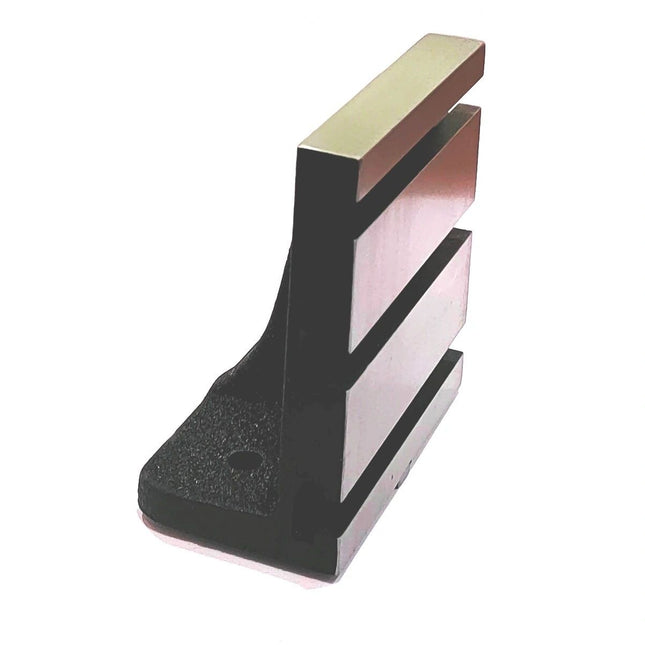

The Cast Iron T-Slotted Webbed Angle Plate, measuring 110 x 105 x 60 mm, is a robust and precision-engineered tool designed for versatile clamping and fixturing applications in machining operations. Crafted from high-grade cast iron, this angle plate undergoes full stress relief to ensure exceptional stability and durability over its operational lifespan. Key Features: Material: High Grade Cast Iron, ensuring strength and stability. Dimensions: 110 mm (width) x 105 mm (height) x 60 mm (thickness). Weight: Solid construction yet manageable weight for practical handling. Wall Thickness: T-Slotted Wall: 18 mm thickness, providing ample strength for clamping and securing workpieces. Drilled Base: 12 mm thickness, accommodating the 9.5 mm diameter drills for secure anchoring. T-Slot Design: Base T-Slot: 17 mm wide, facilitating easy attachment to work tables or machine beds. Top Slot: 10 mm wide at the top, allowing flexible positioning and securing of components. Depth: 6 mm, ensuring compatibility with standard T-slot nuts and bolts. Base Gib: Featuring a 9 mm base gib, enhancing stability and precision during use. Usage: This angle plate is indispensable in machining setups, offering a reliable platform for accurate clamping, alignment, and fixture mounting. The T-slots on the base and top provide versatile options for securing workpieces and tooling securely in place, accommodating various machining requirements. Applications: Ideal for milling, drilling, and grinding operations, where precise positioning and secure clamping are essential. The robust construction and stress-relieved casting ensure minimal distortion under load, maintaining accuracy and reliability in demanding industrial environments. Conclusion: The Cast Iron T-Slotted Webbed Angle Plate 110 x 105 x 60 mm combines durable construction with precise engineering, making it a trusted choice for machinists and fabricators seeking dependable performance in workholding and fixture applications. Its solid design and thoughtful features contribute to improved efficiency and accuracy in machining tasks. (Internal Ref:-BA)

Read more less

An angle plate is a precision tool used in metalworking, machining, and engineering for holding workpieces at a precise angle, usually 90 degrees, to ensure accurate machining. It's commonly used to hold parts or components during milling, drilling, or welding operations. Key Features: High-Grade Cast Iron Construction: Crafted from premium quality cast iron, this angle plate offers exceptional durability and wear resistance, ensuring consistent performance in demanding applications. Fully Stress Relieved: The cast iron undergoes a rigorous stress-relief process to eliminate internal stresses, providing long-term stability and preventing deformation during use. Precision Ground Surfaces: All working surfaces are precision ground to ensure accurate angles and a perfectly flat base, critical for high-precision machining, drilling, and inspection tasks. 5 Precision Slots: Equipped with a total of 5 slots with a width of 9.5 mm, this plate offers versatile clamping options for securely holding various workpieces. The slots are precisely machined to facilitate easy attachment of clamps and other fixtures. Corrosion Resistant Finish: The cast iron surface is treated for enhanced resistance against corrosion, ensuring the longevity of the angle plate even in harsh working environments.

Read more less

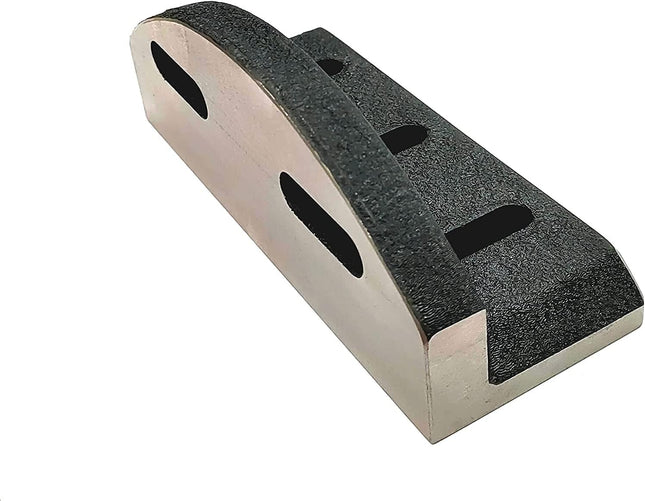

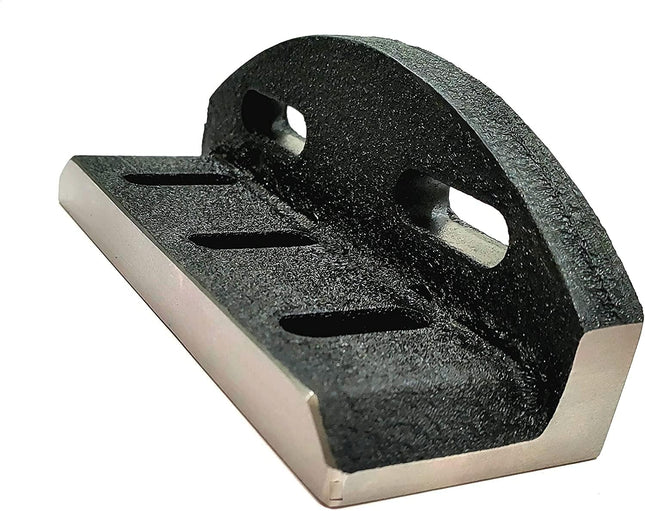

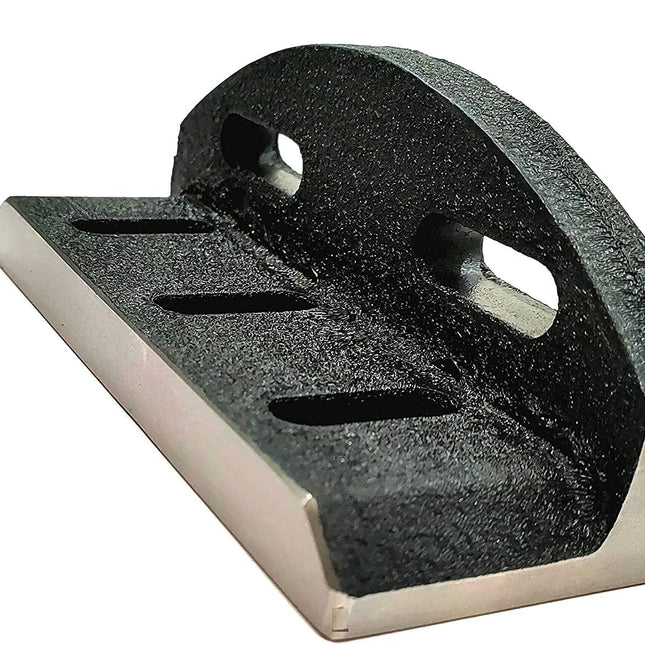

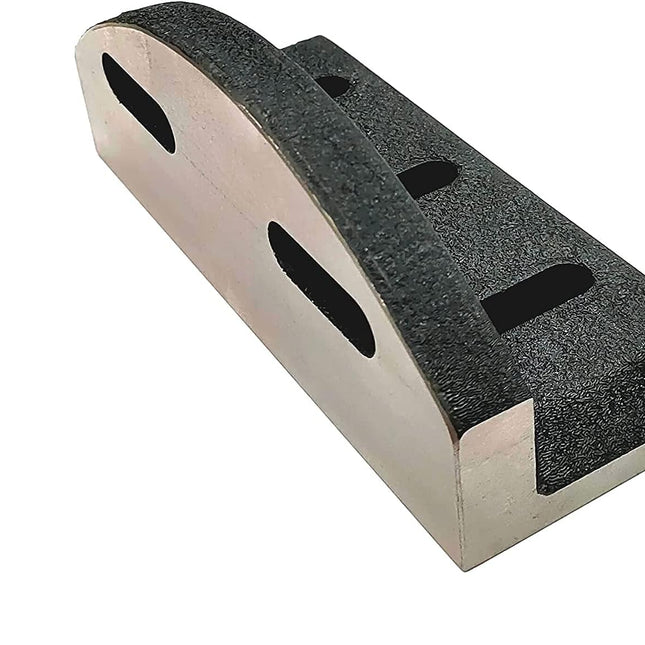

Enhance your machining precision with the Slotted Slim Angle Plate, expertly designed for versatility and durability. Perfectly sized at 150 x 58 x 58 mm, this compact yet robust angle plate is ideal for use with Myford & ML7 series lathes, among other compatible setups. Key Features: Precision Engineering: Crafted for accurate 90° angles, ensuring precise positioning and alignment during machining operations. Durable Construction: Made from high-quality cast iron for exceptional rigidity and long-lasting performance. Slotted Design: Features strategically placed slots to facilitate easy clamping and secure mounting of workpieces. Slim Profile: Compact dimensions and lightweight construction allow for convenient handling and versatility in tight spaces. Wide Compatibility: Optimized for Myford lathes and the ML7 series, making it a must-have accessory for hobbyists and professionals alike. Applications: Ideal for machining, drilling, and milling tasks where a precise 90° reference is required. Suitable for supporting small or irregularly shaped workpieces that demand secure clamping. Excellent for inspection and ensuring accurate alignment in various metalworking projects. Why Choose This Angle Plate? With its slim, slotted design and compatibility with popular lathe models, this angle plate is the perfect addition to your workshop. Whether you're a professional machinist or an enthusiastic DIYer, it offers the precision and reliability needed for high-quality results. Invest in the Slotted Slim Angle Plate today and take your machining capabilities to the next level!

Read more less

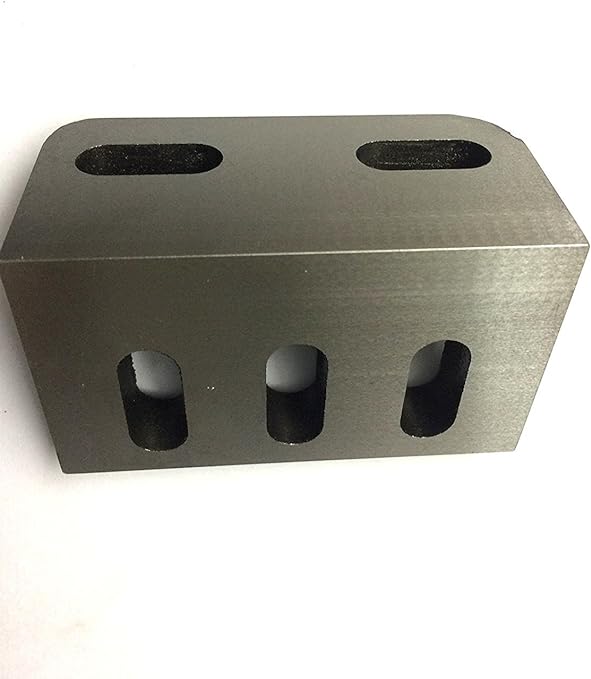

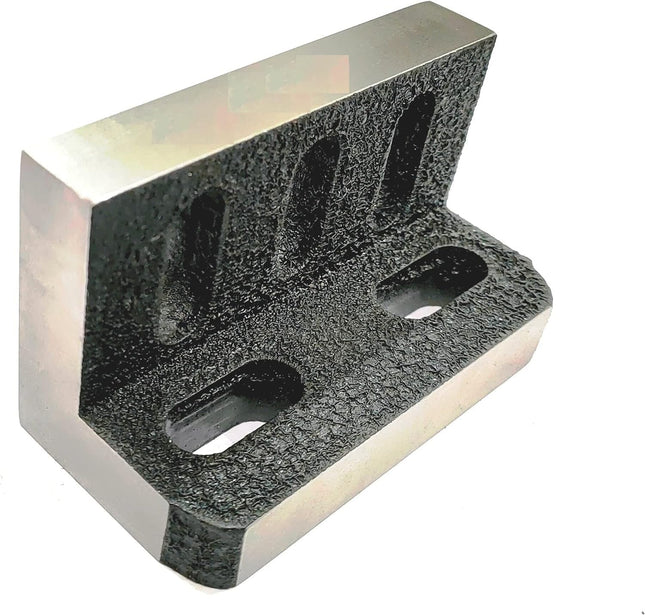

An angle plate is a precision tool commonly used in machining, metalworking, and engineering applications. It serves as a reference for holding and positioning workpieces at a precise angle, typically 90 degrees. Manufactured from high-grade cast iron material, meticulously stress relieved to ensure long-term stability during operation. Dimensions: 100 mm (length) x 50 mm (width) x 58 mm (height). Features a sturdy 15 mm thick cast iron construction, stress relieved for enhanced durability. Precision ground for superior quality, offering three vertical surfaces and two slots each measuring 10 mm in width. Machine Setup: Facilitates accurate alignment and setup of workpieces on milling machines, drill presses, and other machining equipment. Fixture Manufacturing: Serves as a base for creating custom fixtures and jigs, providing a stable platform for securely holding workpieces during machining or assembly processes. Precision Grinding: Supports the precise grinding of workpieces at specific angles, ensuring uniformity and accuracy in the finished products.

Read more less

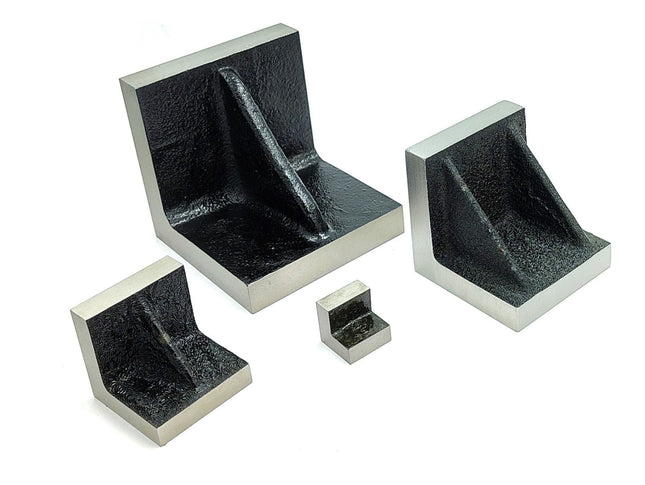

Our premium Cast Iron Stress-Relieved Slotted Webbed Angle Plates are expertly designed for precision and stability in various machining and inspection applications. Available in multiple sizes, these plates feature a webbed design for enhanced strength and rigidity while minimizing weight, making them an essential tool for professional machinists and workshop enthusiasts alike. Key Features: High-Quality Material: Made from durable cast iron, stress-relieved for dimensional stability and long-term performance. Webbed Construction: Offers increased structural integrity while maintaining a lightweight profile. Slotted Design: Allows for flexible and secure clamping of workpieces in a variety of setups. Precision Machined: Provides accurate 90° angles for reliable reference and alignment. Versatile Sizes: Choose the size that suits your needs, perfect for lathes, milling machines, and inspection tasks. Available Sizes: Webbed Slotted Angle Plate - 2-1/8" x 3" x 2-1/8" (75 x 55 x 55 mm) Webbed Slotted Angle Plate - 3" x 3-1/2" x 2-1/2" (75 x 88 x 63 mm) Webbed Slotted Angle Plate - 3" x 2" x 2-1/2" (75 x 50 x 63 mm) Applications: Ideal for precision machining, drilling, milling, and inspection tasks. Perfect for clamping small or irregularly shaped workpieces. Provides reliable support in jig setups or as a reference surface. Why Choose Our Angle Plates? Whether you’re working on intricate machining projects or need a reliable tool for inspection, these Webbed Slotted Angle Plates are built to deliver exceptional accuracy and strength. Available in three versatile sizes, they cater to a wide range of workshop requirements. Order today and experience superior quality and performance in every operation!

Read more less

An angle plate is a precision tool used in metalworking and machining. It is a flat plate that is precision ground to have a 90-degree angle between two of its surfaces. Angle Plate - Precision Machined for Metalworking and Inspection Available Sizes: 1" x 1" x 1" 2" x 2" x 2" 3" x 3" x 3" 4" x 4" x 4" Wall Thickness: 1/2" Structure: Solid Webbed Description: Enhance the accuracy and efficiency of your machining and inspection processes with our precision-machined angle plates. Crafted from high-quality materials, these angle plates are designed to provide reliable performance in various industrial applications. Features: Precision Machining: Each angle plate is machined to exacting standards, ensuring accurate 90-degree angles between surfaces for precise positioning and measurement. Solid Webbed Structure: The robust webbed design enhances strength and stability, making these angle plates suitable for heavy-duty use. Uniform Wall Thickness: With a consistent wall thickness of 1/2", these plates offer durability and resistance to deformation under load. Versatile Sizes: Available in four convenient sizes, our angle plates can accommodate a wide range of workpiece dimensions and machining requirements. Applications: Workpiece Positioning: Ideal for holding workpieces in precise positions during machining operations such as milling, drilling, and grinding. Inspection: Use as a reference surface for inspecting parts and ensuring they meet specified tolerances. Assembly: Perfect for assembling jigs, fixtures, and other setups requiring accurate angles and alignments. Work Holding: Securely hold workpieces in vertical or horizontal positions on machine tables or in vises. Benefits: Improved Accuracy: Achieve consistent and accurate results in your machining and inspection tasks. Enhanced Stability: The solid webbed structure provides added strength and stability, reducing the risk of movement or misalignment. Versatile Use: Suitable for a wide range of applications in metalworking and manufacturing environments. Upgrade your workshop with our high-quality angle plates and experience the difference in precision and reliability. Whether you're a professional machinist or a DIY enthusiast, these angle plates are an essential tool for achieving superior results in your projects.

Read more less

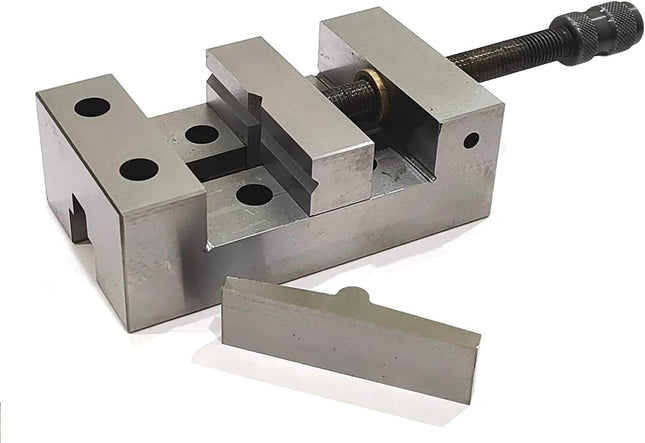

Product Description: Taper Grinding Vice - Hardened & Ground (Jaw Width: 75 mm) This high-quality Taper Grinding Vice is precision-engineered to meet your grinding and machining needs. Designed with versatility in mind, it can be conveniently clamped onto a vertical slide, with pre-milled fixing holes ensuring easy setup and compatibility. Key Features: Material: Hardened & ground steel for durability and precision. Jaw Specifications: Jaw Width: 75 mm Jaw Opening: 55 mm Jaw Depth: 22 mm Dimensions: 135 mm x 75 mm Height (Horizontal): 45 mm Design & Functionality: Vee-Grooves: Vertical and horizontal Vee grooves are machined into the moving jaws, ensuring secure and precise clamping for various workpieces. Taper Clamping: An additional piece is included specifically for taper clamping applications, enhancing versatility. Durability: A gun-metal bush is incorporated for extended life and superior performance. This vice is an ideal choice for achieving precision in grinding, tapering, and other machining tasks. Perfect for professionals seeking reliability and efficiency in their workshop tools.

Read more less

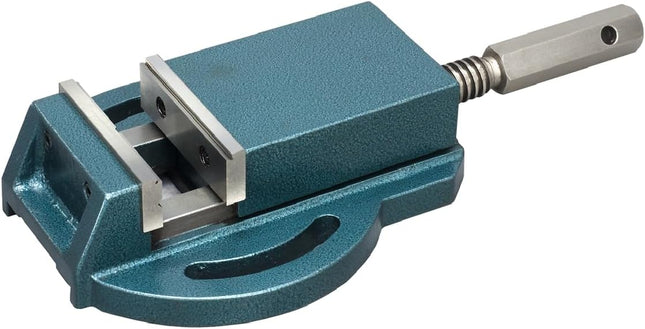

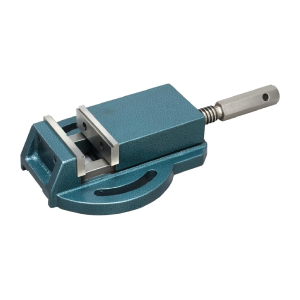

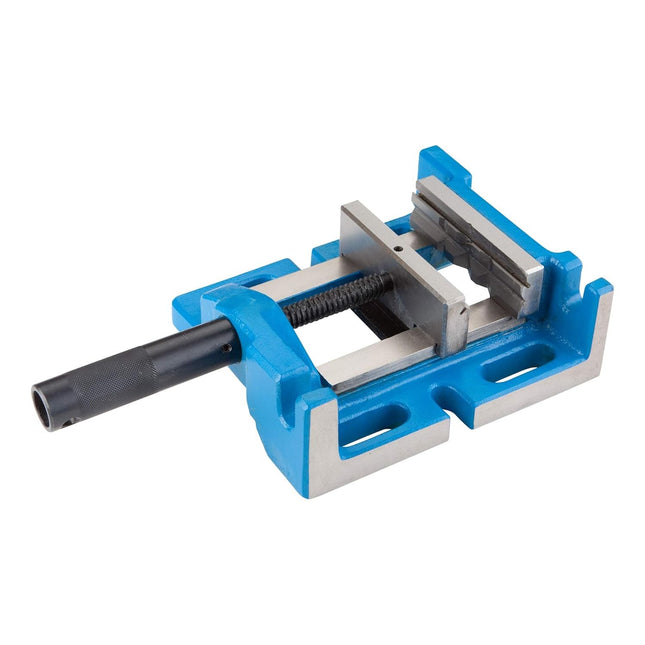

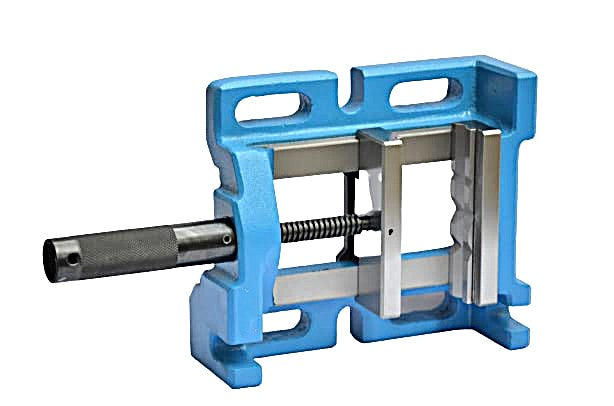

A drill press vice is an essential tool used in conjunction with a drill press machine to securely hold workpieces in place during drilling, milling, or other machining operations. Its primary purpose is to provide stability and precision by firmly clamping the workpiece in position, allowing for accurate and repeatable drilling or milling. The vice typically features adjustable jaws that can accommodate various sizes and shapes of workpieces, ensuring versatility in its application. By securely holding the workpiece, the drill press vice enhances safety for the operator and improves the overall quality and precision of the machined parts. Drill Press Vice with Tilting Jaw, featuring a 4" jaw width (100 mm), broken down into points: Design: The drill press vice is constructed with a durable and robust design, featuring high-quality materials such as cast iron or steel for long-lasting performance and reliability. Tools Specifications: Measures 4" wide x 1 1/4" high, maximum capacity is 3 1/4" and 2 1/2" tall. Jaw width 4" (100 mm). Jaw Opening 3-1/8" (80 mm). Jaw Depth 1-3/16" (30 mm). Tilting Jaw: One of its key features is the tilting jaw mechanism, which allows for precise angular adjustments of the workpiece. This feature is particularly useful for creating angled holes or performing intricate machining tasks. Adjustable Clamping: The vice is equipped with adjustable clamping mechanisms, typically operated using a handle or screw, allowing for quick and easy securing of the workpiece in place. Stability and Precision: With its sturdy construction and secure clamping mechanism, the drill press vice ensures stability and precision during drilling or milling operations, minimizing the risk of errors and enhancing the overall quality of the finished workpieces. Versatility: The vice is designed to be versatile, capable of accommodating a wide range of drilling and milling applications across various materials such as wood, metal, plastic, and more. Compatibility: It is compatible with most standard drill press machines, offering easy installation and integration into existing workshop setups. Safety Features: The vice may incorporate safety features such as protective guards or non-slip surfaces to prevent accidents and ensure operator safety during use. Maintenance: While requiring minimal maintenance, the vice may benefit from occasional cleaning and lubrication to ensure smooth operation and longevity. Manufacturer's Warranty: Depending on the brand and model, the drill press vice may come with a manufacturer's warranty, providing added assurance of quality and customer support. SKU JAW WIDTH JAW OPENING JAW DEPTH 30-DV-201 3” 75 MM 2-1/2” 64 MM 1” 25 MM 30-DV-202 4” 100 MM 3-1/8” 80 MM 1-3/16” 30 MM   Overall, the Drill Press Vice with Tilting Jaw offers precision, stability, and versatility, making it an indispensable tool for machining tasks in workshops, garages, and industrial settings. {Internal Reference: HM)
