Angle Plates & Irons

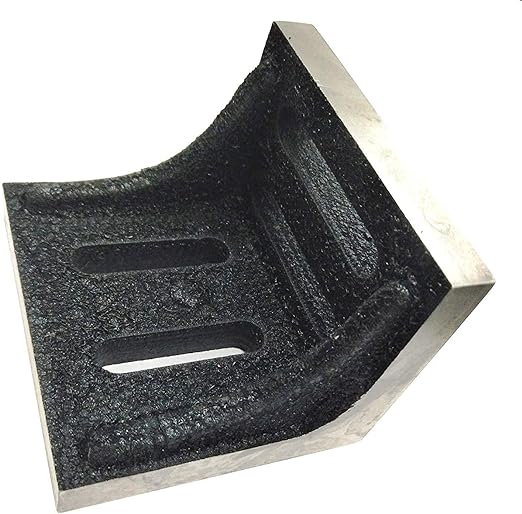

An angle plate is a precision tool used in metalworking, machining, and engineering for holding workpieces at a precise angle, usually 90 degrees, to ensure accurate machining. It's commonly used to hold parts or components during milling, drilling, or welding operations. Key Features: High-Grade Cast Iron Construction: Crafted from premium quality cast iron, this angle plate offers exceptional durability and wear resistance, ensuring consistent performance in demanding applications. Fully Stress Relieved: The cast iron undergoes a rigorous stress-relief process to eliminate internal stresses, providing long-term stability and preventing deformation during use. Precision Ground Surfaces: All working surfaces are precision ground to ensure accurate angles and a perfectly flat base, critical for high-precision machining, drilling, and inspection tasks. Dimensions: The angle plate measures 110 mm x 89 mm x 75 mm, making it suitable for a wide range of machining and inspection applications. 5 Precision Slots: Equipped with a total of 5 slots with a width of 9.5 mm, this plate offers versatile clamping options for securely holding various workpieces. The slots are precisely machined to facilitate easy attachment of clamps and other fixtures. Corrosion Resistant Finish: The cast iron surface is treated for enhanced resistance against corrosion, ensuring the longevity of the angle plate even in harsh working environments.

Read more less

An angle plate is a precision tool used in metalworking, machining, and engineering for holding workpieces at a precise angle, usually 90 degrees, to ensure accurate machining. It's commonly used to hold parts or components during milling, drilling, or welding operations. Key Features: High-Quality Material: Made from graded cast iron, these angle plates offer exceptional stability and wear resistance, making them ideal for precision engineering tasks. Stress Relieved: Each angle plate undergoes a stress-relief process to eliminate internal stresses, ensuring dimensional stability and reducing the risk of deformation over time. Vee Slot Design: The Vee slots are precision-machined for holding cylindrical workpieces securely, providing accurate alignment during machining, drilling, or inspection. Slotted & T-Slotted: Features slotted and T-slotted surfaces, offering versatile clamping options for various workpiece sizes and shapes. The slots are precisely aligned for easy attachment of clamps and other fixtures. Precision Machined Surfaces: The working surfaces are ground to close tolerances, ensuring accurate angles and flatness, crucial for high-precision machining and inspection tasks. Corrosion Resistant: The cast iron surface is treated for enhanced resistance against corrosion, ensuring longevity and reliable performance in various working conditions. Versatile Applications: Ideal for use in tool rooms, inspection departments, and workshops, these angle plates are perfect for holding, positioning, and inspecting workpieces at a precise angle Product Code      Size (In inches)      Size (In mm)     30-AP-802  3" x 3" x 5"  75 x 75 x 125 mm 30-AP-804  4" x 4" x 6"  100 x 100 x 150 mm  30-AP-806  5" x 5" x 7"  125 x 125 x 175 mm 30-AP-808  6" x 6" x 8"  150 x 150 x 200 mm

Read more less

An angle plate is a precision tool used in metalworking and machining. It is a flat plate that is precision ground to have a 90-degree angle between two of its surfaces. Angle Plate - Precision Machined for Metalworking and Inspection Available Sizes: 1" x 1" x 1" 2" x 2" x 2" 3" x 3" x 3" 4" x 4" x 4" Wall Thickness: 1/2" Structure: Solid Webbed Description: Enhance the accuracy and efficiency of your machining and inspection processes with our precision-machined angle plates. Crafted from high-quality materials, these angle plates are designed to provide reliable performance in various industrial applications. Features: Precision Machining: Each angle plate is machined to exacting standards, ensuring accurate 90-degree angles between surfaces for precise positioning and measurement. Solid Webbed Structure: The robust webbed design enhances strength and stability, making these angle plates suitable for heavy-duty use. Uniform Wall Thickness: With a consistent wall thickness of 1/2", these plates offer durability and resistance to deformation under load. Versatile Sizes: Available in four convenient sizes, our angle plates can accommodate a wide range of workpiece dimensions and machining requirements. Applications: Workpiece Positioning: Ideal for holding workpieces in precise positions during machining operations such as milling, drilling, and grinding. Inspection: Use as a reference surface for inspecting parts and ensuring they meet specified tolerances. Assembly: Perfect for assembling jigs, fixtures, and other setups requiring accurate angles and alignments. Work Holding: Securely hold workpieces in vertical or horizontal positions on machine tables or in vises. Benefits: Improved Accuracy: Achieve consistent and accurate results in your machining and inspection tasks. Enhanced Stability: The solid webbed structure provides added strength and stability, reducing the risk of movement or misalignment. Versatile Use: Suitable for a wide range of applications in metalworking and manufacturing environments. Upgrade your workshop with our high-quality angle plates and experience the difference in precision and reliability. Whether you're a professional machinist or a DIY enthusiast, these angle plates are an essential tool for achieving superior results in your projects.

Read more less

Used For:  An angle plate is a work holding device used as a fixture in metalworking. A Z-type Angle plate is used to hold vertical slides square to the table during marking out operations. Versatile Mounting Solution: Specifically designed for mounting vertical slides onto machine tools such as milling machines and lathes, this Z-type angle plate provides a versatile and sturdy platform for various machining operations. Precision Machining: Crafted from high-quality materials with precision machining, ensuring exceptional accuracy and stability during vertical slide mounting, allowing for precise machining of workpieces with minimal deflection. Optimal Design: The Z-type configuration offers optimal stability and rigidity, minimizing vibration and ensuring consistent machining performance, even during heavy-duty operations. Secure Fixation: Features secure mounting holes and clamping surfaces, allowing for easy and secure attachment of the vertical slide to the angle plate, enhancing operator safety and workflow efficiency. Adjustable Angle: Incorporates adjustable angle features, enabling operators to set the desired inclination for the vertical slide, facilitating customized machining setups and accommodating various machining requirements and workpiece geometries. Durable Construction: Built to withstand the rigors of machining environments, the angle plate is constructed from durable materials, ensuring long-term reliability and performance under demanding conditions. Enhanced Stability: Equipped with robust mounting points and reinforced structures, the angle plate provides enhanced stability and support for the vertical slide, minimizing movement and ensuring precise machining results. Efficient Workflow: Designed for quick and easy installation, the angle plate streamlines workflow processes, allowing for swift setup and adjustment of the vertical slide, minimizing downtime and maximizing machining productivity. Wide Range of Applications: Suitable for a variety of machining applications, including milling, drilling, and grinding, across diverse industries such as automotive, aerospace, and tool manufacturing, offering versatility for different machining needs. Compatibility: Compatible with a range of vertical slides and machine tools, ensuring compatibility and ease of integration into existing machining setups, making it an ideal solution for both small-scale workshops and industrial manufacturing facilities. Quality Assurance: Manufactured to stringent quality standards and subjected to thorough inspection processes, the angle plate guarantees superior quality, reliability, and performance, meeting the stringent demands of precision machining applications {Internal Reference: HM}

Read more less

The Cast Iron T-Slotted Webbed Angle Plate, measuring 110 x 105 x 60 mm, is a robust and precision-engineered tool designed for versatile clamping and fixturing applications in machining operations. Crafted from high-grade cast iron, this angle plate undergoes full stress relief to ensure exceptional stability and durability over its operational lifespan. Key Features: Material: High Grade Cast Iron, ensuring strength and stability. Dimensions: 110 mm (width) x 105 mm (height) x 60 mm (thickness). Weight: Solid construction yet manageable weight for practical handling. Wall Thickness: T-Slotted Wall: 18 mm thickness, providing ample strength for clamping and securing workpieces. Drilled Base: 12 mm thickness, accommodating the 9.5 mm diameter drills for secure anchoring. T-Slot Design: Base T-Slot: 17 mm wide, facilitating easy attachment to work tables or machine beds. Top Slot: 10 mm wide at the top, allowing flexible positioning and securing of components. Depth: 6 mm, ensuring compatibility with standard T-slot nuts and bolts. Base Gib: Featuring a 9 mm base gib, enhancing stability and precision during use. Usage: This angle plate is indispensable in machining setups, offering a reliable platform for accurate clamping, alignment, and fixture mounting. The T-slots on the base and top provide versatile options for securing workpieces and tooling securely in place, accommodating various machining requirements. Applications: Ideal for milling, drilling, and grinding operations, where precise positioning and secure clamping are essential. The robust construction and stress-relieved casting ensure minimal distortion under load, maintaining accuracy and reliability in demanding industrial environments. Conclusion: The Cast Iron T-Slotted Webbed Angle Plate 110 x 105 x 60 mm combines durable construction with precise engineering, making it a trusted choice for machinists and fabricators seeking dependable performance in workholding and fixture applications. Its solid design and thoughtful features contribute to improved efficiency and accuracy in machining tasks. (Internal Ref:-BA)

Read more less
