Description

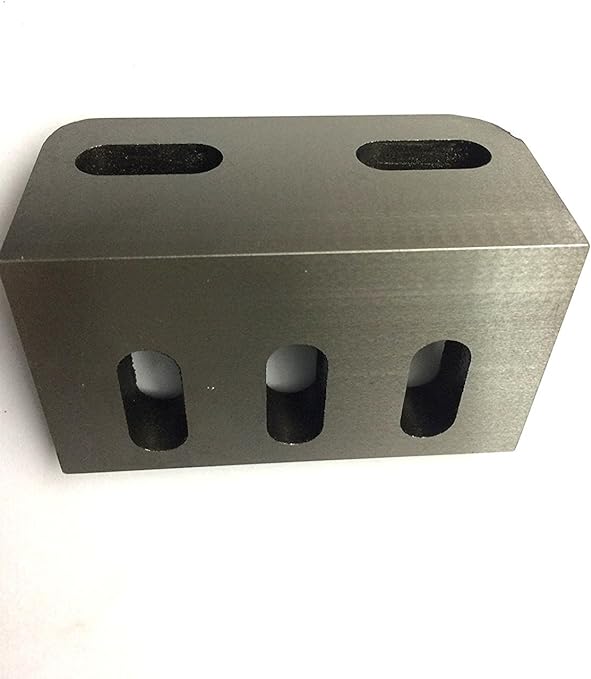

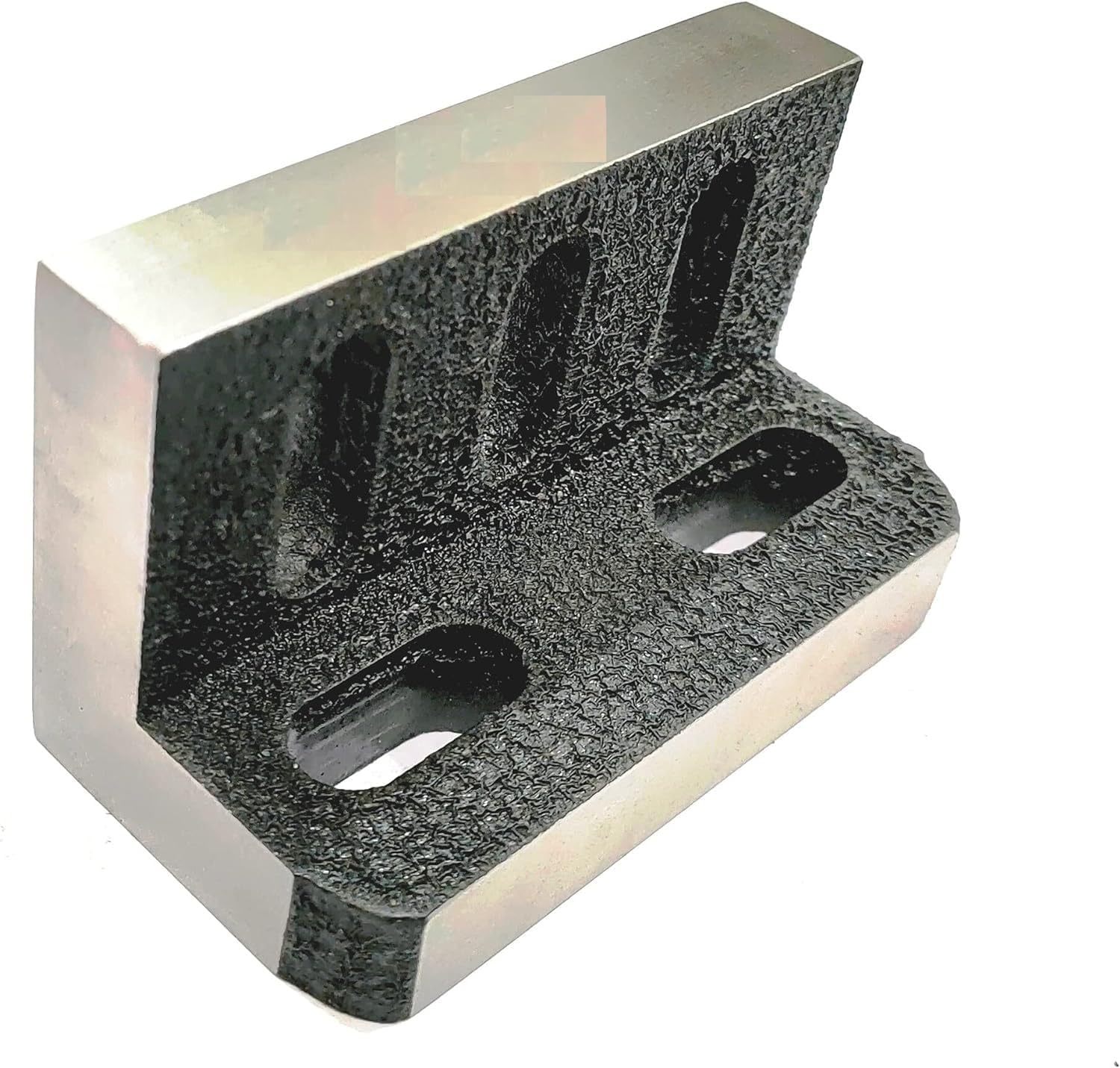

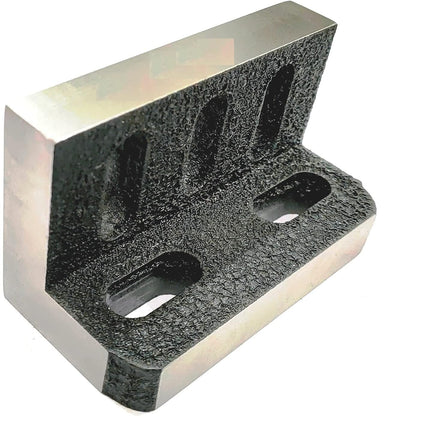

An angle plate is a precision tool commonly used in machining, metalworking, and engineering applications. It serves as a reference for holding and positioning workpieces at a precise angle, typically 90 degrees.
- Manufactured from high-grade cast iron material, meticulously stress relieved to ensure long-term stability during operation.

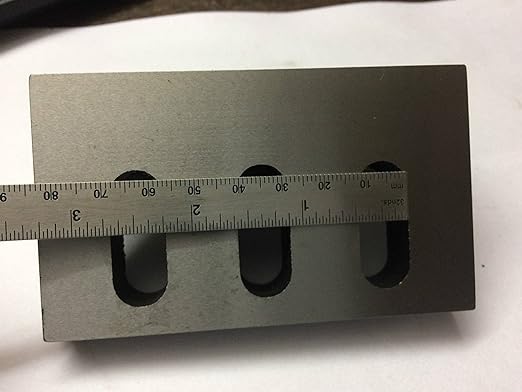

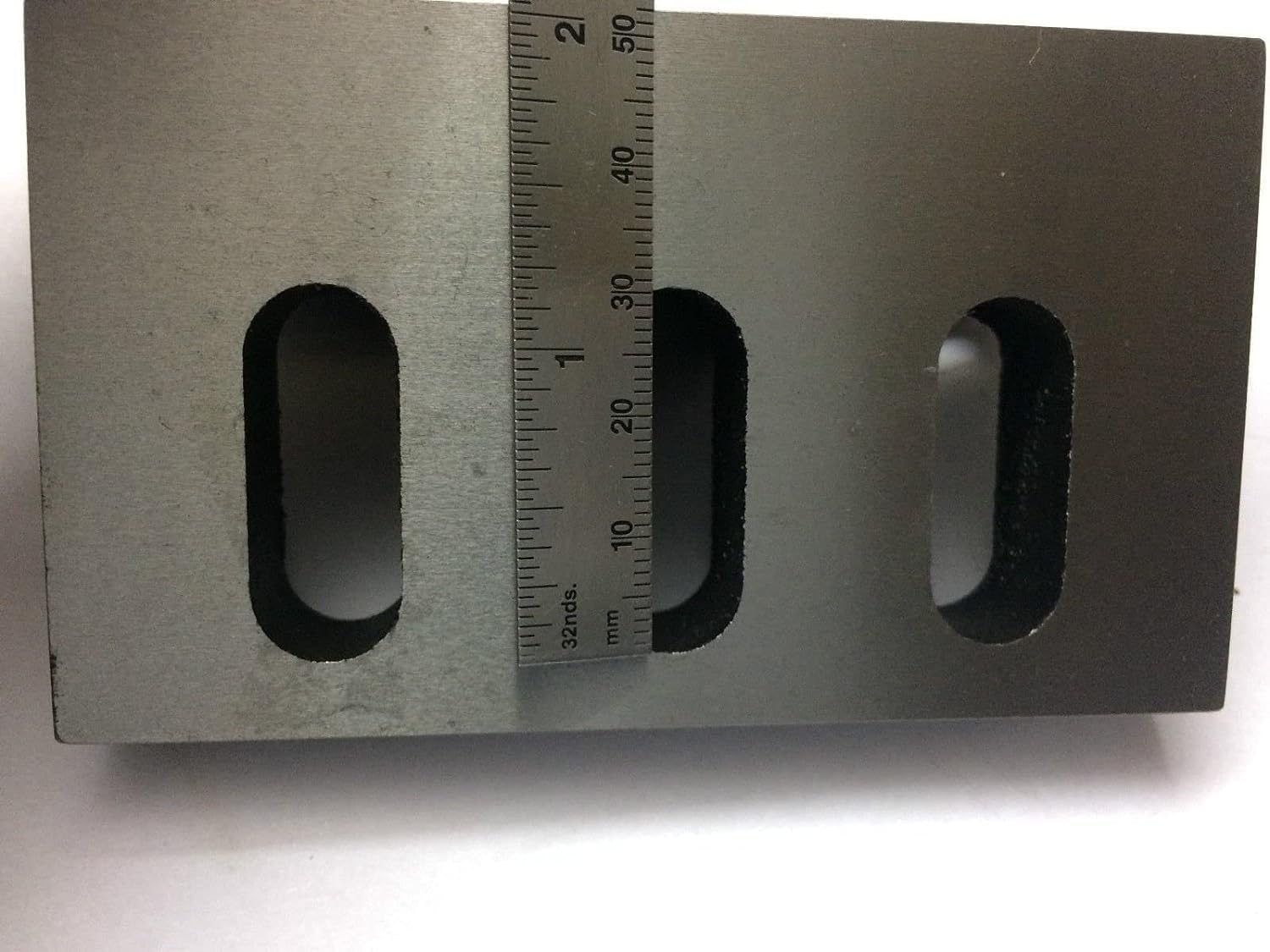

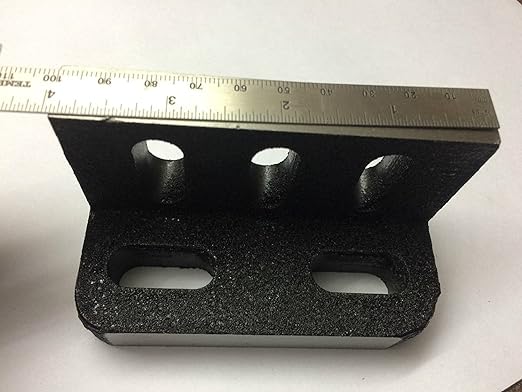

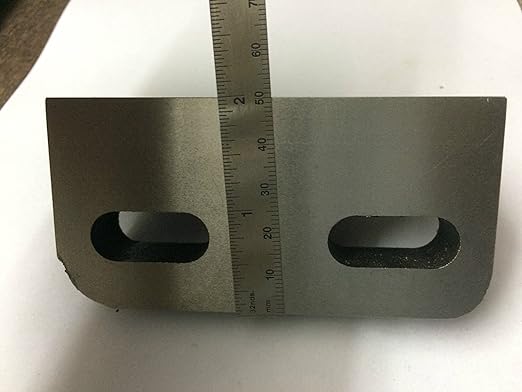

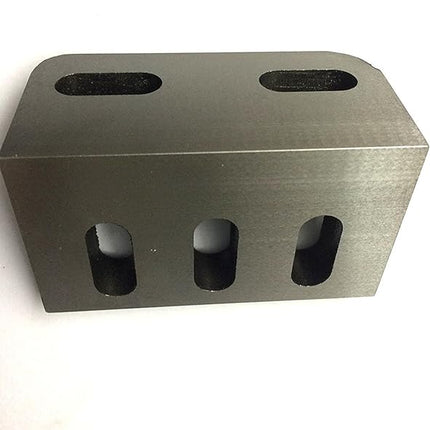

- Dimensions: 100 mm (length) x 50 mm (width) x 58 mm (height).

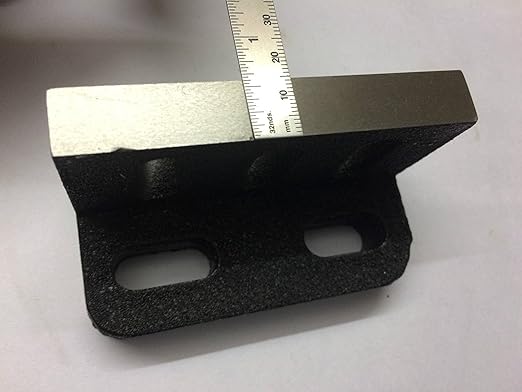

- Features a sturdy 15 mm thick cast iron construction, stress relieved for enhanced durability.

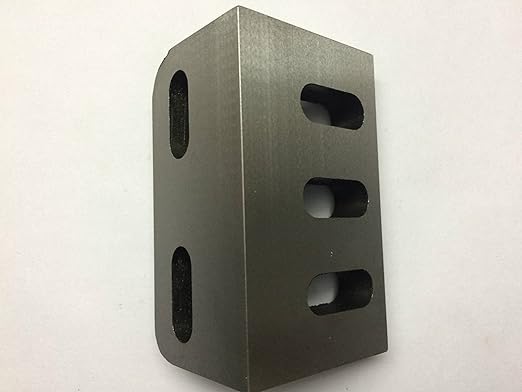

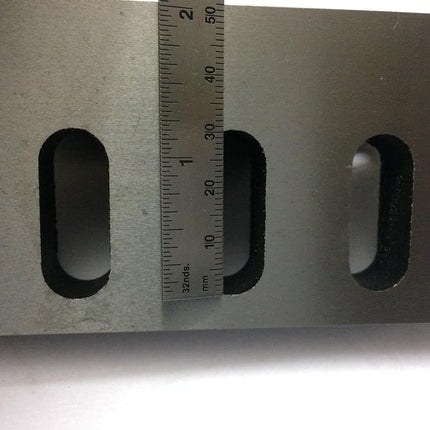

- Precision ground for superior quality, offering three vertical surfaces and two slots each measuring 10 mm in width.
- Machine Setup: Facilitates accurate alignment and setup of workpieces on milling machines, drill presses, and other machining equipment.
- Fixture Manufacturing: Serves as a base for creating custom fixtures and jigs, providing a stable platform for securely holding workpieces during machining or assembly processes.
- Precision Grinding: Supports the precise grinding of workpieces at specific angles, ensuring uniformity and accuracy in the finished products.
