All-in-One Multifunction Drill Tool
(Drilling, External Turning, Facing, and Internal Boring Operations)Insert Type: QCMT080204 – Special Fit
Overview:
The All-in-One Multifunction Drill is a highly versatile machining tool designed to consolidate multiple operations—drilling, external turning, internal boring, and facing—into a single setup. This multi-functional capability increases productivity, reduces cycle time, and enhances precision by minimizing tool changes and re-indexing.
Key Features:
Multi-Functional Capability:
Drilling: Delivers efficient penetration with excellent chip evacuation.
External Turning: Supports precision turning operations on outer diameters.
Facing: Allows smooth surface finishing of workpiece faces.
Internal Boring: Capable of enlarging and finishing pre-existing holes with high accuracy.
Special Insert Compatibility – QCMT080204:
Engineered to work exclusively with QCMT080204 inserts.
Ensures optimal cutting geometry and chip control specific to this tool’s configuration.
Through Coolant Design:
The tool body incorporates internal coolant channels.
Ensures direct coolant delivery to the cutting zone for improved tool life and thermal management.
Aids in chip evacuation, especially during deep-hole drilling or boring.
High Rigidity & Accuracy:
Manufactured from premium tool steel for excellent rigidity.
Designed to reduce vibrations and deflection during high-speed machining.
Time & Cost Efficiency:
Combines multiple operations into one tool—reducing tool inventory and machining setup times.
Especially suitable for CNC turning centers and multitasking machines.
Technical Specifications:
Parameter
Details
Insert Type
QCMT080204 TK4515
Operations Supported
Drilling, Turning, Facing, Boring
Coolant Supply
Internal Through Coolant
Tool Material
High-strength alloy steel
Shank Type
Cylindrical or customized based on holder system
Applicable Machines
CNC lathes, turn-mill centers, multitasking machines
Ideal For
Batch production, complex parts, and setups requiring high flexibility
Advantages:
Reduces tool change and indexing time
Improves machining accuracy by limiting repositioning
Saves on tooling costs and machine downtime
Simplifies toolpath programming for multi-operation cycles

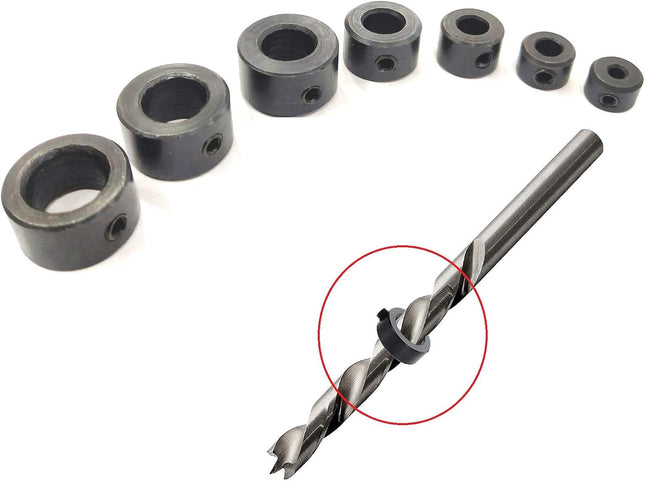

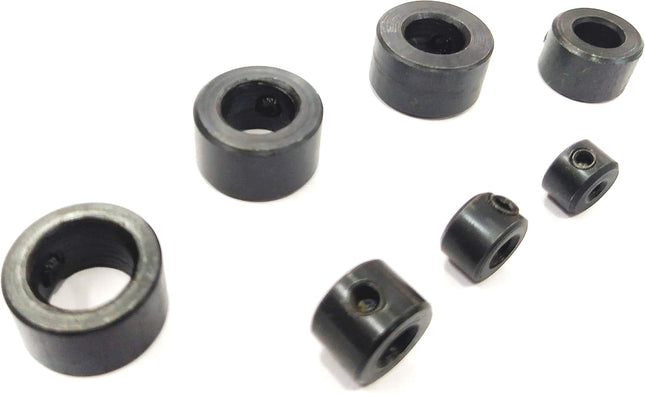

These Drill Stop Bit Collar Set will quickly and easily help you drill holes to exact depths and are ideal for production work and repeated drilling by positively locking anywhere along the bit.
Assorted 7 Sizes in a Kit Includes Metric Size stoppers for drill sizes of 3, 5, 6,8,10,11 and 12 mm & Imperial size of 1/16", 3/16”, 1/4”, 5/16”, 3/8”, 7/16” and 1/2-Inch Supplied with an Allen Key Wrench an Allen Key Wrench
The Durable Alloy Steel Setscrew Type Collar will stay sturdy when tightened and is specially designed not to damage the bits.
With the Setscrew tight the collar will remain securely in place exactly where you put them and will accurately control the depth of the hole you are drilling.
Bit Limit Rings are used as a Shaft Collar on machinery and can be used on twist drill bits or brad point drills or any type of bit to prevent excessive drill bit penetration and for any job that uses a bit and needs precision.

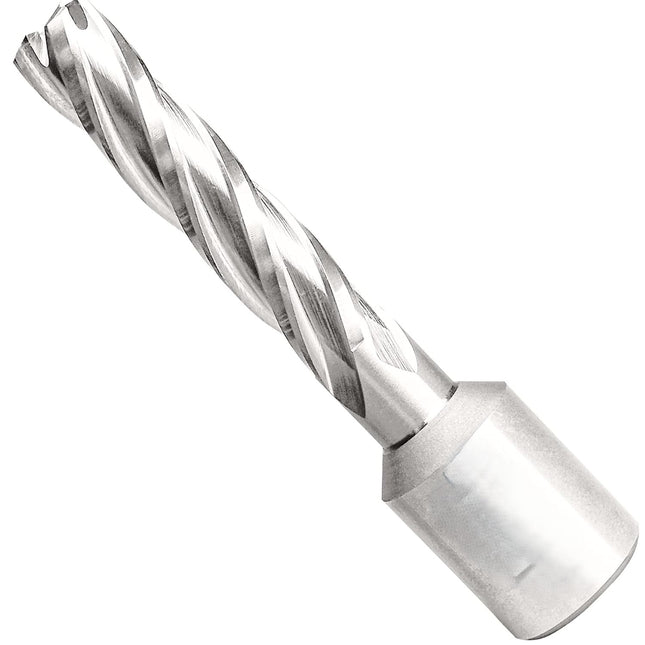

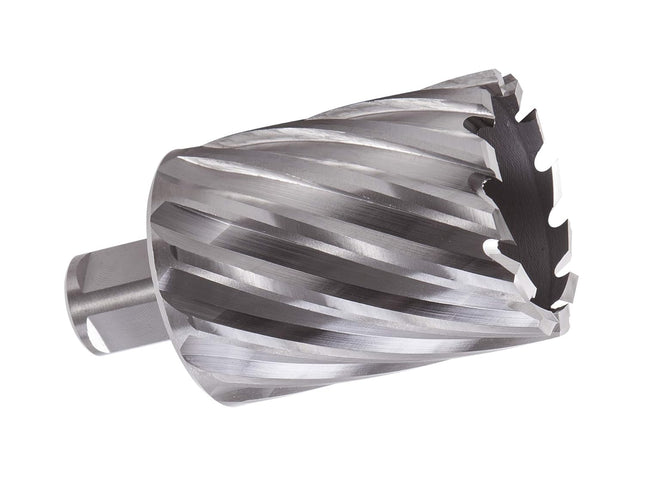

Use of product- An annular cutter is a tool used to make clean and precise holes in metal. It's like a specialized drill bit, but instead of removing material throughout the hole's length, it only cuts around the edge, leaving a solid center. This results in faster and more efficient hole-making, especially in metals like steel. It's commonly used in metalworking industries for tasks like installing pipes, cables, or creating openings for bolts.
Superior Cutting Efficiency: Engineered for exceptional performance, our annular cutter set effortlessly drills through metal with precision and speed, reducing cutting times and boosting productivity.
Durable Construction: Crafted from high grade alloy steel for durability and longevity, our annular cutters withstand the rigors of heavy-duty use, ensuring consistent performance even in demanding applications.
Precision Machining: Each cutter is precision-ground to exacting standards, resulting in clean, accurate holes with minimal burrs or distortion, saving you time and effort in post-processing work.
Versatile Compatibility: Compatible with most magnetic drill presses and annular cutting machines, our cutter set offers versatility and convenience, making it suitable for a wide range of metalworking tasks.
Optimized Design: Featuring a unique geometry and cutting edge design, our annular cutters deliver optimal chip evacuation and reduced friction, resulting in smoother drilling and extended tool life.
Comprehensive Set: Our set includes a range of popular sizes, ensuring you have the right cutter for various hole diameters, eliminating the need for multiple tool purchases and streamlining your workflow.
Convenient Storage Case: Keep your cutters organized and easily accessible with the included storage case, featuring labeled compartments for quick identification and hassle-free transport to job sites.
Tool Specifications:-
Holder dimensions: Available in Morse Taper MT2, MT3 Teng Style.
Holder body diameter: 34 mm, ID to hold cutter's shank 19.05 mm, Depth for holding cutter's shank : 25 mm, 2 x grub screw @ 90 degree for clamping of cutter's shank

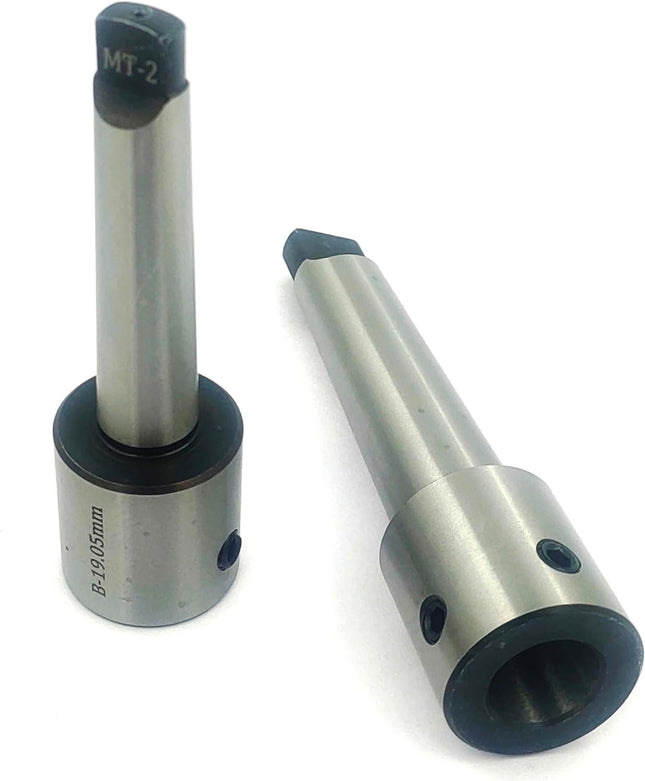

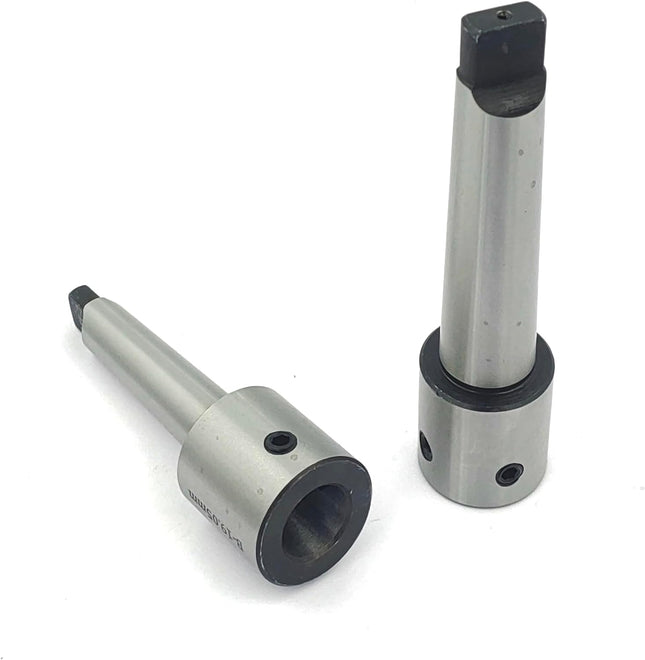

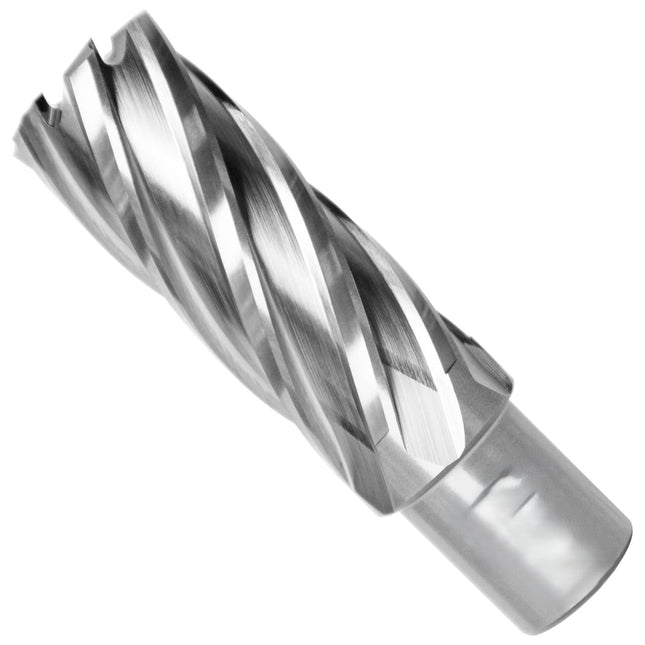

Annular cutter 1/2" shank tool steel holder (Rota broaches) with lock screw- Accepts/ suit 19 mm shank rota broaches
An annular cutter is a tool used to make clean and precise holes in metal. It's like a specialized drill bit, but instead of removing material throughout the hole's length, it only cuts around the edge, leaving a solid center. This results in faster and more efficient hole-making, especially in metals like steel. It's commonly used in metalworking industries for tasks like installing pipes, cables, or creating openings for bolts.
Superior Cutting Efficiency: Engineered for exceptional performance, our annular cutter set effortlessly drills through metal with precision and speed, reducing cutting times and boosting productivity.
Durable Construction: Crafted from high grade alloy steel for durability and longevity, our annular cutters withstand the rigors of heavy-duty use, ensuring consistent performance even in demanding applications.
Precision Machining: Each cutter is precision-ground to exacting standards, resulting in clean, accurate holes with minimal burrs or distortion, saving you time and effort in post-processing work.
Versatile Compatibility: Compatible with most magnetic drill presses and annular cutting machines, our cutter set offers versatility and convenience, making it suitable for a wide range of metalworking tasks.
Optimized Design: Featuring a unique geometry and cutting edge design, our annular cutters deliver optimal chip evacuation and reduced friction, resulting in smoother drilling and extended tool life.
Comprehensive Set: Our set includes a range of popular sizes, ensuring you have the right cutter for various hole diameters, eliminating the need for multiple tool purchases and streamlining your workflow.
Convenient Storage Case: Keep your cutters organized and easily accessible with the included storage case, featuring labeled compartments for quick identification and hassle-free transport to job sites.
Tool Specifications:-

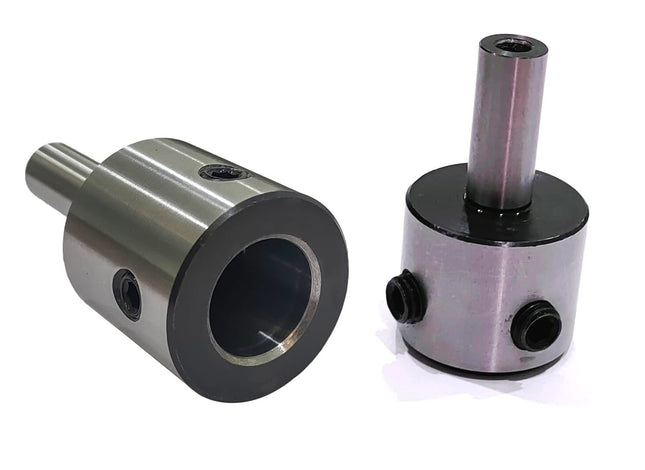

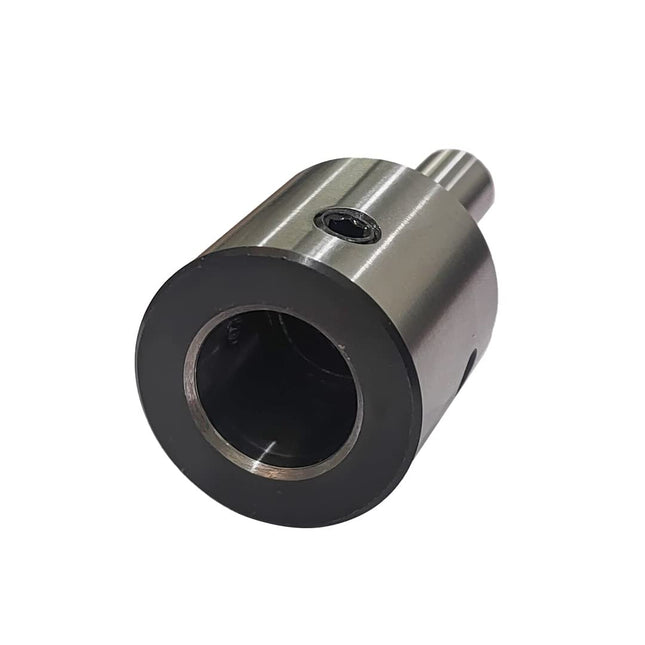

Design 1
Holder dimensions: Shank 12.5 mm (*through bore 7 mm) , OAL: 62 mm, Holder body diameter: 36 mm,
ID to hold cutter's shank 19.05 mm, Depth for holding cutter's hank : 25 mm, 2 x grub screw @ 90 degree for clamping of cutter's shank
Design 2
Holder dimensions: Shank 12.5 mm, OAL: 75mm, Holder body diameter: 34 mm,
ID to hold cutter's shank 19.05 mm, Depth for holding cutter's hank : 25 mm, 2 x grub screw @ 90 degree for clamping of cutter's shank
