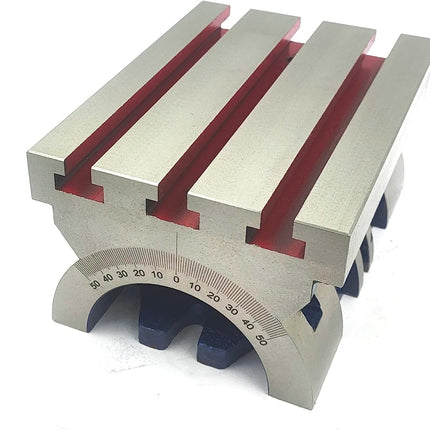

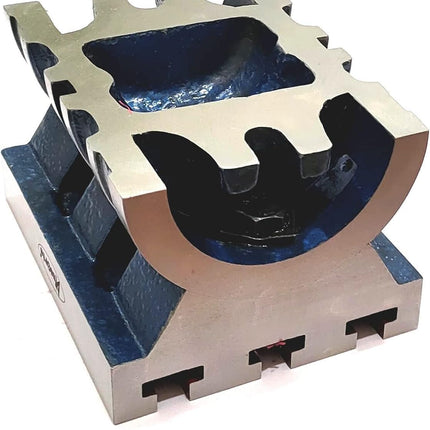

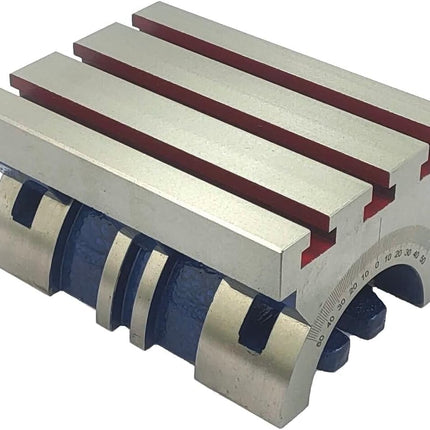

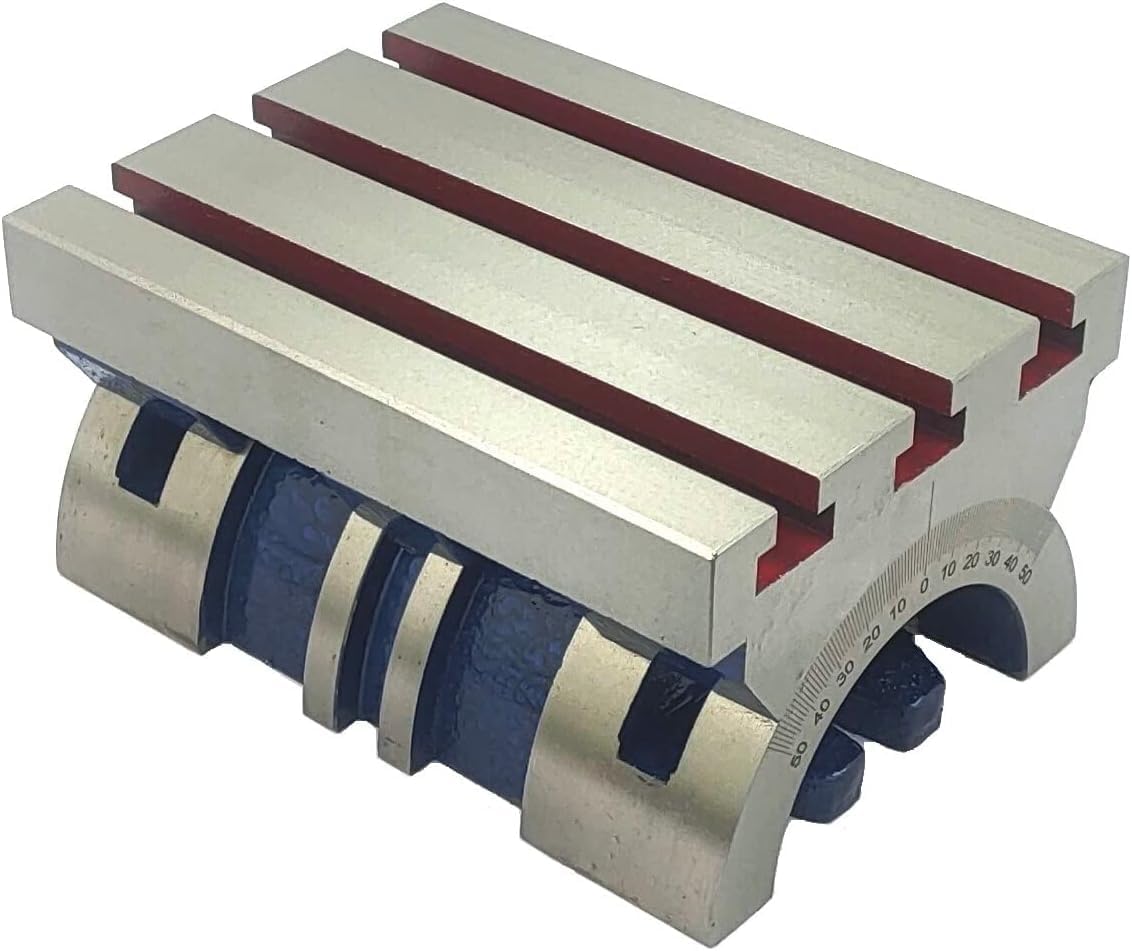

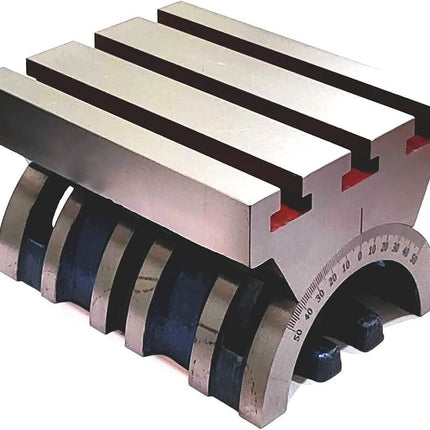

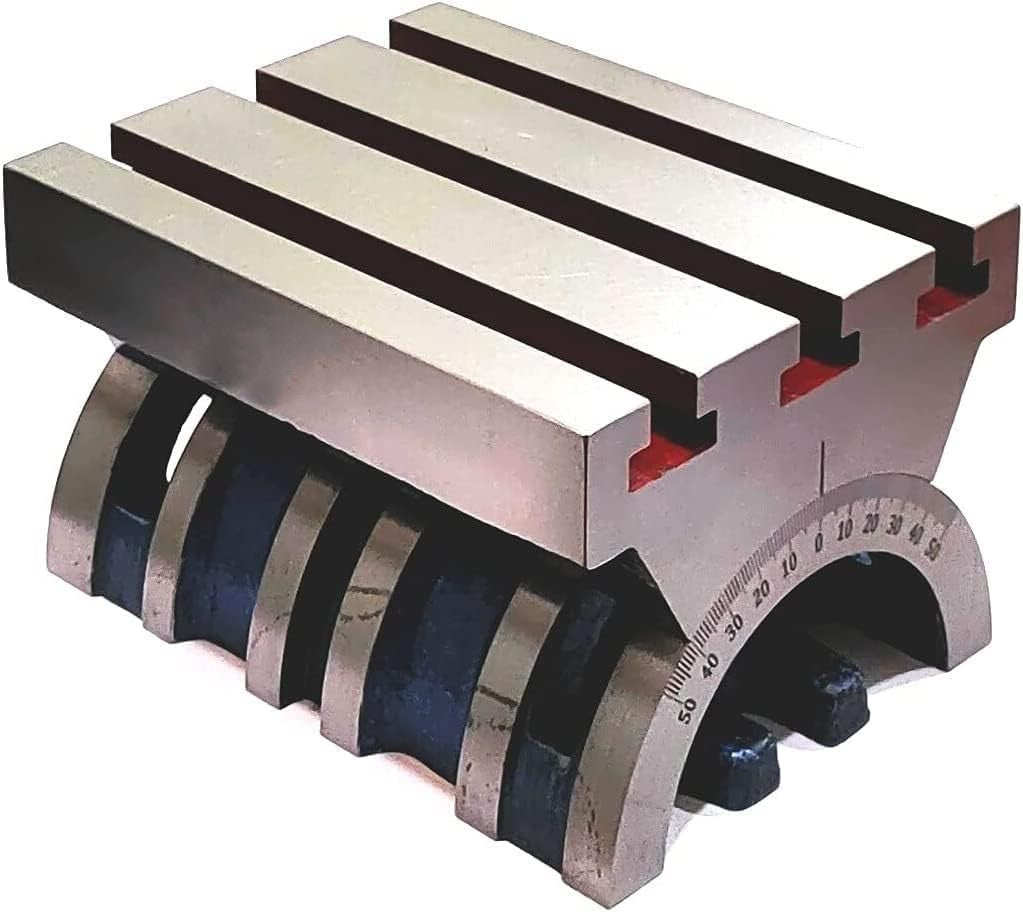

High-Precision Tilting Table for Milling Machines
Use of product- A tilting table for a milling machine is an accessory that provides angular positioning for workpieces. It is used to tilt the workpiece to a specific angle, allowing for machining operations that require angled cuts, such as beveling, chamfering, and creating complex geometric shapes.
Enhance your machining capabilities with our High-Precision Tilting Table, designed to deliver superior accuracy and versatility for your milling operations.
Key Features:
-
Adjustable Angle Range: Achieve precise angular positioning with a tilting range of 0° to 45°, perfect for beveling, chamfering, and complex angle cuts.
-

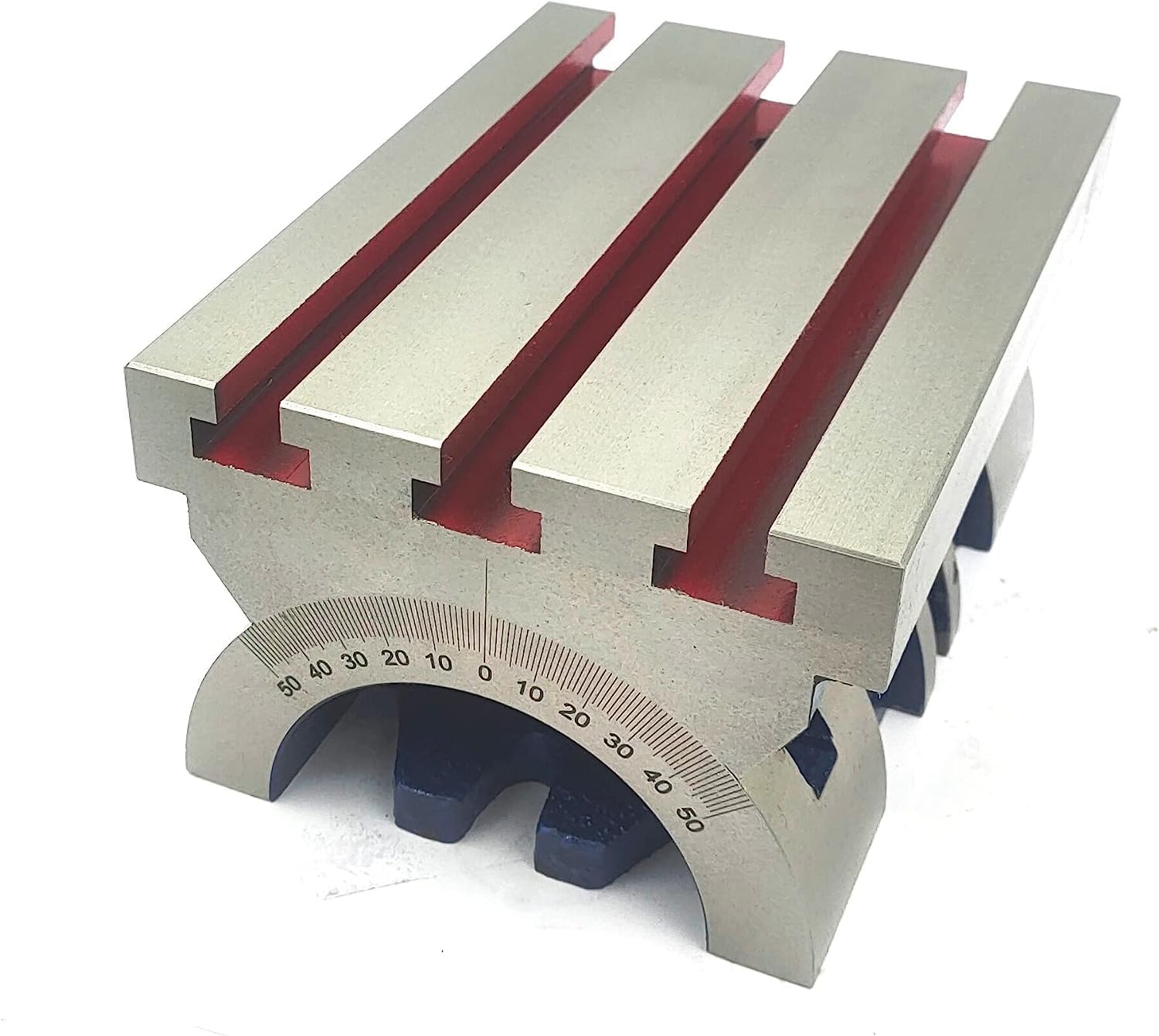

Precision Scale: Features a clearly marked scale and adjustable stops for easy and accurate angle settings, ensuring repeatable precision.
-

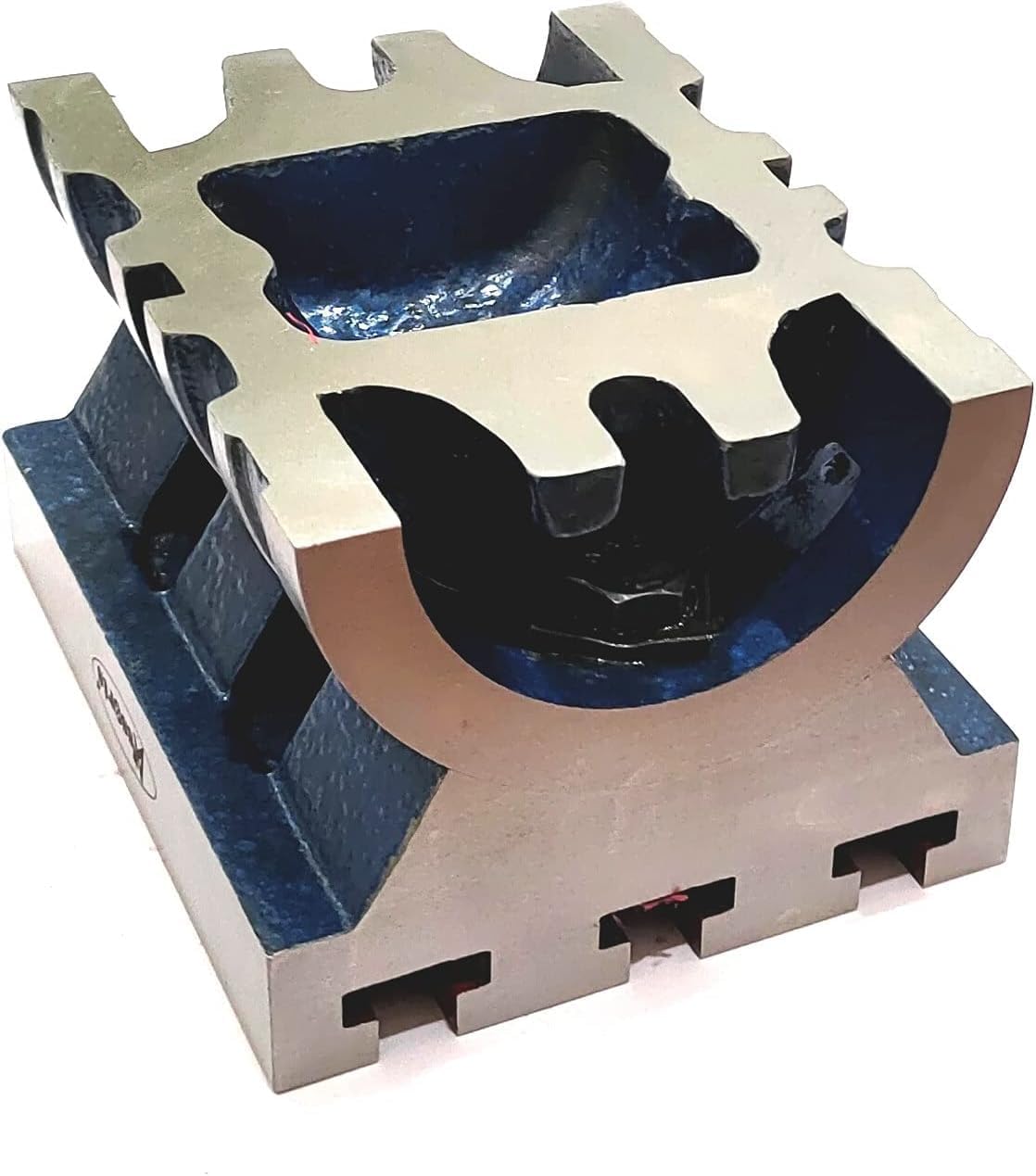

Sturdy Construction: Built from high-quality cast iron, this tilting table provides exceptional durability and stability, reducing vibrations and enhancing machining accuracy.
-
Smooth Operation: Equipped with precision-ground ways and a high-quality lead screw for smooth and effortless angle adjustments.
-
Versatile Mounting: Compatible with most milling machines, the tilting table includes multiple mounting slots for secure and flexible attachment of workpieces.
-
Enhanced Productivity: Reduces the need for multiple setups, saving time and increasing efficiency in your machining processes.
Applications:
- Ideal for creating angled cuts and complex geometric shapes.
- Perfect for precision engineering tasks in aerospace, automotive, and metalworking industries.
- Suitable for both professional workshops and hobbyist machinists seeking to expand their capabilities.
Specifications:
-
Material: High-quality tool steel
-
Tilting Range: 45- 0-45 Degrees
-

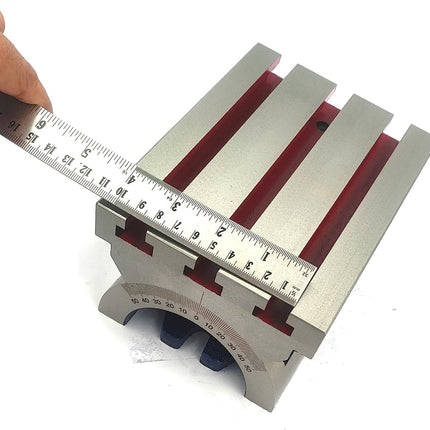

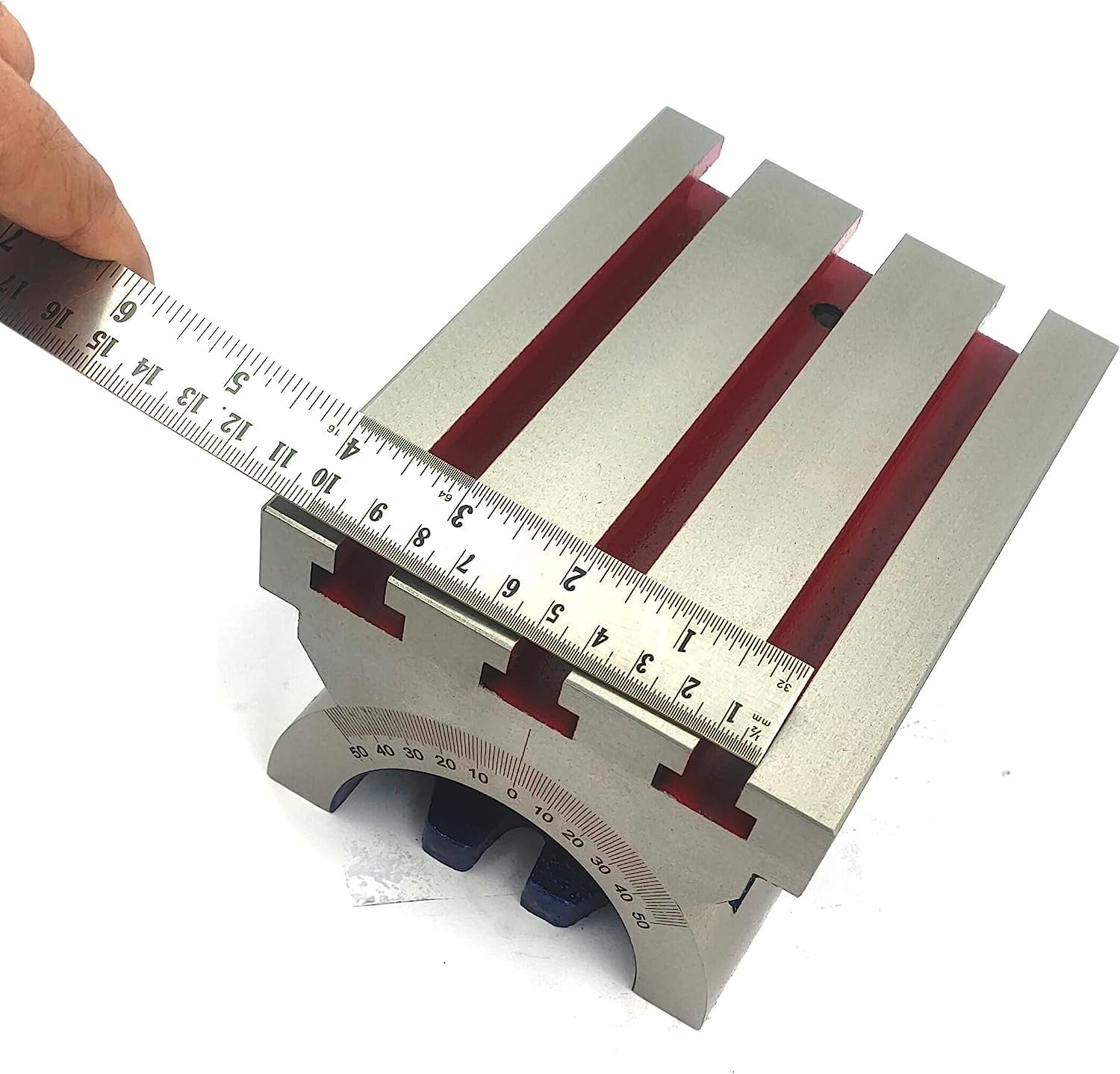

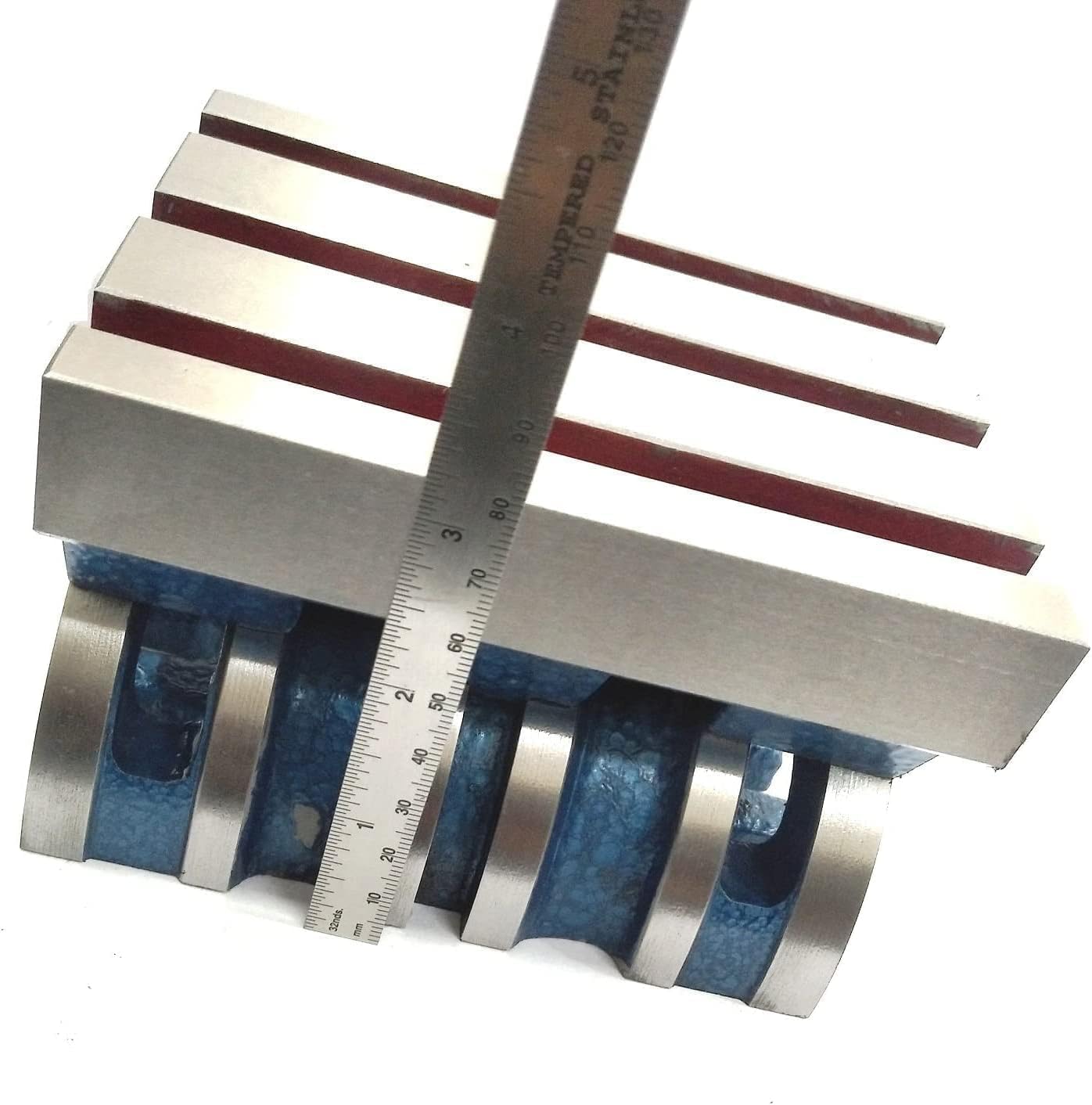

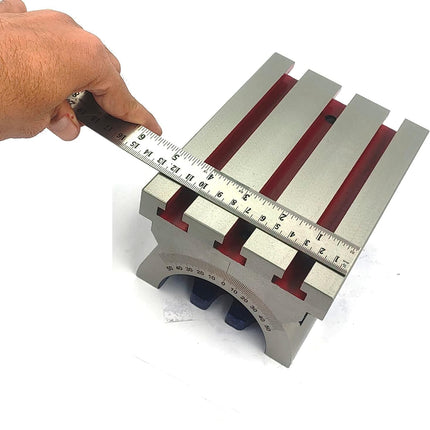

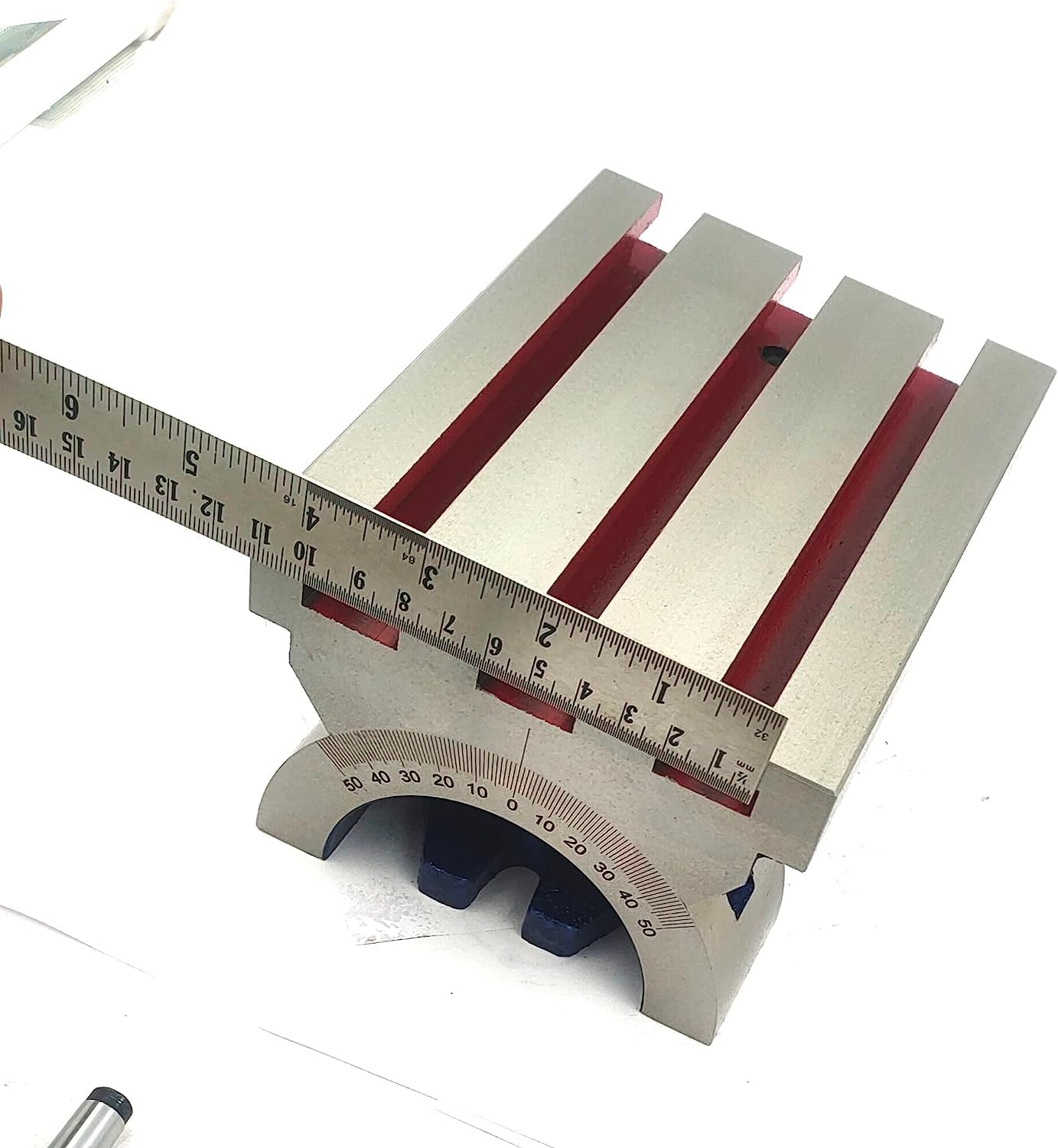

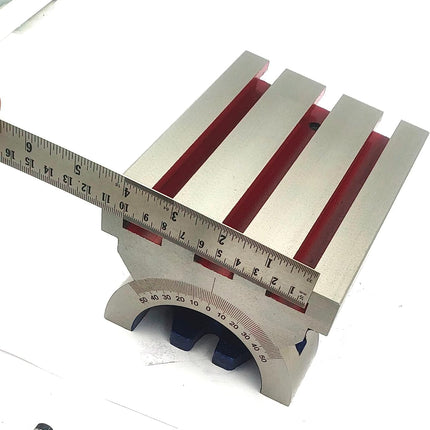

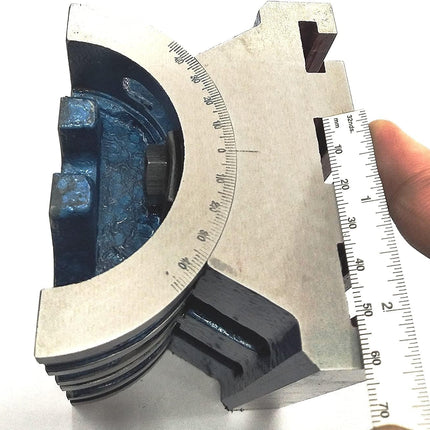

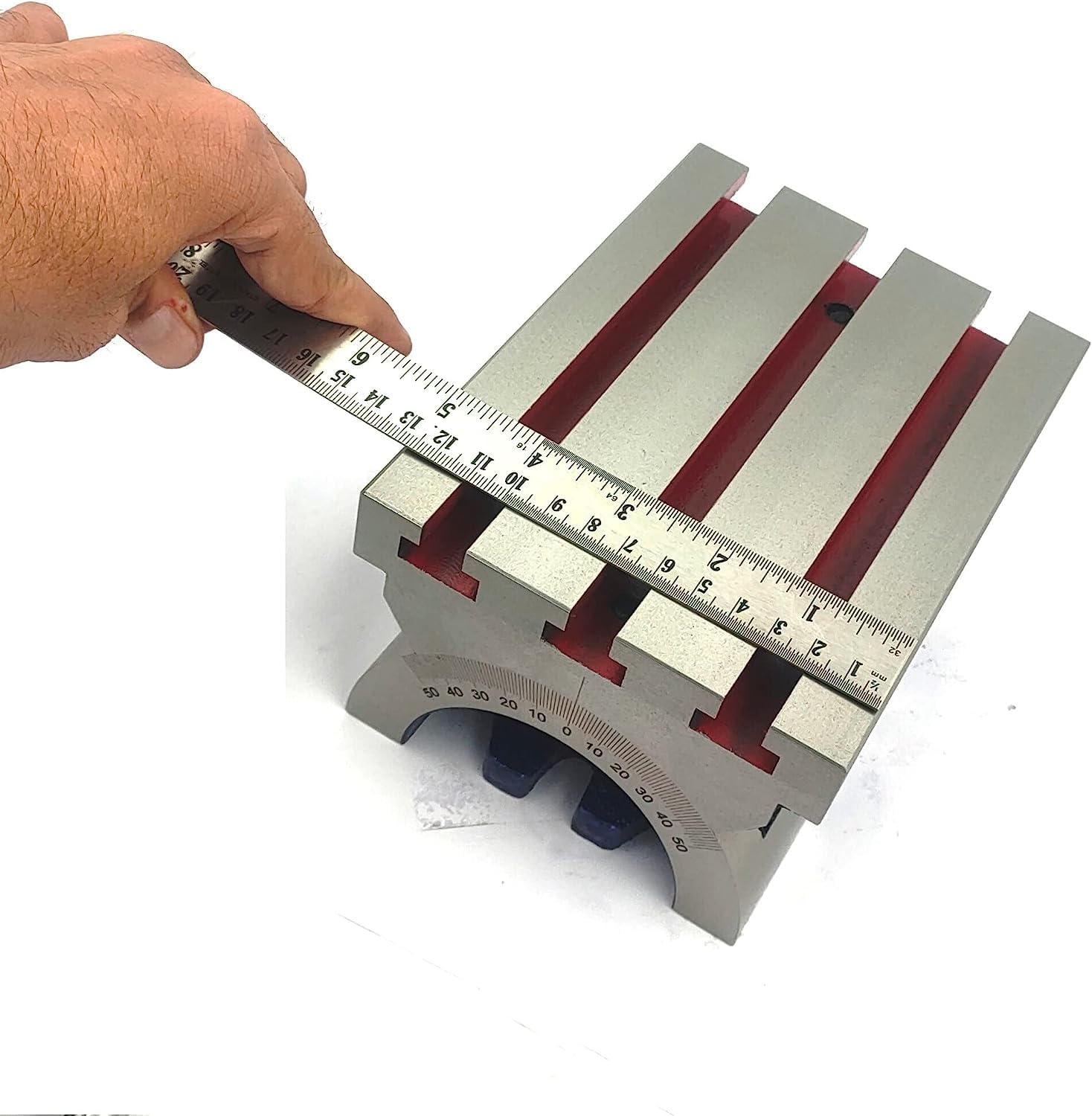

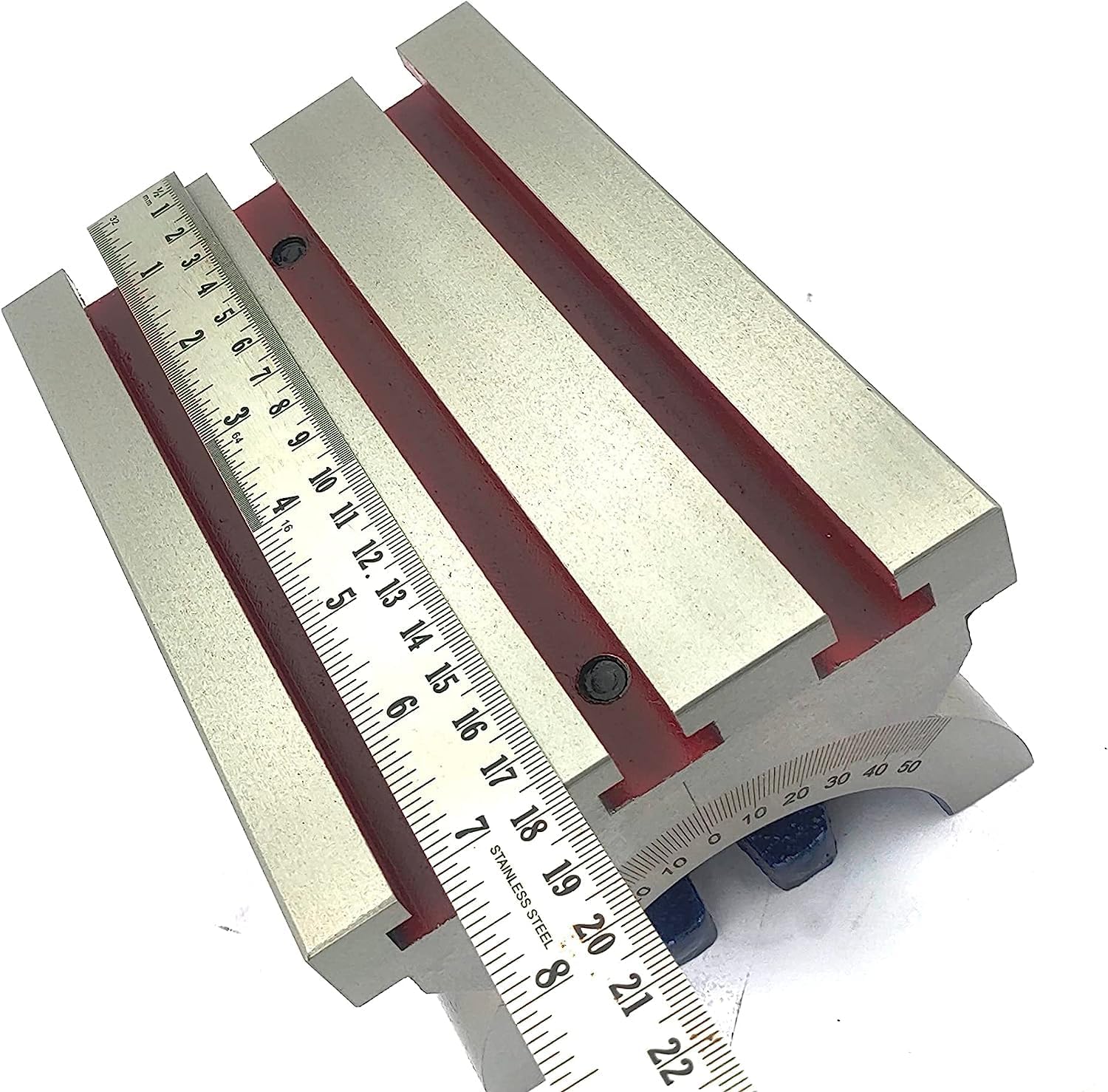

Table Size: 4" X 5" Inches/ 100 X 125 mm & 5" X 7" Inch / 125 X 175 mm

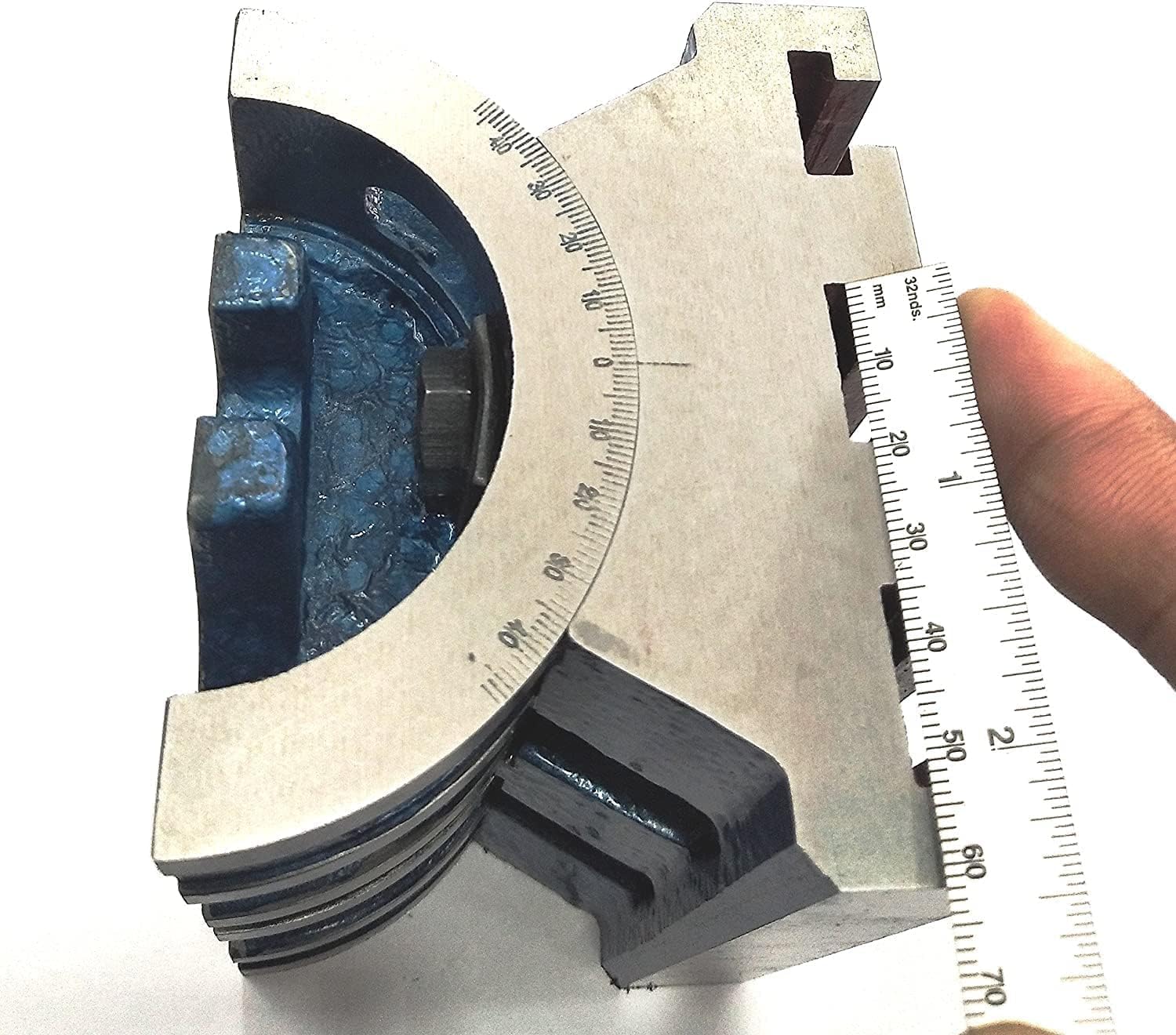

- For 4" x 5" Height in Horizontal Position 80 mm and for 5" x 7" is 90 mm

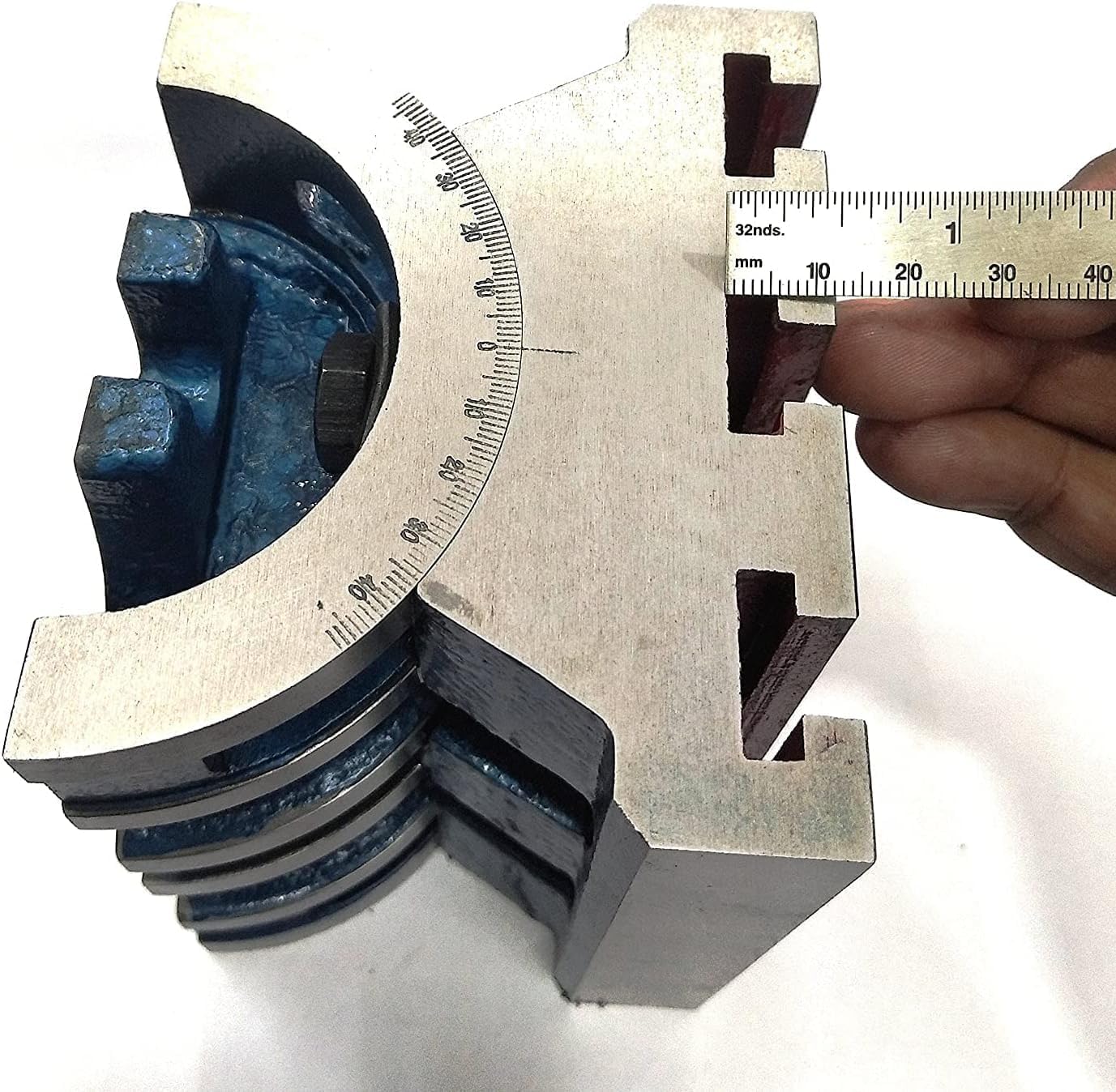

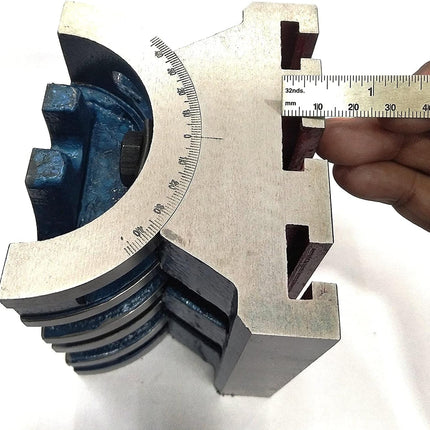

- Neatly Machined T Slots.
Why Choose Our Tilting Table?
-
Unmatched Precision: Ensure every cut is exact with our meticulously designed scale and adjustment mechanism.
-
Robust Build: Count on a tilting table that withstands the rigors of daily use while maintaining top performance.
-
Ease of Use: Simple adjustments and a user-friendly design make it easy to integrate into any milling setup.
Upgrade your milling machine today with our High-Precision Tilting Table and experience a new level of accuracy and efficiency in your machining projects. Order now and take your craftsmanship to the next level!
