Description
Use of product- A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to mill or cutter. The vertical slide admits of quick adjustment.
-

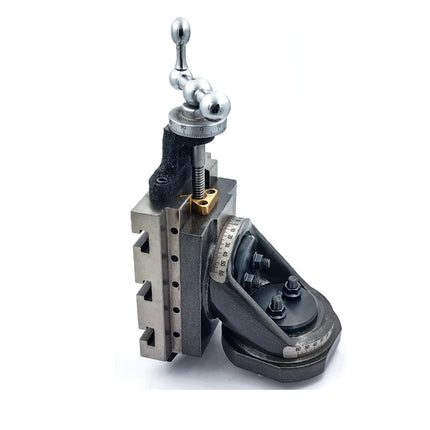

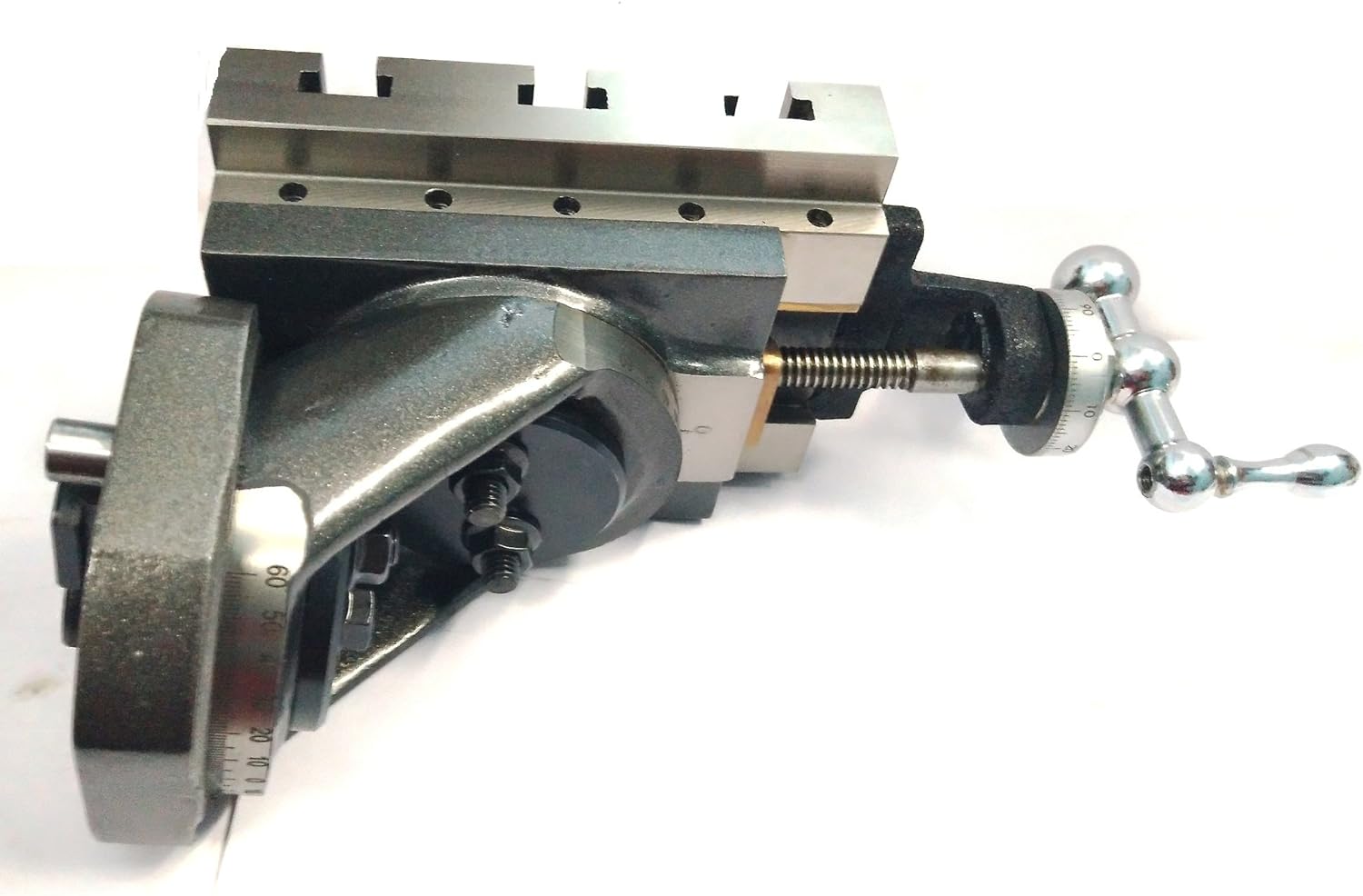

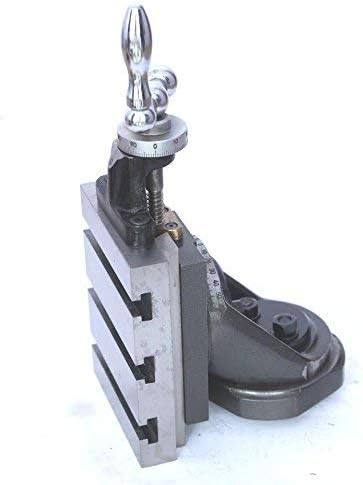

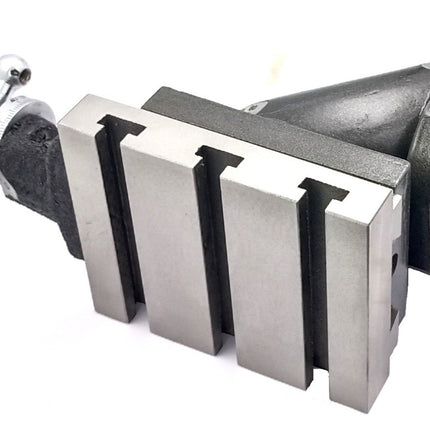

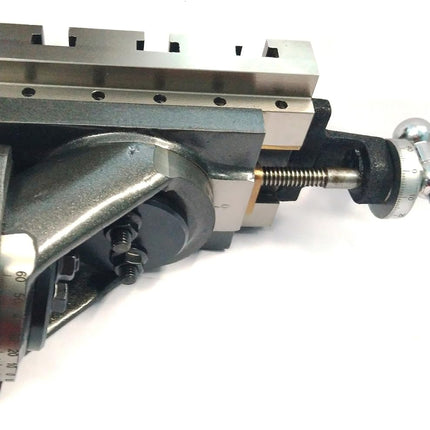

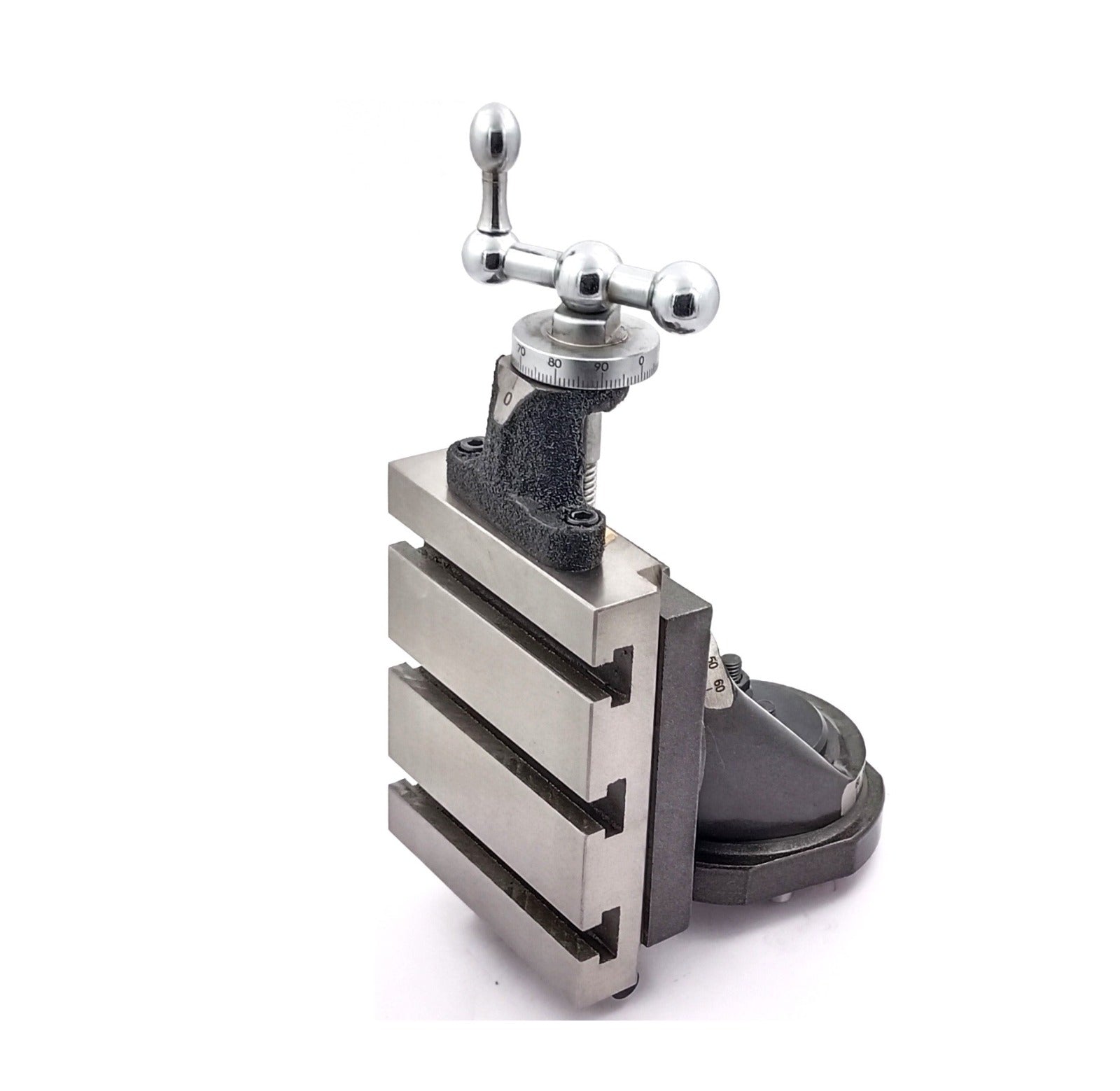

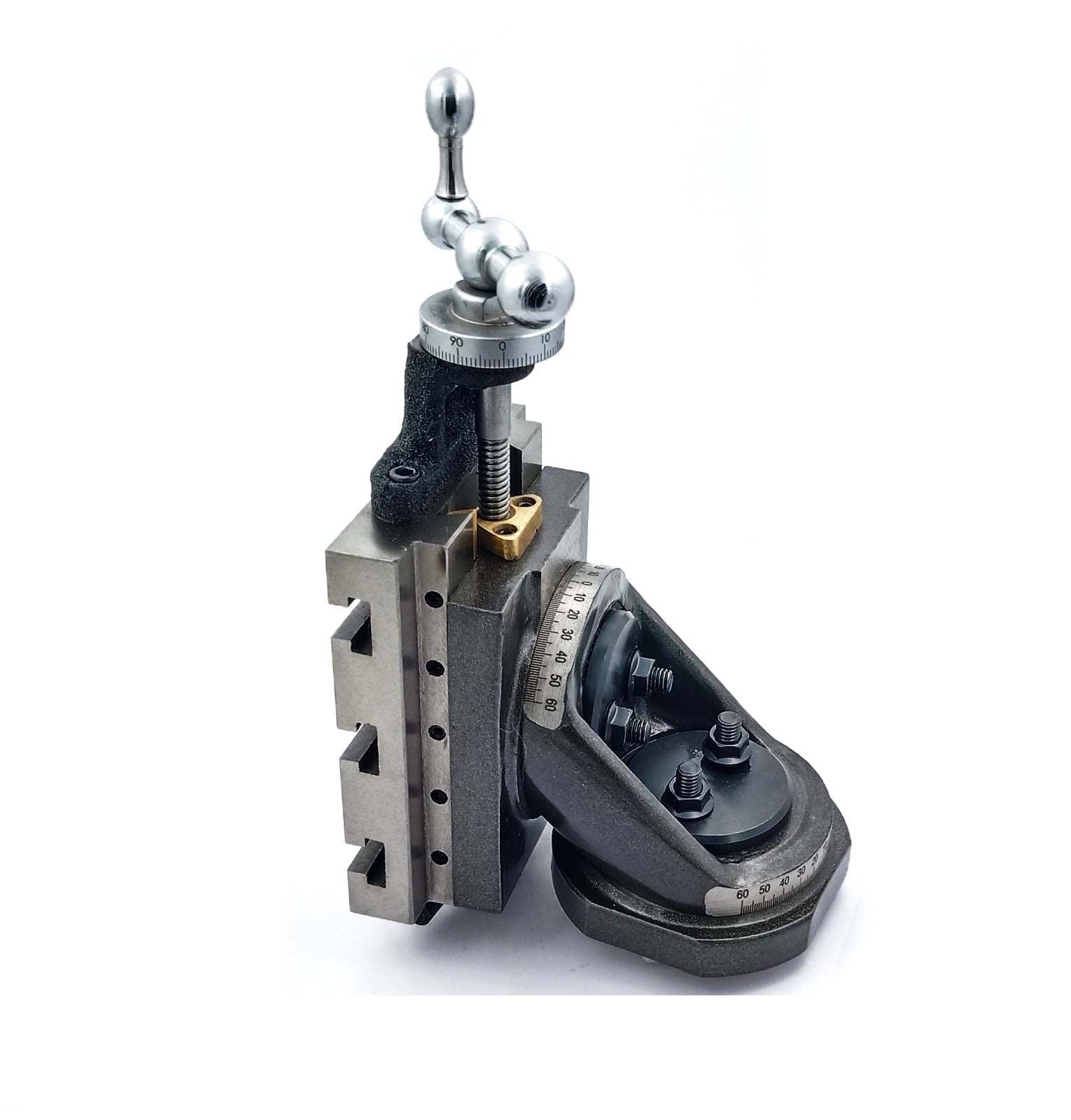

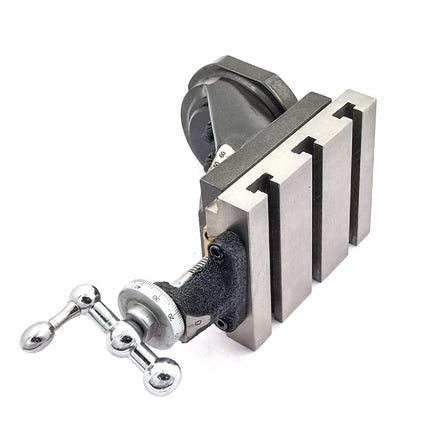

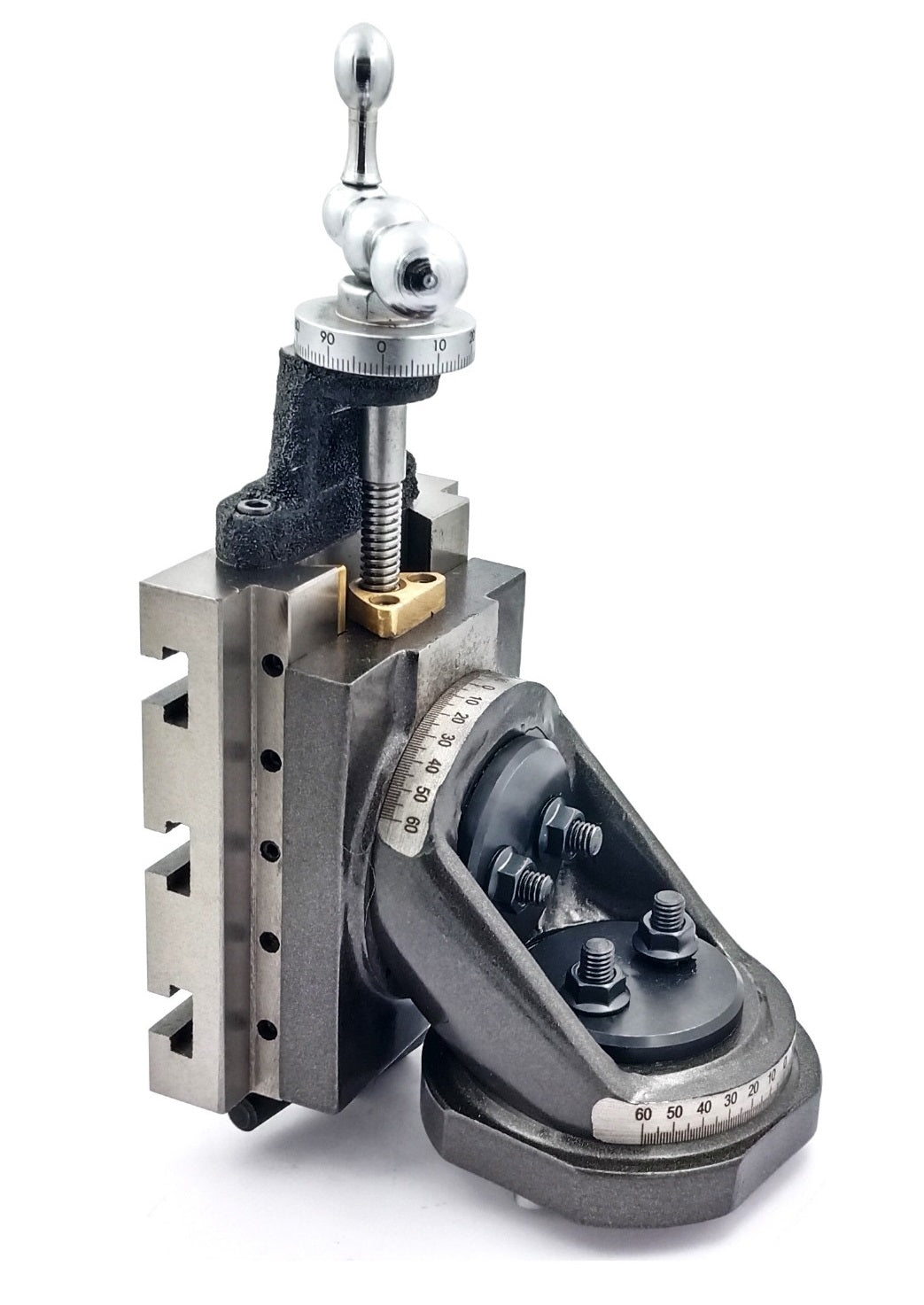

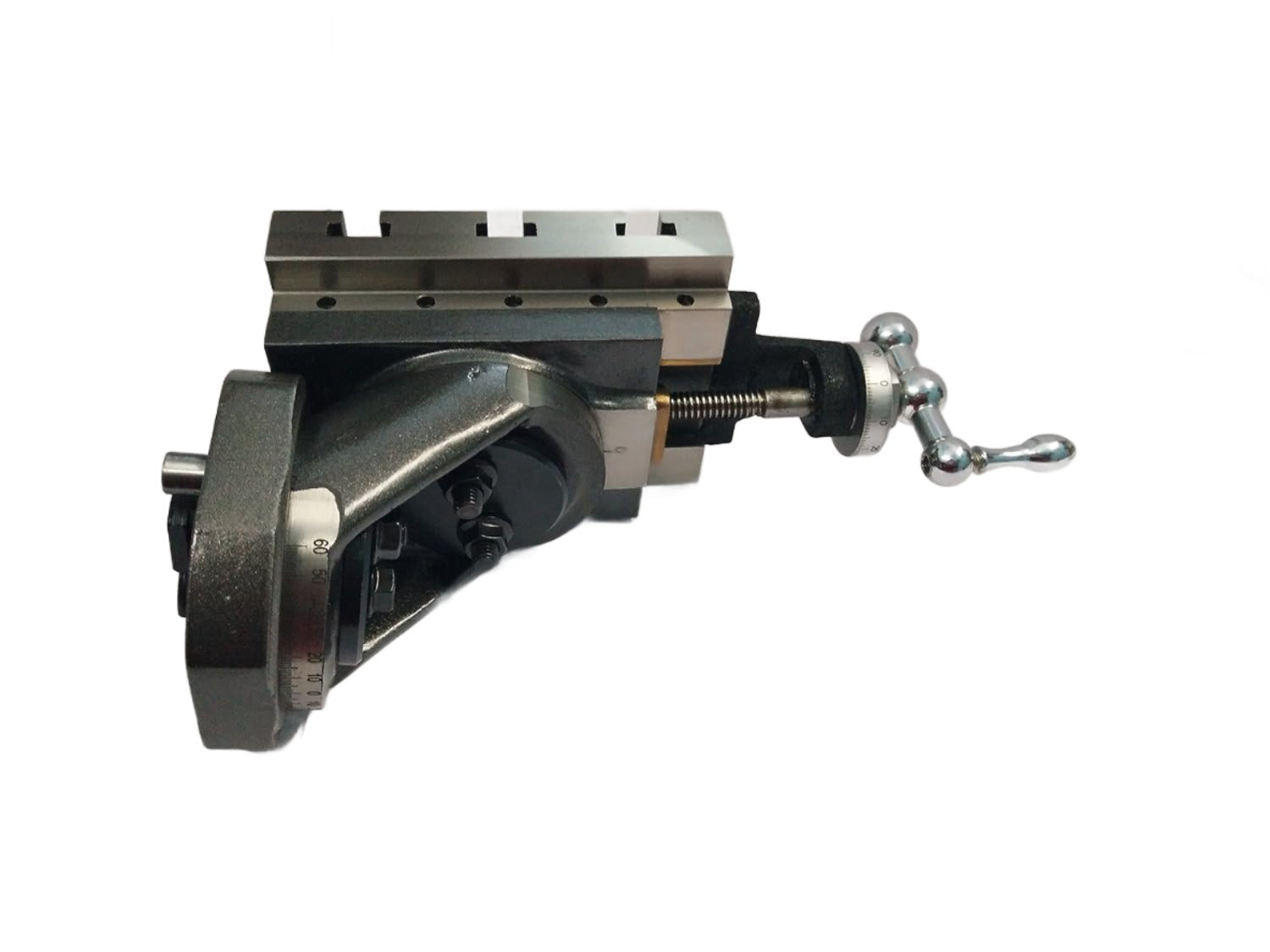

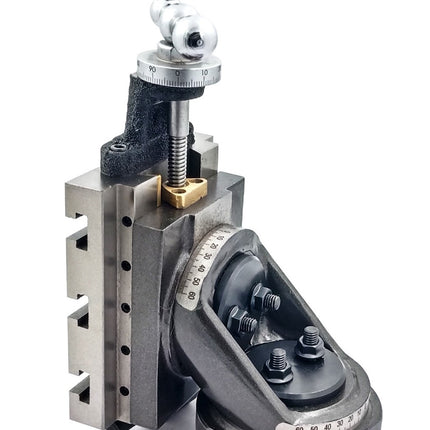

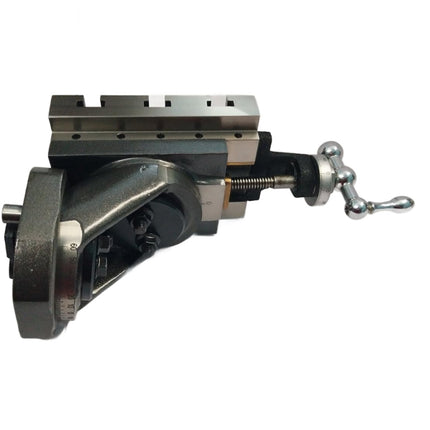

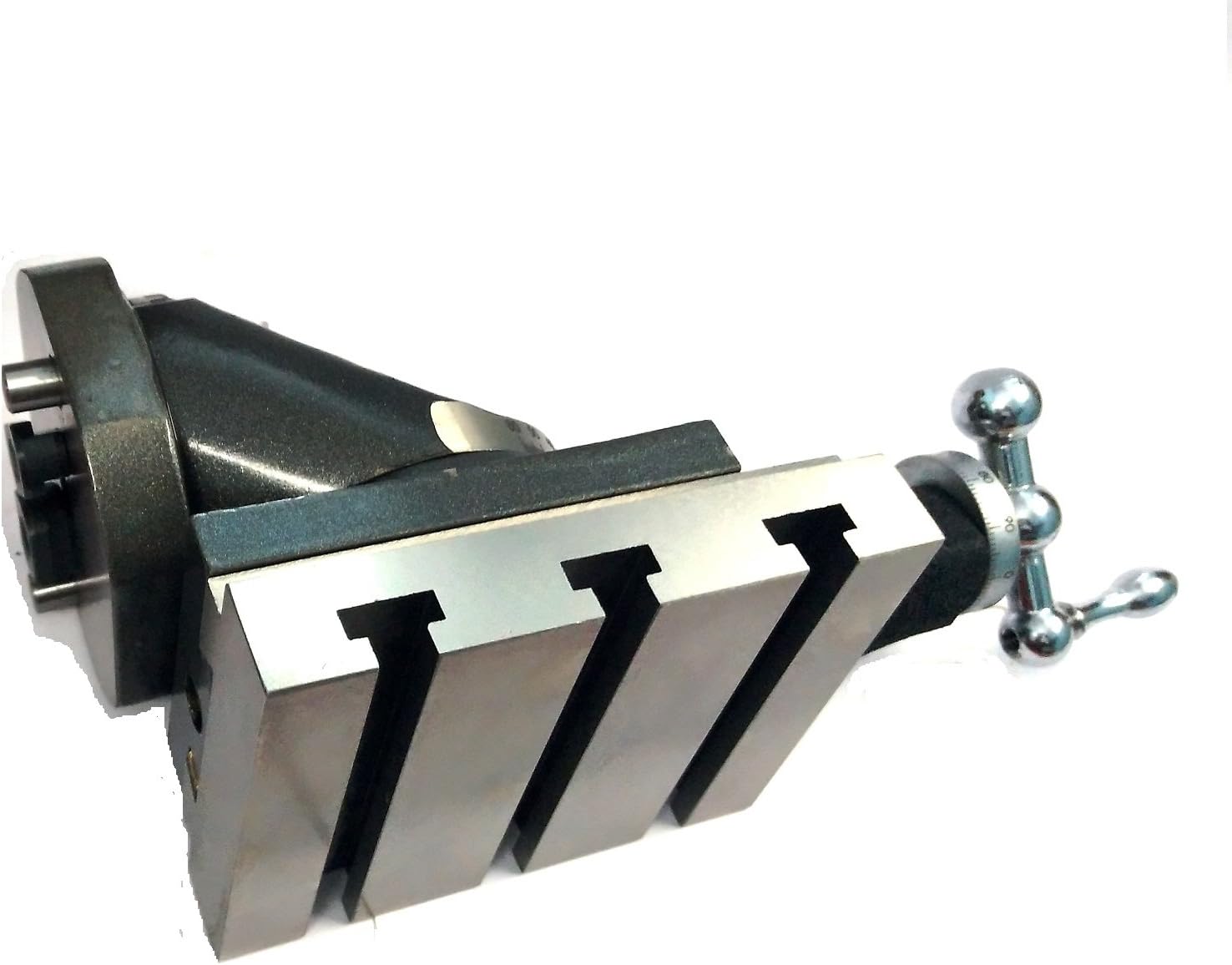

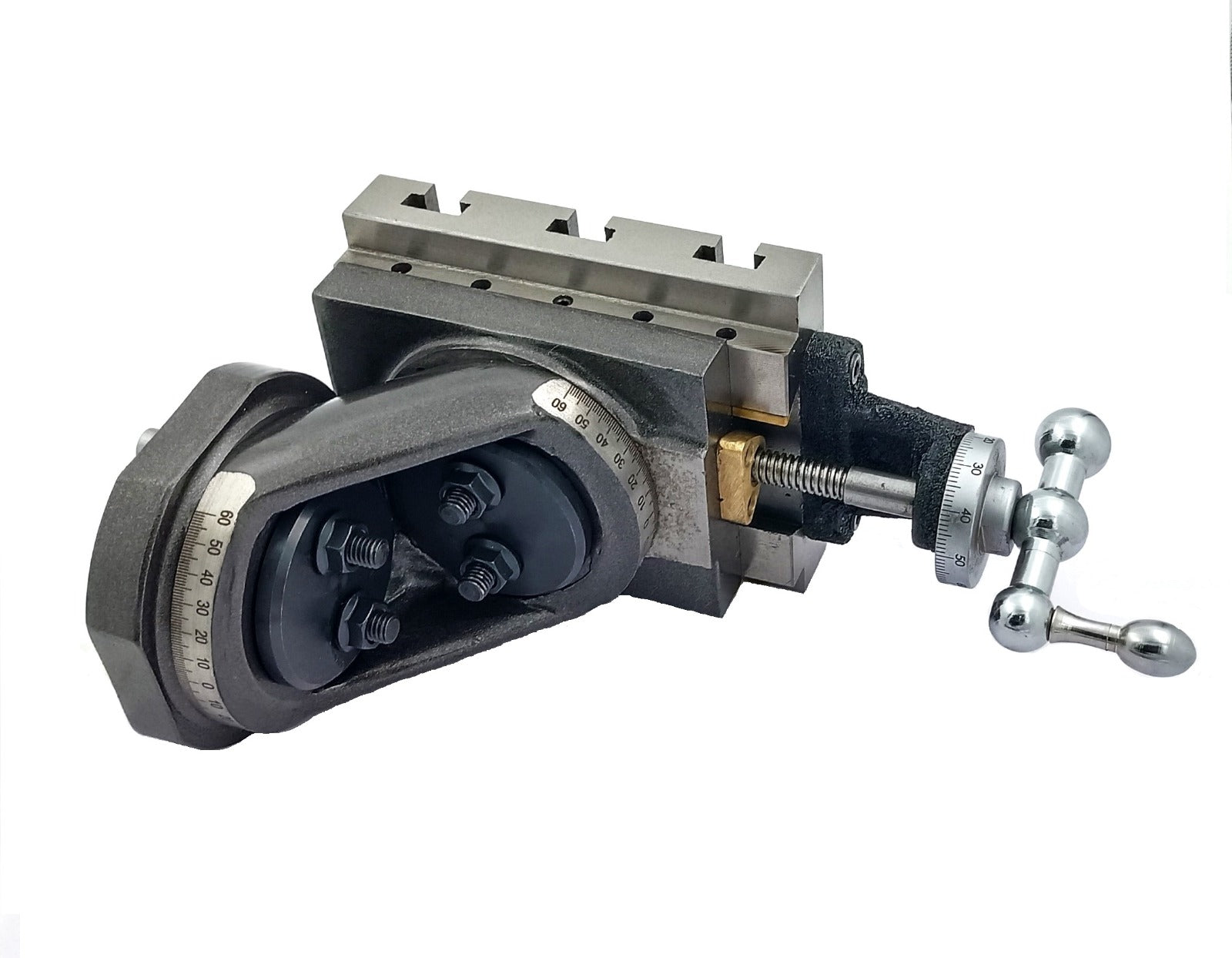

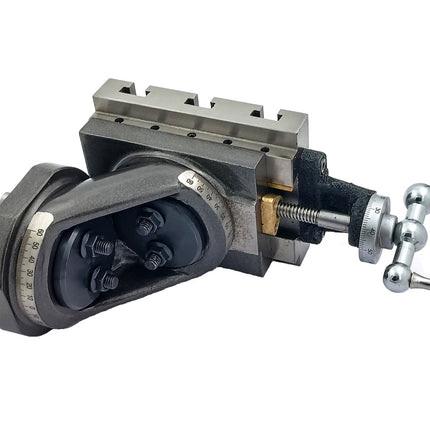

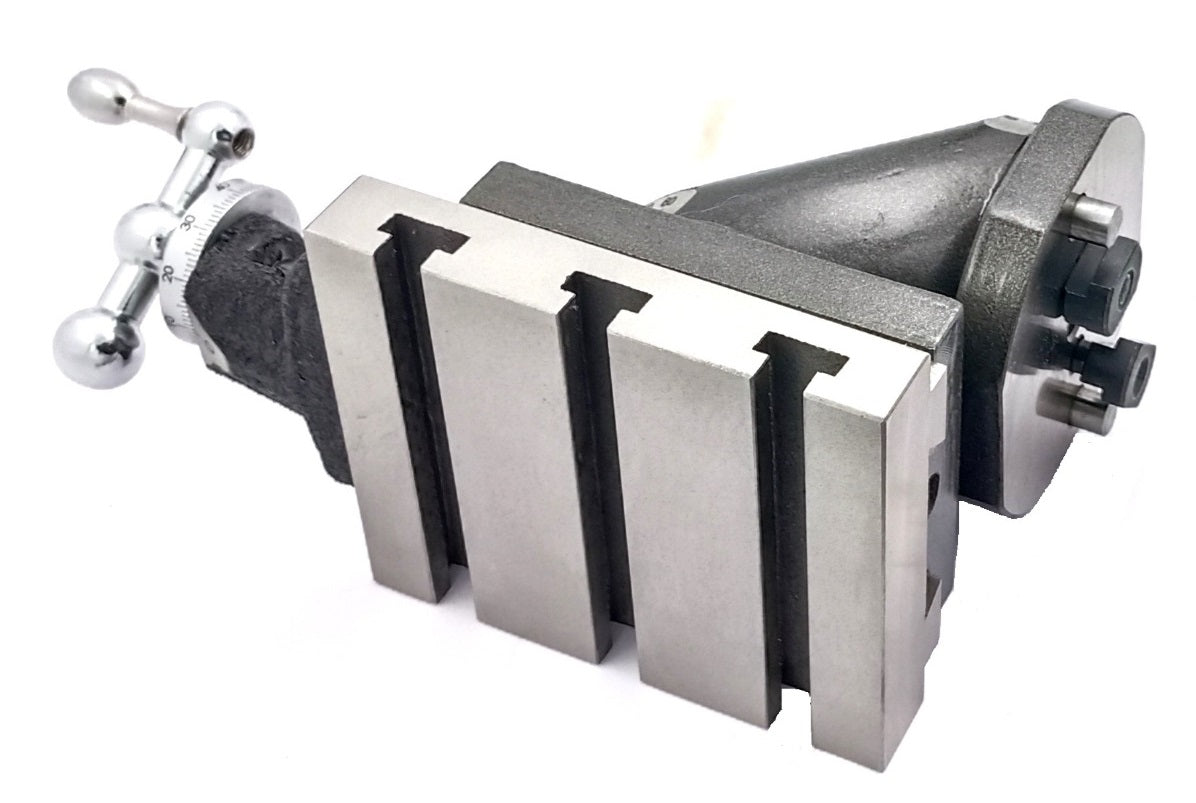

Product Name: Swivel 2 Way Lathe Milling Vertical Slide
-
Compatibility: Designed for lathe Super 7 ML7 lathes
-
Key Features:
-
Swivel Mechanism:
- Allows the slide to swivel, providing enhanced flexibility for various milling operations.
-
Two-Way Movement:
- Slide moves up and down as desired, offering precise control for milling tasks.
-
Hand Wheel:
- Features imperial graduations for accurate adjustments and measurements.
-
Removable Clamps:
- Includes 2 removable clamps for securely clamping the slide in place.
-

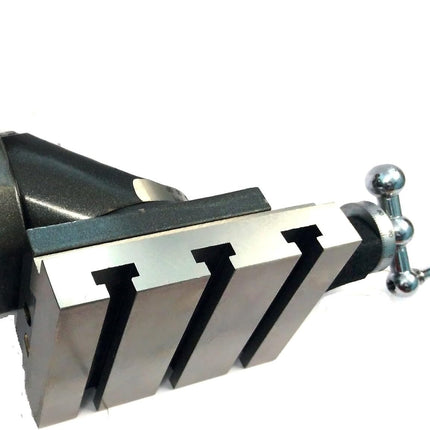

Milling Table Dimensions:
-
Size: 125 mm x 100 mm
- Provides a substantial working area for a variety of milling operations.
-
Base Features:
-
Slots for Clamping:
- 3 slots in the base allow for secure clamping down.
-

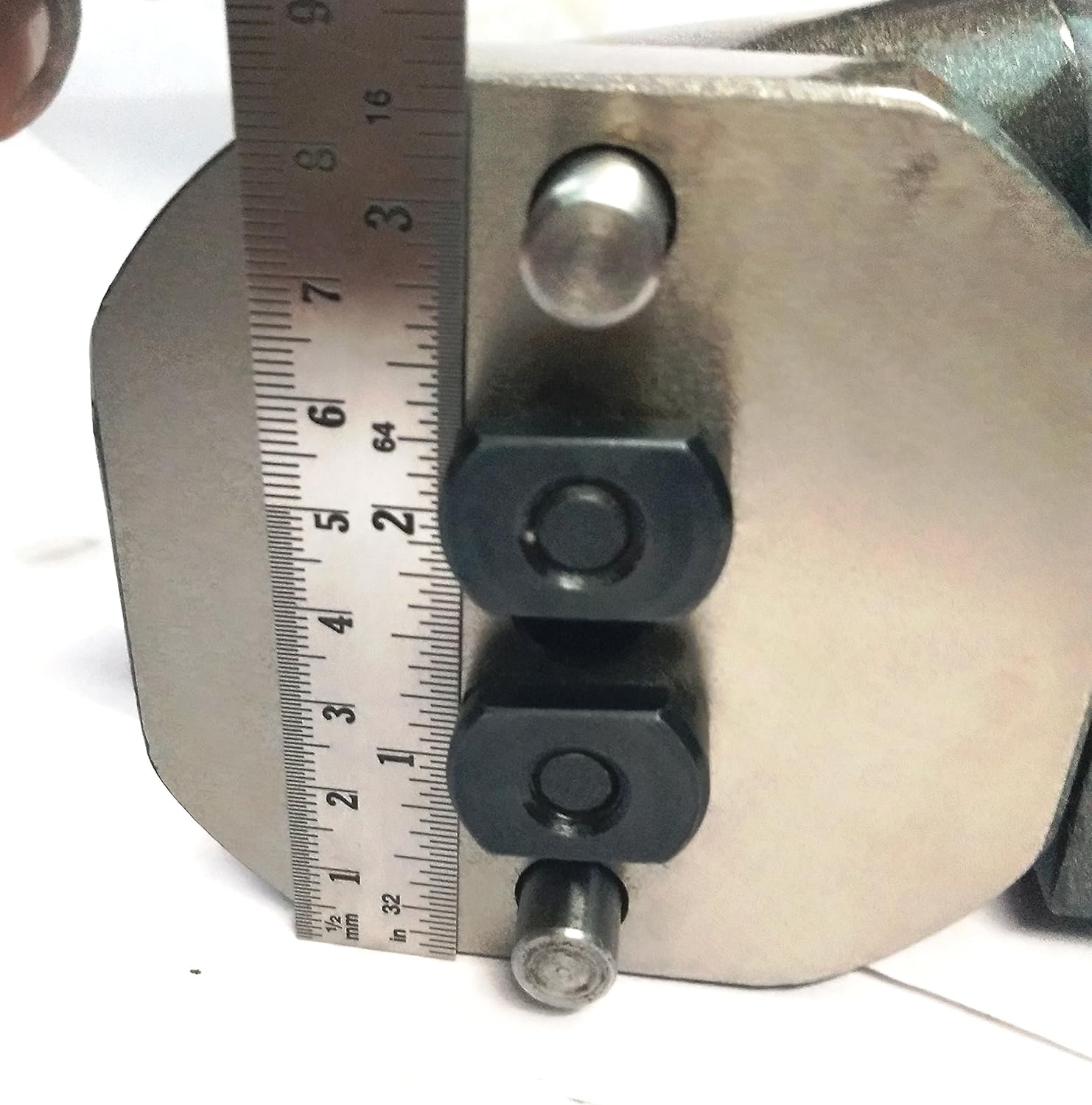

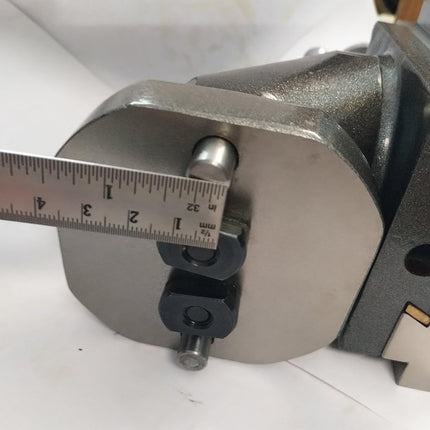

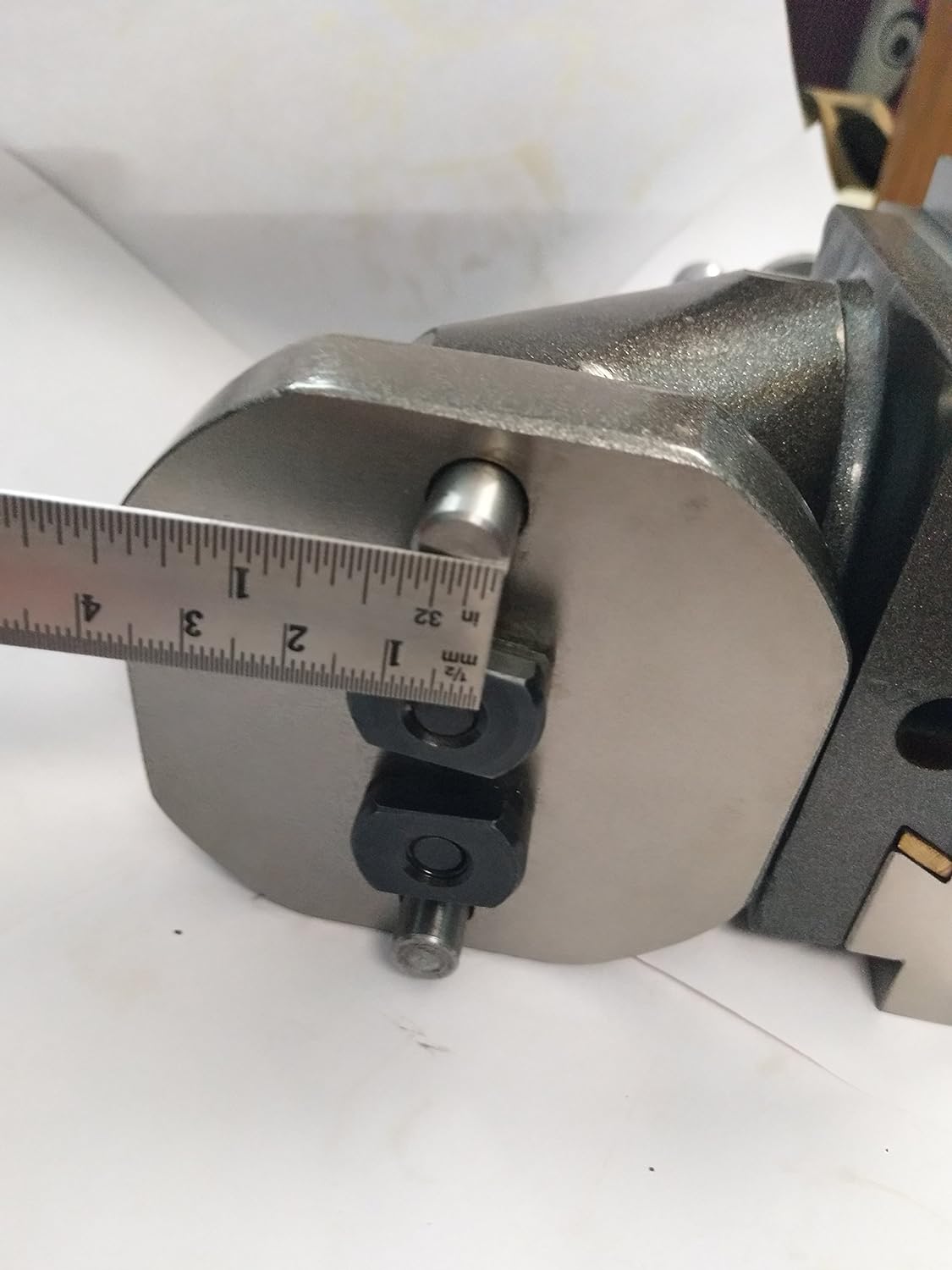

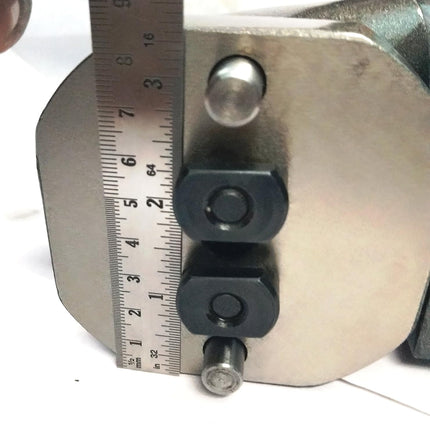

Pitch Circle Diameter (PCD): 46.19 mm
- Facilitates robust and stable attachment to the lathe.
-
Construction:
- Made from high-quality materials ensuring durability and longevity.
- Precision-engineered for stability and accuracy during milling.
-
Usability:
- Suitable for both hobbyists and professional machinists.
- Enhances the milling capabilities of the lathe Super 7 ML7 lathe.
-
Applications:
- Ideal for milling, drilling, slotting, and other precise machining operations.
- Expands the functionality of the lathe, enabling vertical milling tasks.
-
Additional Features:
-
Swivel Base:
- Provides the ability to angle the milling slide for complex operations.
-
Hand Wheel:
- Ensures precise movement and control with clearly marked imperial graduations.
-
Clamping Slots:
- Allows for versatile and secure attachment of workpieces and fixtures.
-
Robust Design:
- Handles rigorous milling operations with ease.
-
Dimensions:
-
Compact Design:
- Optimized for use Super 7 ML7 lathes, making efficient use of space and ensuring ease of handling.
-
Ease of Use:
- User-friendly design for easy setup and operation.
- Smooth adjustments and movement for enhanced control during milling.
This Swivel 2 Way Lathe Milling Vertical Slide is an essential accessory for Super 7 ML7 lathe owners, providing the ability to perform versatile and precise milling operations with ease
