Description
A rotary table is used to rotate a workpiece precisely during machining, allowing for accurate creation of circular features, angles, and indexing tasks.
A chuck is used to securely hold and grip a workpiece on a machine tool, ensuring it remains stable and aligned during operations like turning, drilling, or milling.

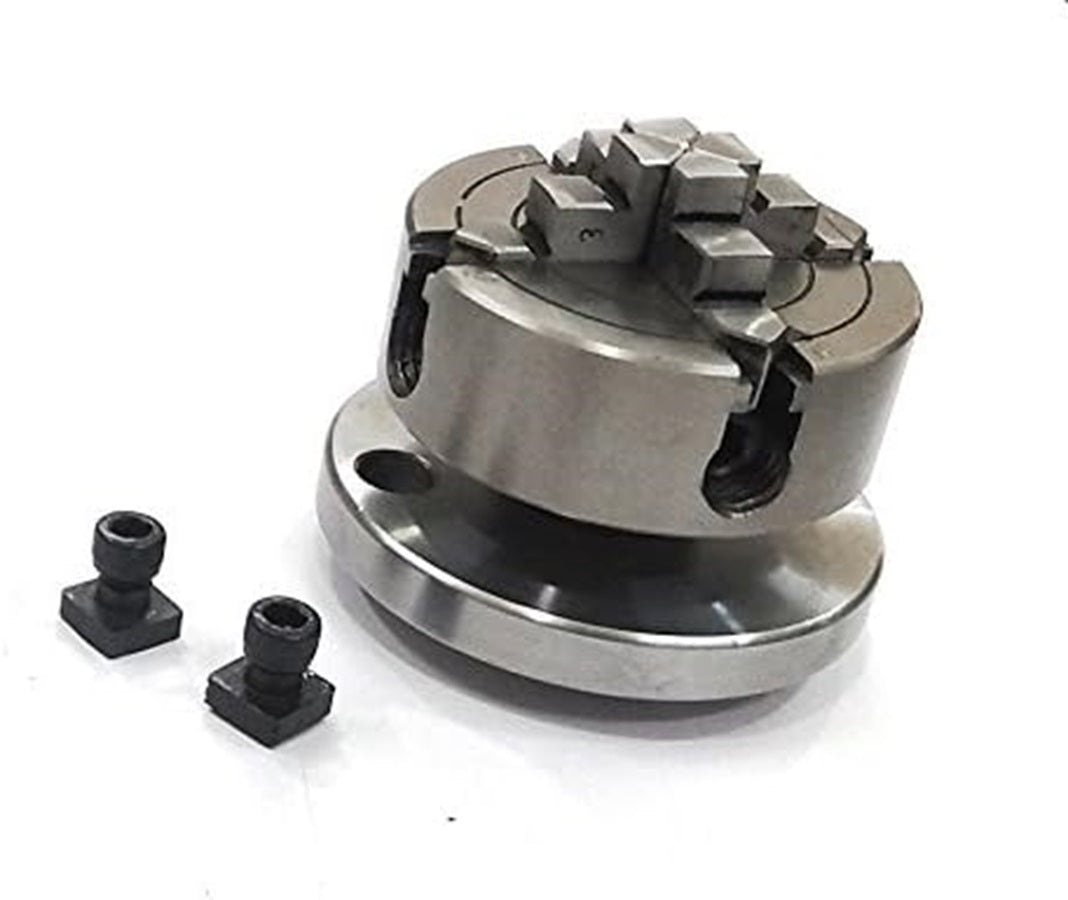

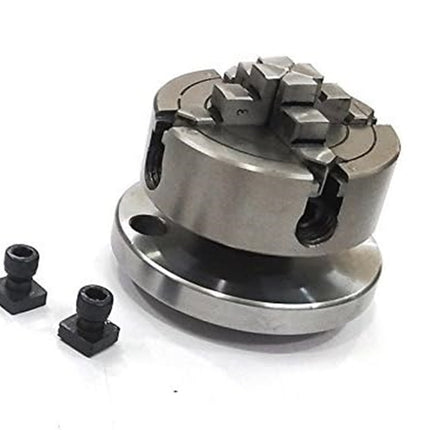

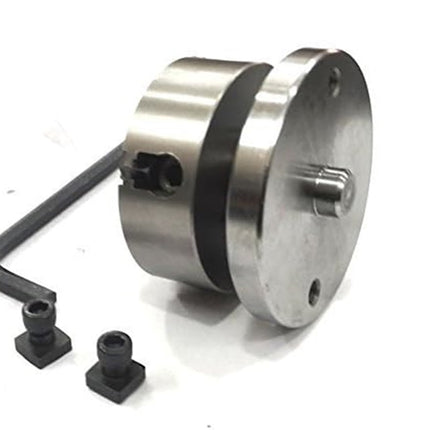

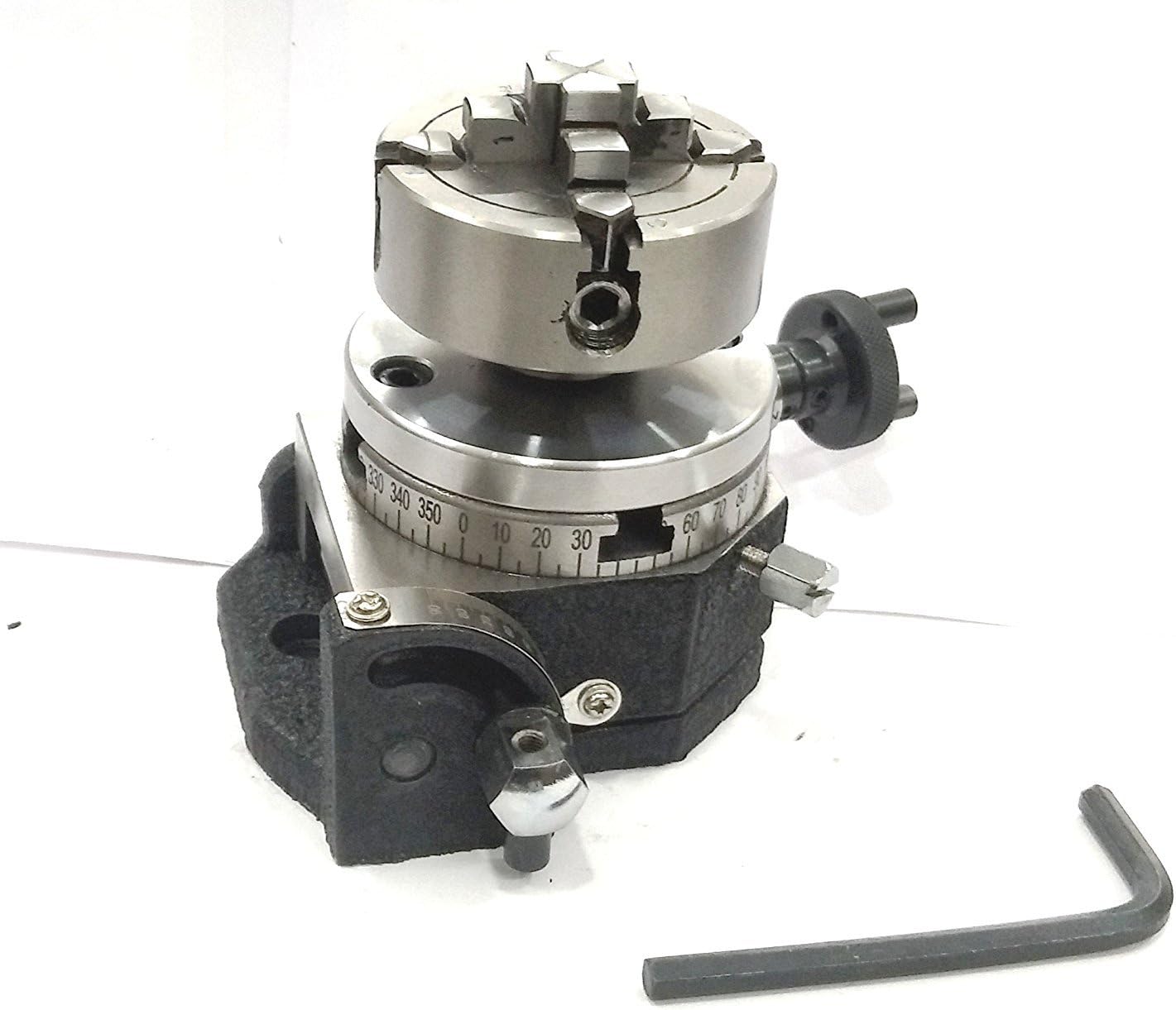

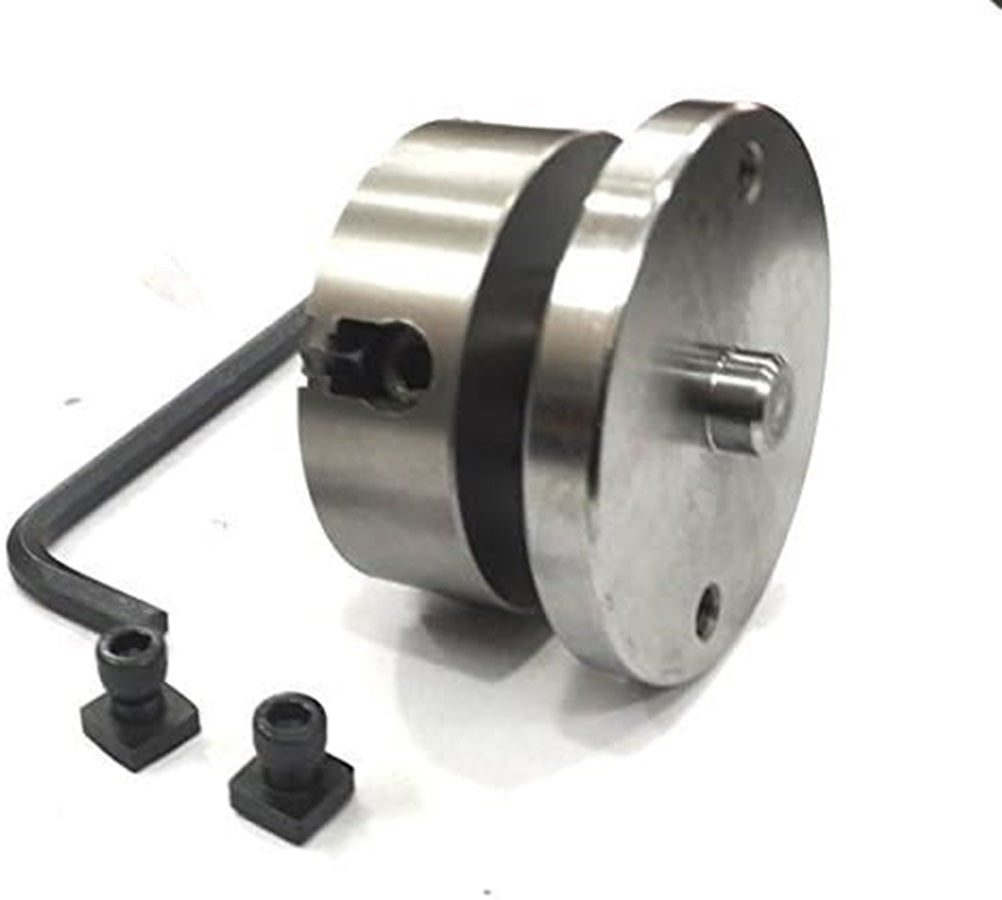

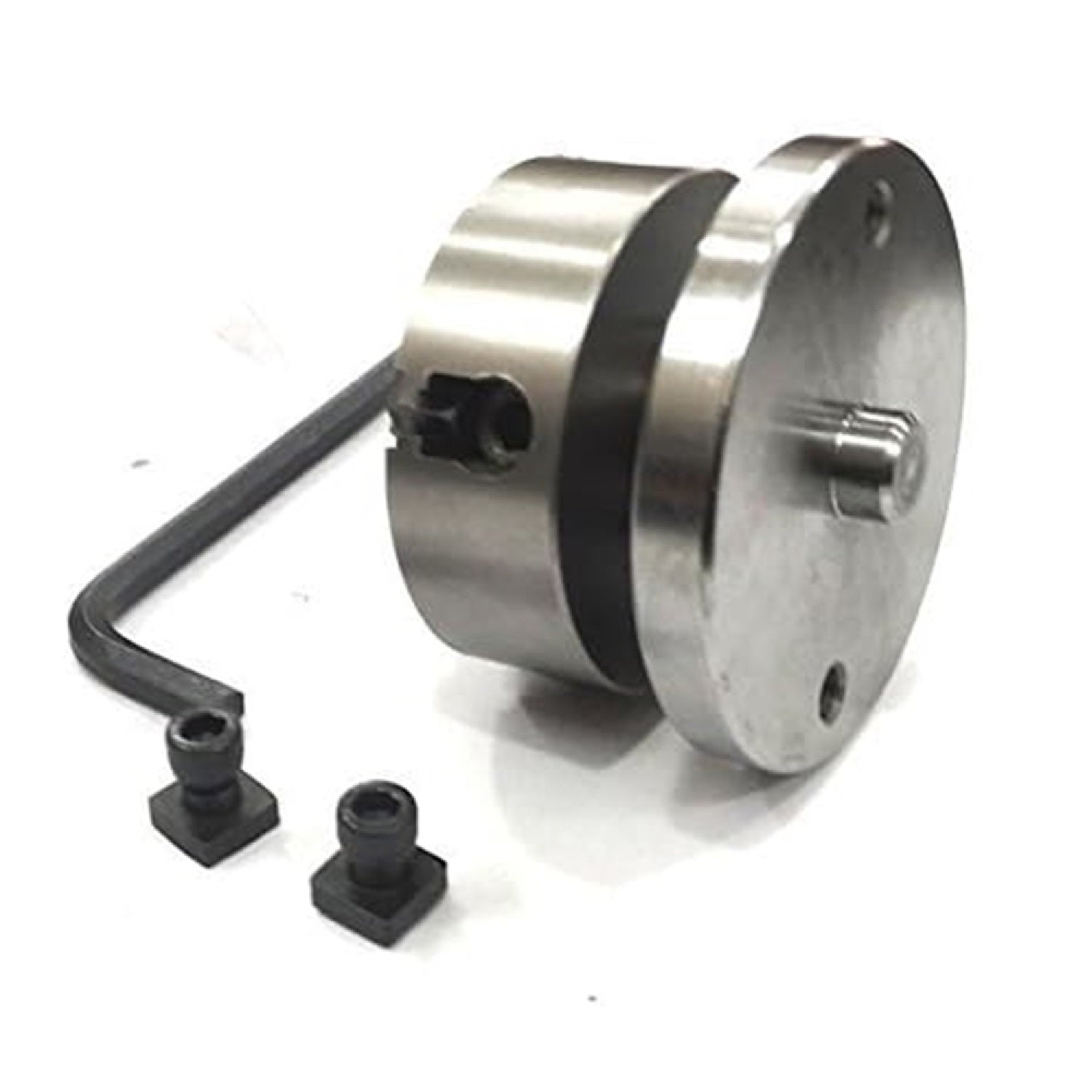

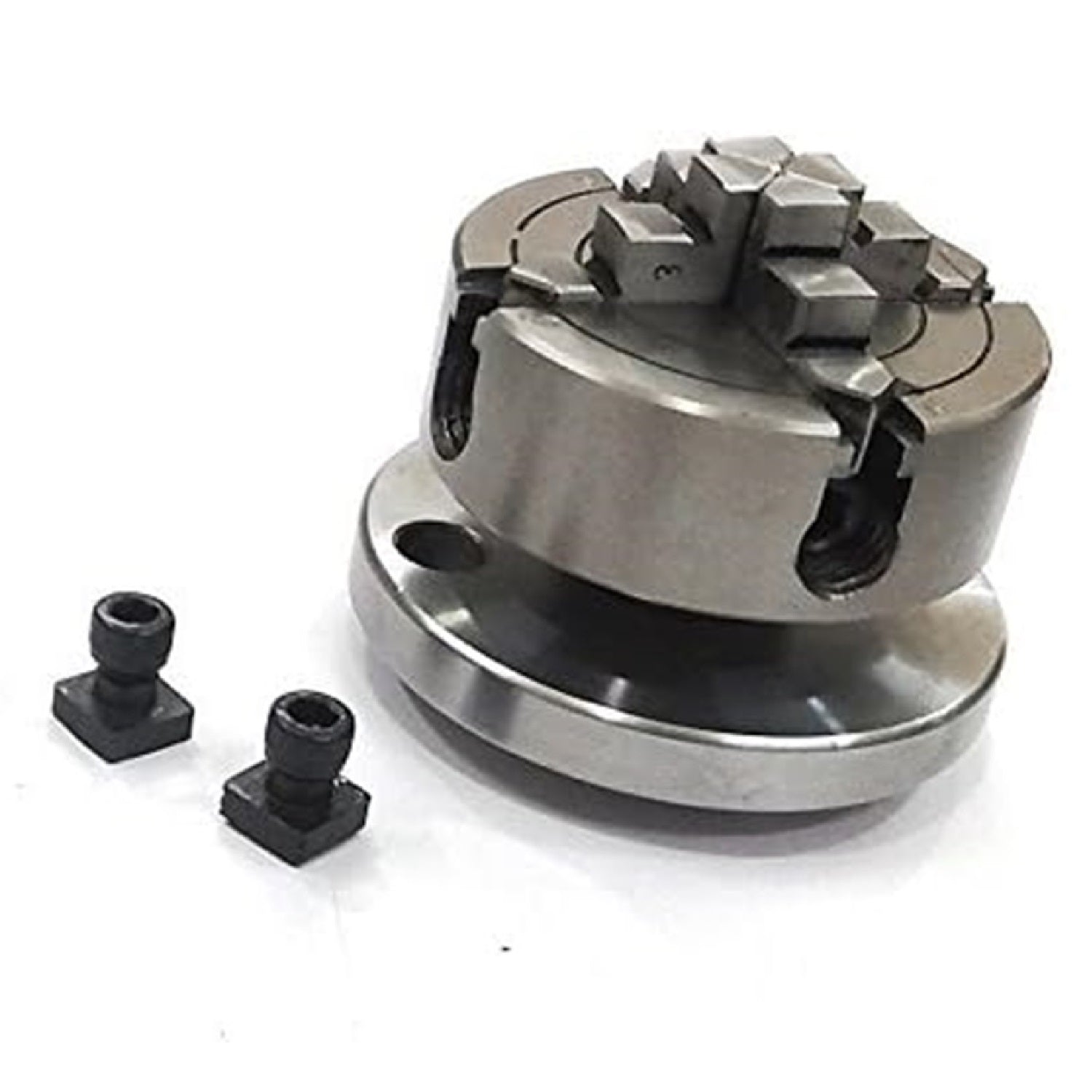

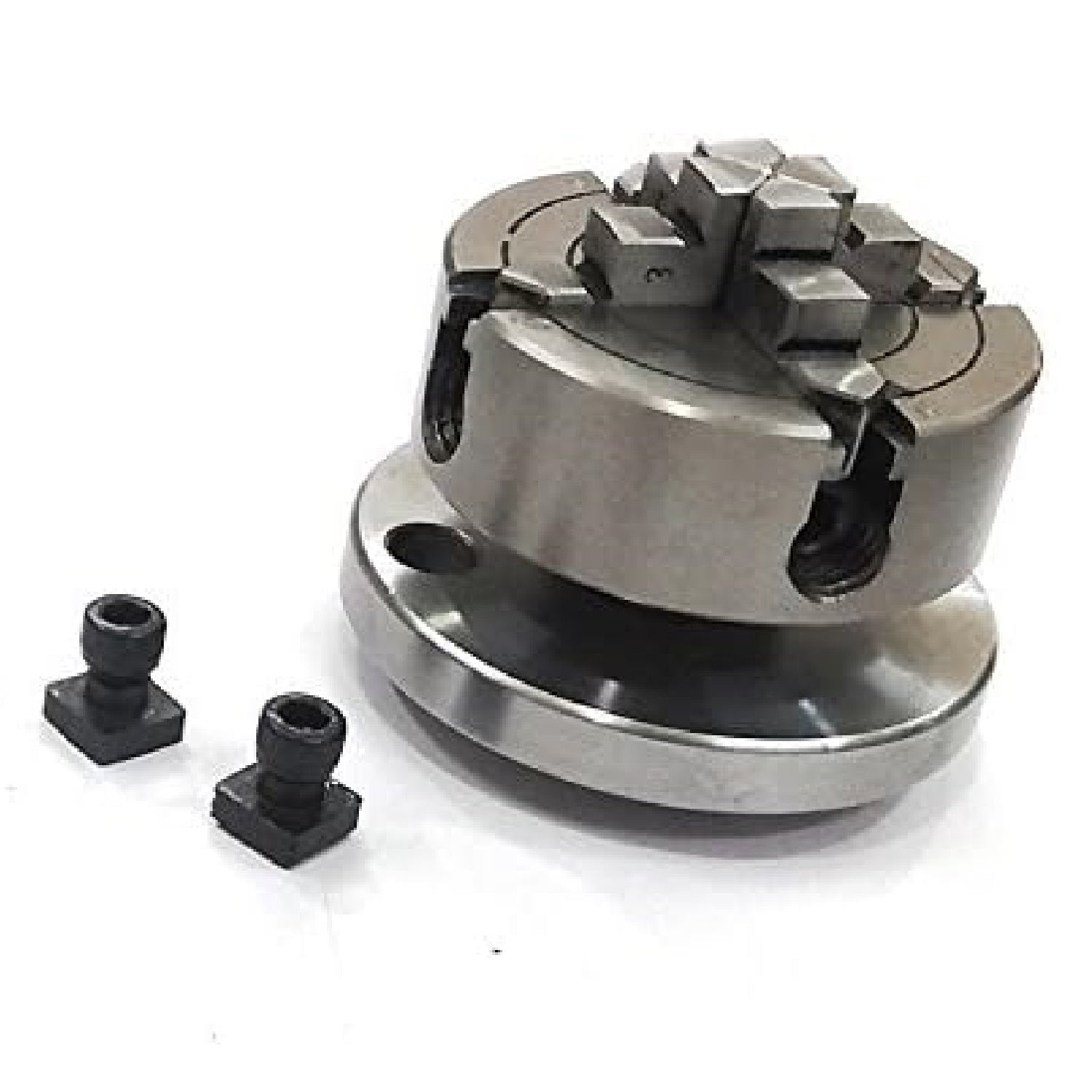

Chuck 70 mm 4 Jaw Independent
- Precision 70 mm 4-Jaw Independent Lathe Chuck
- Compatible with M14 x 1 mm threading

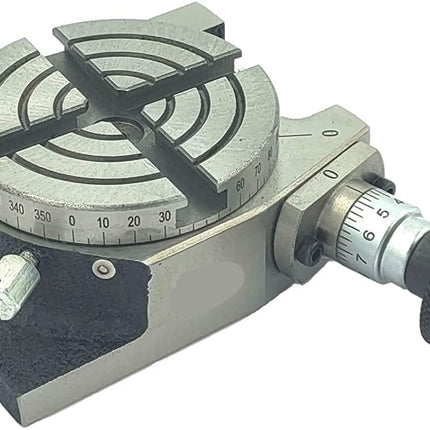

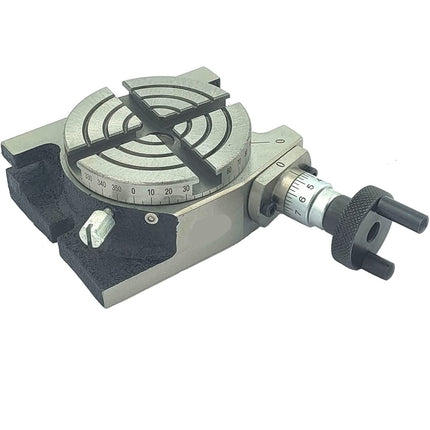

3"/ 80 mm Rotary Table
- Small low profile Rotary Table for Milling operation with Table Diameter - 3 Inches (80 mm) Vertical Height - 1-5/8 Inch
- Gear Ratio - 36:1, which basically means that the 1 rotation of the handle shall rotate the table by 10 degrees.
- Base Dimensions: 4. 1/8" x 3. 1/4" 4 T-Slots: 5/16"
- Table scale is calibrated in 5 degree increment. Can be used both in horizontal & vertical position.

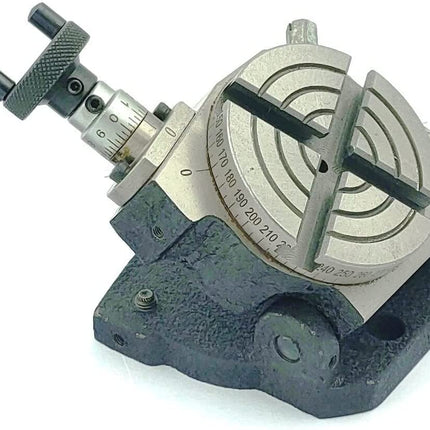

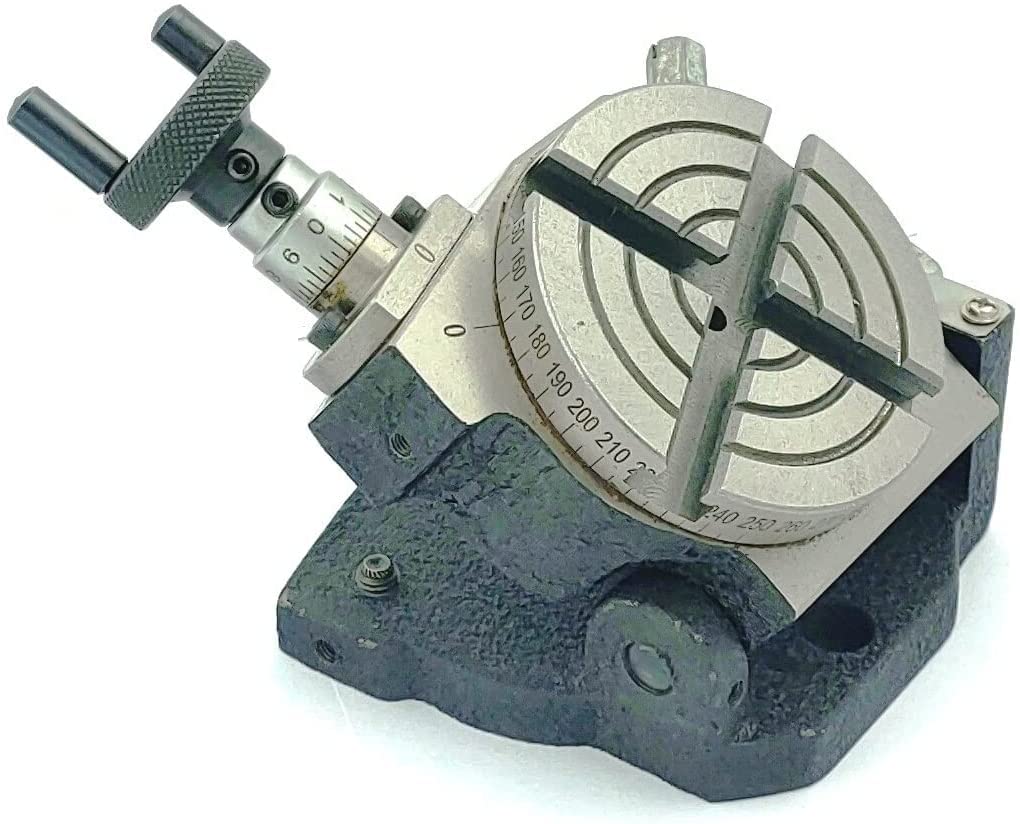

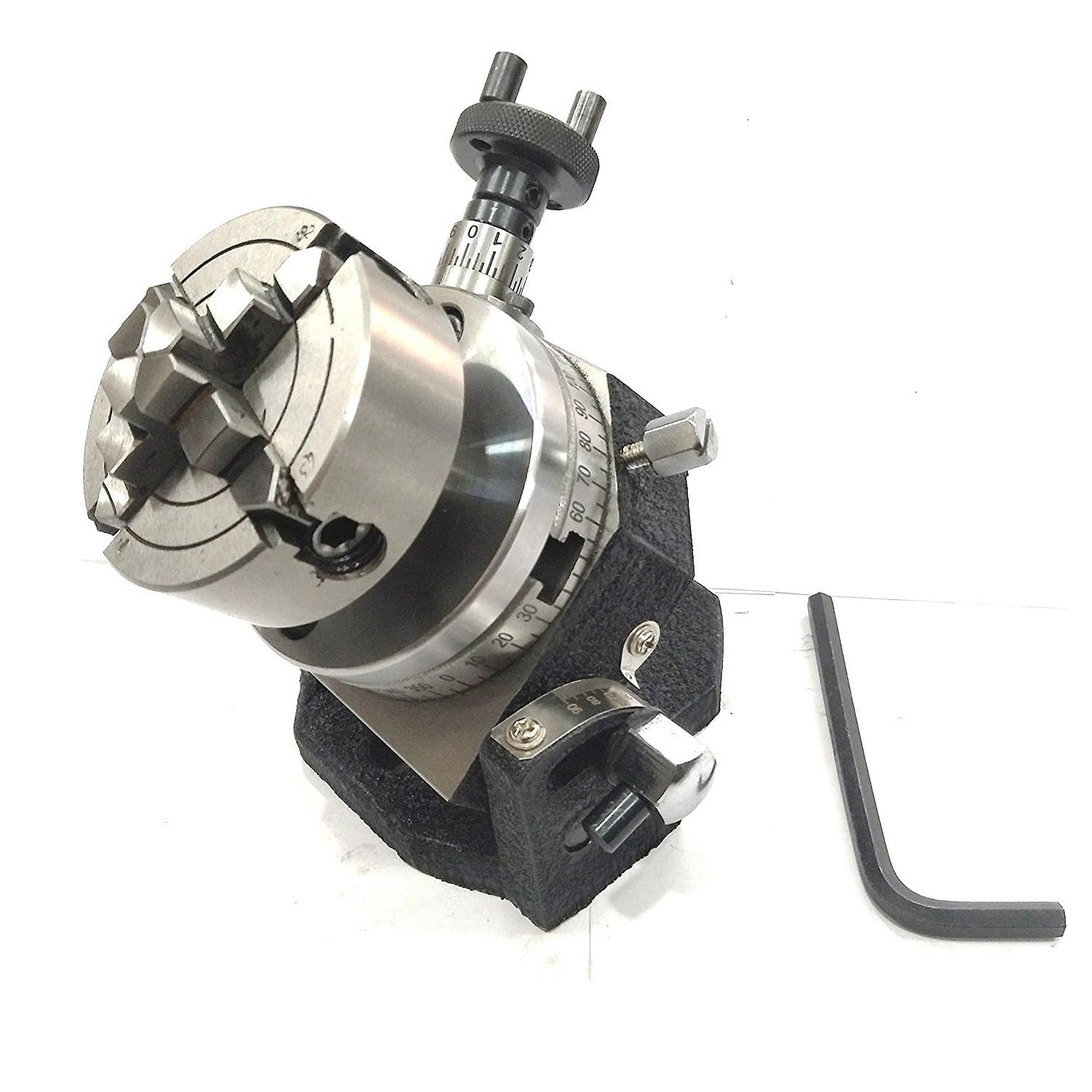

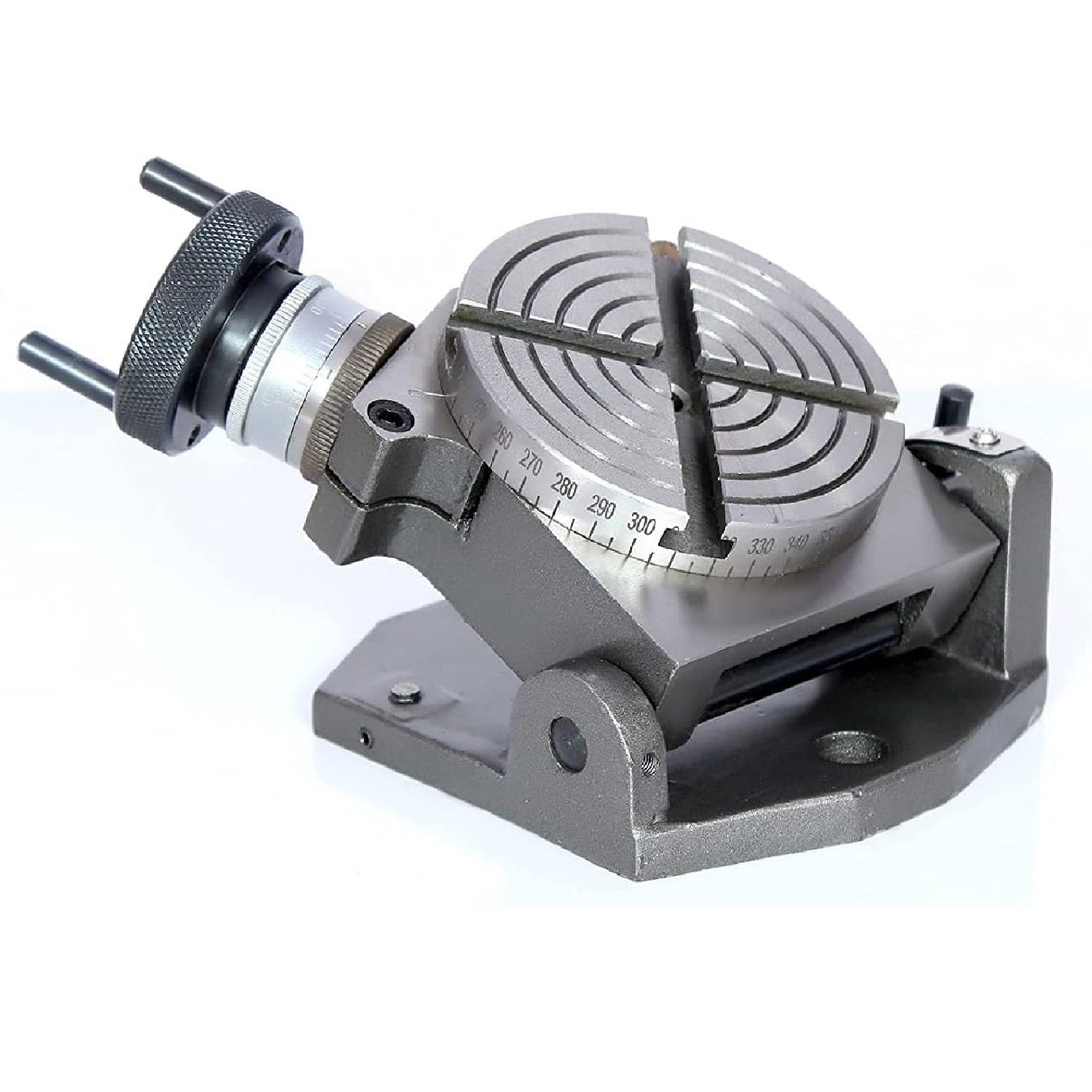

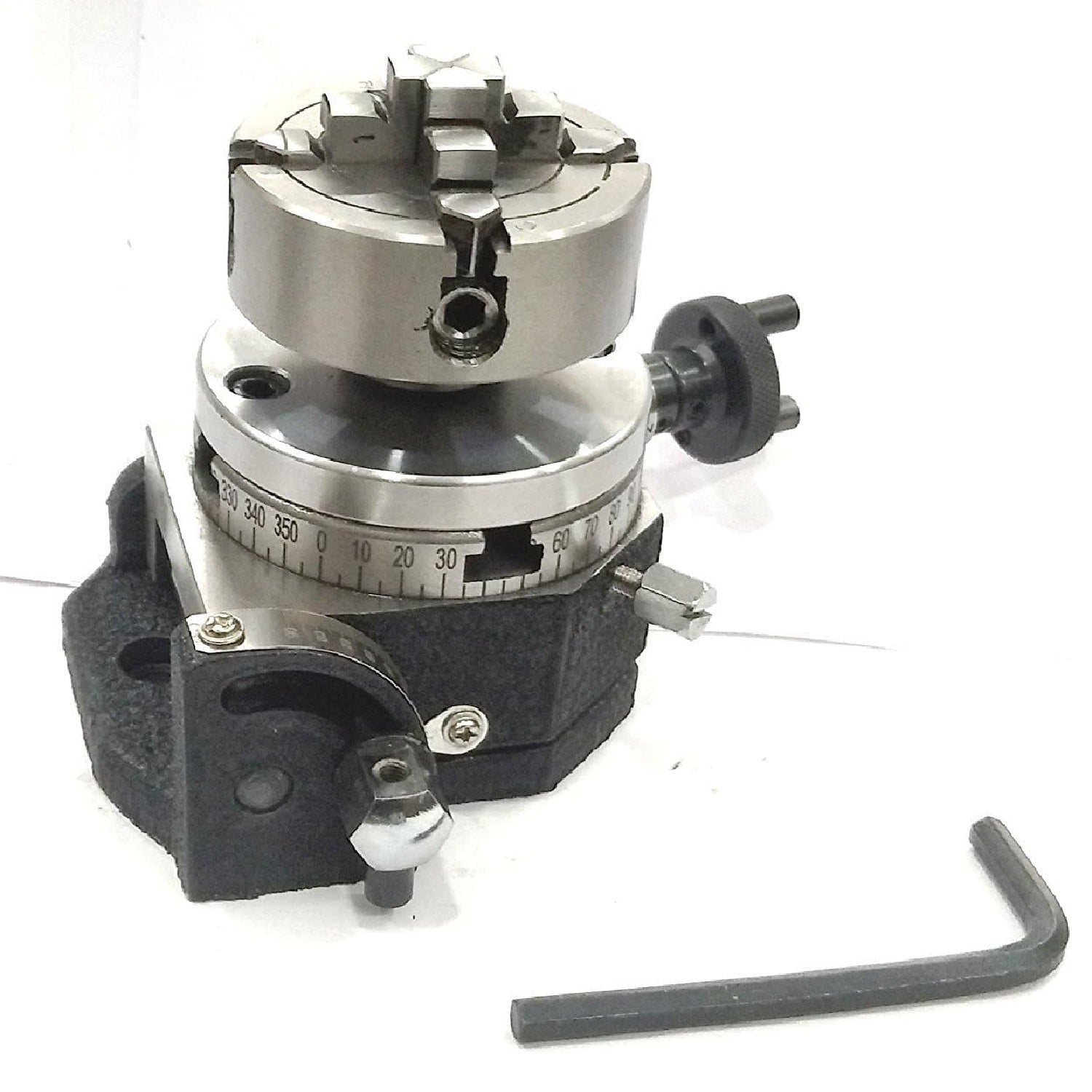

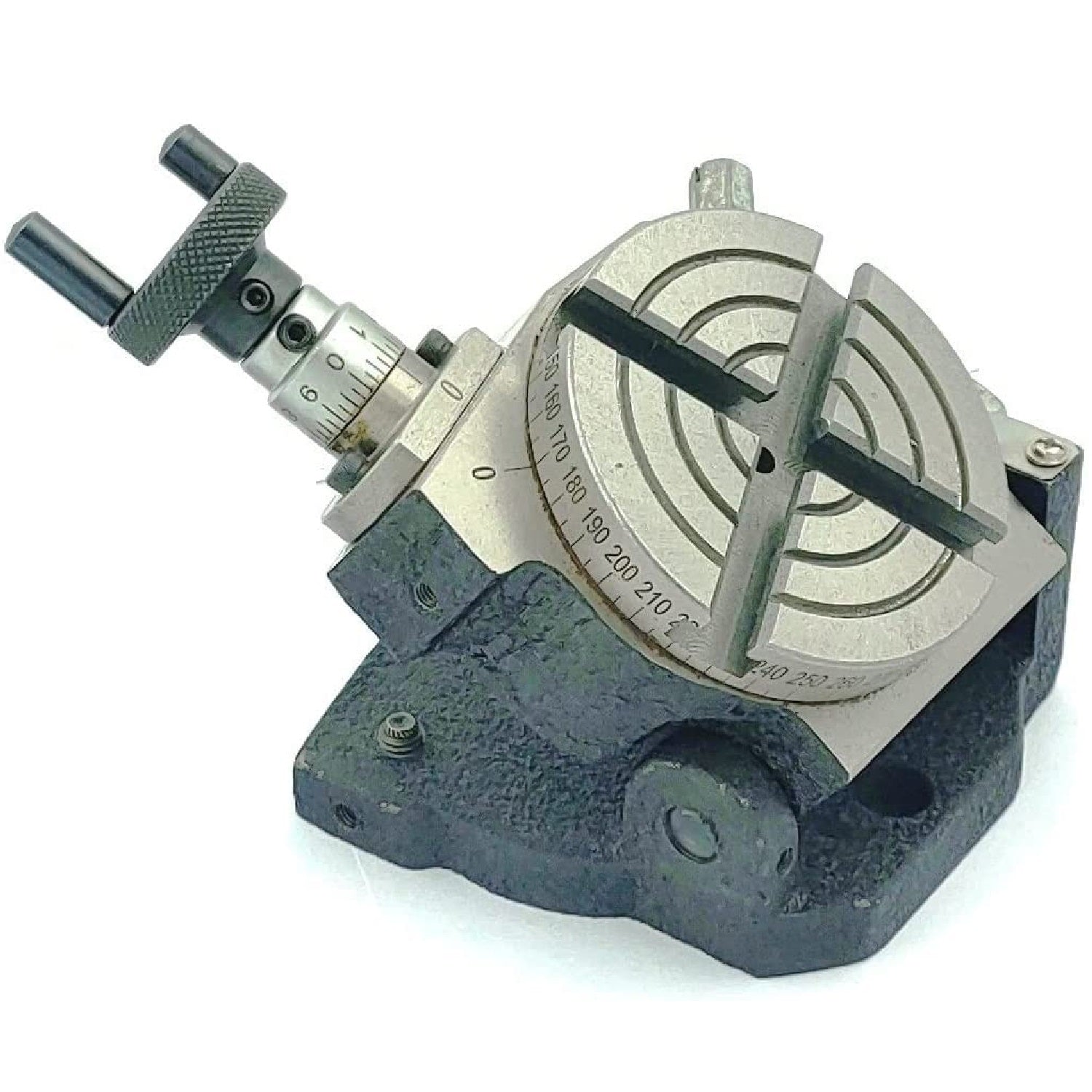

3"/ 80 mm tilting Table
- Low Profile Precision Mini Rotary Table 3" 75mm is manufactured from Seasoned casting.
- Worm- Gear Ratio - 36:1, which basically means that the 1 rotation of the handle shall rotate the table by 10 degrees.
- Can be used both in horizontal & vertical position.
- Weight-3 Kg
- Material :- Tool Steel & Casting

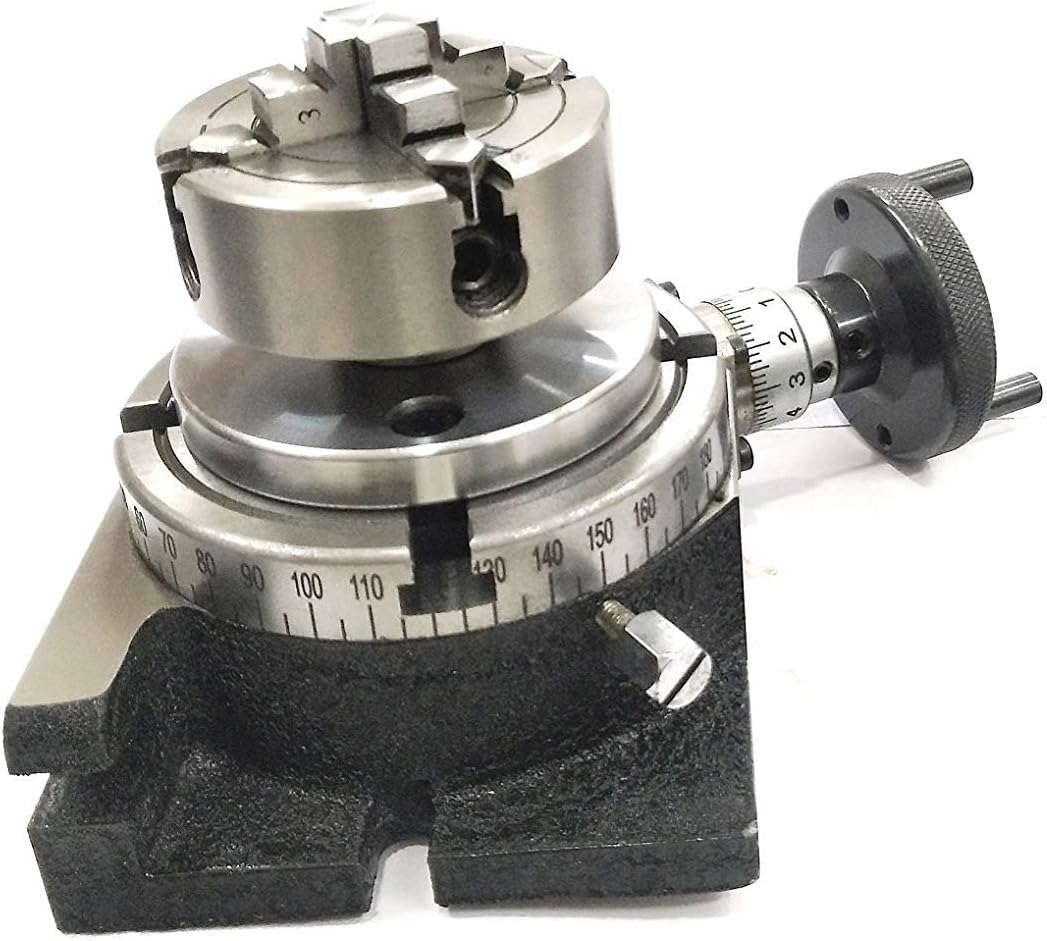

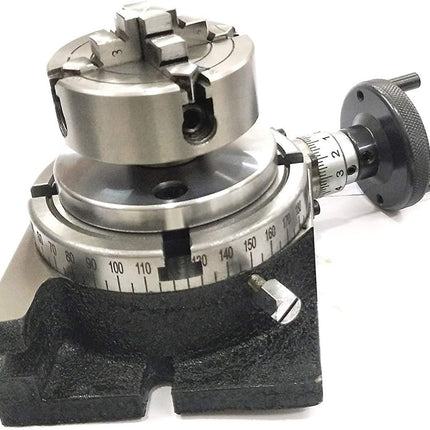

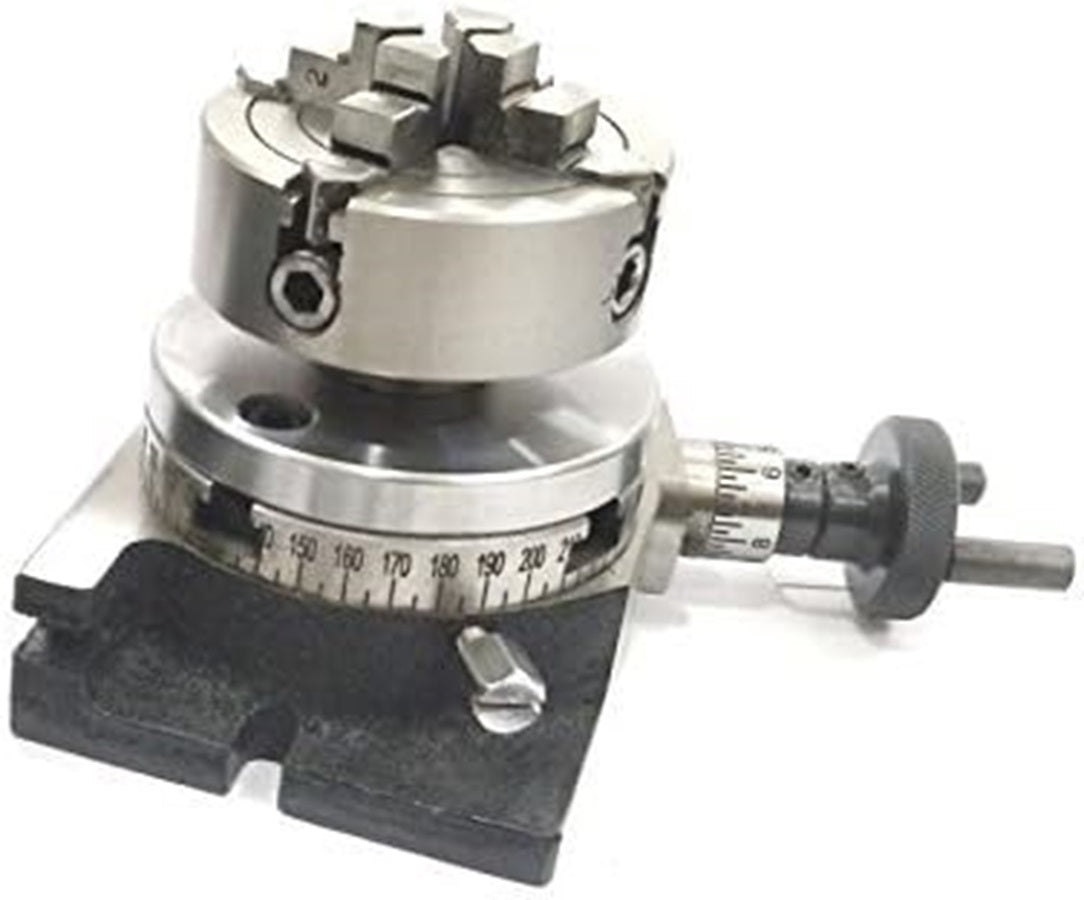

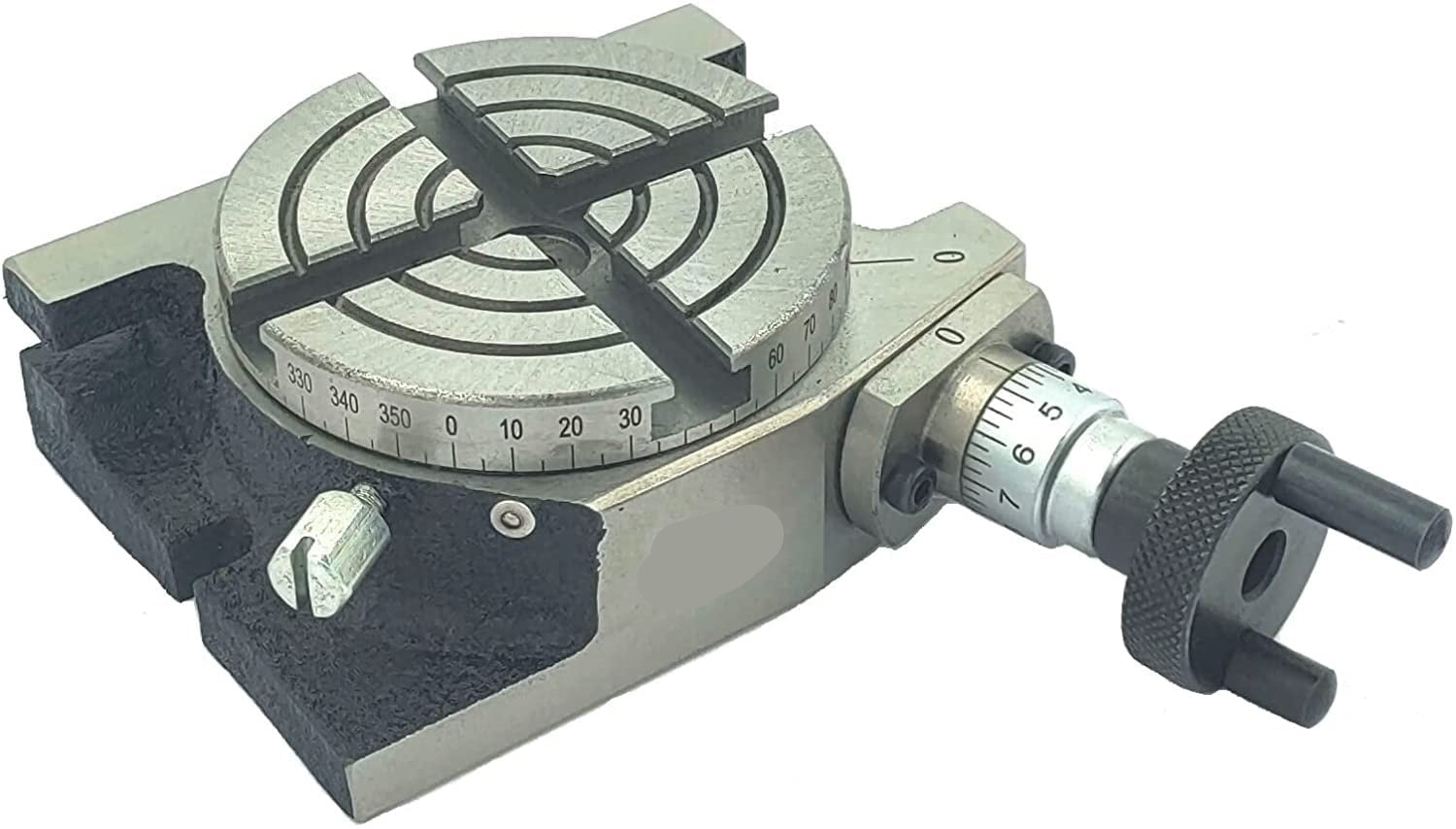

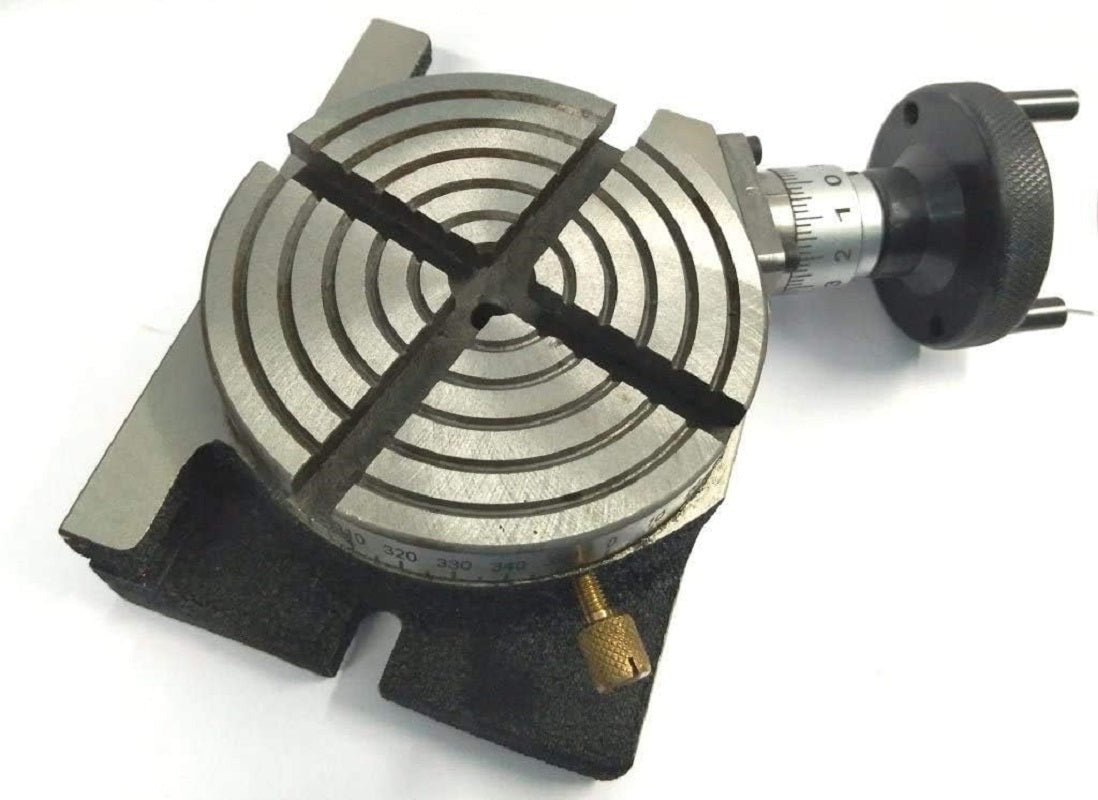

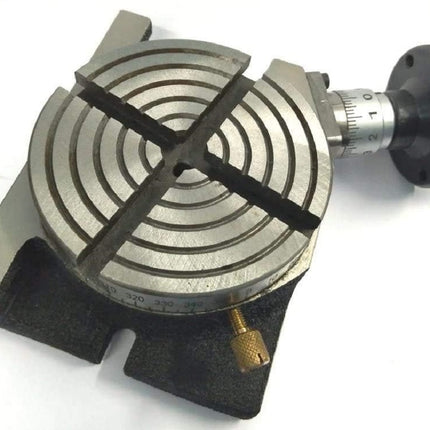

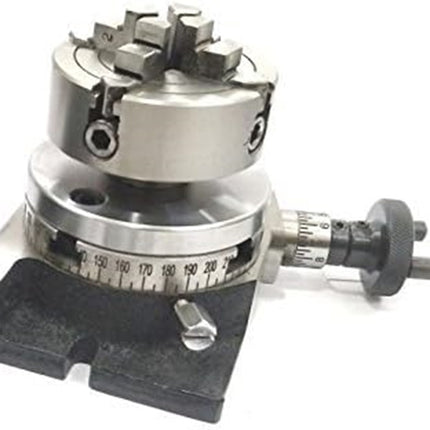

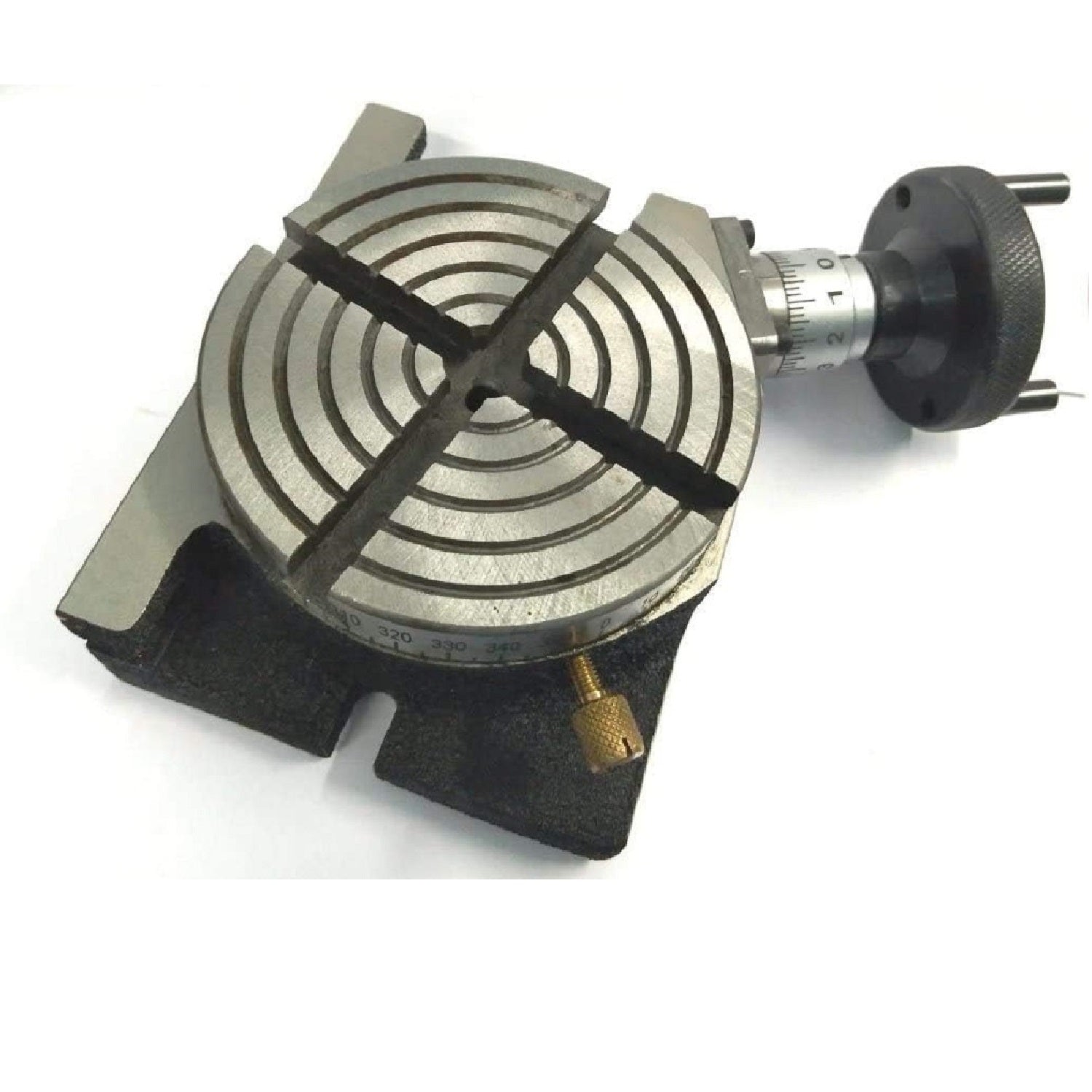

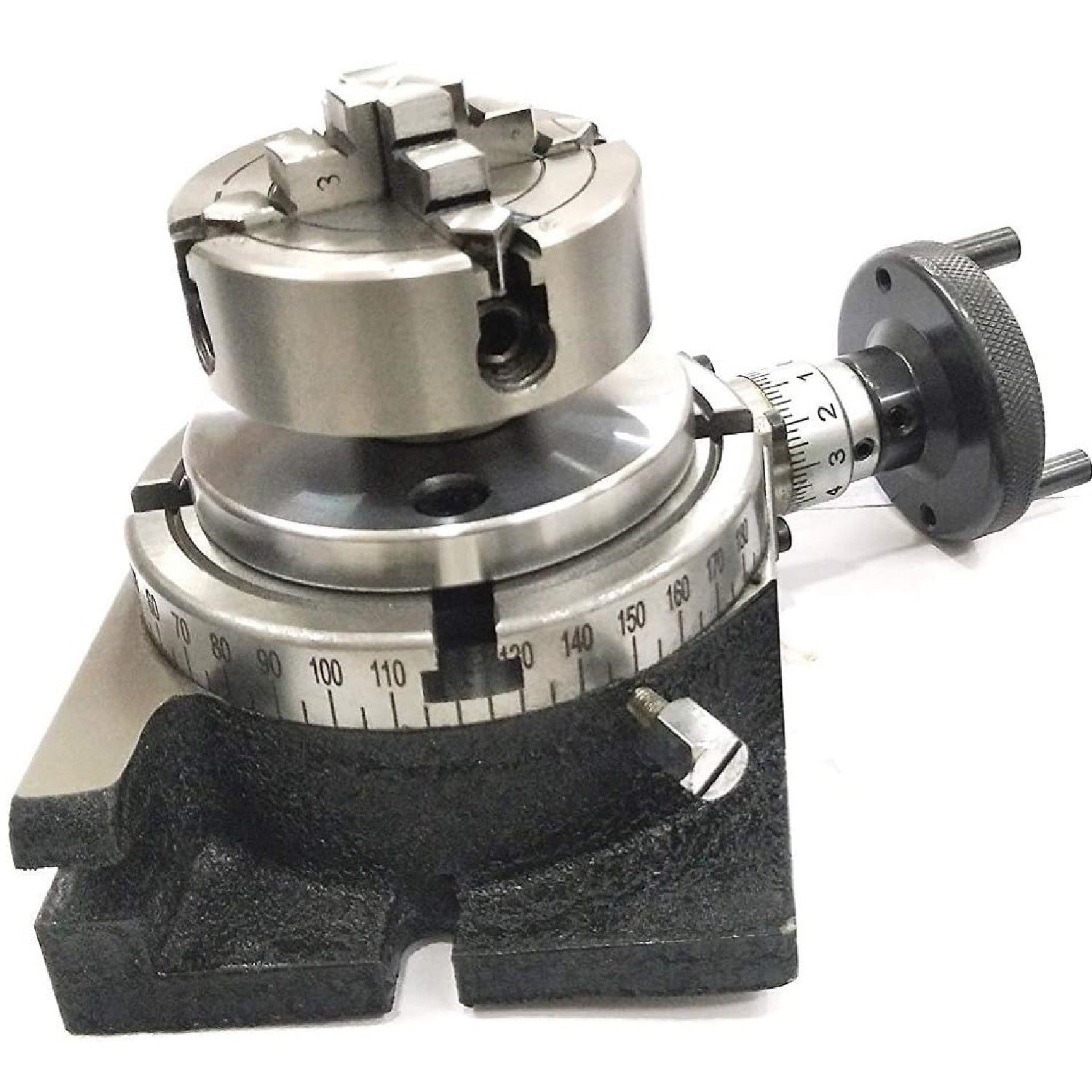

4"/ 100 mm Regular Table
- Very High Quality 4" /100 mm Regular Rotary Table designed for smaller milling machines
- Table is graduated 360 Degrees. Worm Gear Ratio -1:36, which means that the 1 handle rotation shall turn the table by 10 Degrees.
- Center Height in vertical position: 2-1/16" (50 mm approx) Hand wheel is graduated in divisions of 10 min & can be set to zero.
- Can be mounted both in Horizontal & vertical position.

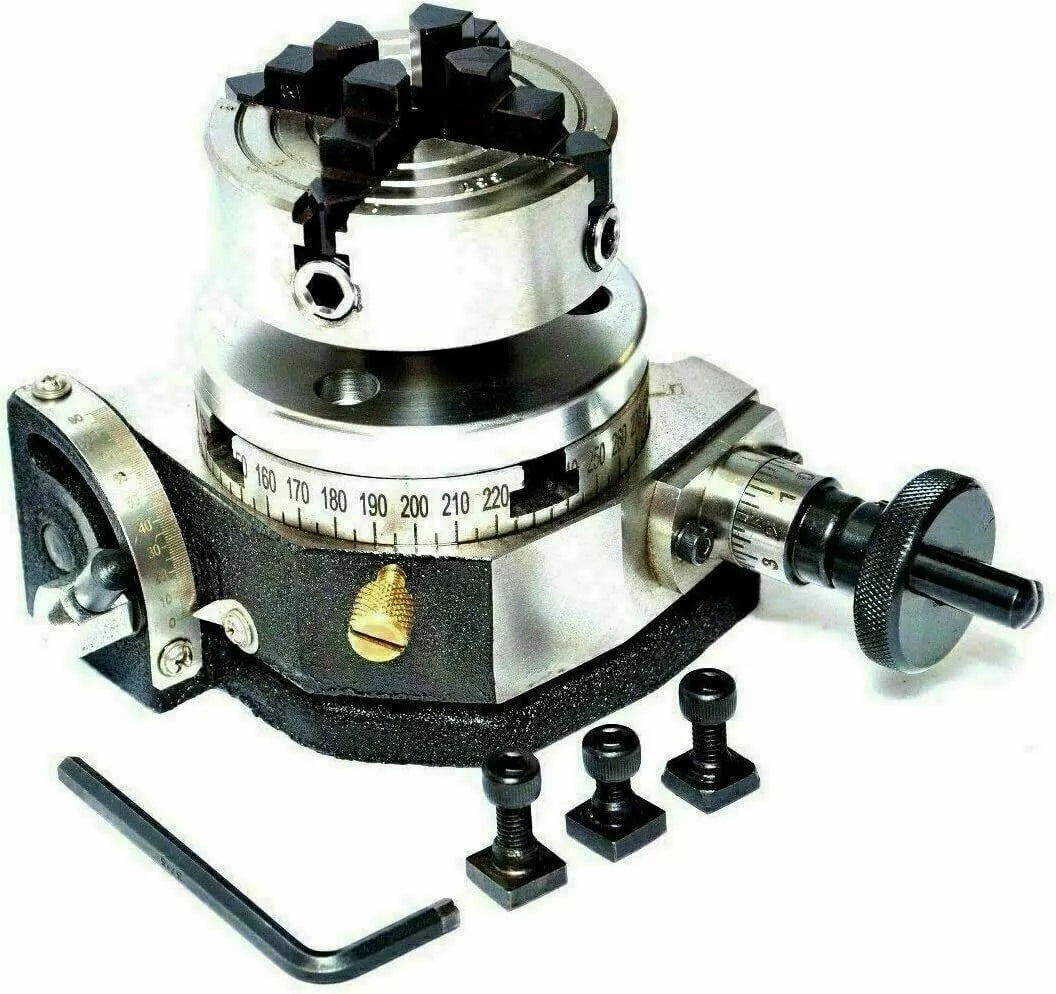

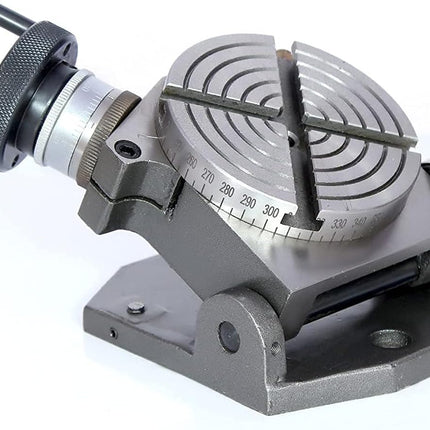

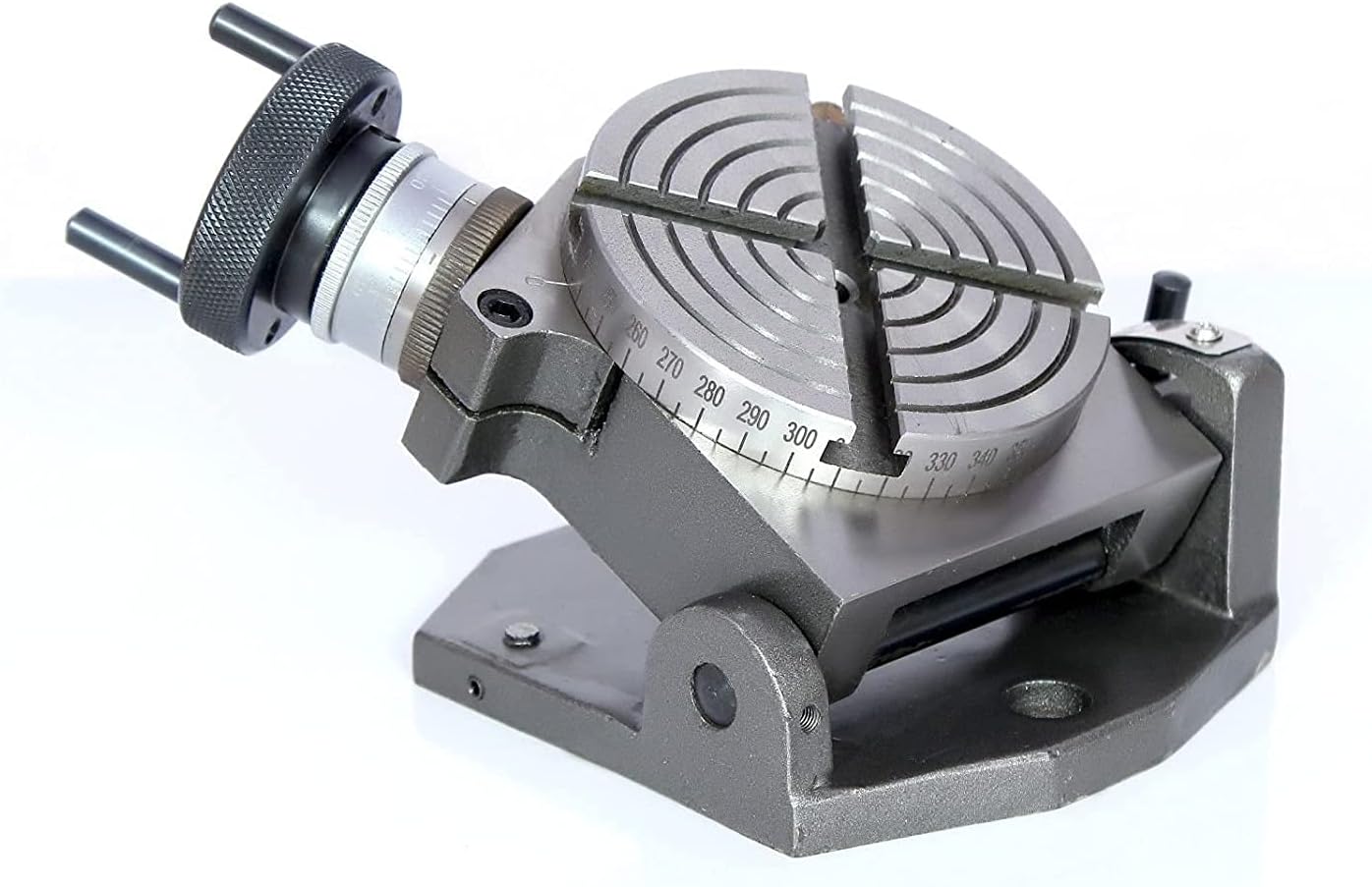

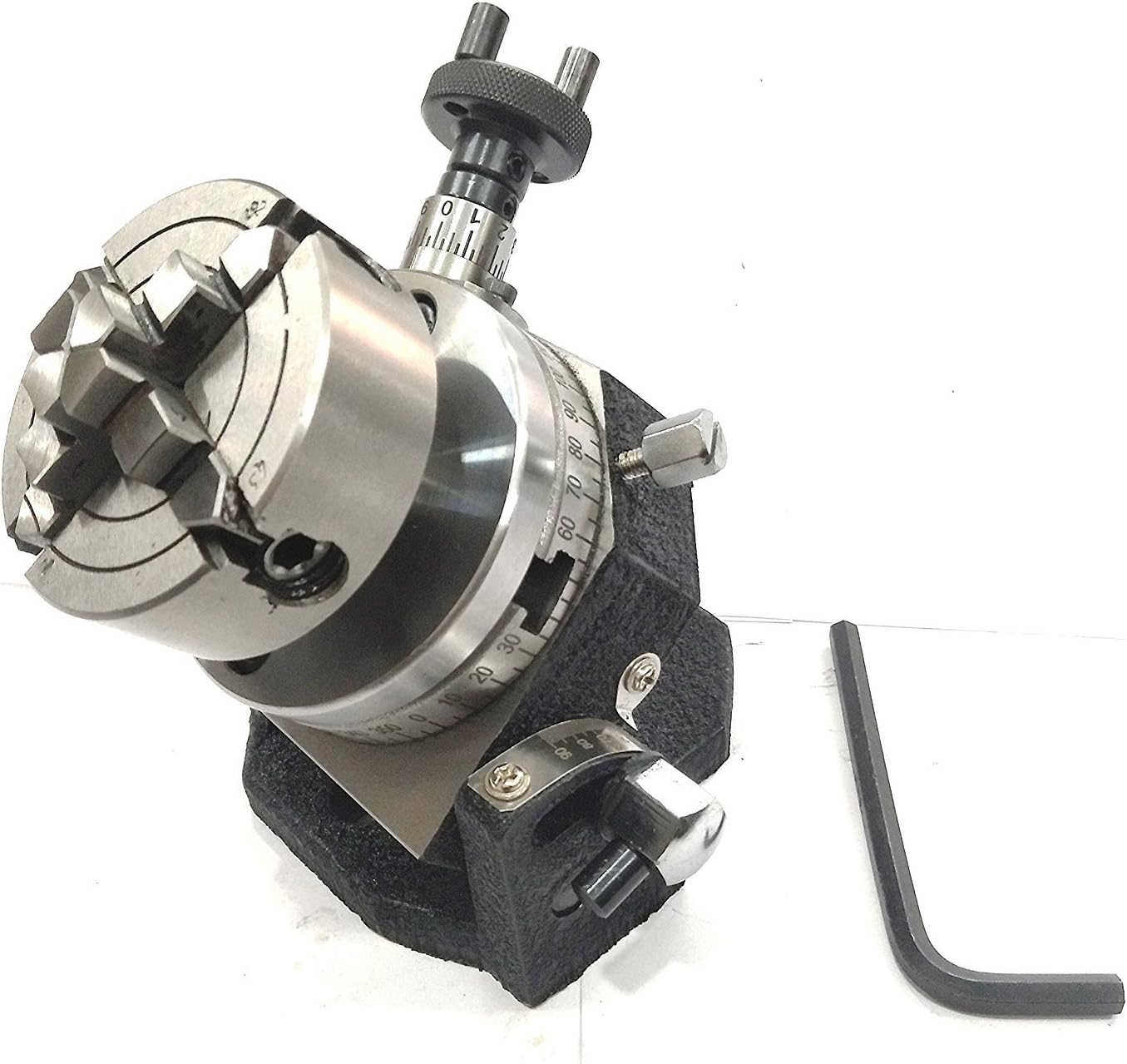

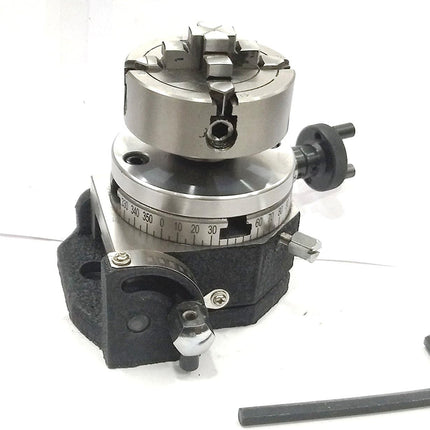

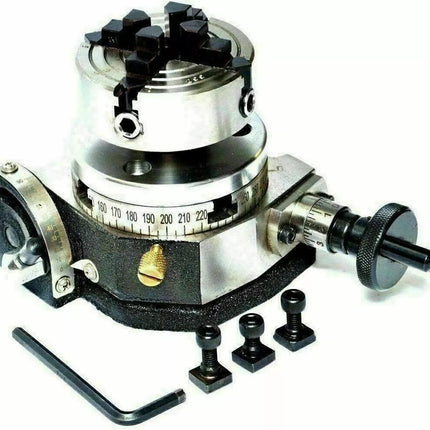

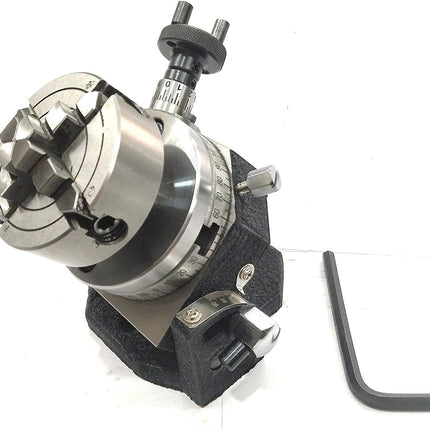

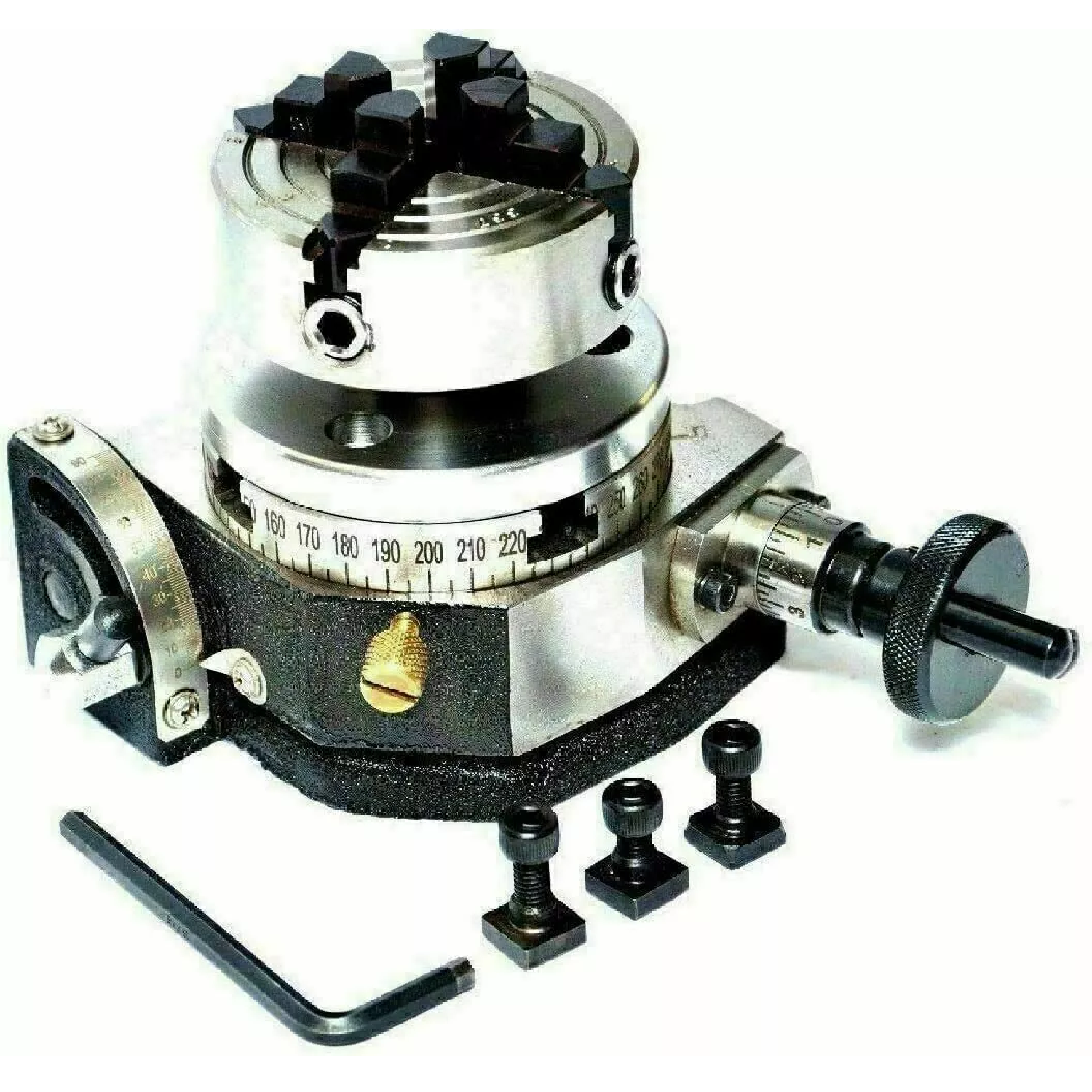

4"/ 100 mm tilting Table
- Horizontal & Vertical Rotary Table 4" Table height 66 mm in flat position
- Table graduated 360 degrees in 5 degree divisions.
- Rotary Tables deliver precise, continuous rotating motion for scanning, assembly, testing and production.
- They are a convenient, accurate method of quickly positioning a payload.
- The tables use a rugged worm and gear drive design with a central rotating ball bearing.
