Description
Use of product- A pin punch is a tool used for driving out or removing pins, bolts, or rivets from mechanical assemblies. It typically has a long, slender, cylindrical shape with a pointed end that fits into the pin or rivet head. By striking the opposite end of the pin punch with a hammer or mallet, it applies force to the pin, allowing it to be pushed out of its hole or slot in the material. Pin punches are commonly used in automotive, construction, and maintenance industries for disassembling and repairing machinery and equipment.
Specifications:
-
Material: Hardened and Ground Steel
-
Standard: Imperial
-
Set Includes:
- 5 Long Drive Pin Punches
- 8 Short Drive Pin Punches
-
Length:
- Long Punches: Various lengths for deeper reach
- Short Punches: Compact sizes for tight spaces
-
Tip Diameters: Precision sizes for various pin diameters
Features:
-
Durable Construction: Each punch is made from hardened and ground steel, offering exceptional strength and wear resistance.
-
Precision Tips: Precisely ground tips ensure accurate alignment and insertion of roll pins without causing damage.
-
Variety of Sizes: The set includes both long and short punches, providing versatility for different tasks and accessibility in tight spaces.
-
Ergonomic Design: Comfortable handles with knurled grips ensure a firm hold and reduce hand fatigue during prolonged use.
-
Complete Kit: A comprehensive set that includes all necessary sizes for common pin and bolt catch tasks.
Benefits:
-
Versatile Use: Suitable for a wide range of applications including firearm assembly, machinery maintenance, and various DIY projects.
-
Enhanced Precision: Precisely machined tips prevent slipping and marring, ensuring professional results.
-
Accessibility: Long punches provide extended reach for deeper or hard-to-access areas, while short punches are perfect for confined spaces.
-
Durability: High-quality materials and construction ensure long-lasting performance even with frequent use.
-
Convenient Storage: The set comes with an organized storage case, keeping your tools readily accessible and protected.
Applications:
- Ideal for gunsmithing, including installing and removing roll pins in firearms.
- Useful for machinery maintenance, allowing precise insertion and removal of pins and bolts.
- Perfect for various DIY and home repair projects that require accurate pin driving.
Usage Instructions:
- Select the appropriate punch from the set based on the size of the roll pin or bolt catch.
- Position the tip of the punch on the pin, ensuring it is aligned correctly.
- Strike the punch with a hammer to drive the pin in or out of the material.
- Use long punches for hard-to-reach areas and short punches for tight spaces.

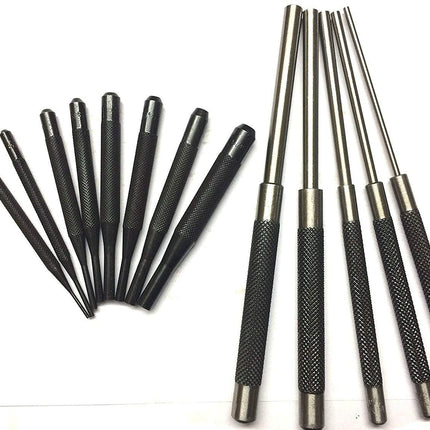

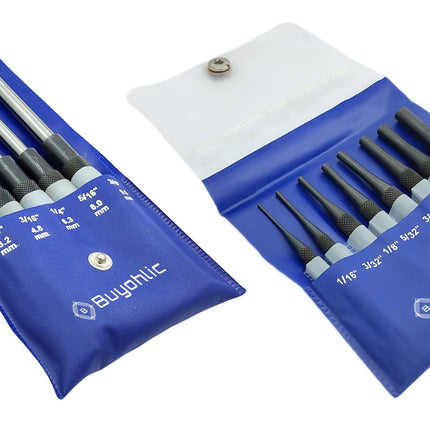

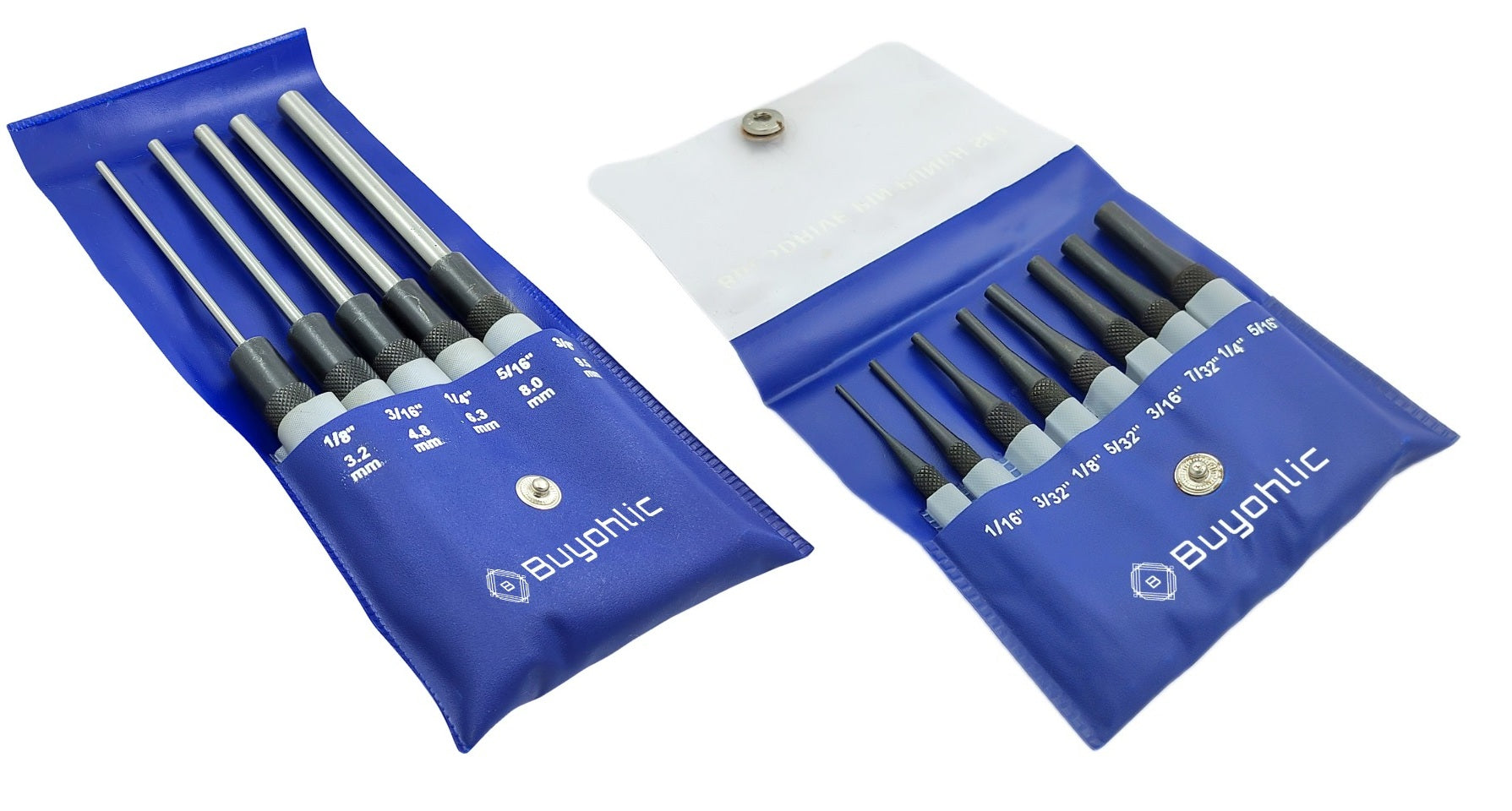

Set Components:
-

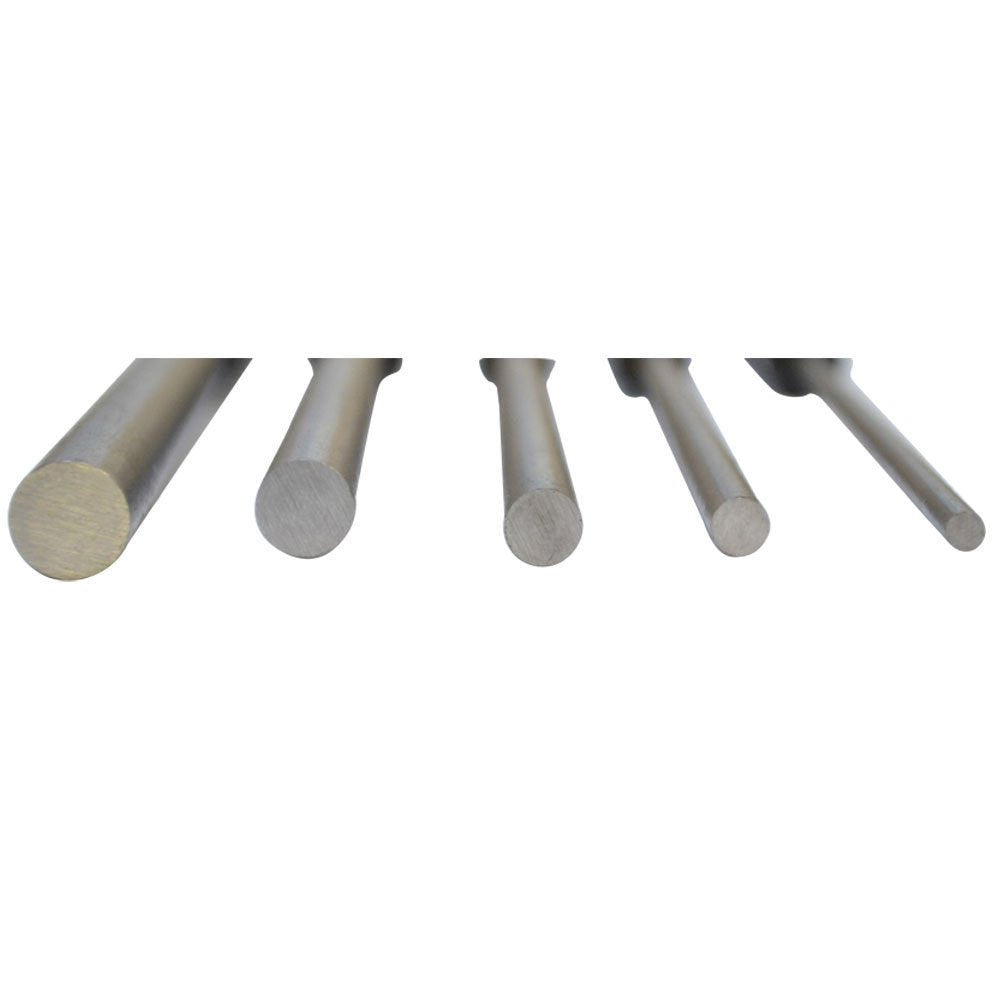

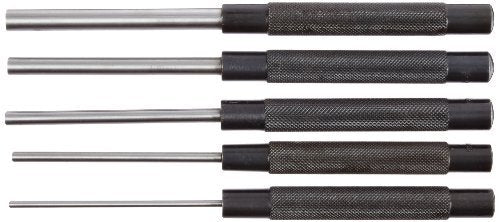

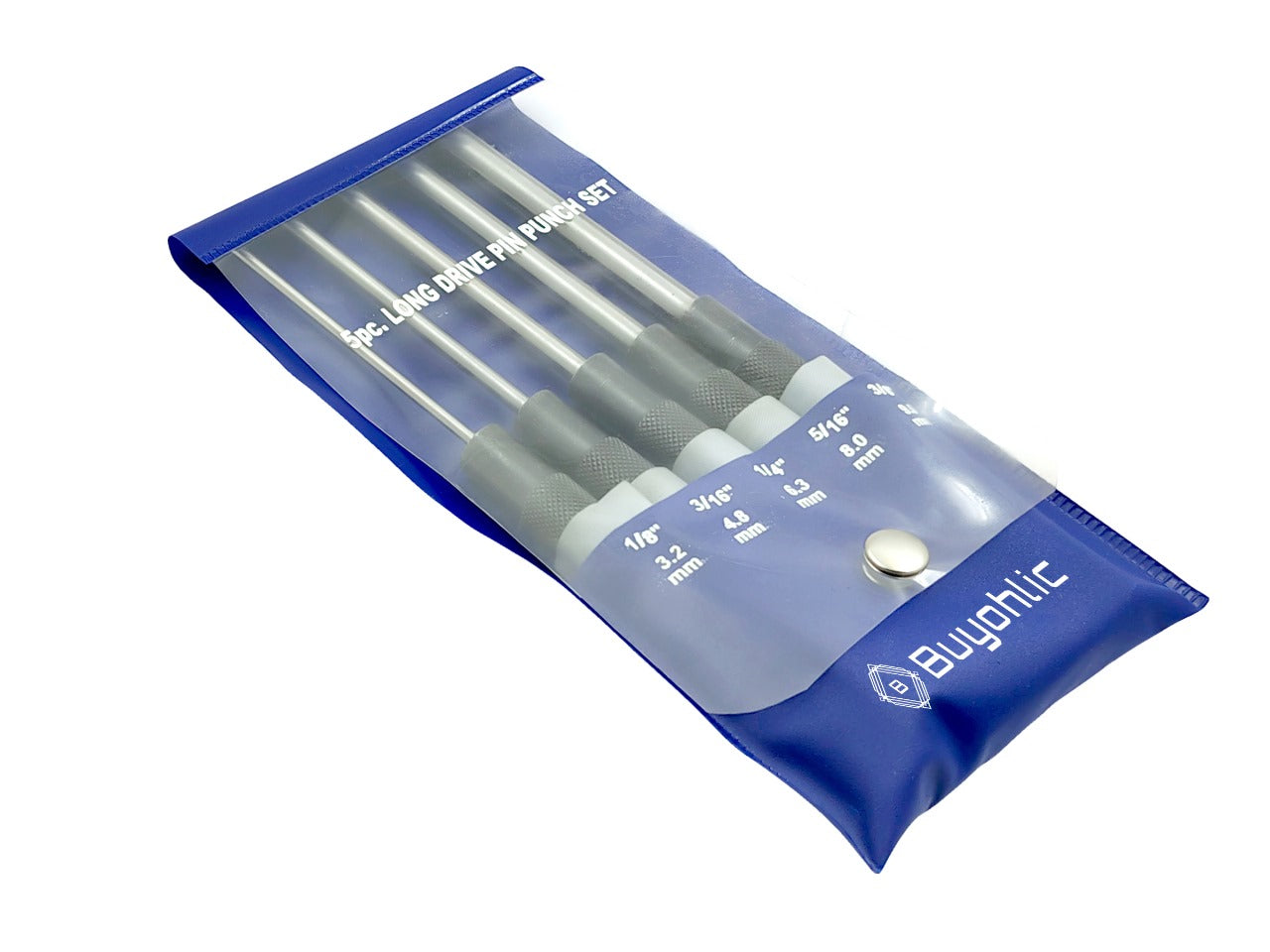

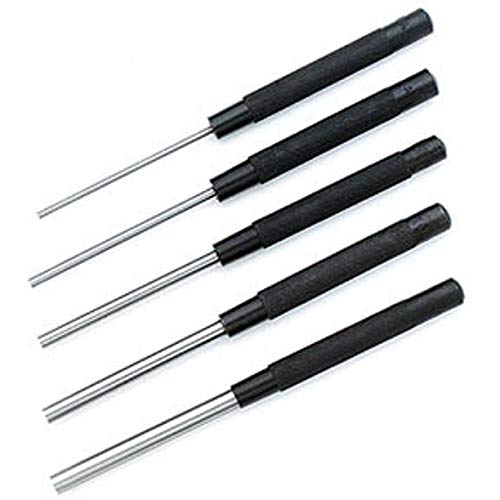

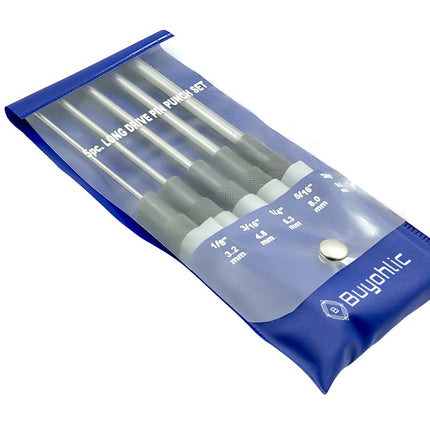

Long Drive Pin Punches (5 Pcs):
- Sizes: 1/8", 3/16", 1/4", 5/16" 3/8",
-

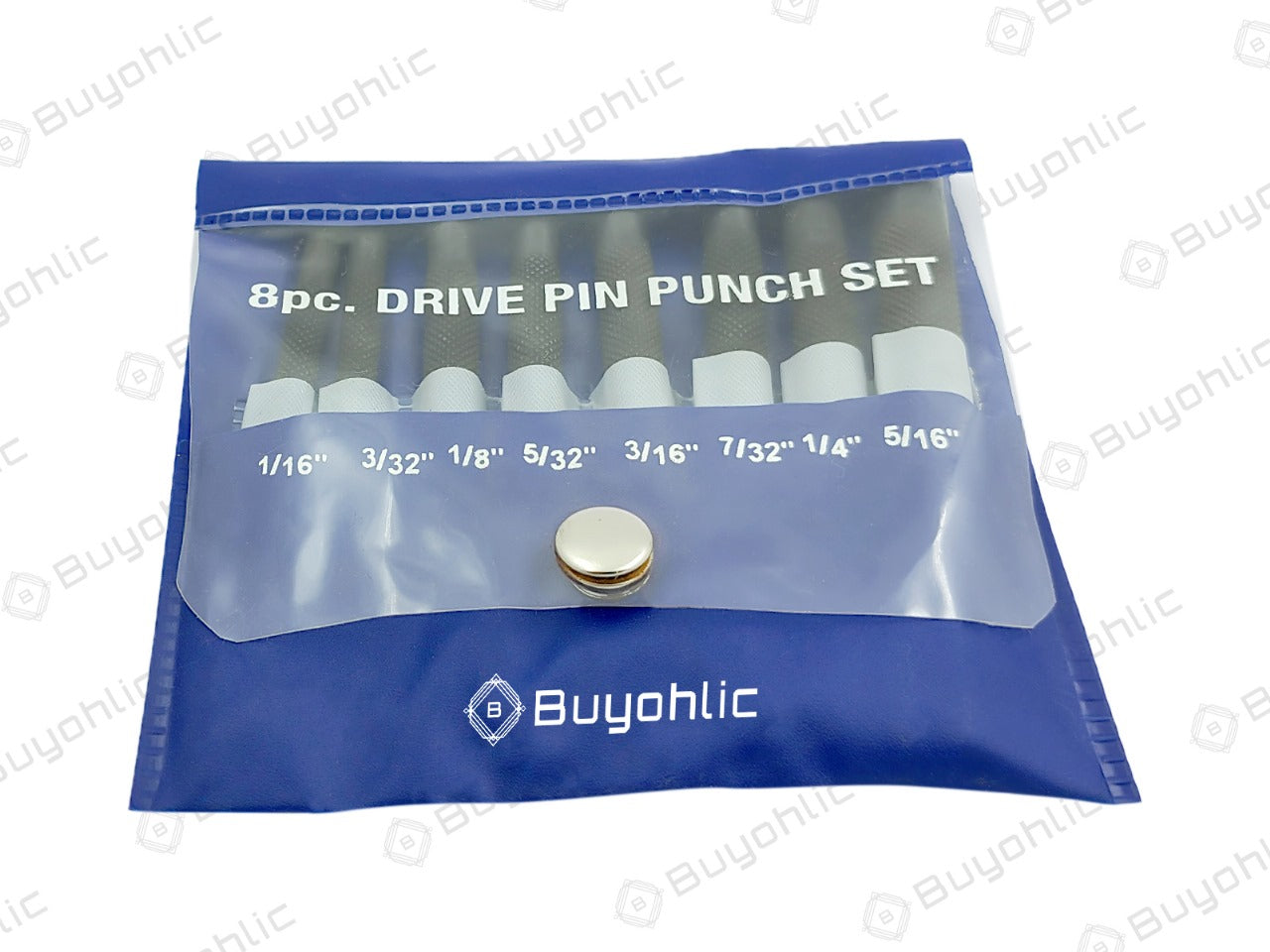

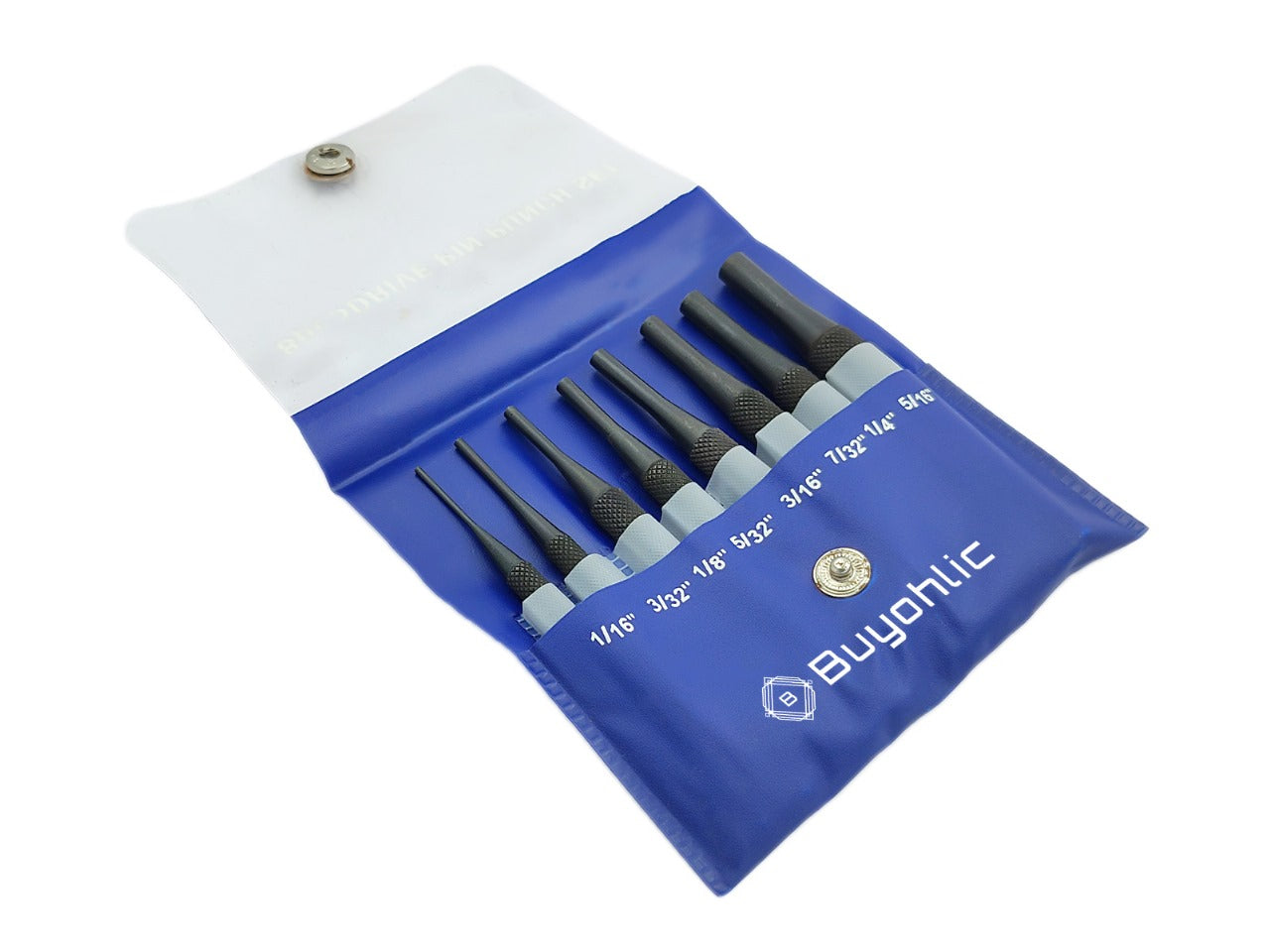

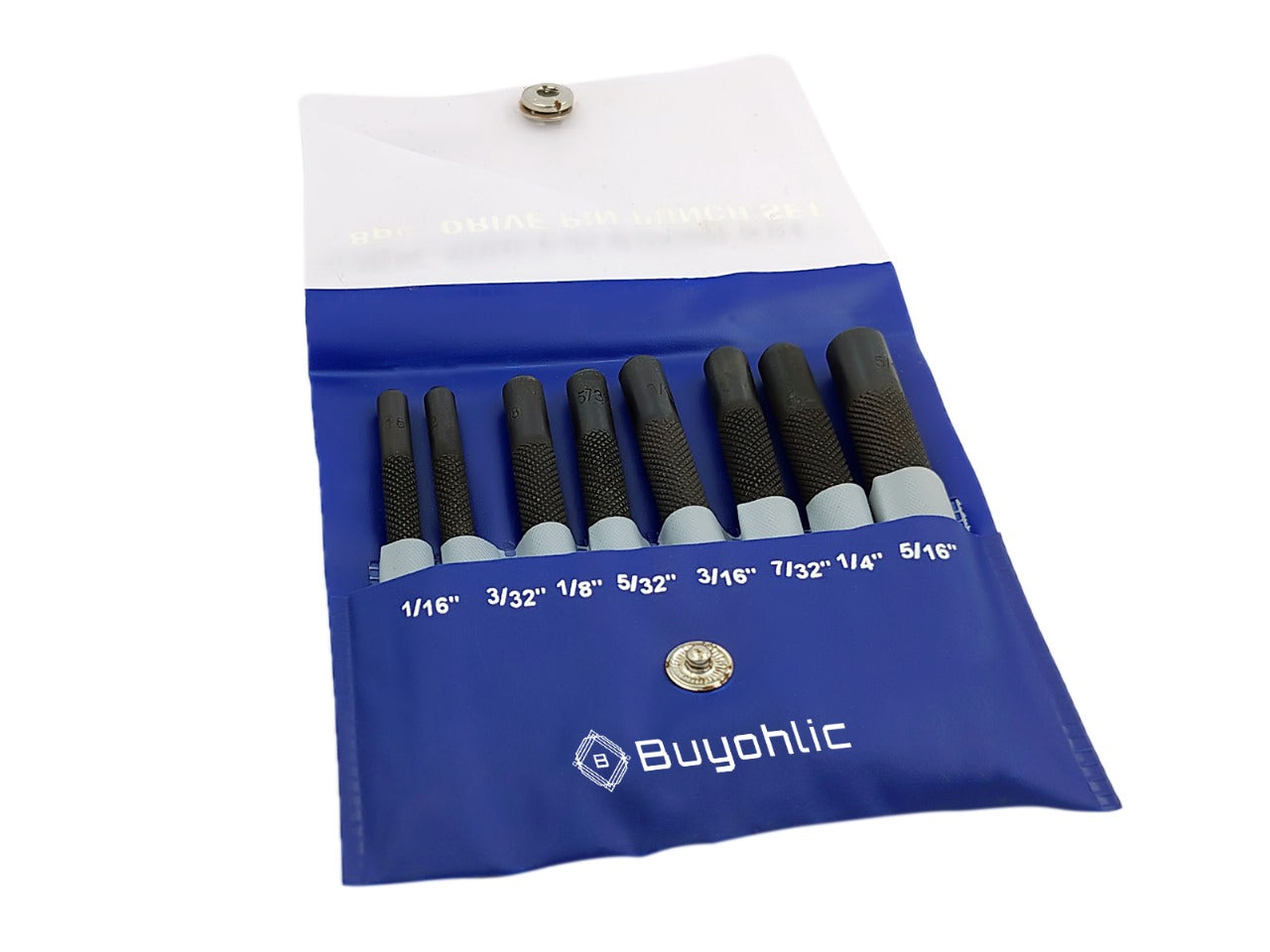

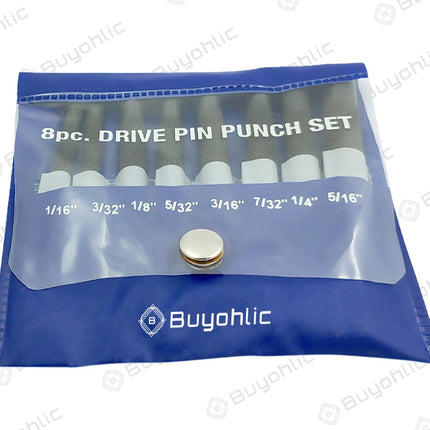

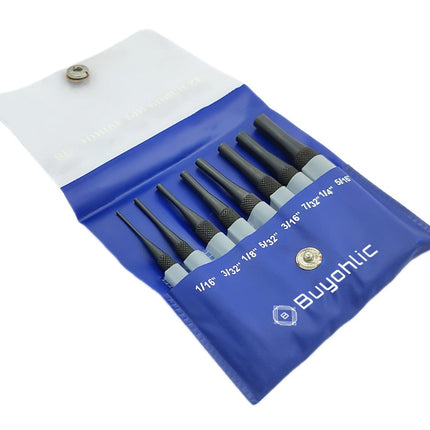

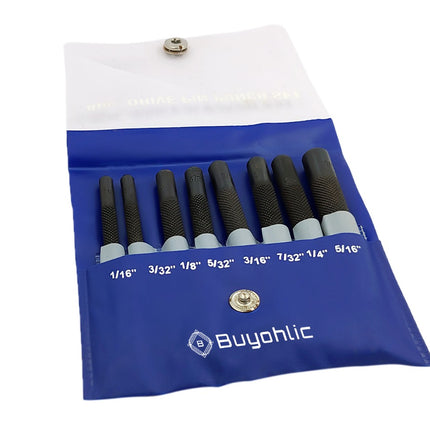

Short Drive Pin Punches (8 Pcs):
- Sizes: 1/16”, 3/32”, 1/8”, 5/32”, 3/16”, 7/32”, 1/4” & 5/16"
