Description

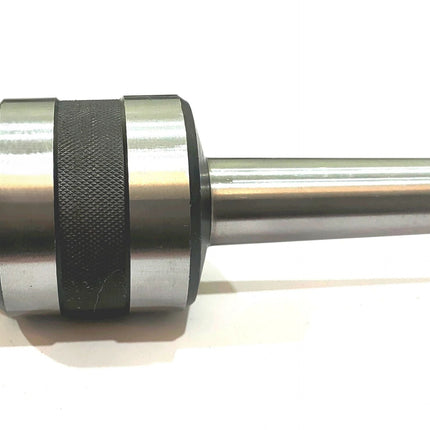

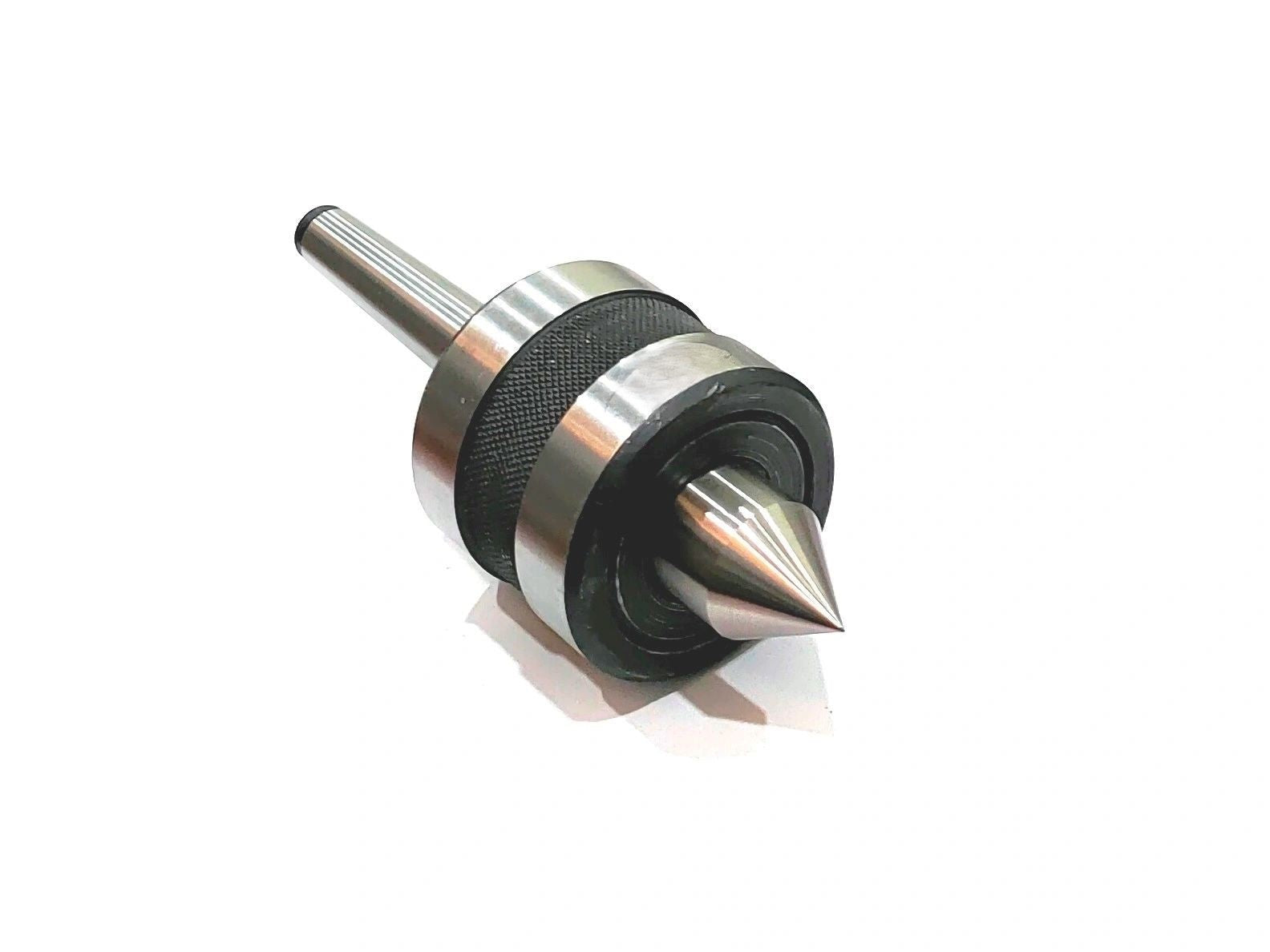

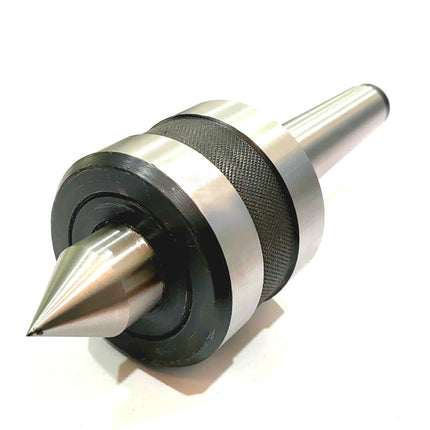

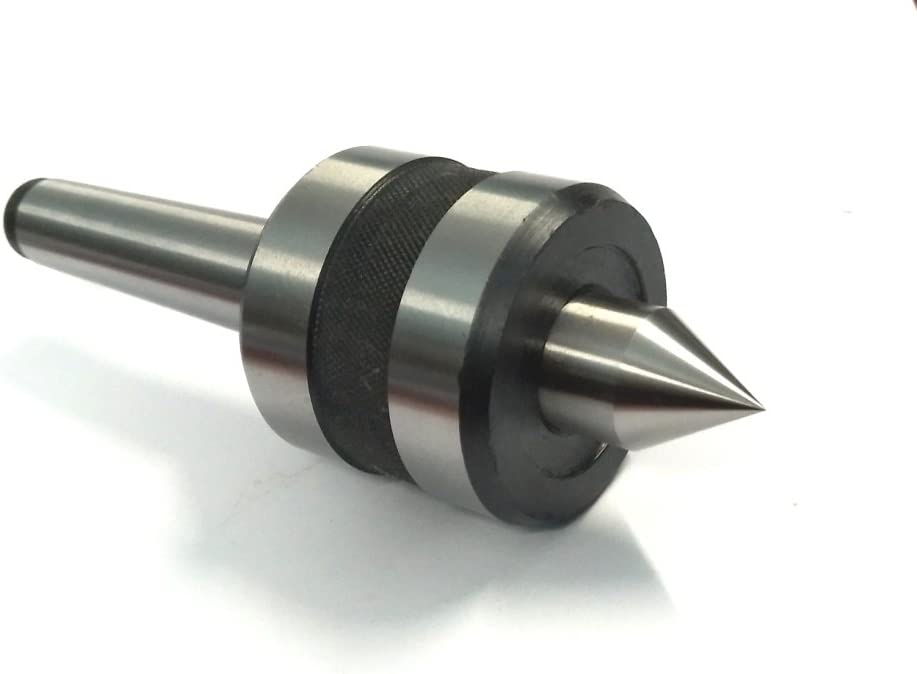

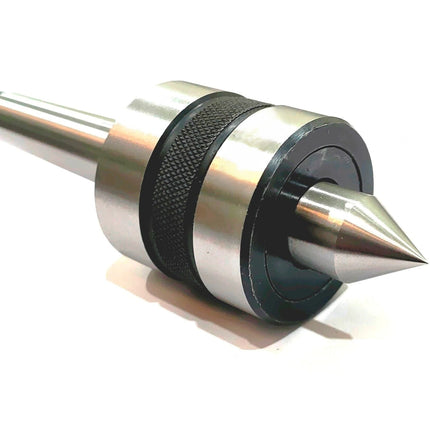

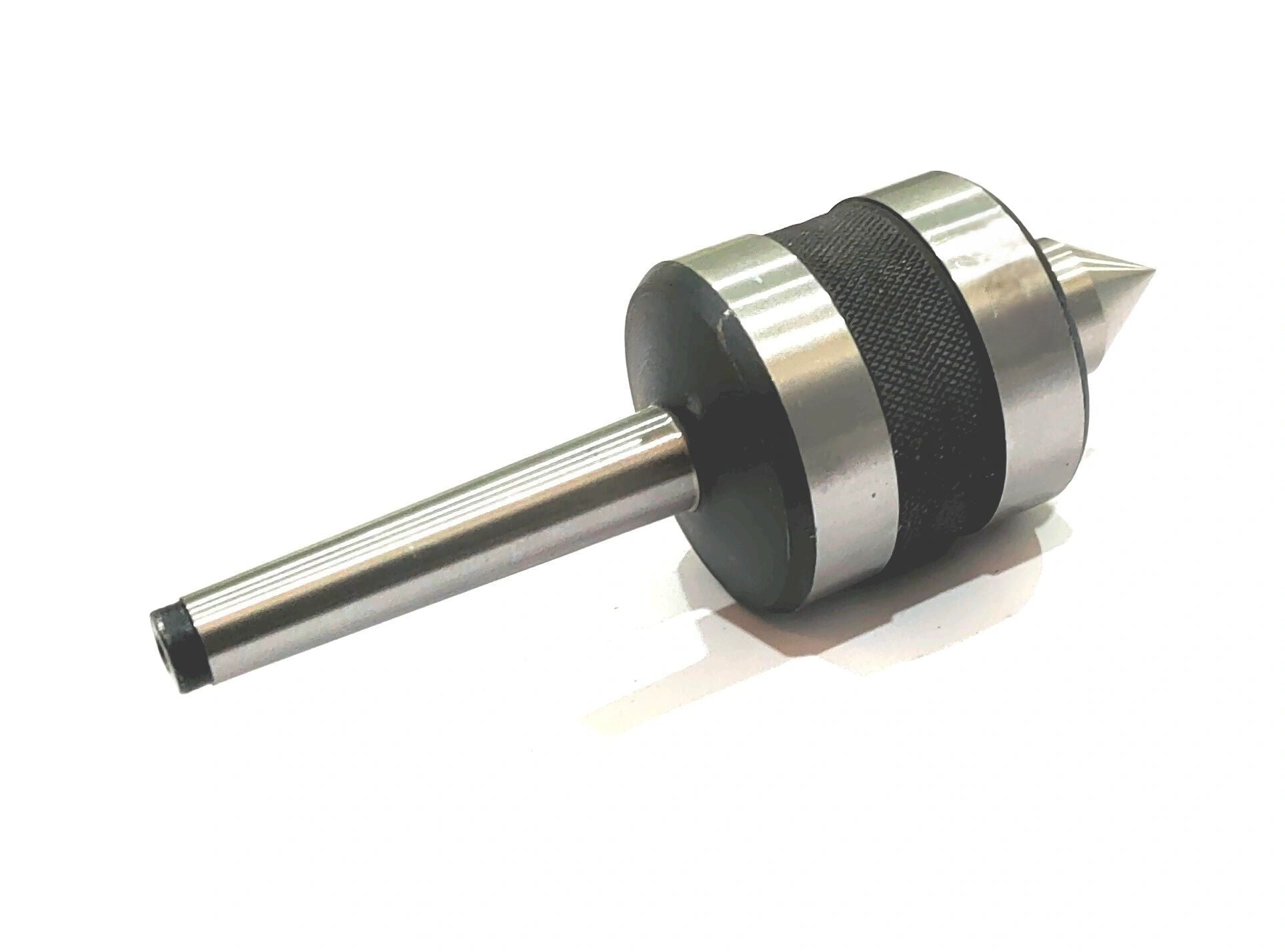

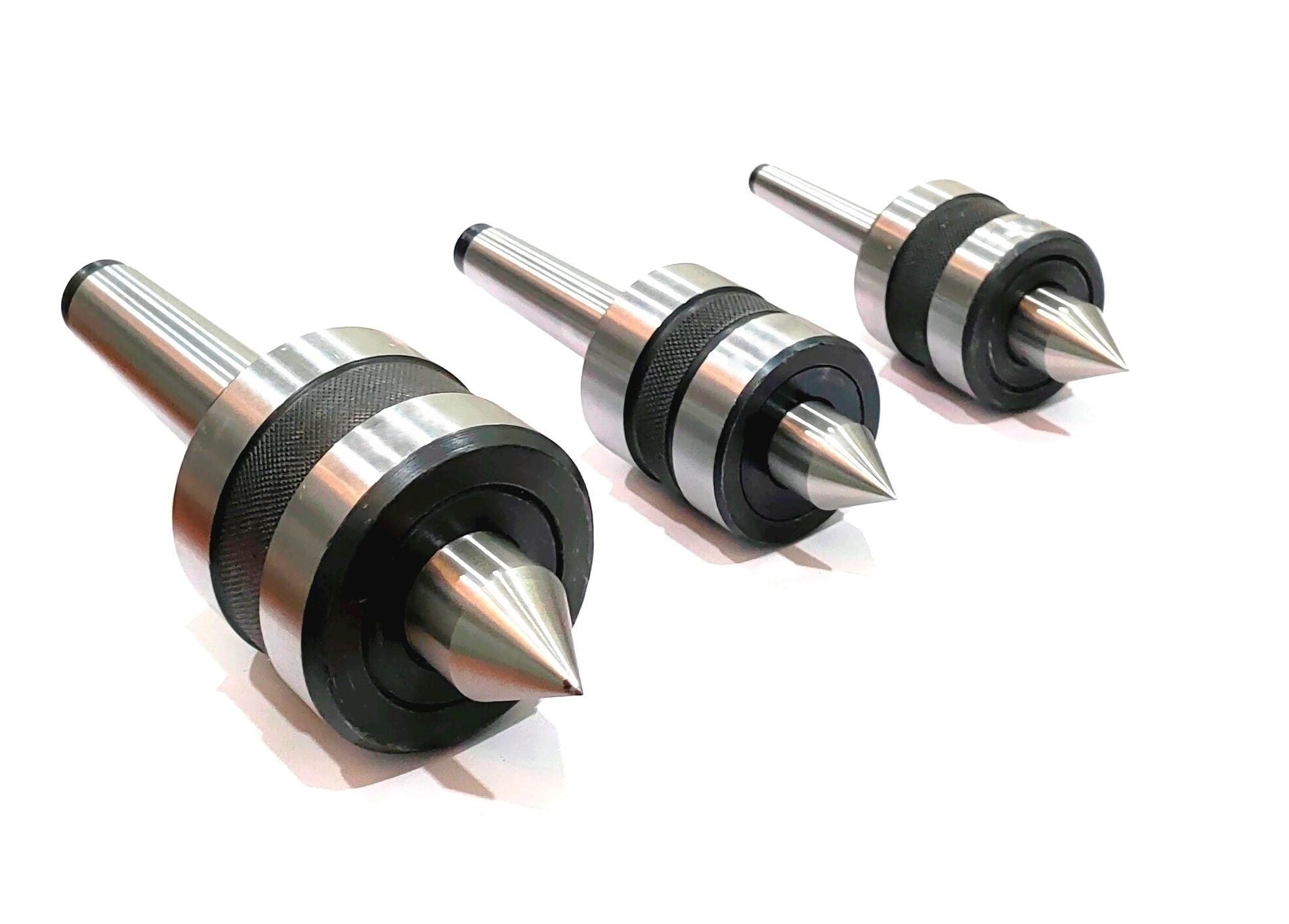

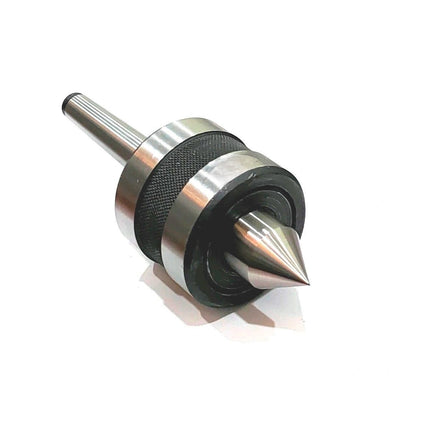

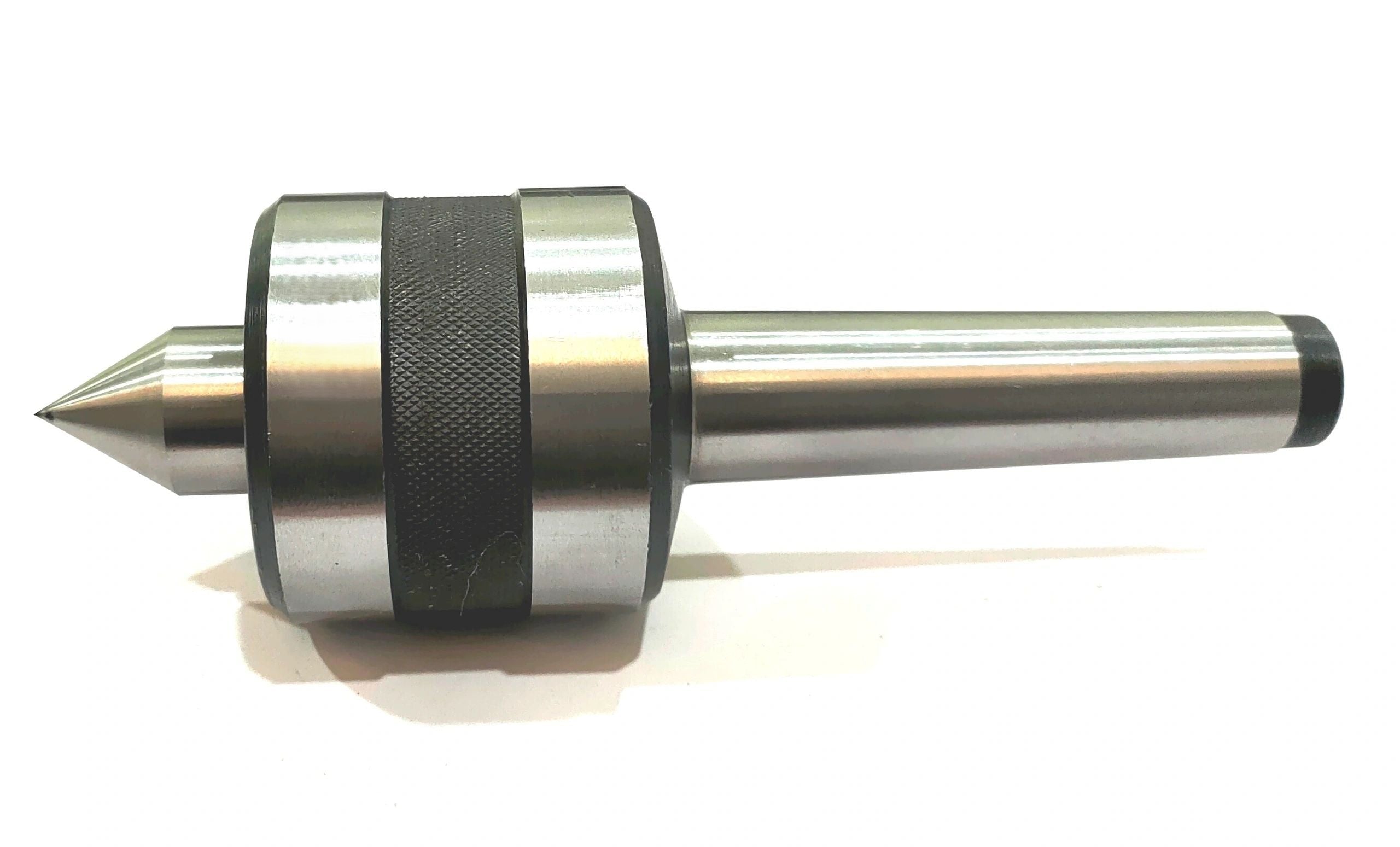

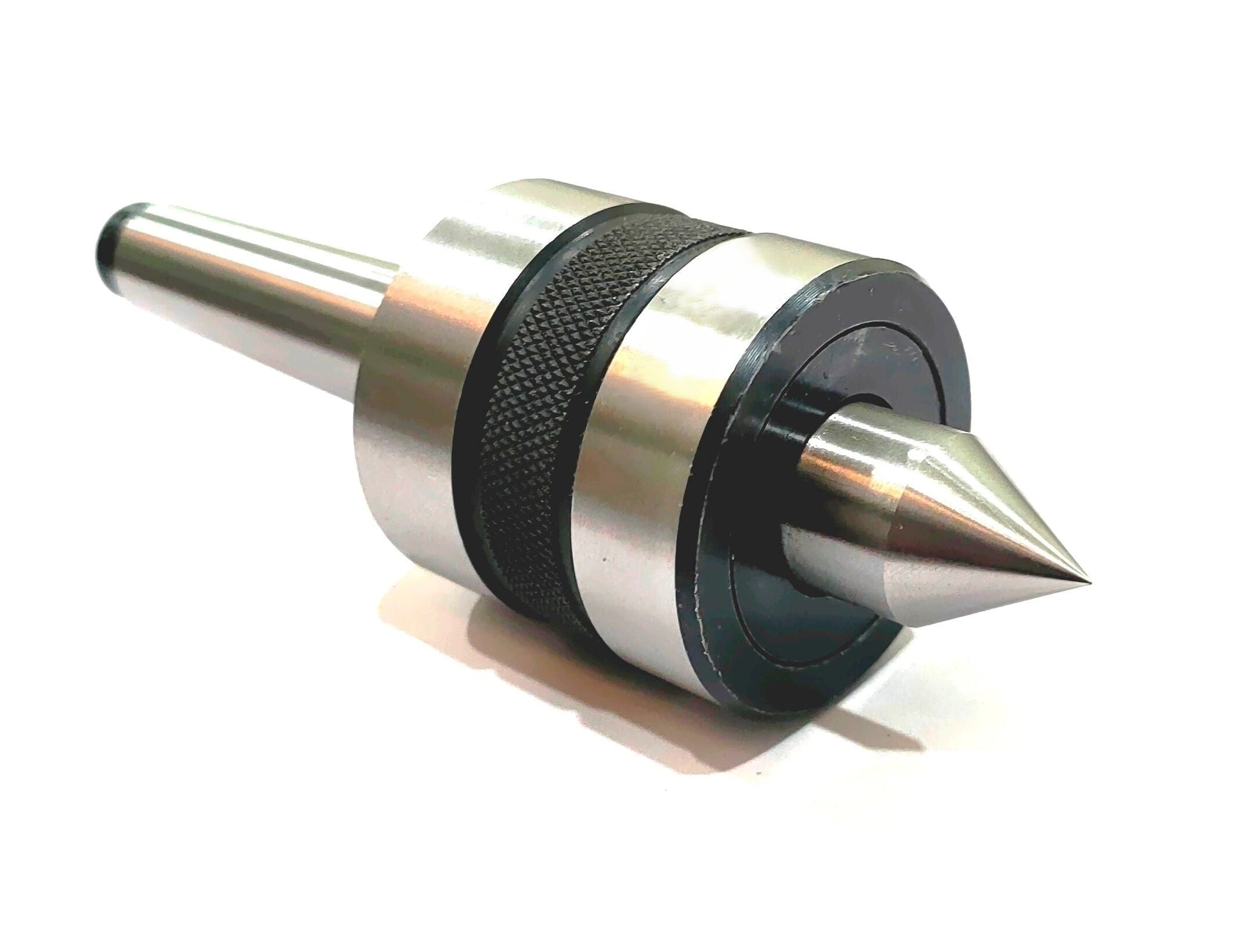

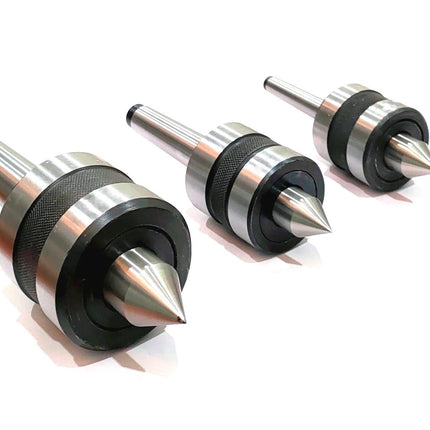

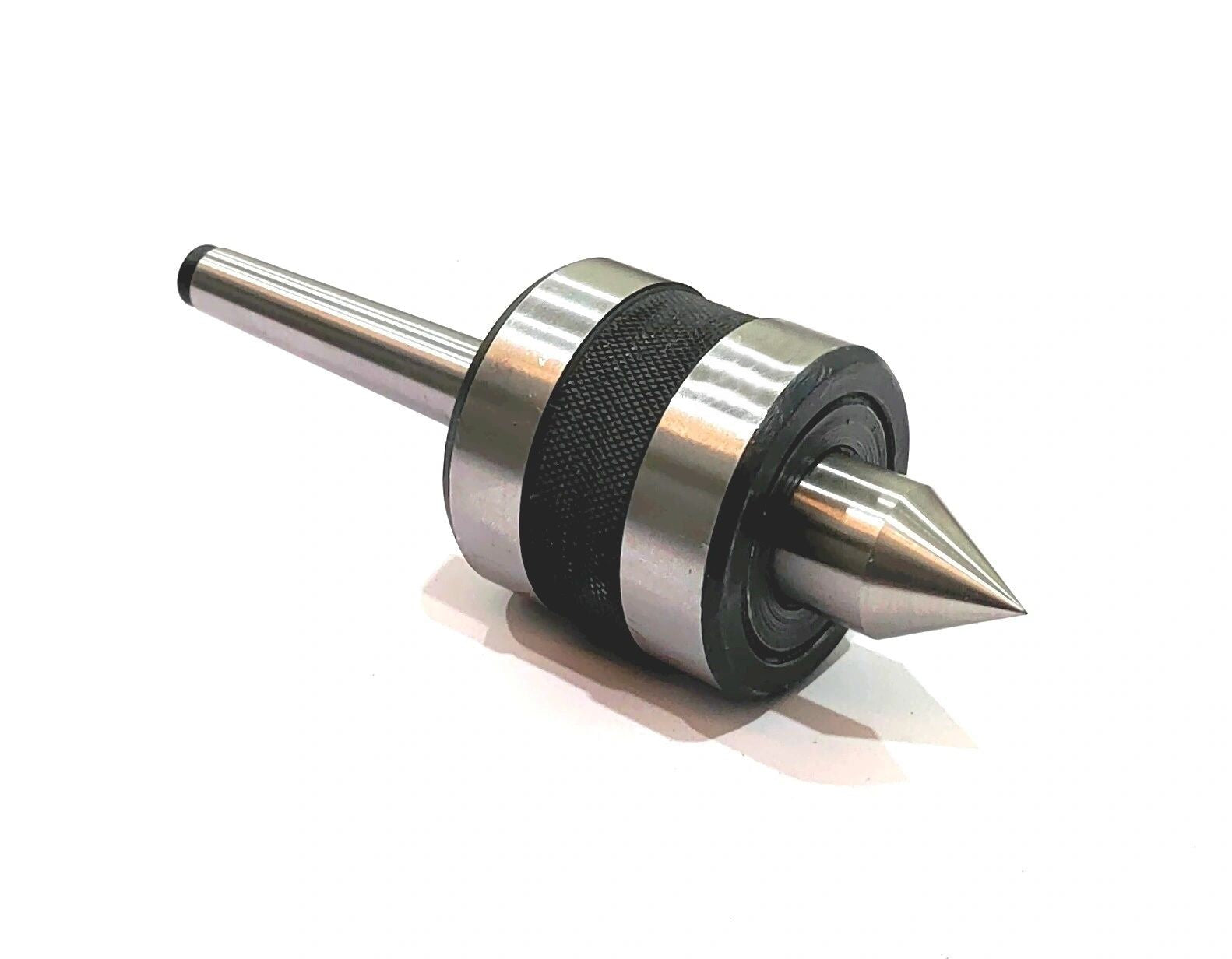

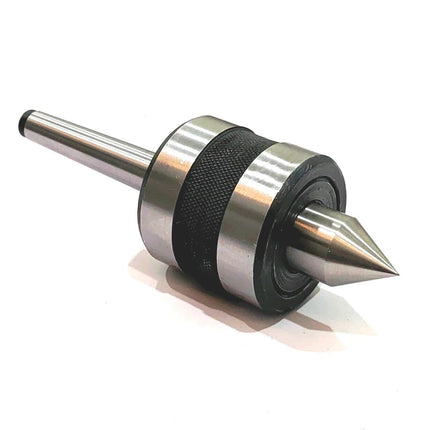

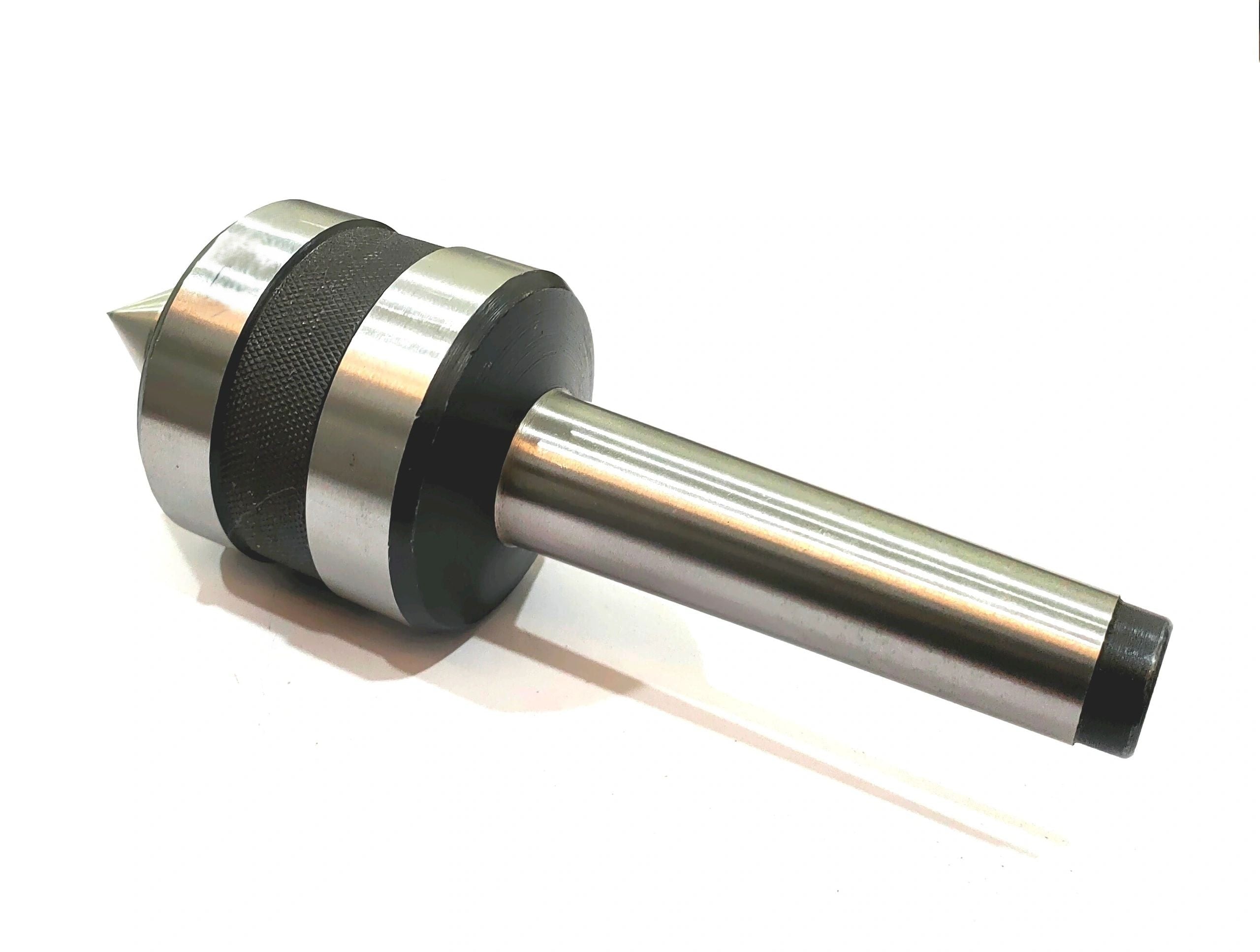

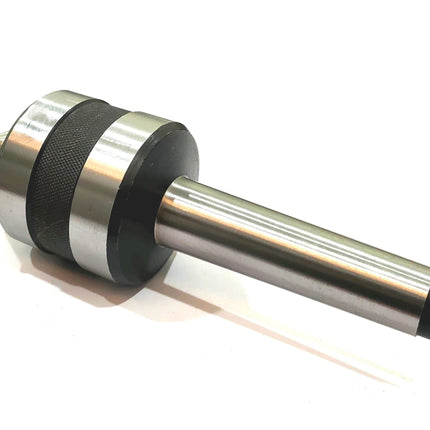

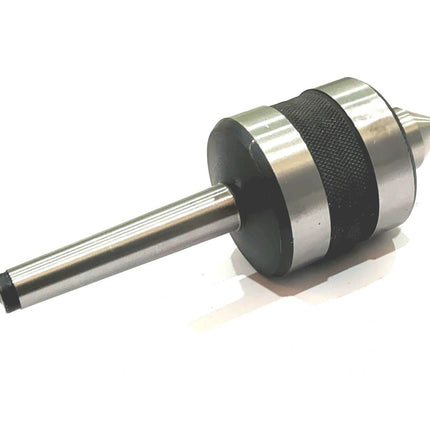

A revolving center (or live center) is used in machining to support and rotate a workpiece on a lathe or similar machine. It helps to keep the workpiece stable, centered, and aligned during cutting or shaping operations, ensuring accurate and smooth machining.
General Description :-

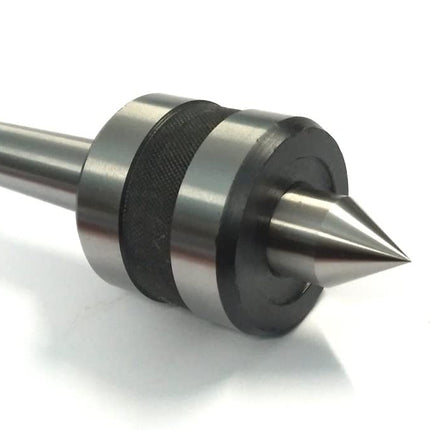

- Made of quality tool steel with hardened point. Shanks are precisely ground to match a concentric run out of +/-0.01 mm
- High quality ball bearings & taper bearing combination absorbs both radial & thrusts load to guarantee smooth movement
- Well suited for conventional lathe machines.

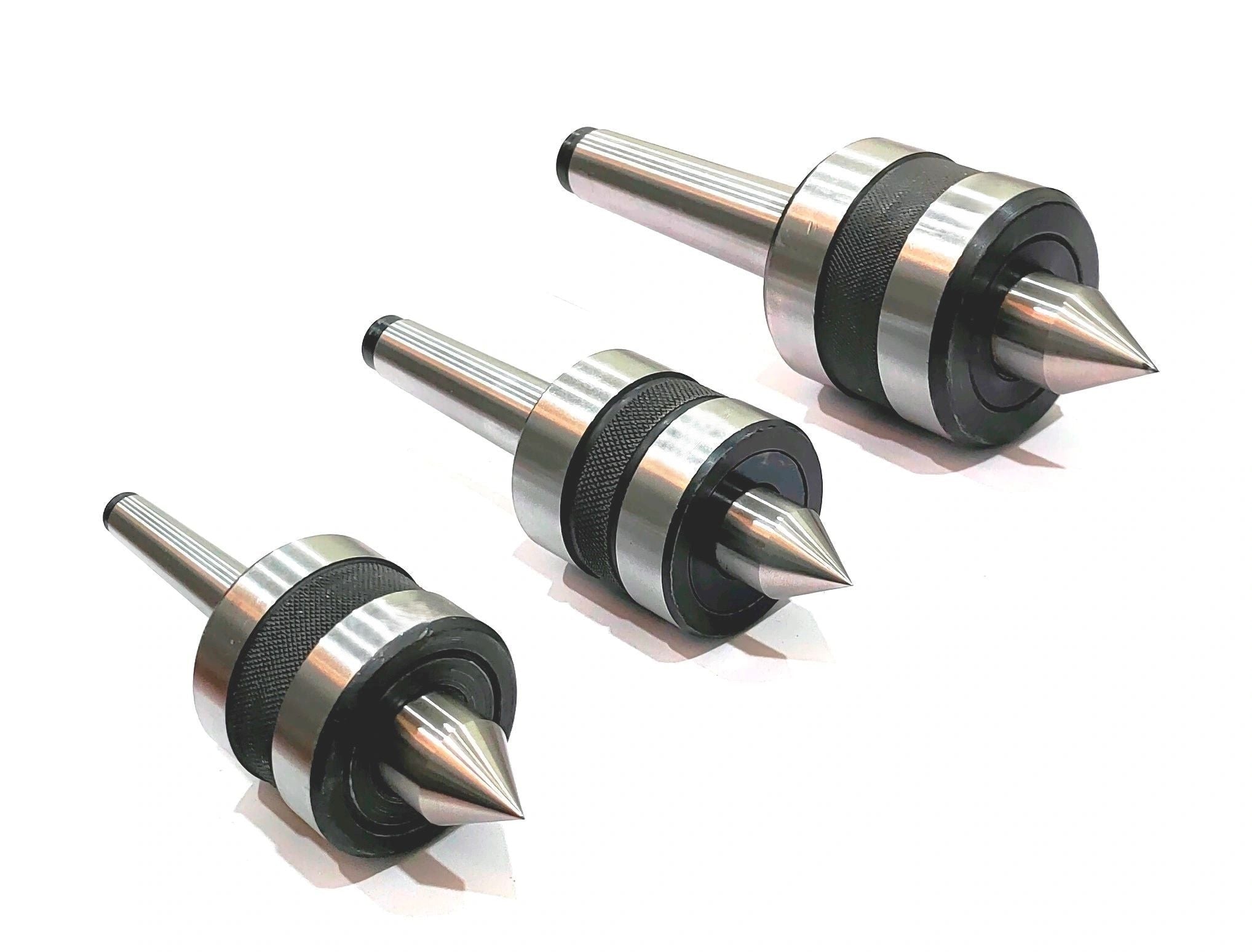

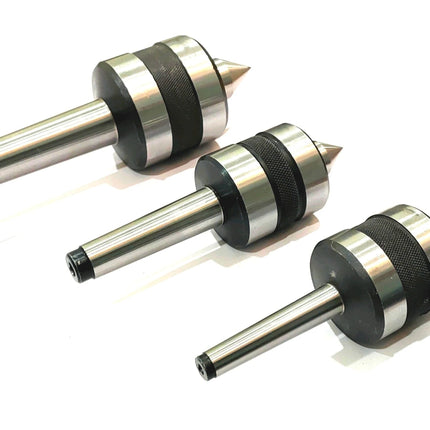

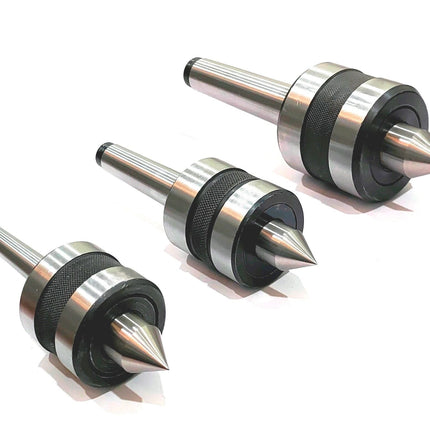

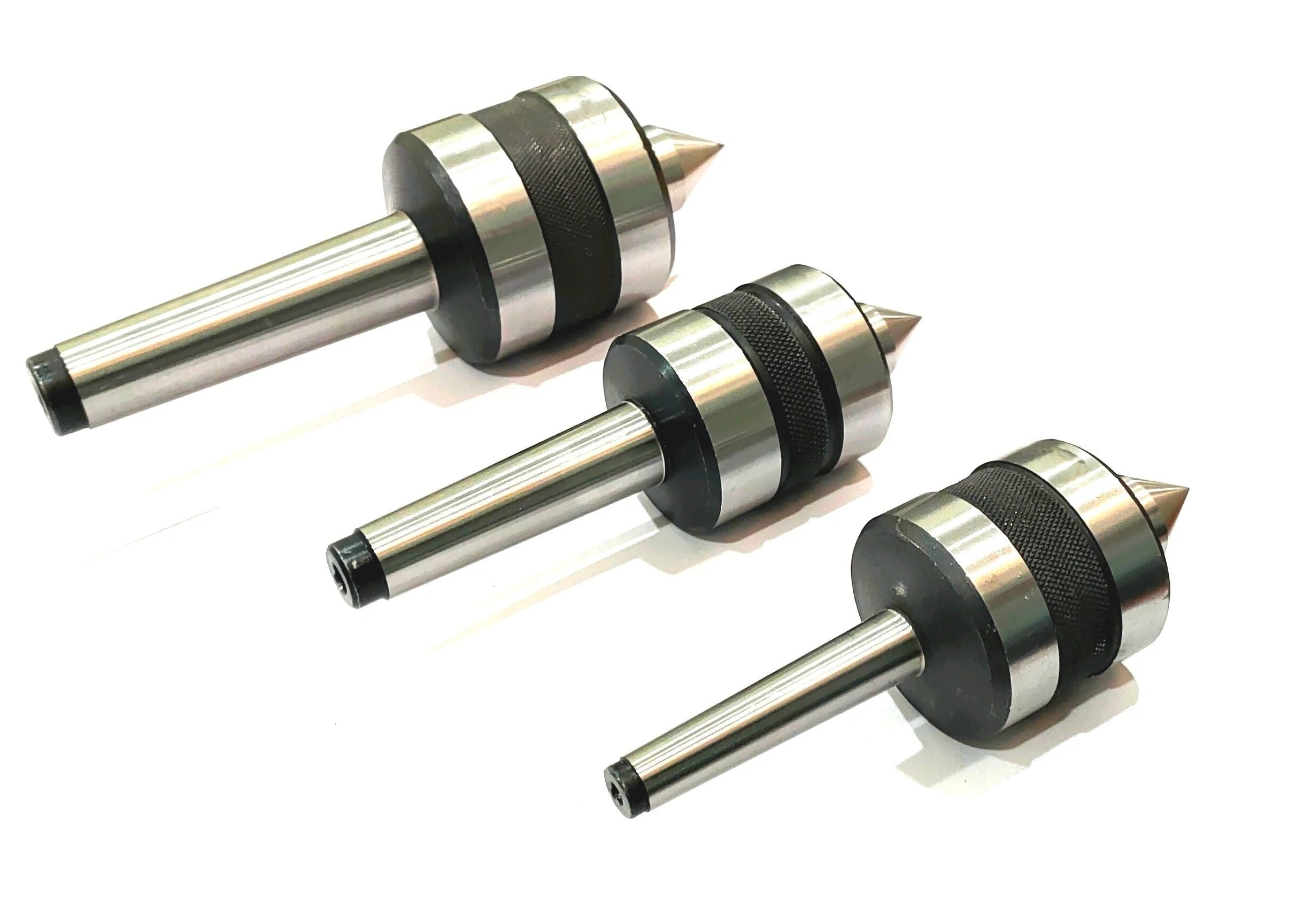

Morse Taper MT1 :
- Bearing Body Diameter : 42 mm
- Bearing Case Body Length : 41 mm
- OAL :125 mm
- Number of bearings : 1 x Ball & 1 x Taper Bearing
Morse Taper MT2 :
- Bearing Body Diameter : 44 mm
- Bearing Case Body Length : 46 mm
- OAL :140 mm
- Number of bearings : 1 x Ball & 1 x Taper Bearing
Morse Taper MT3 :
- Bearing Body Diameter : 60 mm
- Bearing Case Body Length : 60 mm
- OAL :180 mm
- Number of bearings : 2 x Ball & 1 x Taper Bearing
