Description

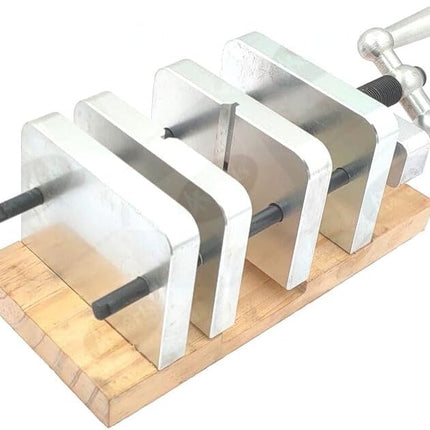

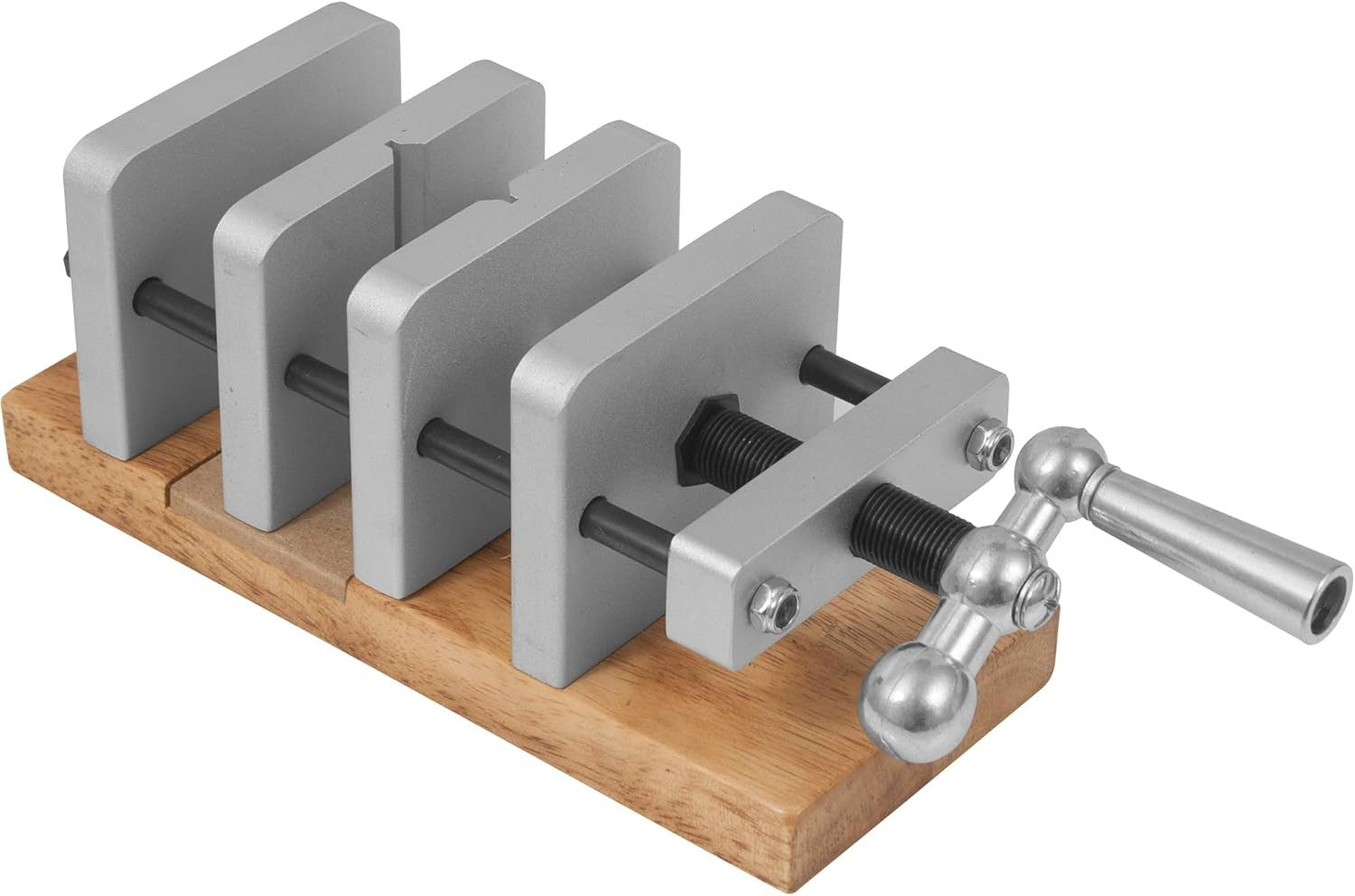

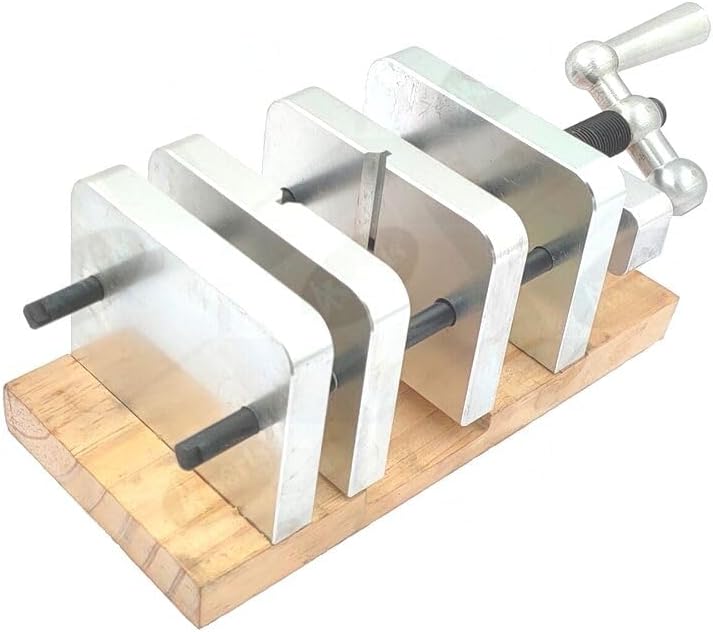

A Pen Centering Vise Jig is typically used in woodworking or crafting to assist in the assembly of pens, particularly those made on a lathe. It helps ensure precise alignment of pen components, such as the pen blank and the pen kit parts, during the assembly process. The jig holds the pen blank securely in place while allowing for accurate drilling and alignment of holes for the pen's components. This helps in achieving a professional and polished final product.
-
Purpose: Designed specifically for accurately drilling center holes in pen blanks.
-
Application: Ideal for pen makers and woodworkers who require precision in drilling operations.
Key Features
-
Precision Alignment:
- Ensures perfect centering of pen blanks for precise hole drilling.
- Reduces errors and improves the quality of finished pens.
-
Robust Construction:
- Made from high-quality, durable tool steel to withstand repetitive use.
- Resistant to wear and tear, ensuring long-lasting performance.
-
Adjustable Clamping Mechanism:

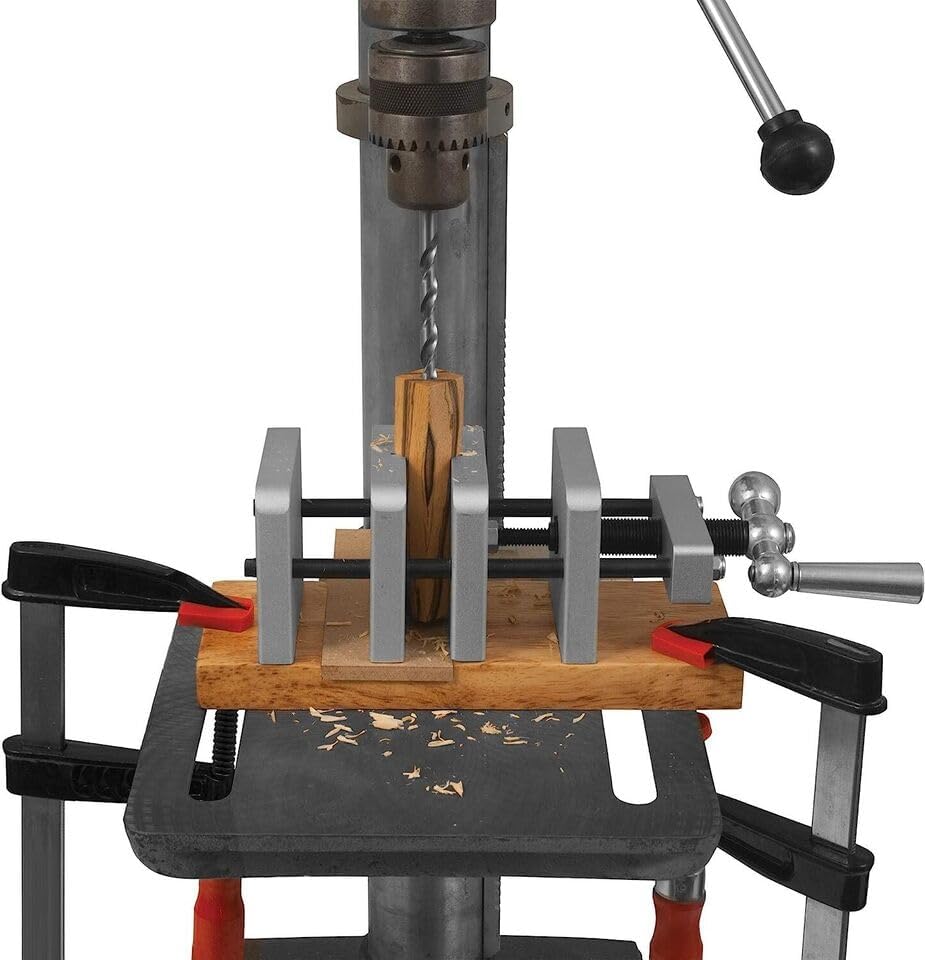

- Wooden base is removable and replaceable. If you need a larger base to clamp the vise to your drill press, simply remove the wooden base and replace it with a base made to your exact specifications
-
Compatibility:
- Fits most standard drill presses.
- Can be used with a variety of pen blank materials, including wood, acrylic, and resin.
-
Ease of Use:
- Simple setup process, making it accessible for both beginners and experienced users.
- Clear markings and guides to aid in accurate positioning.
-
Safety Features:
- Secure clamping minimizes the risk of blanks slipping during drilling.
- Reduces the chances of injury and damage to the pen blanks.
-
Enhanced Productivity:
- Speeds up the drilling process with reliable repeatability.
- Allows for batch processing of multiple blanks with consistent results.
-
Portability:
- Lightweight design for easy transport and storage.
- Can be easily moved and set up in different workspaces.
Benefits
-
Improved Accuracy: Ensures that each pen blank is drilled precisely in the center, enhancing the overall quality of the pen.
-
Time-Saving: Streamlines the drilling process, reducing the time required for setup and drilling.
-
Versatility: Compatible with a wide range of pen blanks and drill presses, offering flexibility in use.
-
Durability: Constructed from high-quality materials, the jig is built to last through extensive use.
Specifications
-
Material: High graded tool steel
-
Holds blanks: 1-1/2" square

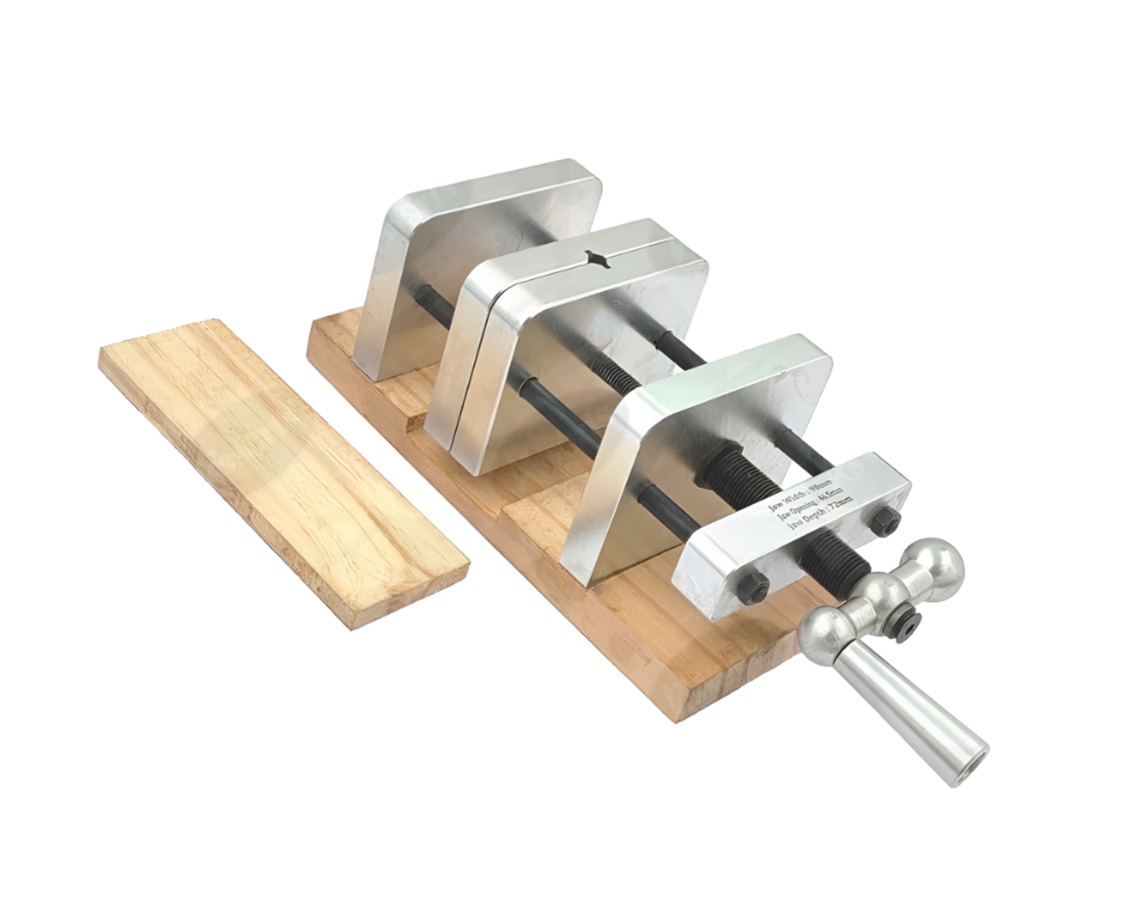

- The pen center vise includes a scrap board piece of mdf. It measures approximately 2" by 1/4".
- Wooden base is removable and replaceable. If you need a larger base to clamp the vise to your drill press, simply remove the wooden base and replace it with a base made to your exact specifications
Additional Notes
- Ensure that the drill press is securely mounted and stable before use.
- Always wear appropriate safety gear, such as safety glasses and gloves, when operating the drill press and jig.
- Regularly check and maintain the jig for optimal performance and safety
