Description

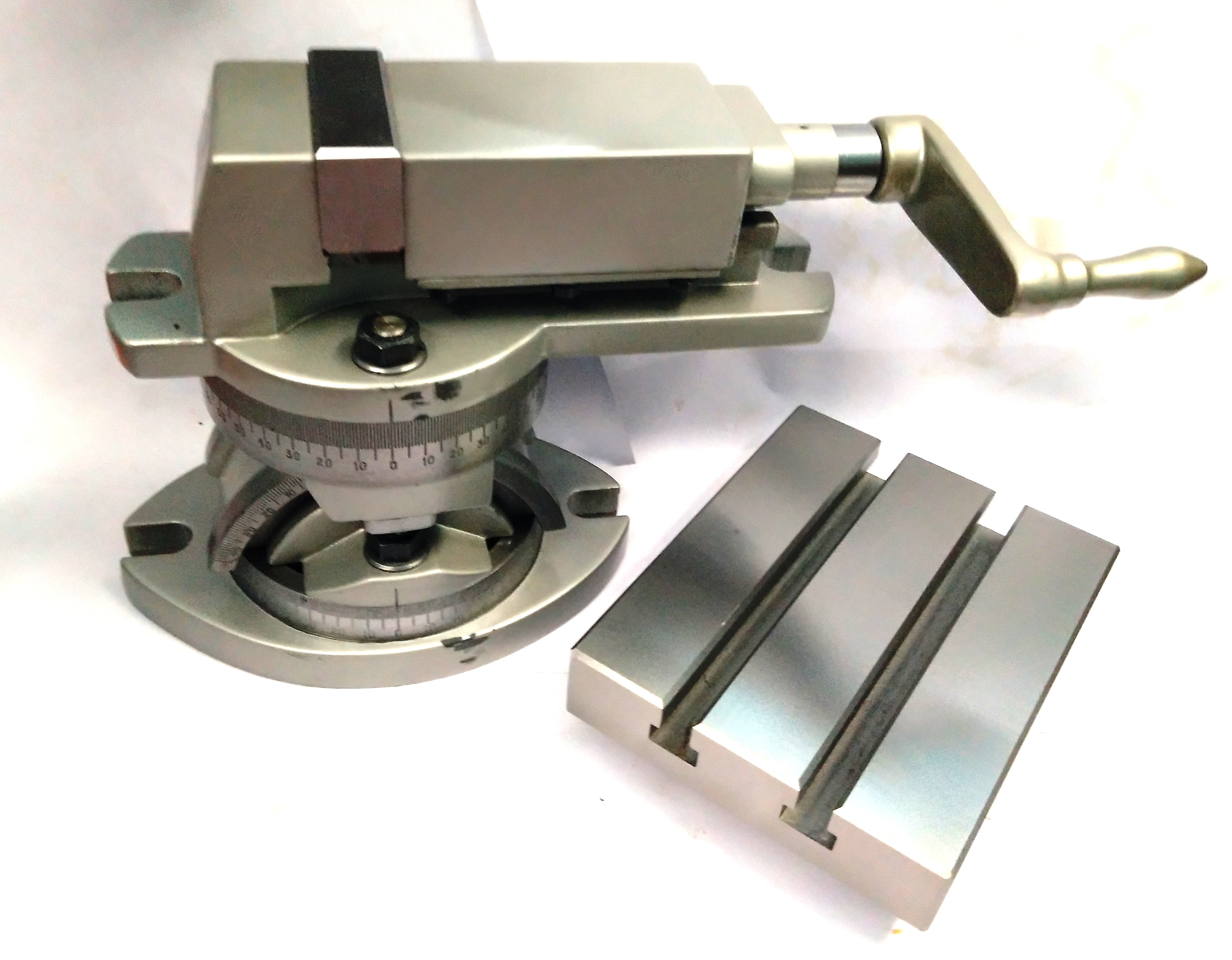

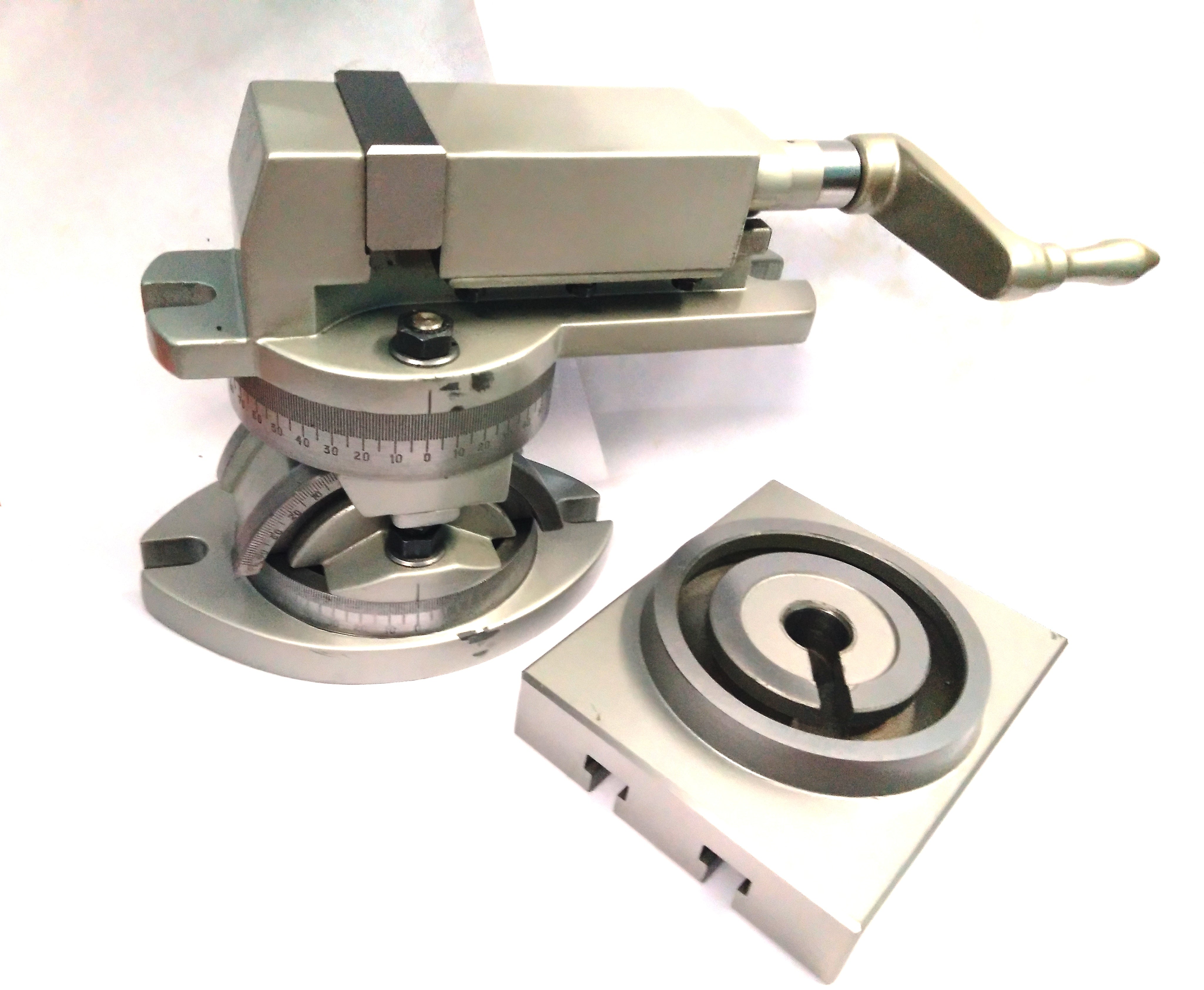

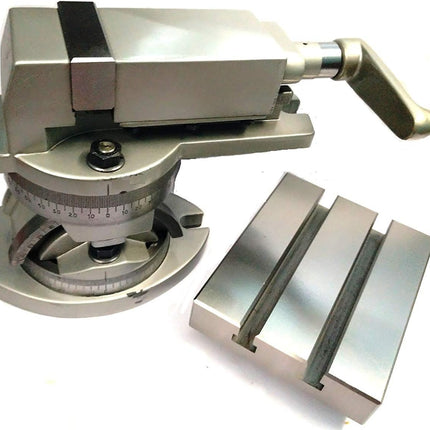

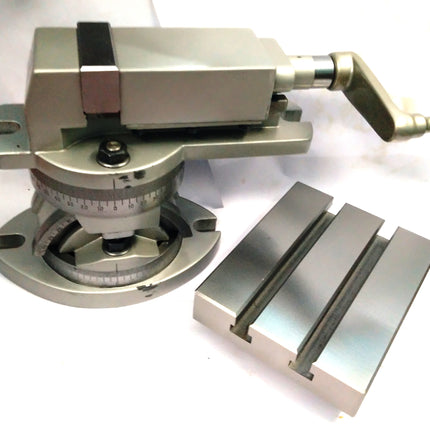

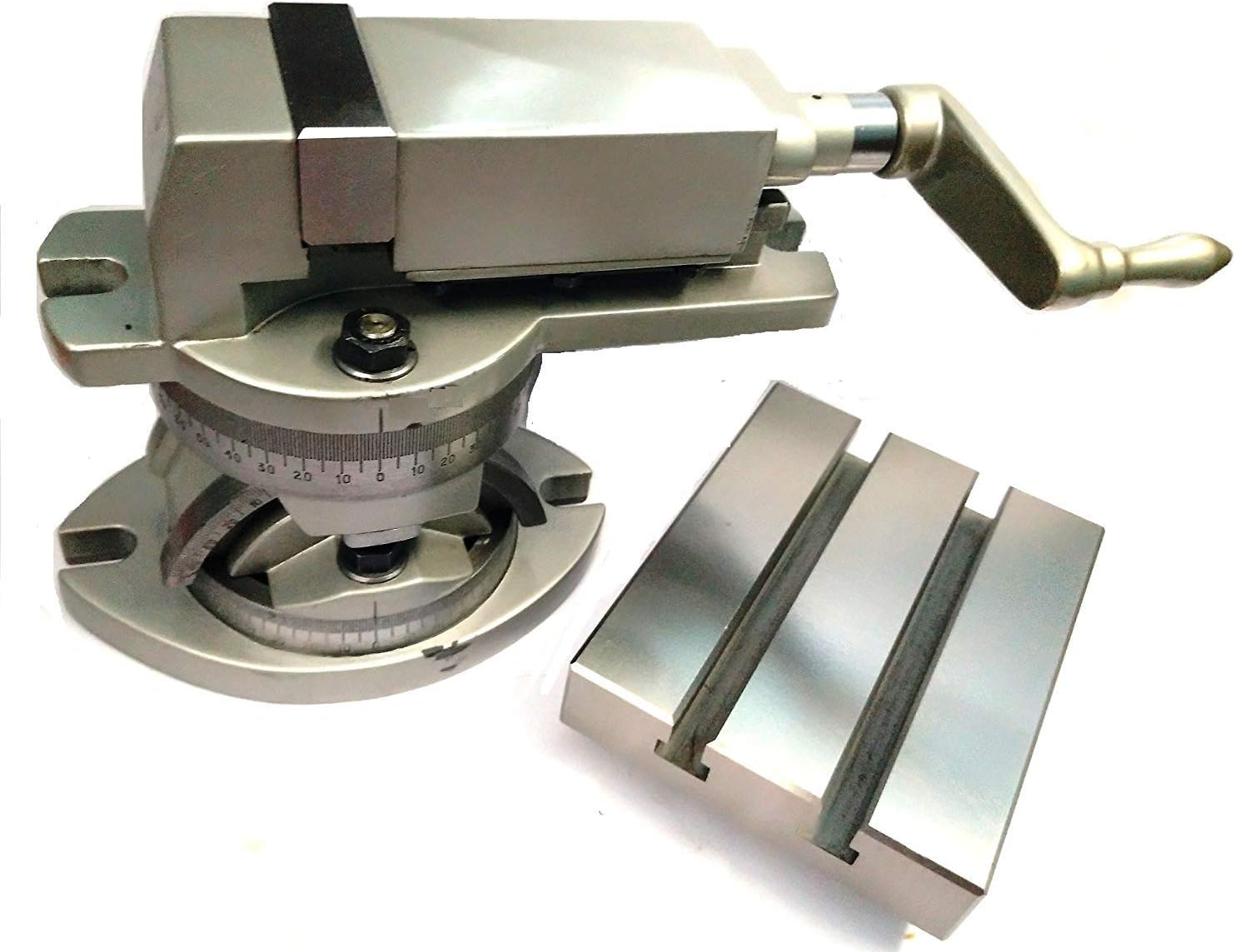

A modular milling vice is an advanced clamping tool designed for precision machining tasks. Its modular design offers unparalleled flexibility, allowing it to be configured and customized to meet the specific requirements of various machining operations. This vice is essential for securing workpieces during milling, drilling, tapping, and other machining processes, ensuring stability and accuracy.
Key Features:
-
Modular Design:
-
Customizable Configuration: Easily add or remove modules to fit different workpiece sizes and shapes.
-
Interchangeable Components: Utilize different jaws, risers, and accessories to adapt the vice to specific machining needs.
-
High Precision:
-
Accurate Positioning: Ensures precise and repeatable clamping, critical for high-precision machining.
-
Stable Clamping: Reduces vibration and movement, enhancing the quality of the finished product.
-
Robust Construction:
-
Durable Materials: Made from high-quality materials such as hardened steel for long-lasting performance.
-
Rigid Design: Provides strong clamping force to securely hold workpieces during intensive machining operations.
-
Efficiency and Productivity:
-
Quick Setup: Rapid changeover between different setups minimizes downtime.
-
Batch Processing: Allows for multiple workpieces to be clamped simultaneously, increasing throughput.
-
Versatility:
-
Wide Application Range: Suitable for use in CNC machining centers and manual milling machines.
-
Adaptability: Can be used for various machining operations including milling, drilling, tapping, and finishing.
-
Enhanced Safety:
-
Secure Clamping: Prevents workpieces from slipping or moving during machining, reducing the risk of accidents.
-
Ergonomic Design: Easy to handle and adjust, improving operator safety and convenience.
Specifications:
-
Jaw Width: Available in 2" (50 mm)
-
Clamping Force: High clamping force (e.g., up to 5000 kg)
-
Material: Hardened steel, cast iron, or other high-strength materials
-
Jaw Opening: Adjustable to accommodate different workpiece sizes
-
Jaw Depth:- 25 mm
-
Max. Opening: 2" (50 mm)
-

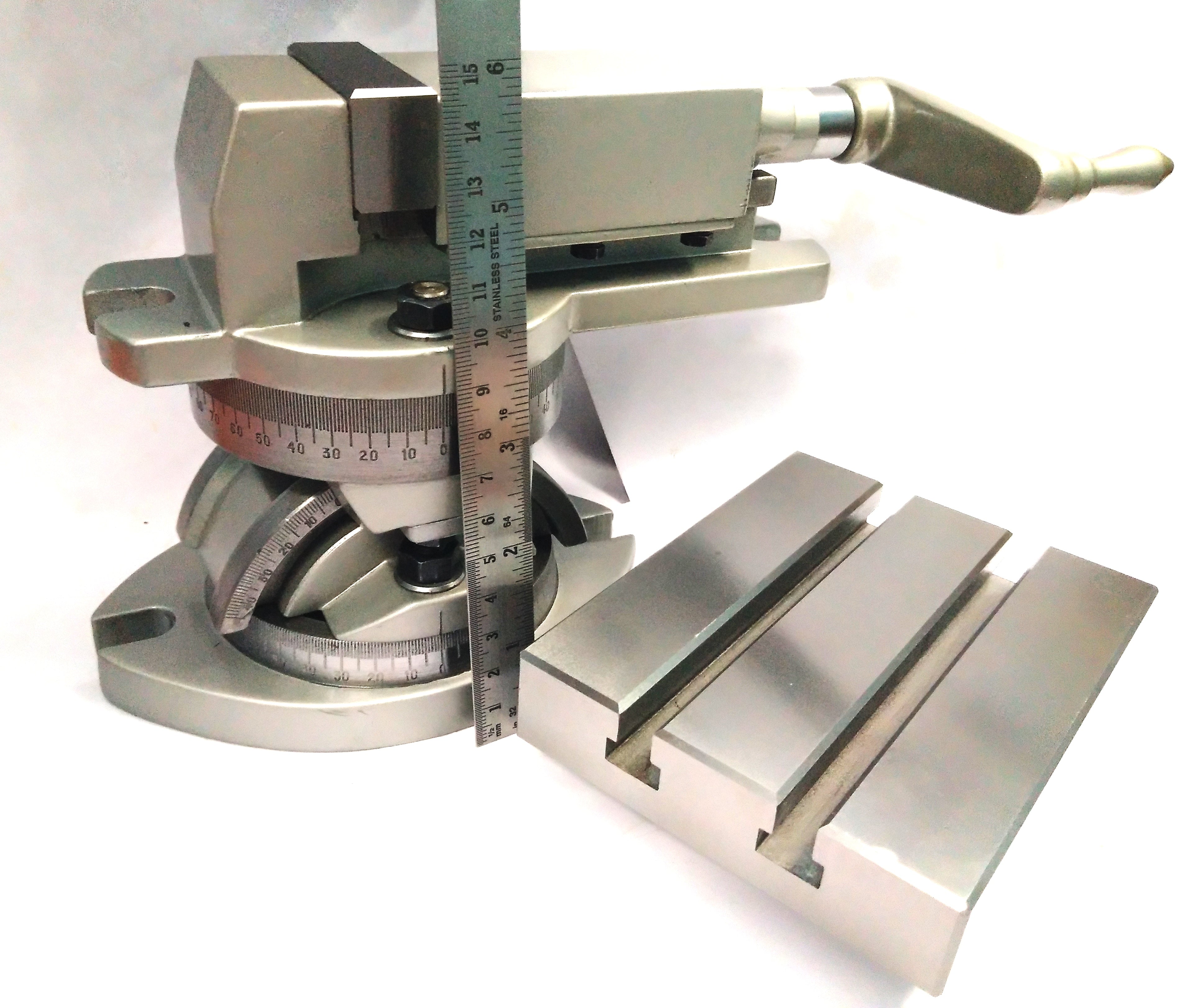

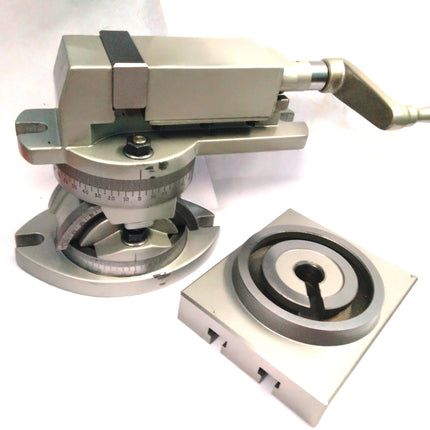

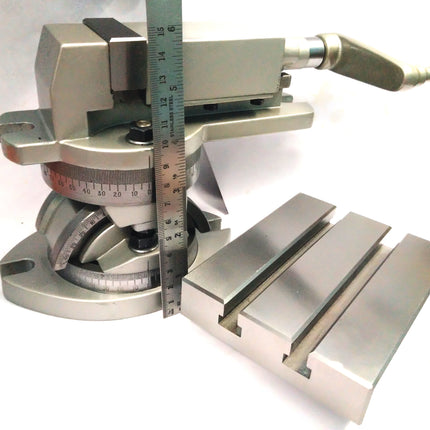

Overall Height : 6" (150 mm) When Vice is clamp (& Table is removed) Base is 169.7 MM in Length x 88.5 mm Wide X 56 mm Details with Tee- Slotted Table Assembly Table Size : 4" x 5" (100 x 150 mm ) Overall Height : 5" (125 mm) When Boring Table is clamp (& Vice is removed) Tee Slot Width : 5/16"
Applications:
-
CNC Machining: Ideal for high-precision milling, drilling, and tapping operations in CNC machining centers.
-
Manual Milling: Suitable for use with manual milling machines for various machining tasks.
-
Batch Production: Perfect for production environments where multiple workpieces need to be processed efficiently.
-
Prototype Development: Useful in prototyping where flexibility and quick adjustments are required.
