Description
A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to mill or cutter. The vertical slide admits of quick adjustment.
A self-centering vice is to automatically center and clamp the workpiece, which saves time and effort compared to traditional vices that require manual adjustment to center the workpiece. This feature is particularly useful when working with cylindrical or symmetrical workpieces that need to be precisely positioned for machining.

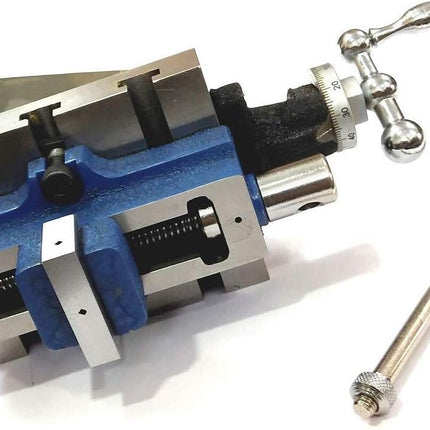

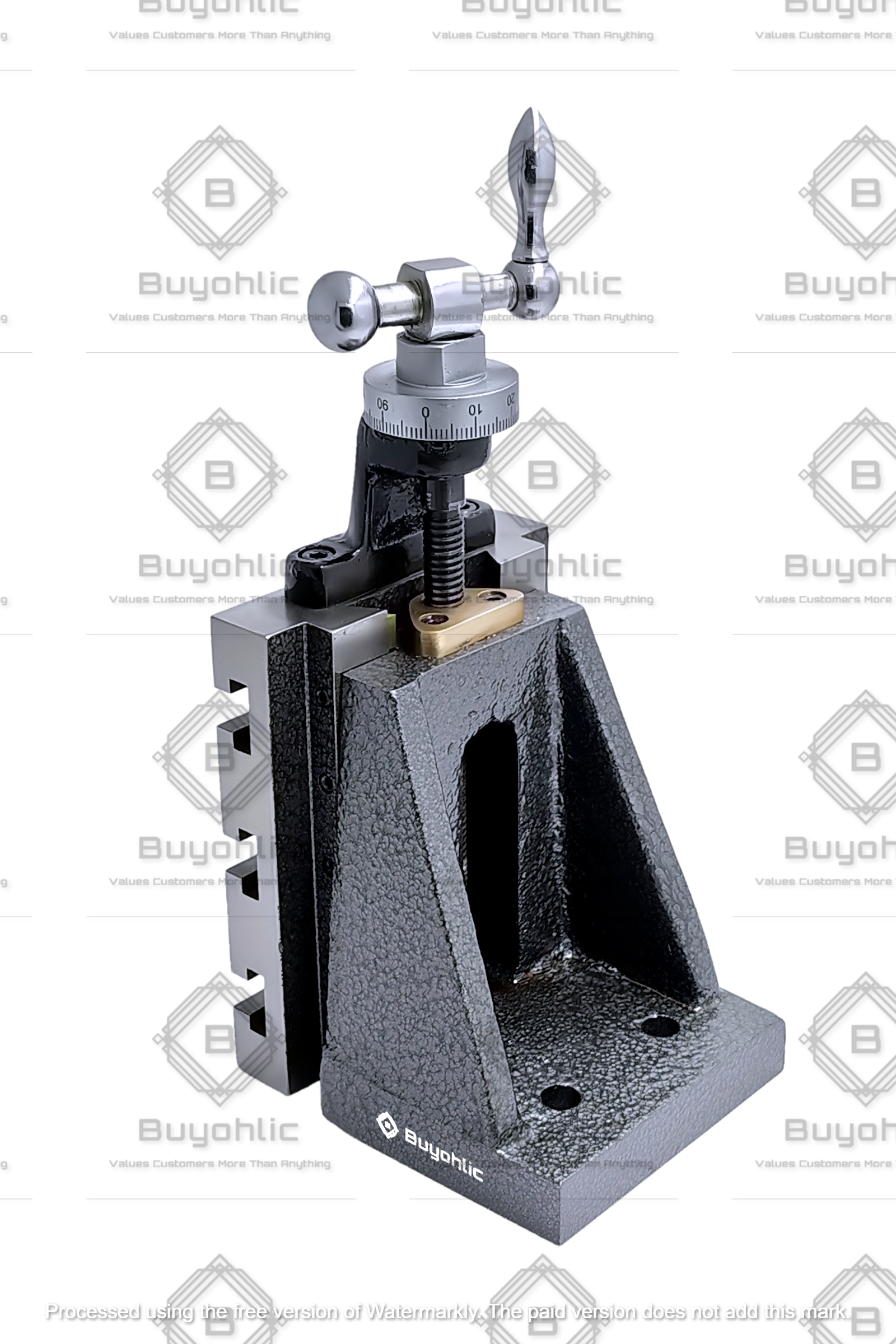

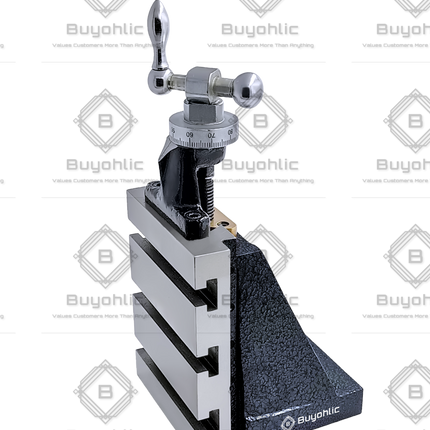

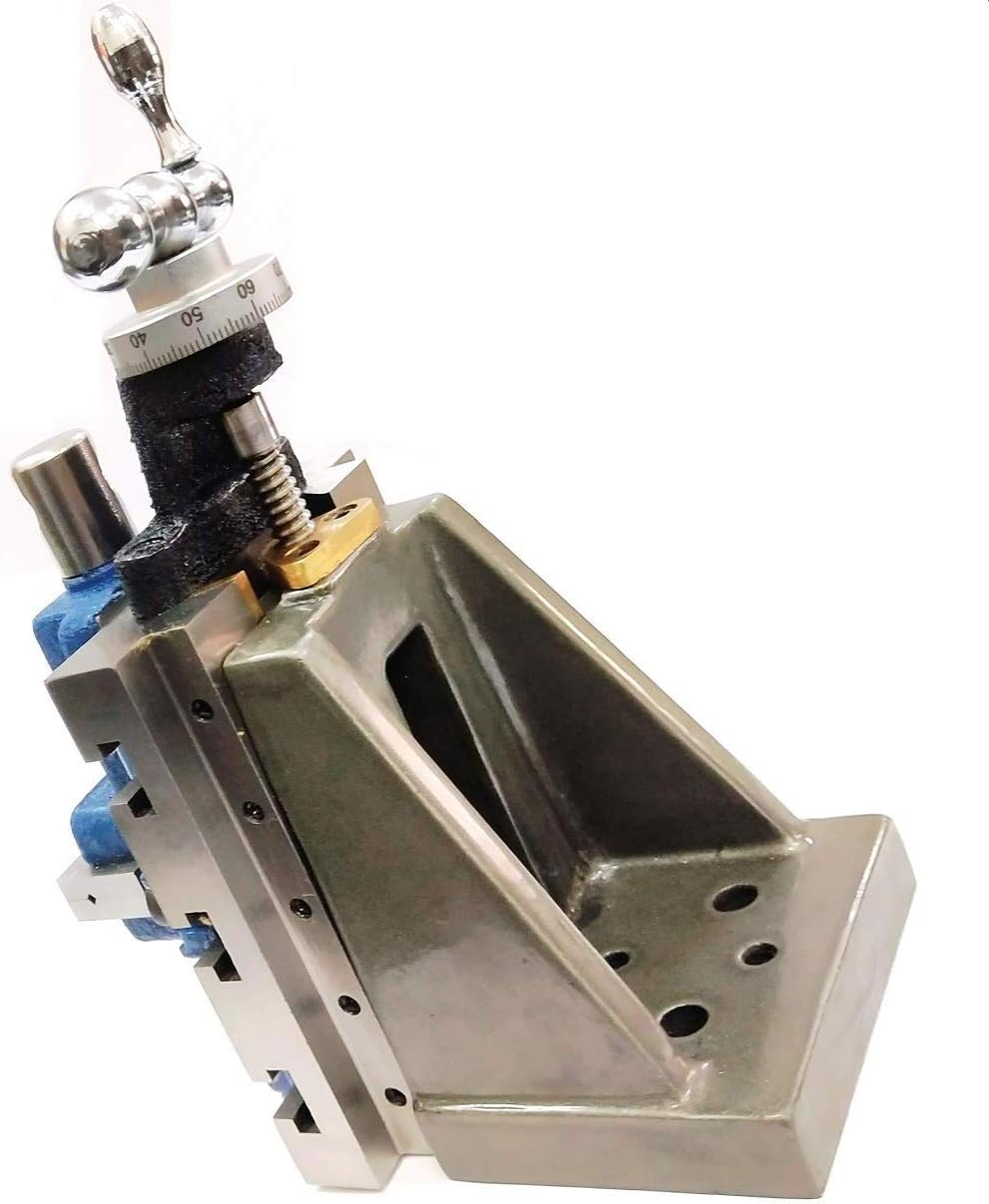

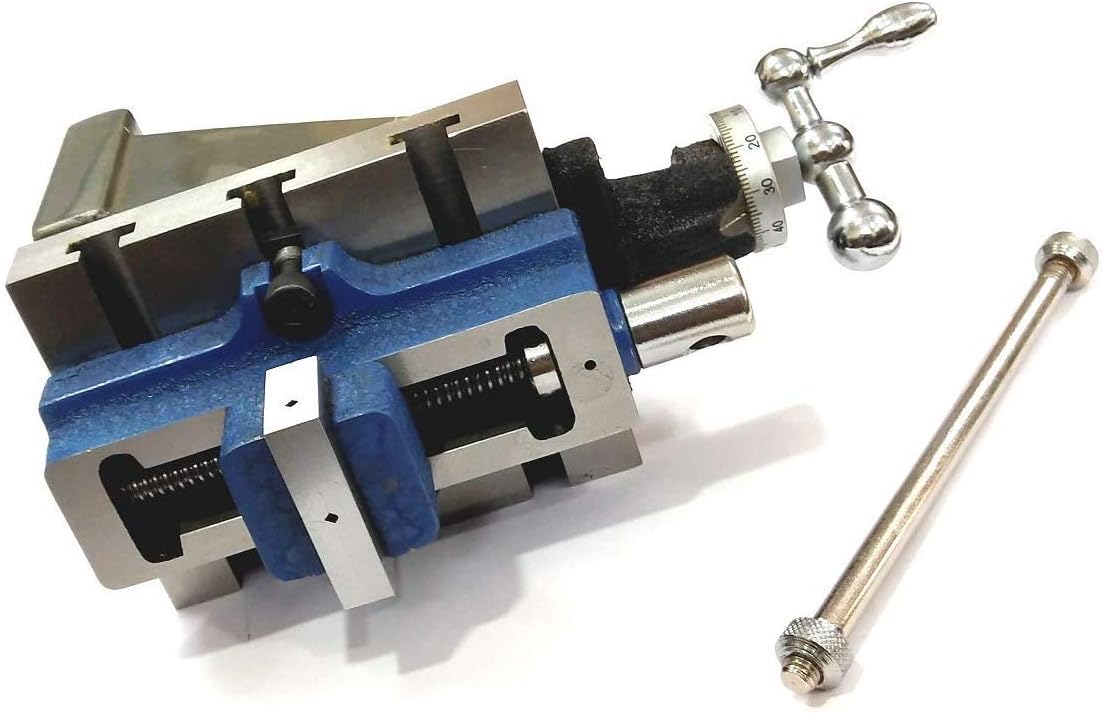

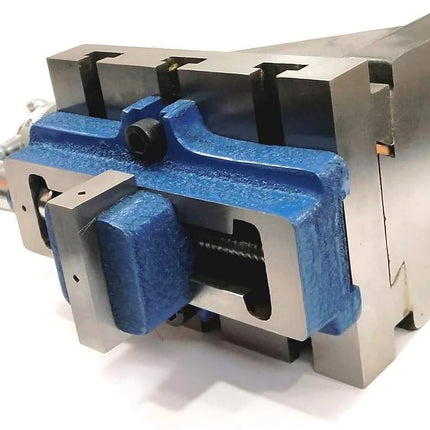

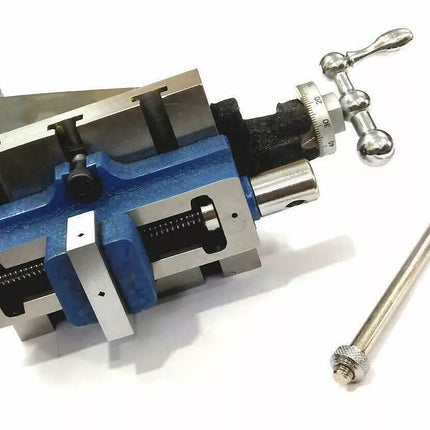

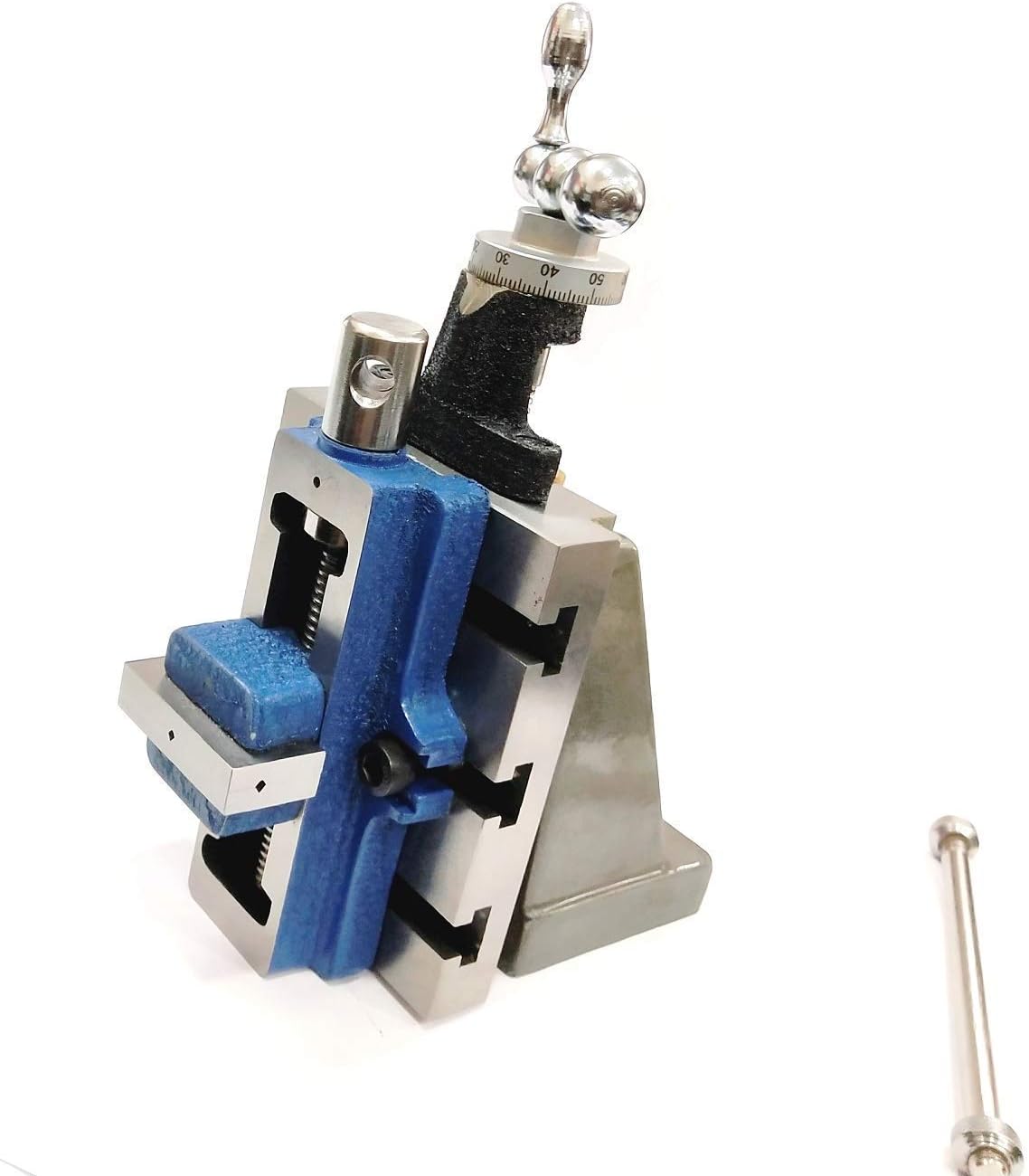

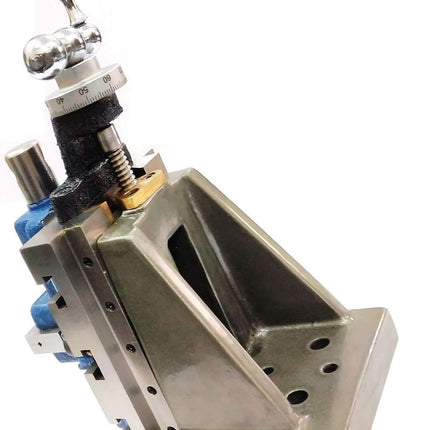

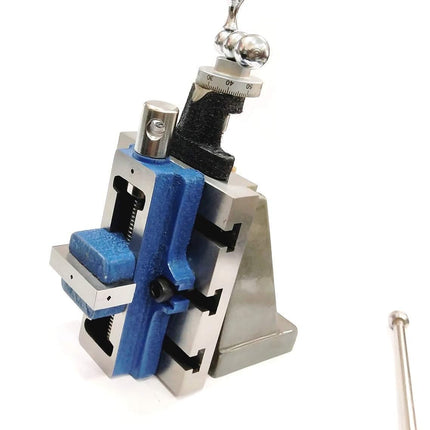

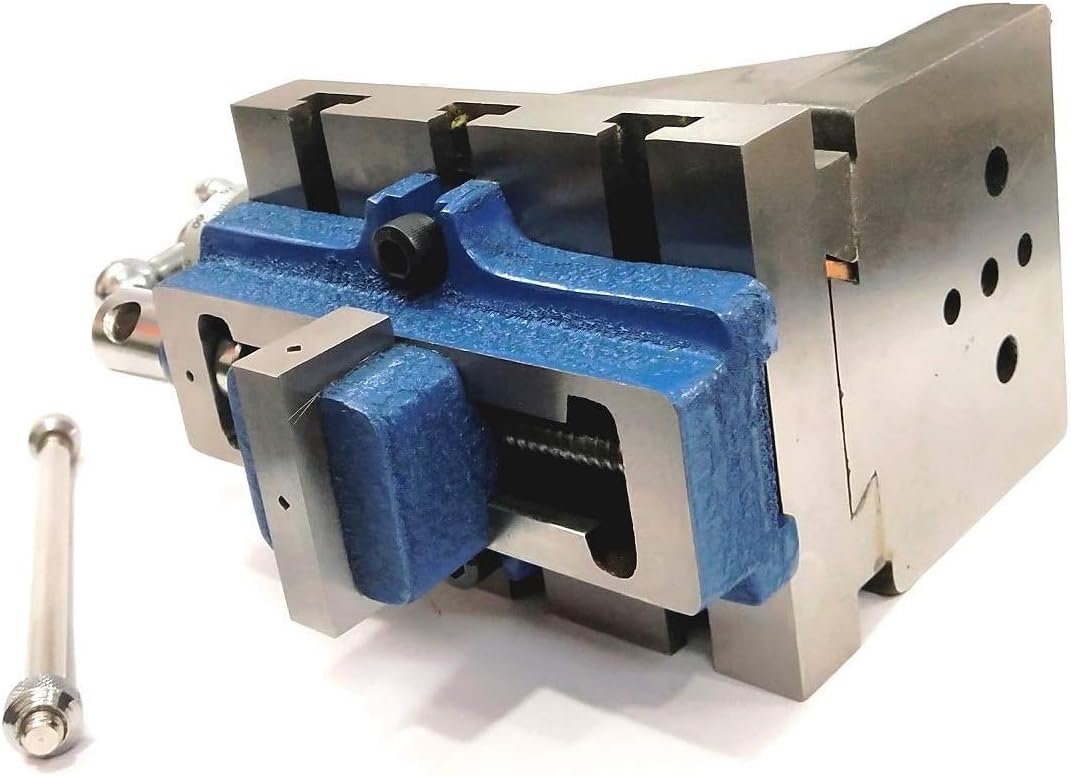

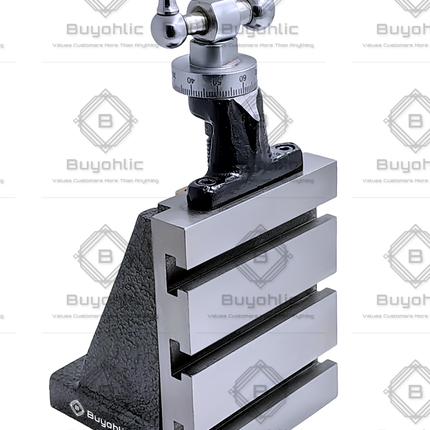

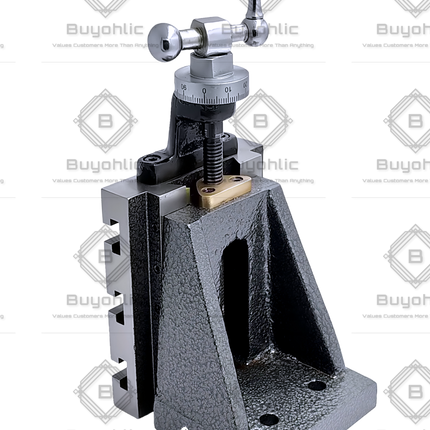

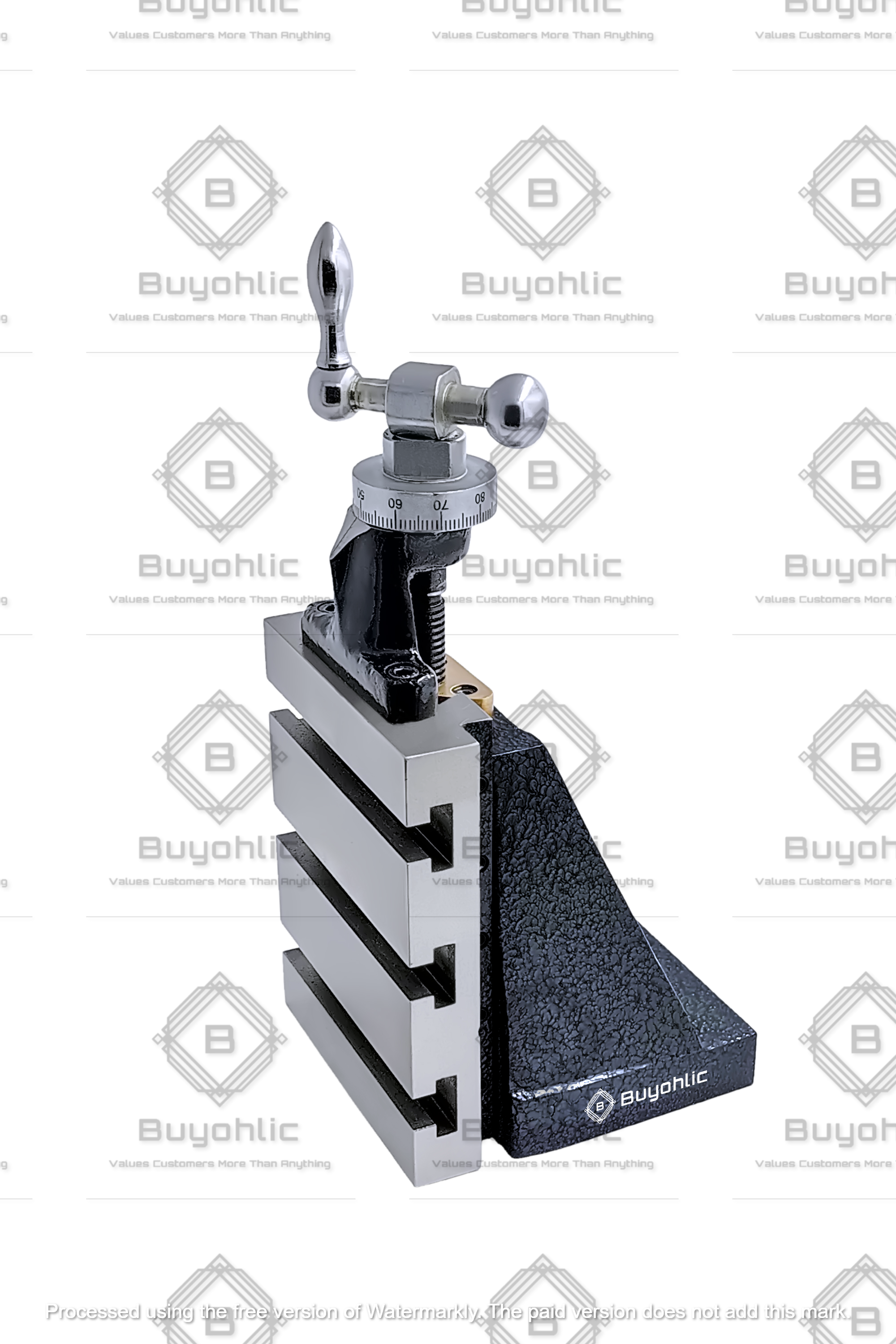

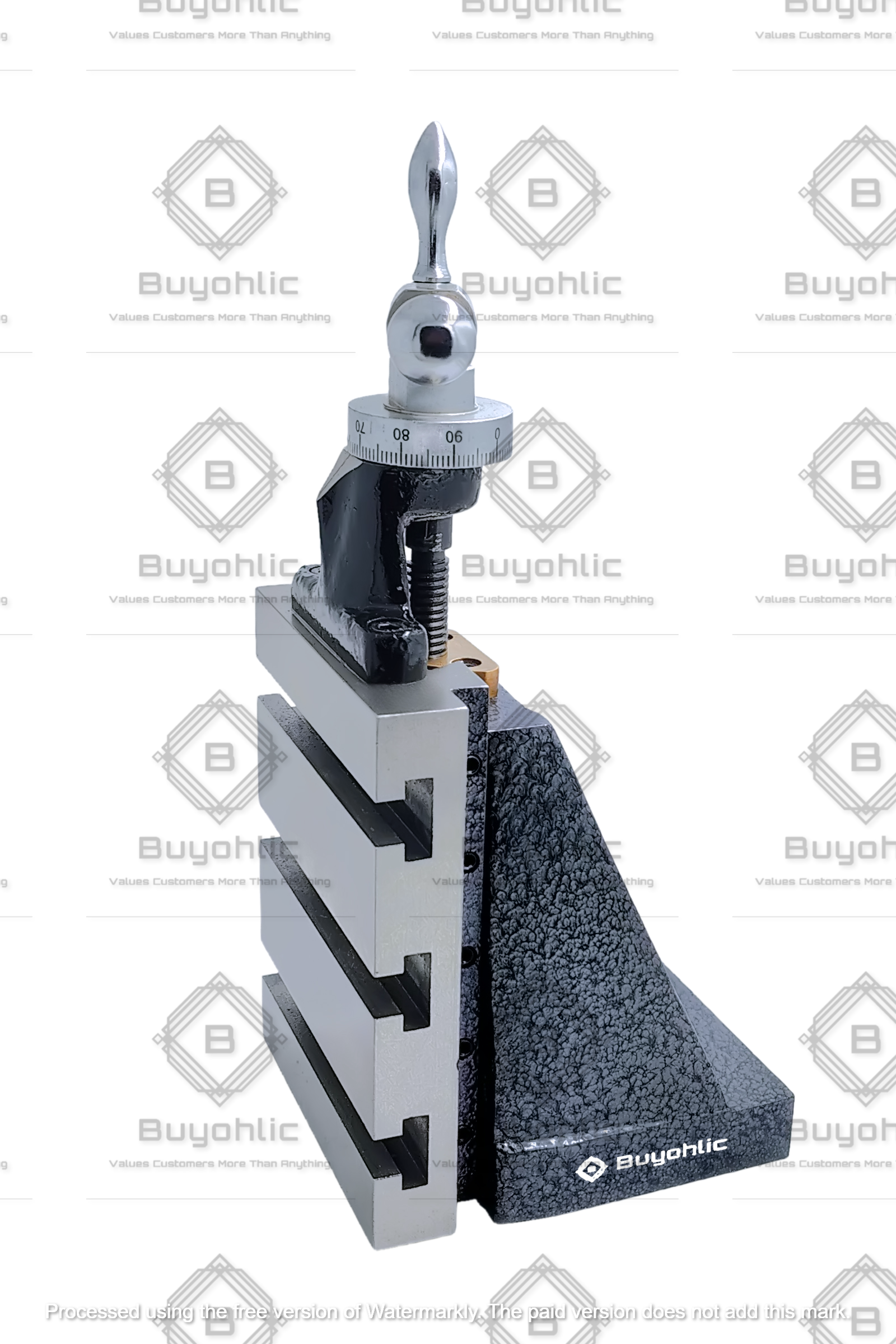

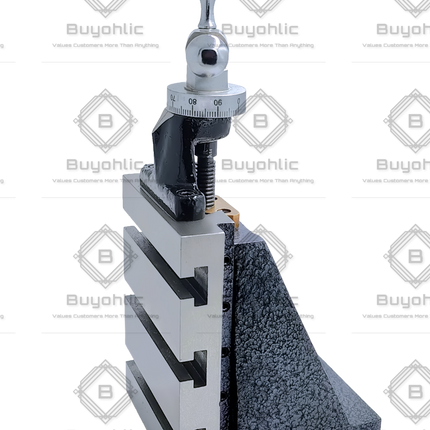

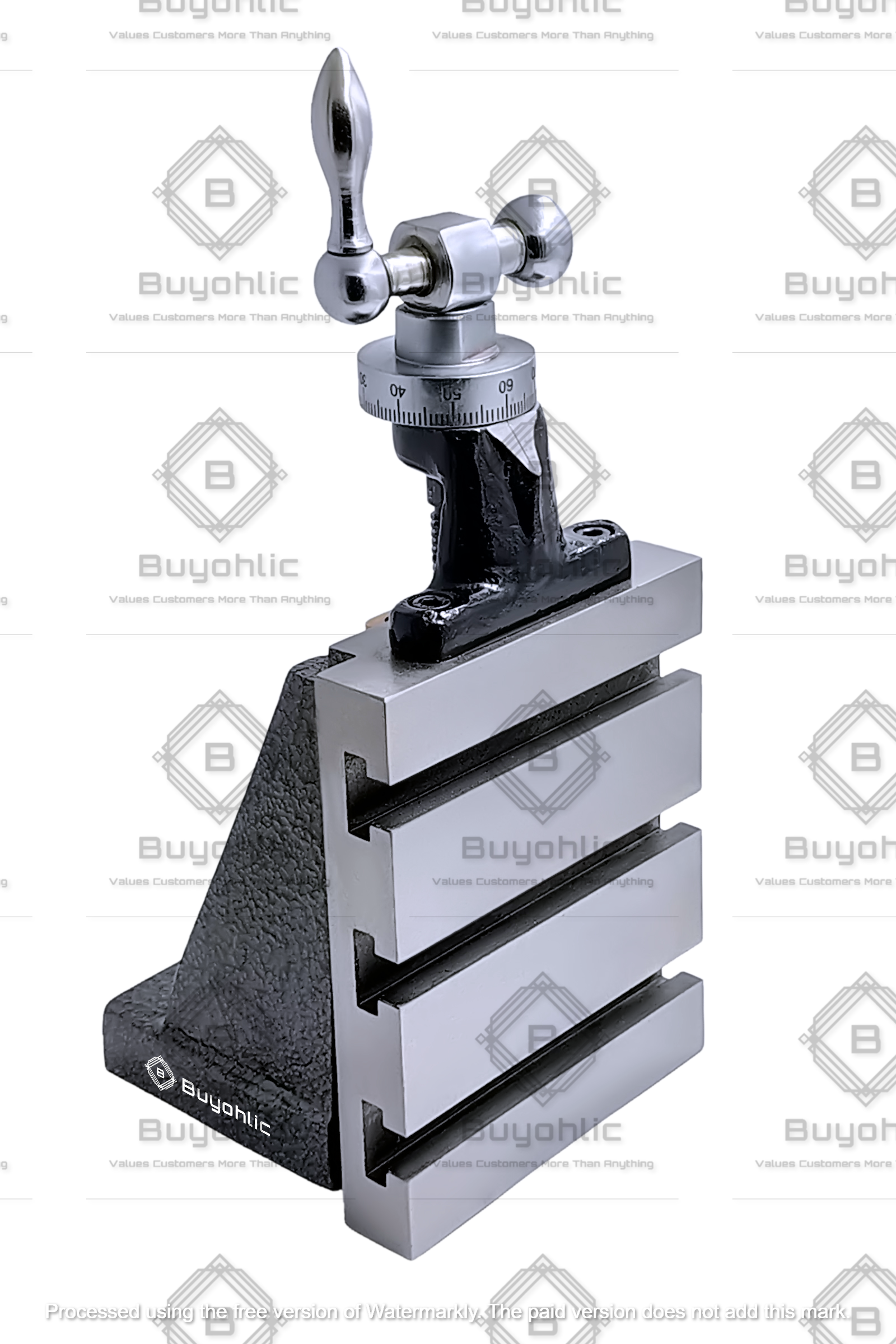

Lathe Milling Vertical Slide
-
Table Bed Size: 125 mm x 100 mm
- Provides ample working area for various milling operations.
-
Base Type: Fixed Base
- Ensures a stable and rigid setup for precise milling.
-
Tee Slots:
-
Number of Tee Slots: 3
-
Width at the Top of the Tee: 10 mm
-
Width at the Bottom of the Tee: 15 mm
- Facilitates secure mounting of workpieces and accessories.
-
Compatibility:
- Specifically designed to allow milling on Myford lathes.
-
Table Movement:
- Approximately 80 mm of table movement
- Provides flexibility and range for milling tasks.
-
Construction:
- Made from high-quality materials for durability and longevity.
- Precision-engineered to withstand the demands of milling operations.

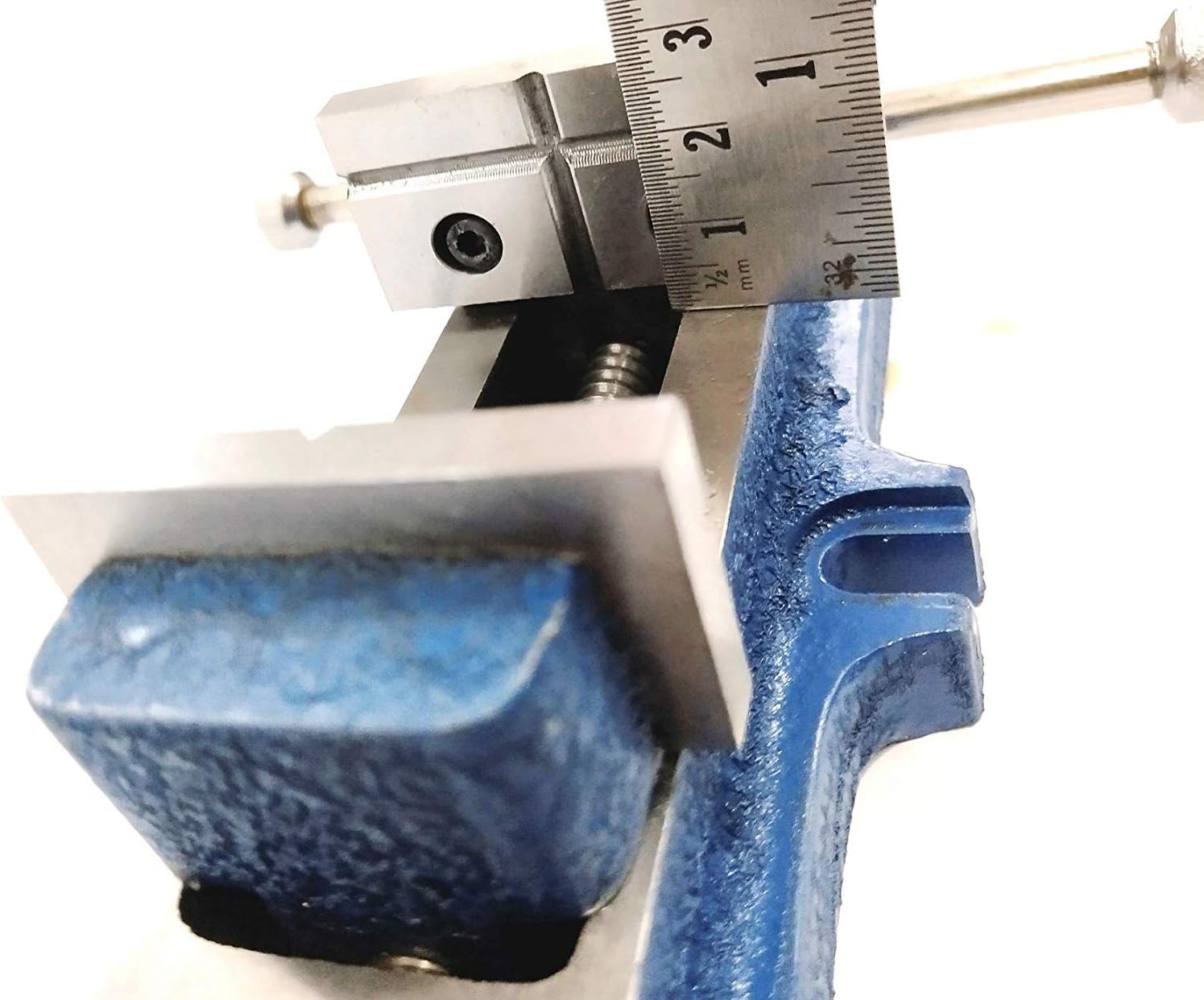

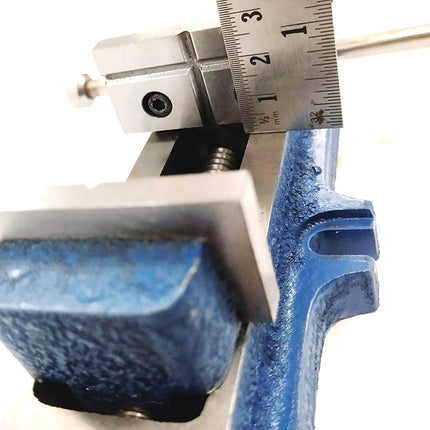

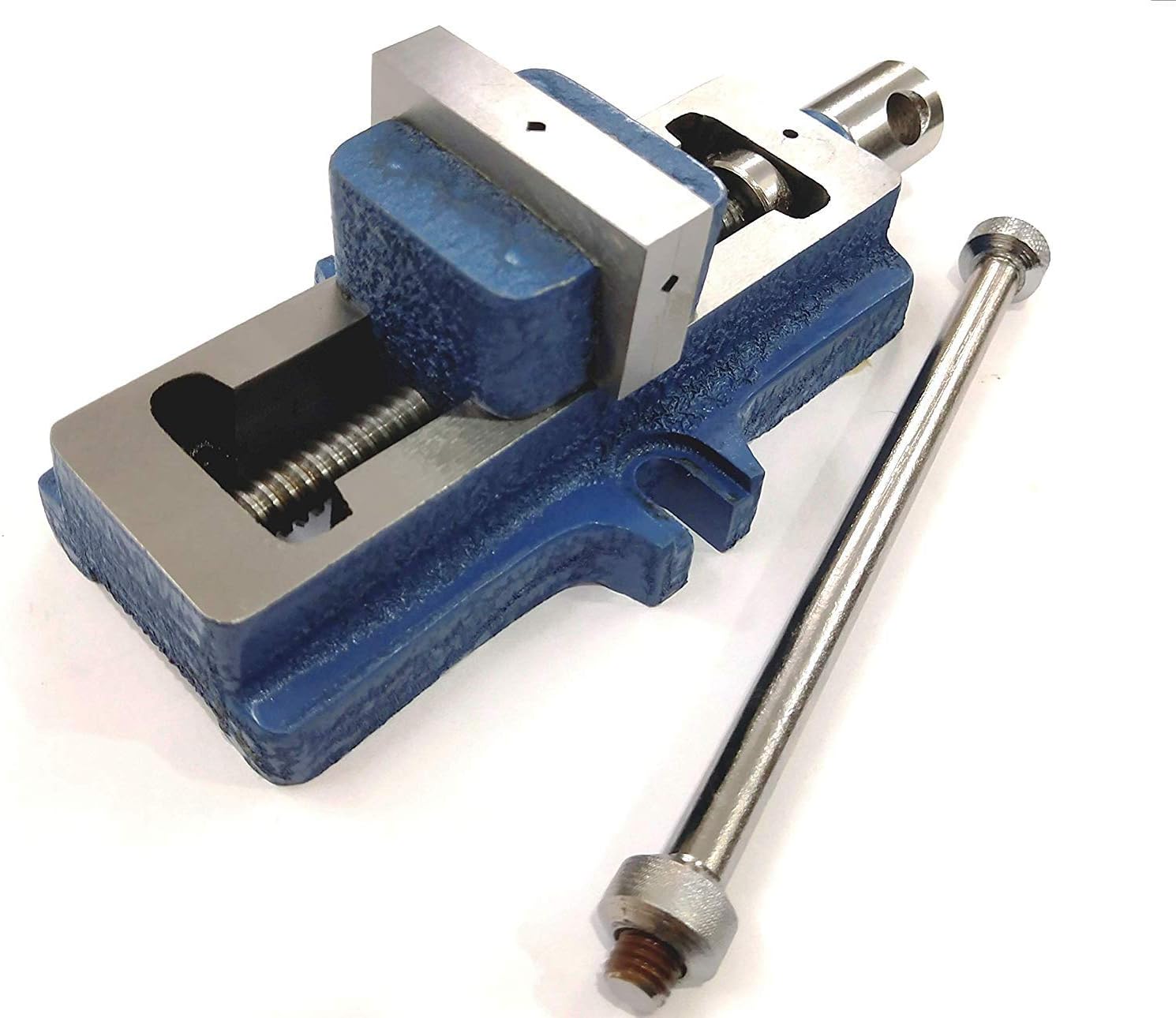

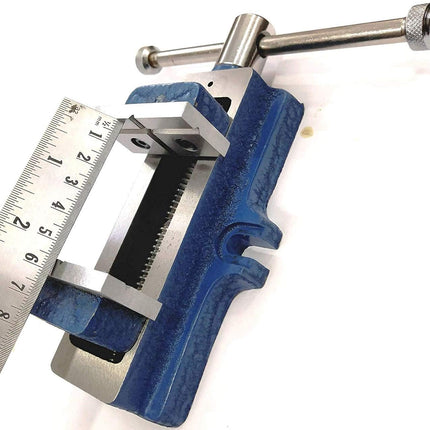

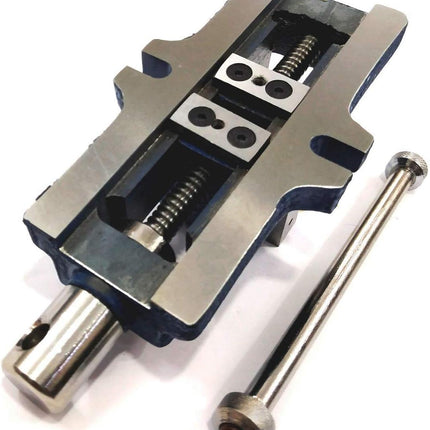

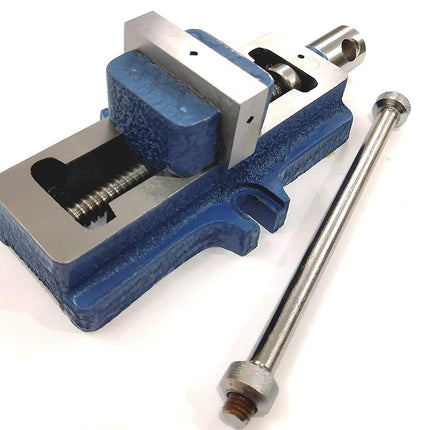

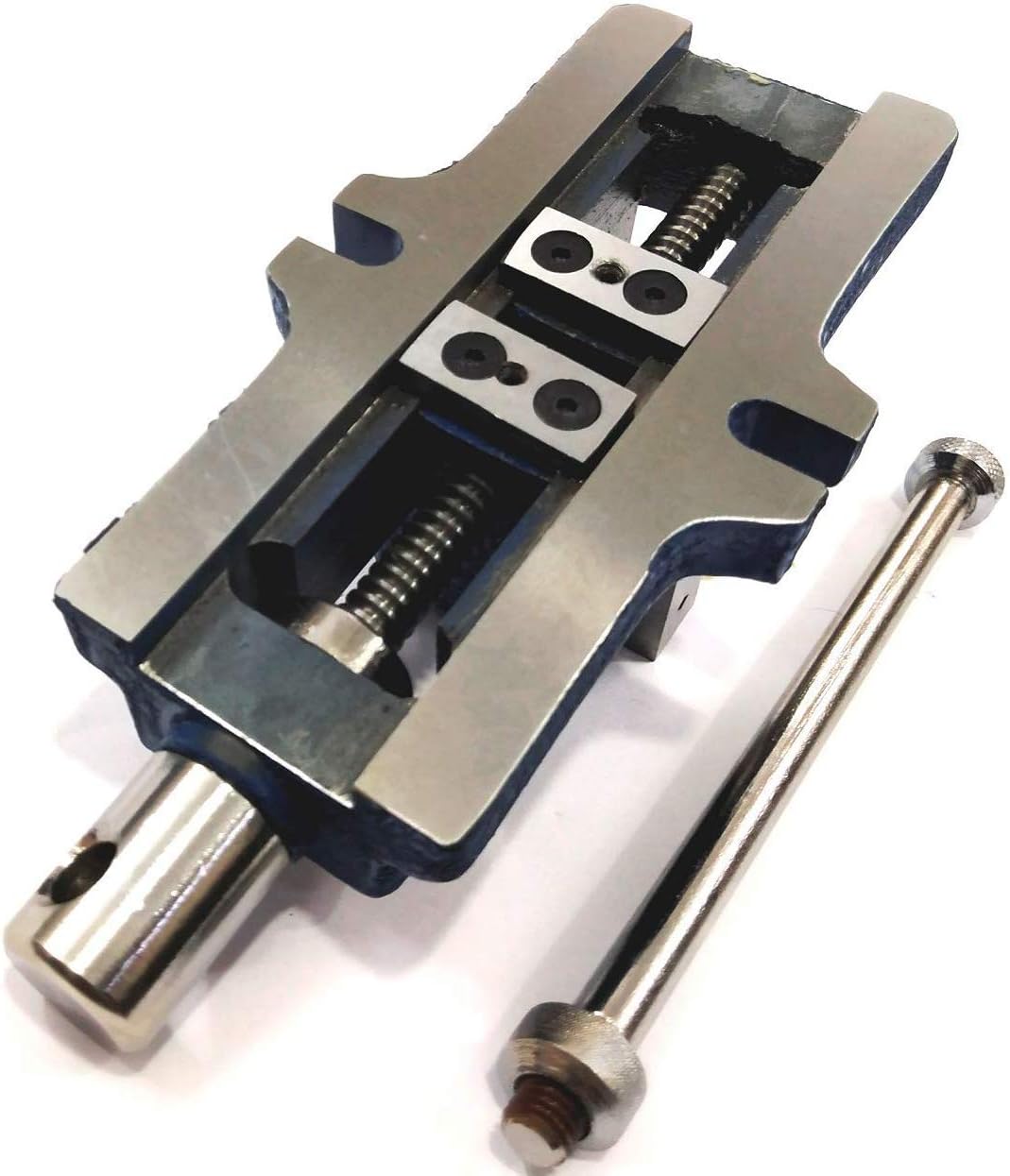

Self Centering Machine Vice- 2" Inch (Jaw Width 50 mm)

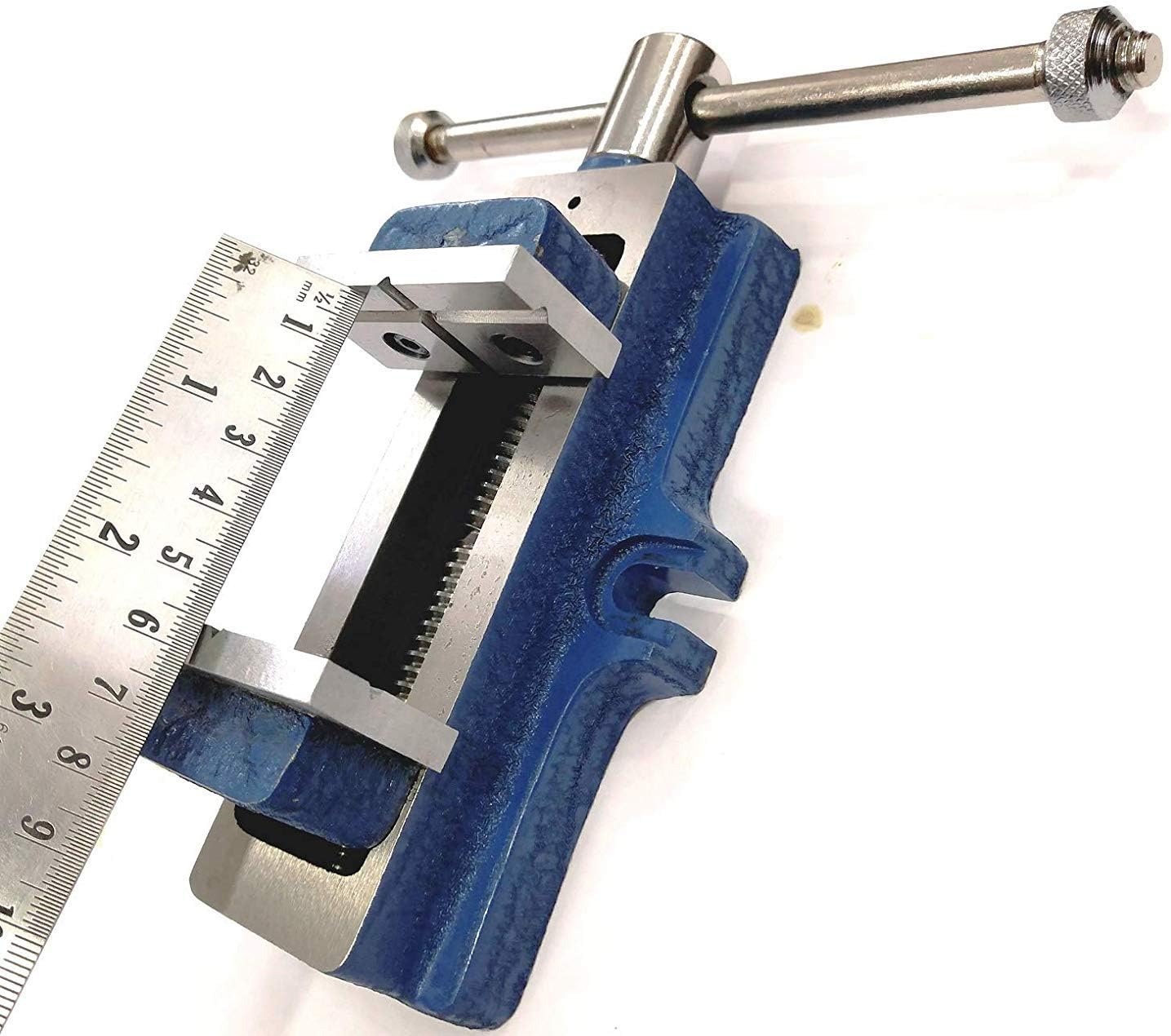

- Maximum Jaw Opening 55 mm, Jaw Depth 28 mm
- Seasoned High Grain Casting Body, Jaw Width 2" Inches/ 50 mm
