Description
Use of product- A vertical slide on the cross-slide enables the material to be raised or lowered as necessary. Widening the slot in a piece of material by machining along one edge with an end mill is an example. The same is true when all that is required is an initial height setting of work in relation to mill or cutter. The vertical slide admits of quick adjustment.
-

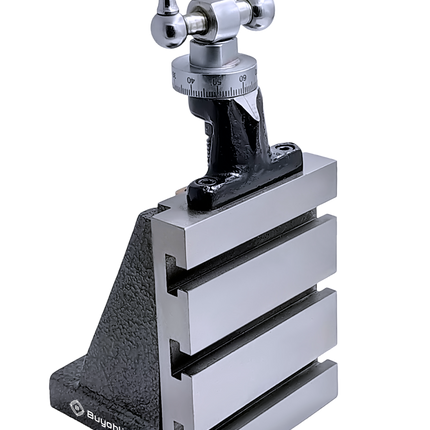

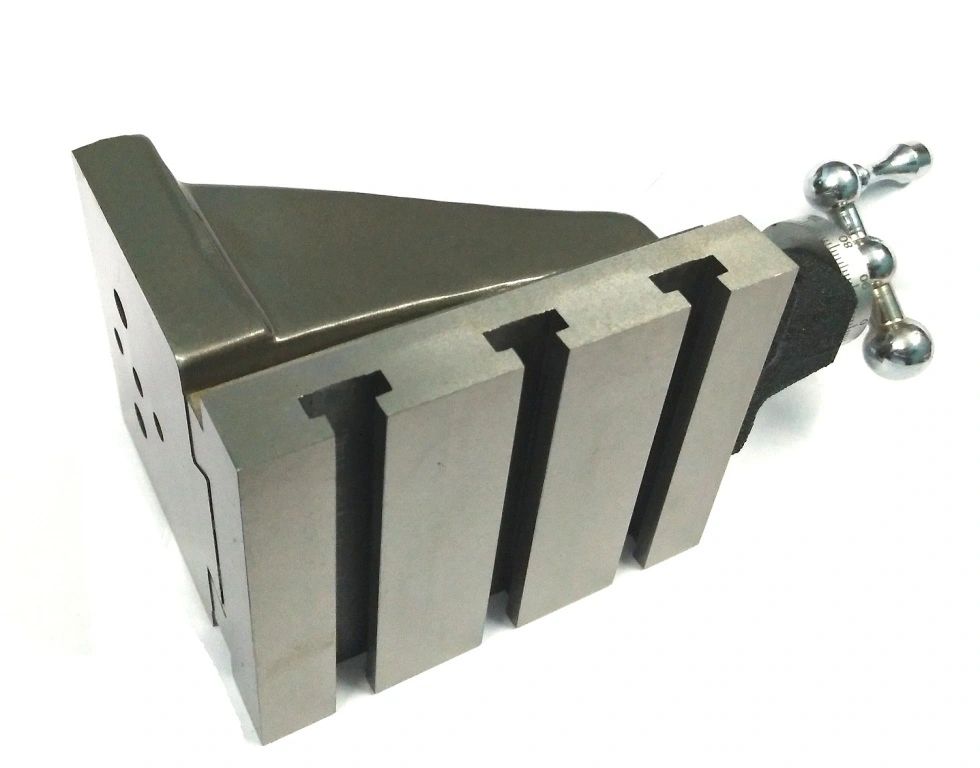

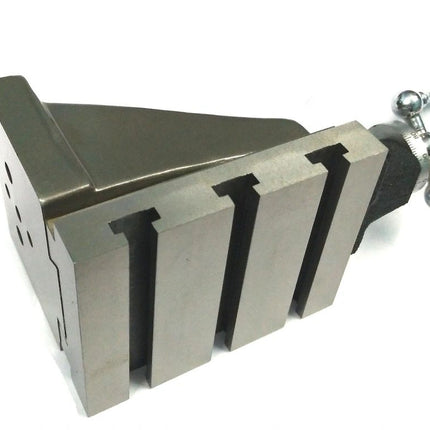

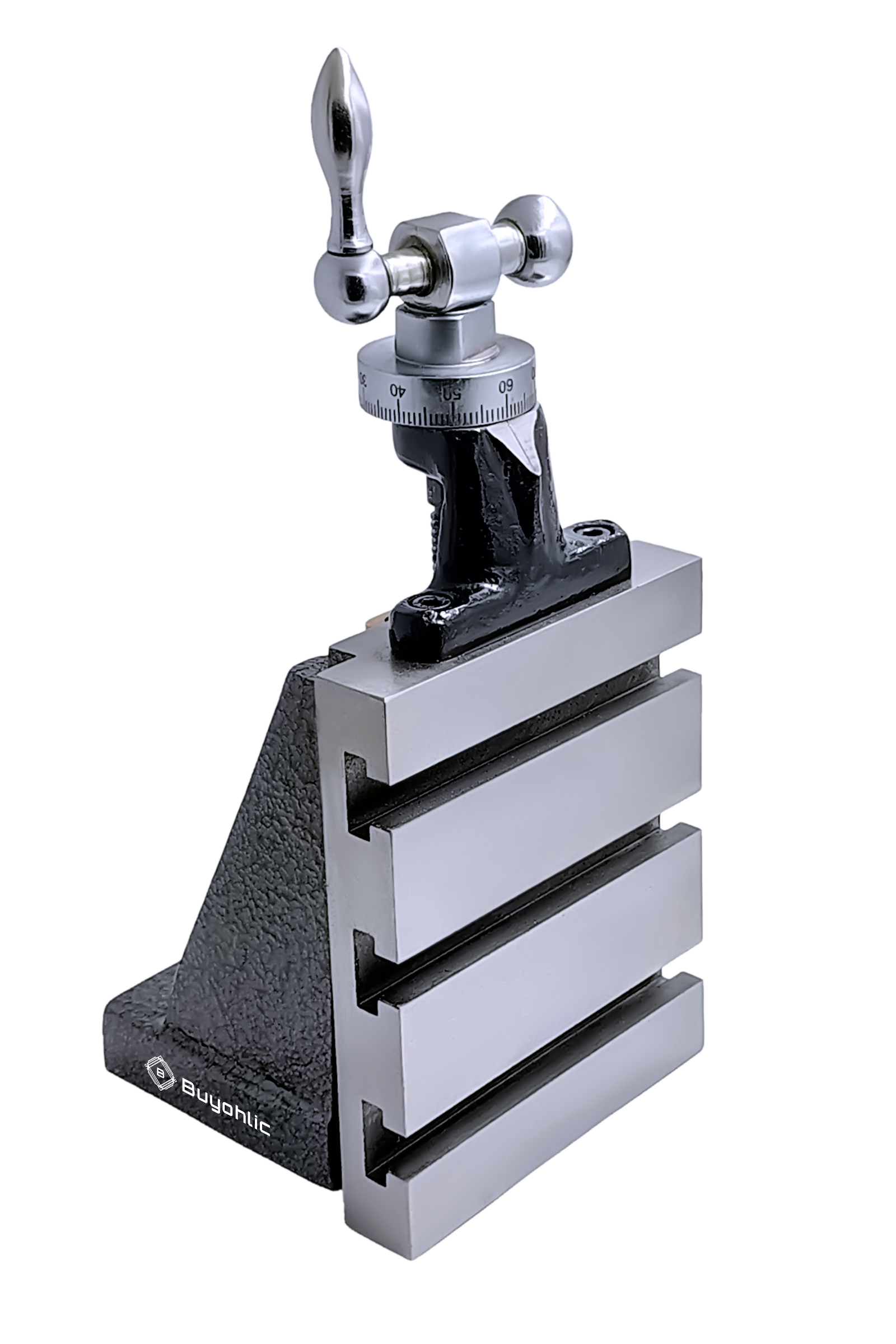

Product Name: Lathe Milling Vertical Slide EE with Slotted Table
-
Table Bed Size: 125 mm x 100 mm
- Provides ample working area for various milling operations.
-
Base Type: Fixed Base
- Ensures a stable and rigid setup for precise milling.
-
Tee Slots:
-
Number of Tee Slots: 3
-
Width at the Top of the Tee: 10 mm
-
Width at the Bottom of the Tee: 15 mm
- Facilitates secure mounting of workpieces and accessories.
-
Compatibility:
- Specifically designed to allow milling on lathes.
-
Table Movement:
- Approximately 80 mm of table movement
- Provides flexibility and range for milling tasks.
-
Construction:
- Made from high-quality materials for durability and longevity.
- Precision-engineered to with stand the demands of milling operations.
-
Key Features:
-
Fixed Base Design:
- Offers a solid and immovable base for consistent milling performance.
-
Three Tee Slots:
- Allows for versatile and secure clamping of workpieces and fixtures.
-
Table Movement:
- Enables fine adjustments and precise control during milling.
-
Applications:
- Ideal for milling, drilling, and slotting tasks on a lathe.
- Suitable for both hobbyists and professional machinists.
-
Usability:
- Easy to set up and operate, enhancing the functionality of your lathe.
- User-friendly design with straightforward installation and adjustment processes.
-
Dimensions:
- Compact design suitable for use with lathes.
- Optimized for efficient use of space and ease of handling.
-
Additional Features:
- Smooth and precise table movement for enhanced control.
- Robust construction to handle rigorous machining operations.
-
Enhancements:
- Expands the capabilities of your lathe, allowing for vertical milling operations.
- Perfect for creating slots, keyways, and other precision milling tasks.
This Lathe Milling Vertical Slide EE with Slotted Table is an essential accessory for any lathe owner, providing the capability to perform vertical milling operations with precision and ease.
