Description
A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing
A tailstock, also known as a foot stock, is a device often used as part of an engineering lathe, wood-turning lathe, or used in conjunction with a rotary table on a milling machine. It is usually used to apply support to the longitudinal rotary axis of a workpiece being machined.
When mounted onto a rotary table, which is a precision workholding device that allows for precise positioning of workpieces, the dividing plate helps in accurately dividing the rotation of the table into equal parts. This division is crucial for tasks like cutting gears, splines, or other components that require precise angular spacing or indexing.

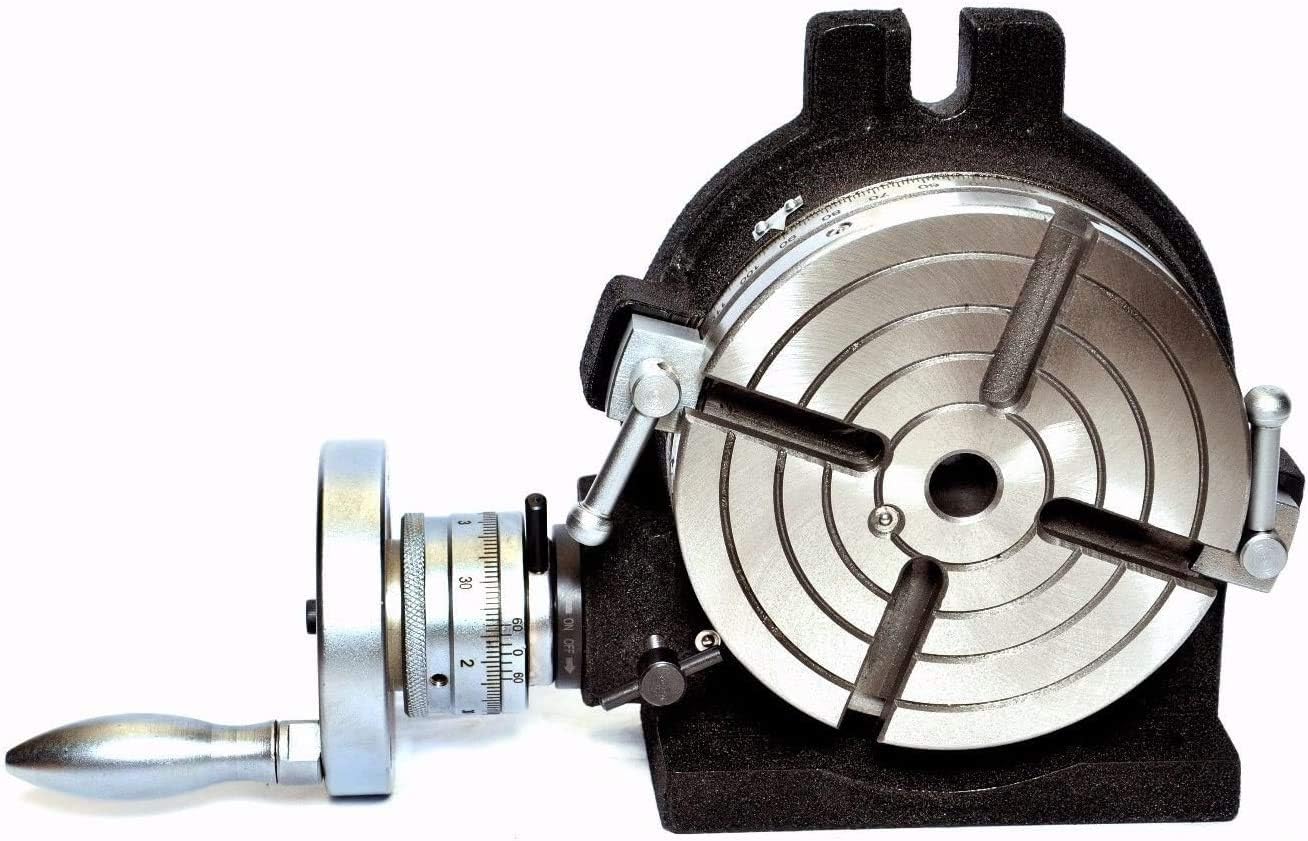

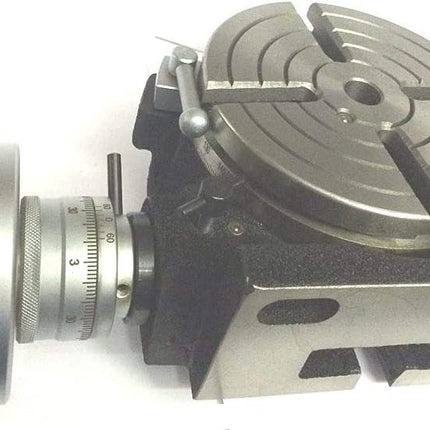

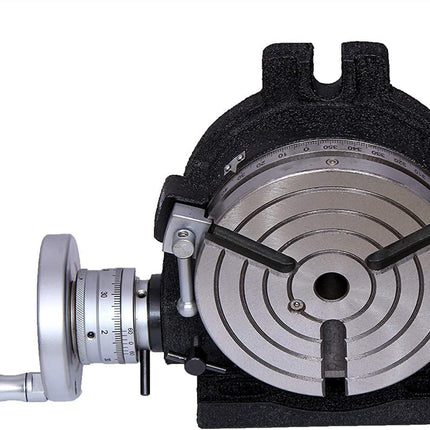

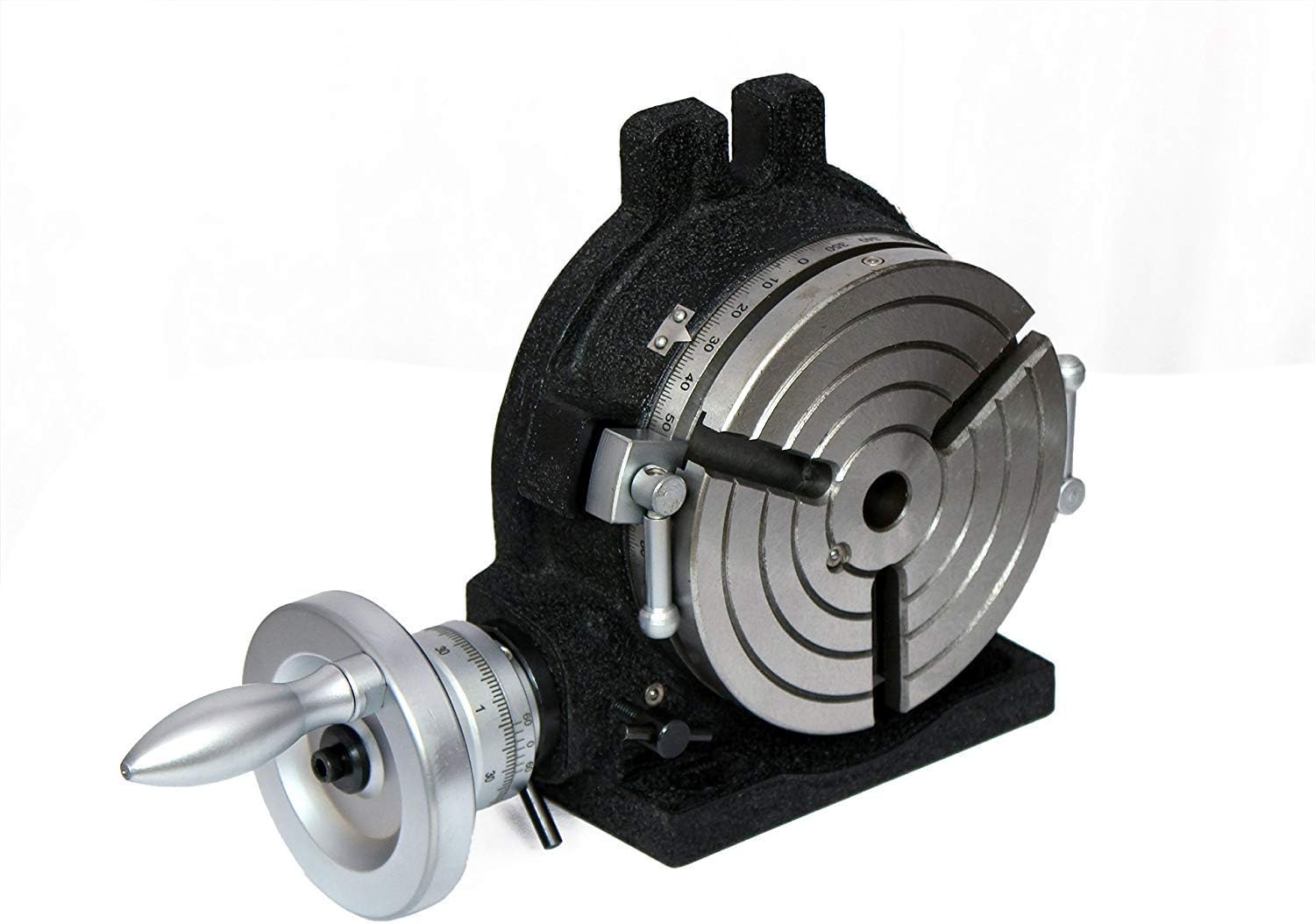

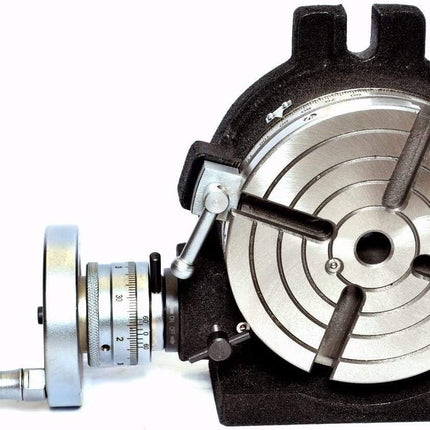

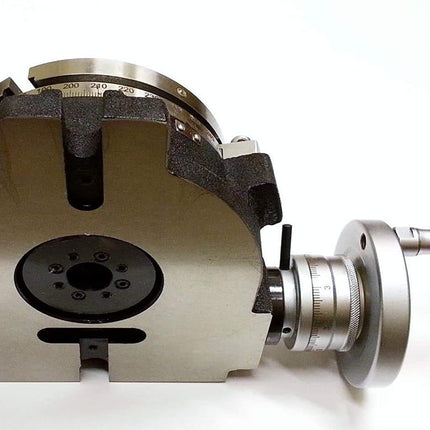

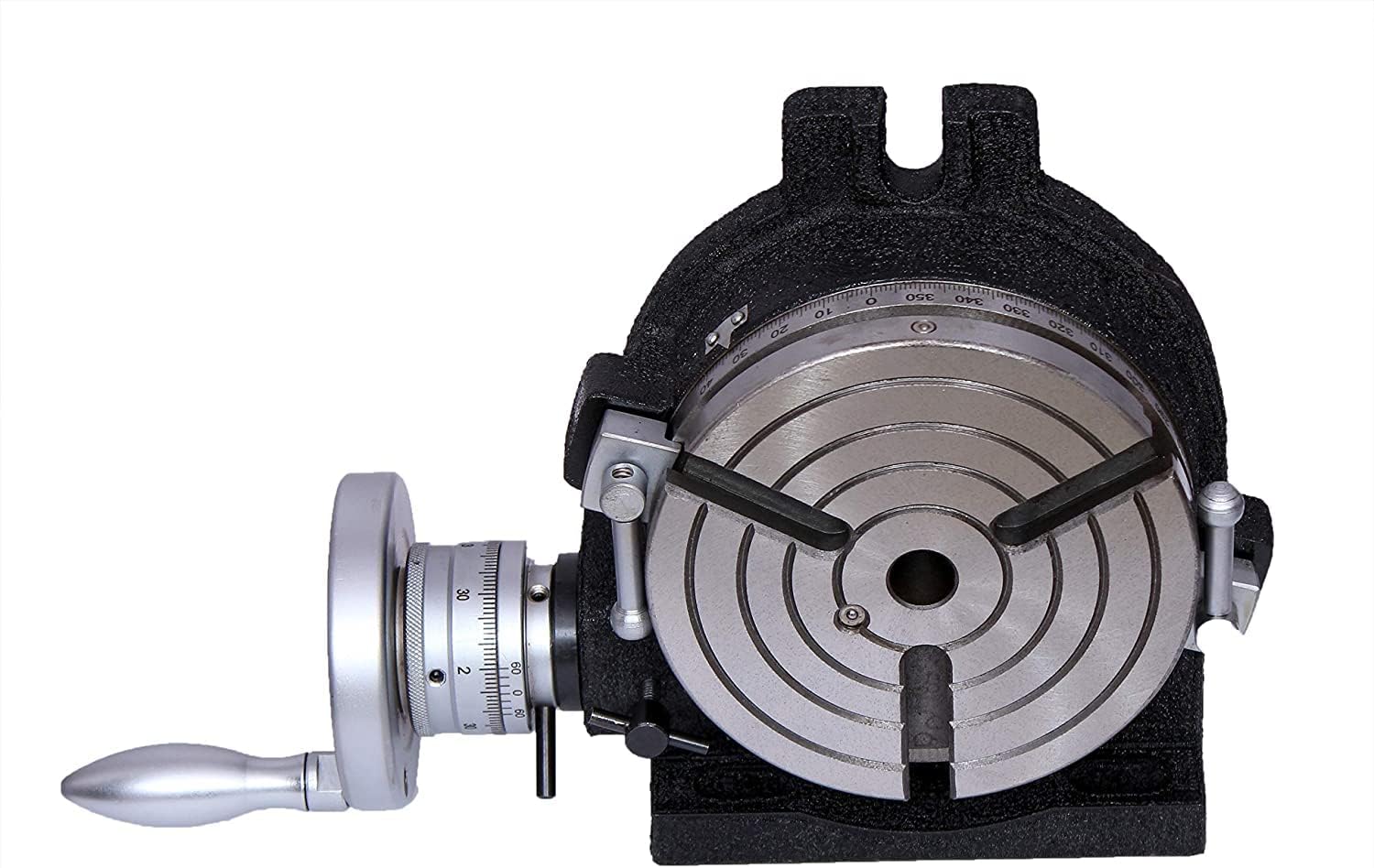

HV6 Rotary table
-
Gear Ratio: 90:1 gear ratio for efficient table movement, with each handle rotation shifting the table by 4 degrees, enabling precise control.
-

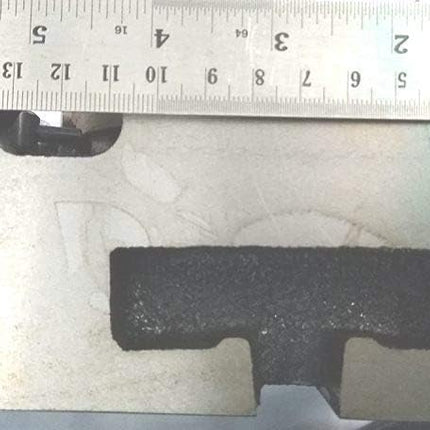

Center Bore: Equipped with a Center Bore MT-2 and a 16 mm T-slot, ensuring seamless compatibility and secure clamping.
-

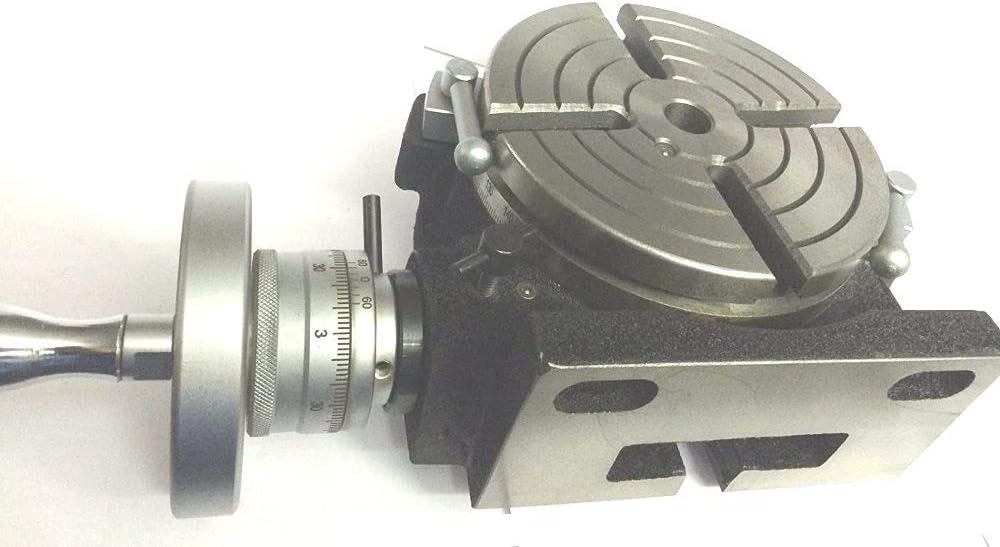

Versatile Clamping: Can be clamped both vertically and horizontally to accommodate diverse workpiece orientations.
-

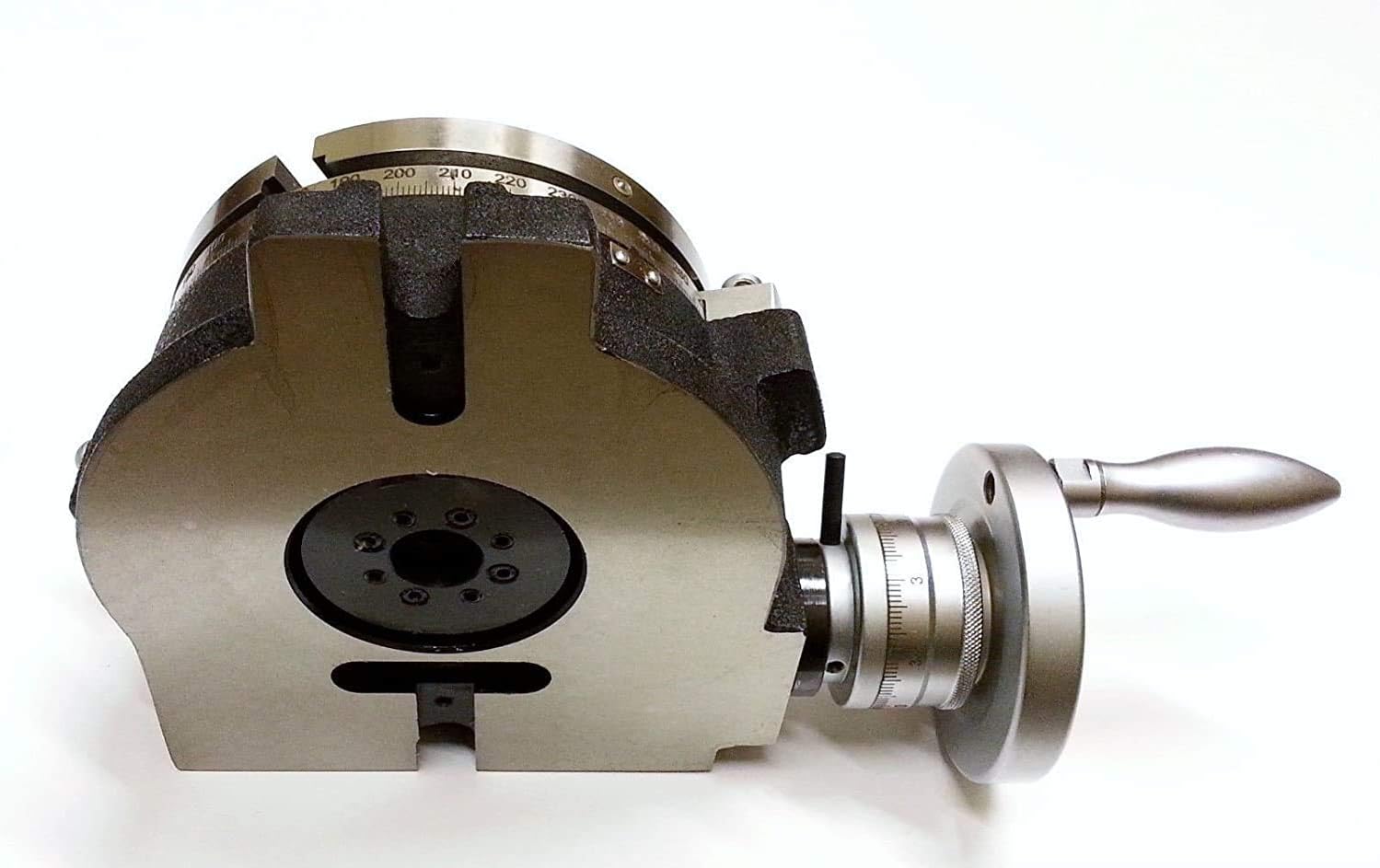

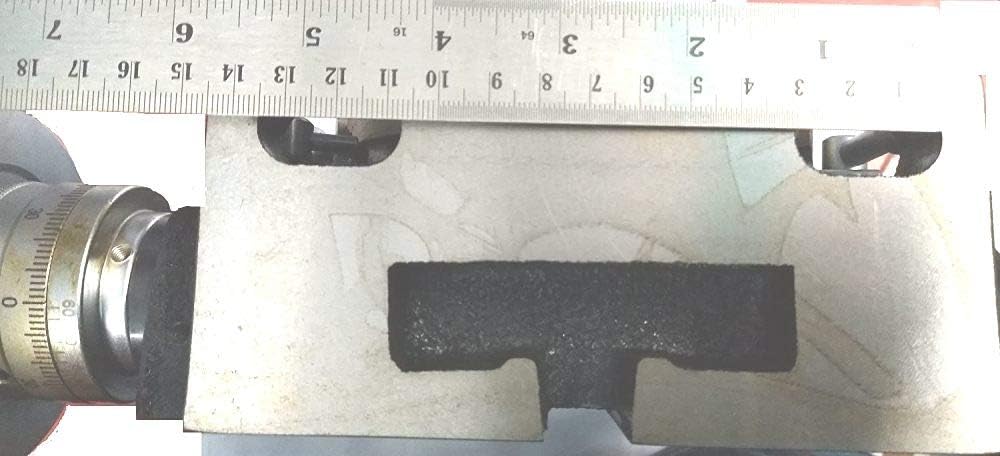

Dimensions: The horizontal height is approximately 80mm from the base to the top surface of the chuck, ensuring stability and ease of use. In the vertical position, the center height is 105mm, providing ample clearance for machining operations.
-

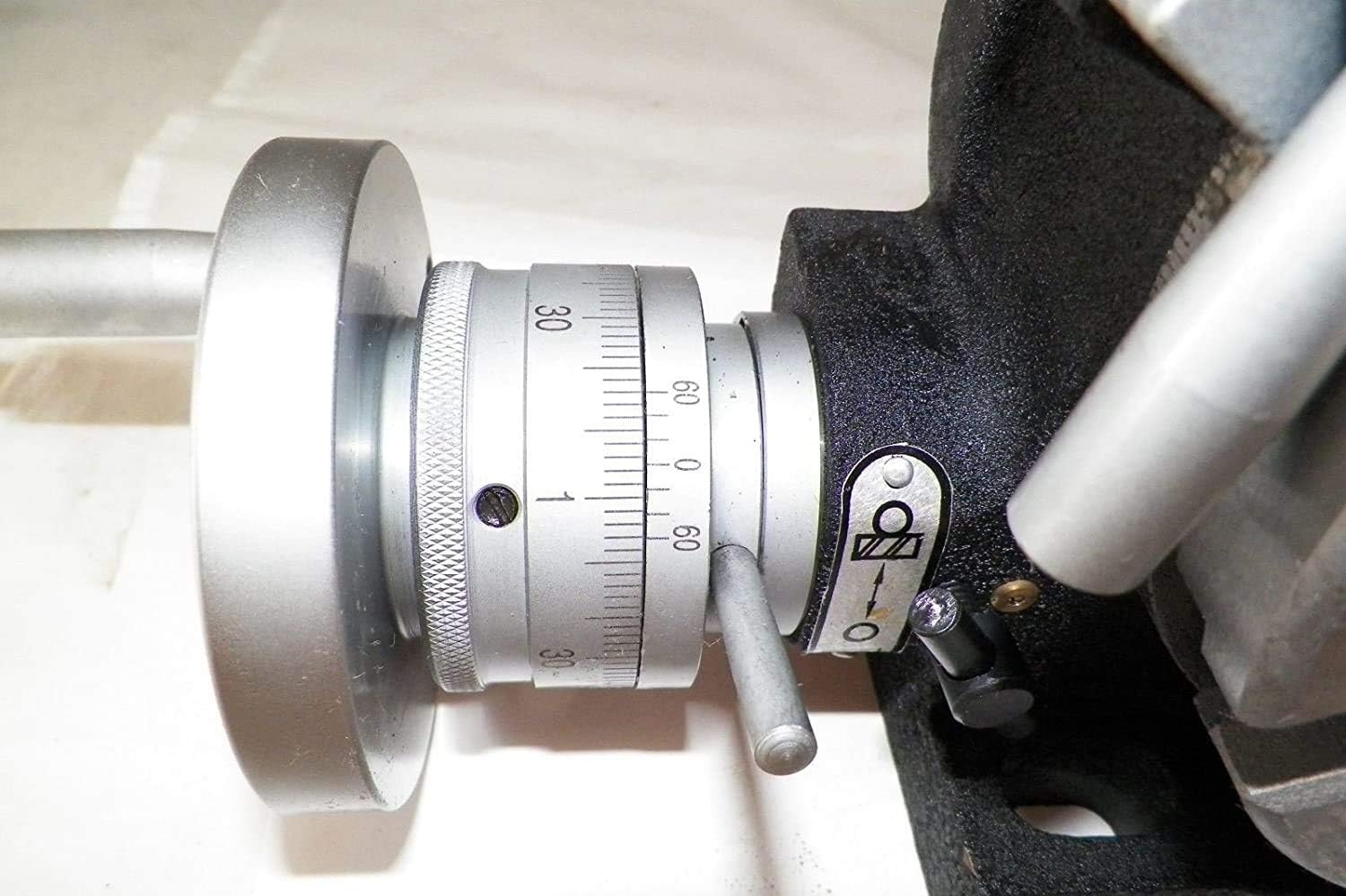

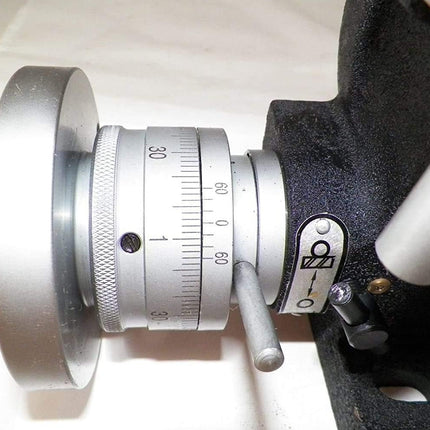

Graduations: The table is graduated 360 degrees around its circumference, with a resettable dial and a handwheel graduated in seconds for precise angular adjustments.
-
Lubrication: Equipped with two oiling points for direct lubrication, enhancing the rotary table's longevity and performance.
-
Comprehensive Solutions: Our store offers a range of compatible accessories, including dividing plates, tailstocks, chucks, and clamp kit sets, for a complete machining solution.

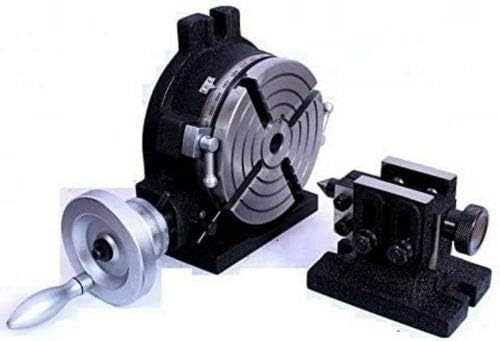

Tailstock for HV6 Rotary Table
-
Heavy Duty Construction: Built to last with tool steel, providing stability and support for your machining tasks.
-
Adjustable Height: Easily adjust the height to accommodate different workpieces and machining requirements.
-
Versatile Compatibility: Available in various sizes compatible with 3" / 4" rotary tables as well as HV4/HV5/HV6/HV8 rotary tables, ensuring compatibility with a wide range of setups.
-
Smooth Operation: Ensures smooth and precise performance, enhancing the accuracy of your machining operations.
-
Easy Installation: Designed for hassle-free installation, allowing you to quickly set up and start machining.
-
Enhanced Stability: Provides a solid foundation for your workpieces, minimizing vibration and ensuring consistent results.
-
Wide Application: Suitable for various machining tasks, from milling to drilling, turning, and more.
-
Essential Accessory: A must-have addition to your rotary table setup, enhancing its functionality and versatility for diverse machining projects.
-
Professional Quality: Designed for professional machinists and hobbyists alike, offering reliability and performance you can trust.
-
Available in Different Sizes: Choose the size that best fits your rotary table setup, ensuring a perfect fit and optimal performance.
-
Tailstock HV4/ HV5/ HV6- Minimum Center Height 80 mm & Maximum Center Height is 105. Base Dimension 135 mm x 90 mm/

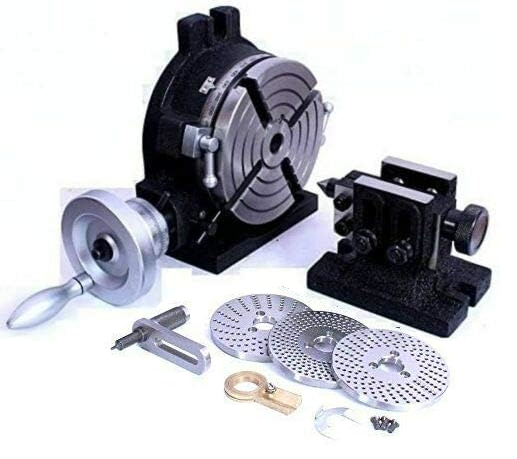

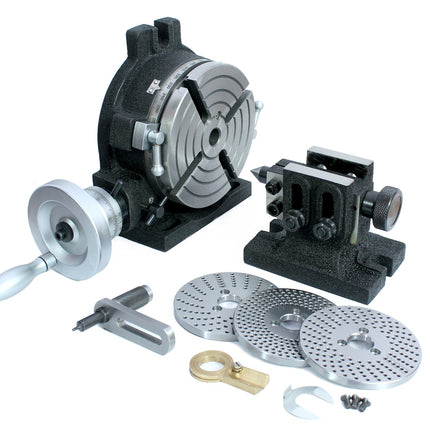

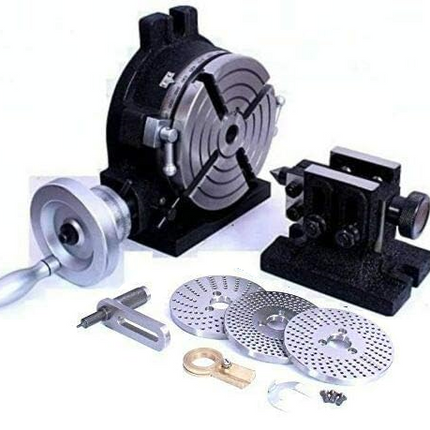

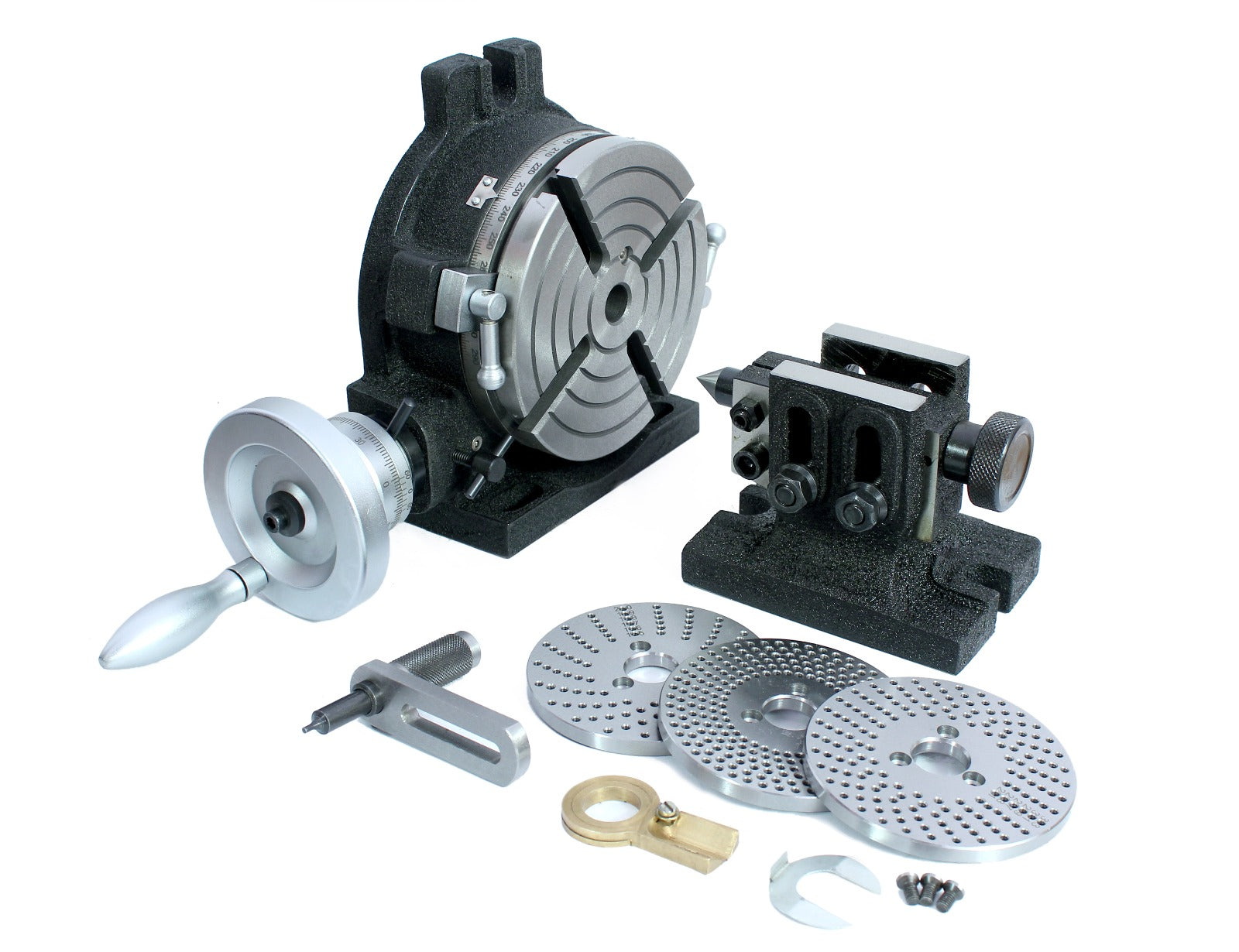

Dividing Plates Set for HV4 /HV6 Rotary Table:
- Set Includes: 3 x Indexing Dividing Plate and accessories.
- Diameter of the Plates is 100 mm. Centre Hole of the Plate is 21 mm. Thickness 7 mm
- Plate 1 – 15, 16, 17, 18, 19, 20
- Plate 2 – 21, 23, 27, 29, 31, 33
- Plate 3 – 37, 39, 41, 43, 47, 49
