Description
Use of product - A rotary table is a precision work positioning device used in metalworking. It enables the operator to drill or cut work at exact intervals around a fixed (usually horizontal or vertical) axis.
A round vise is used for securely holding round or cylindrical workpieces during machining, drilling, grinding, or inspection processes. Its design allows for stable and precise positioning, facilitating accurate and consistent operations on the workpiece.
Key Features:

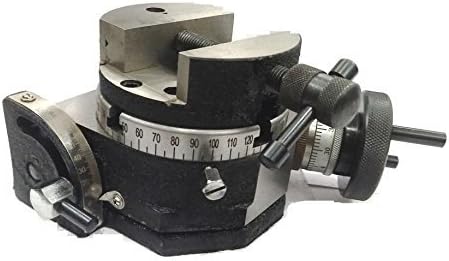

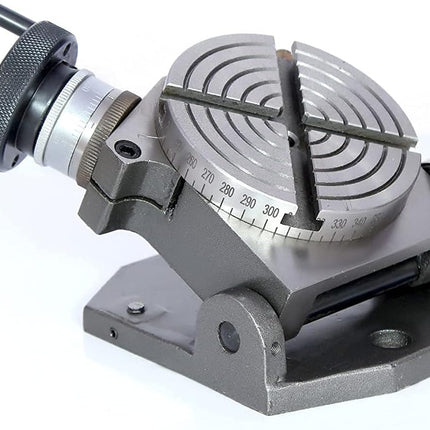

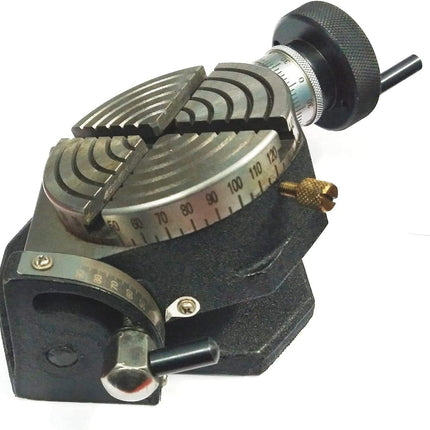

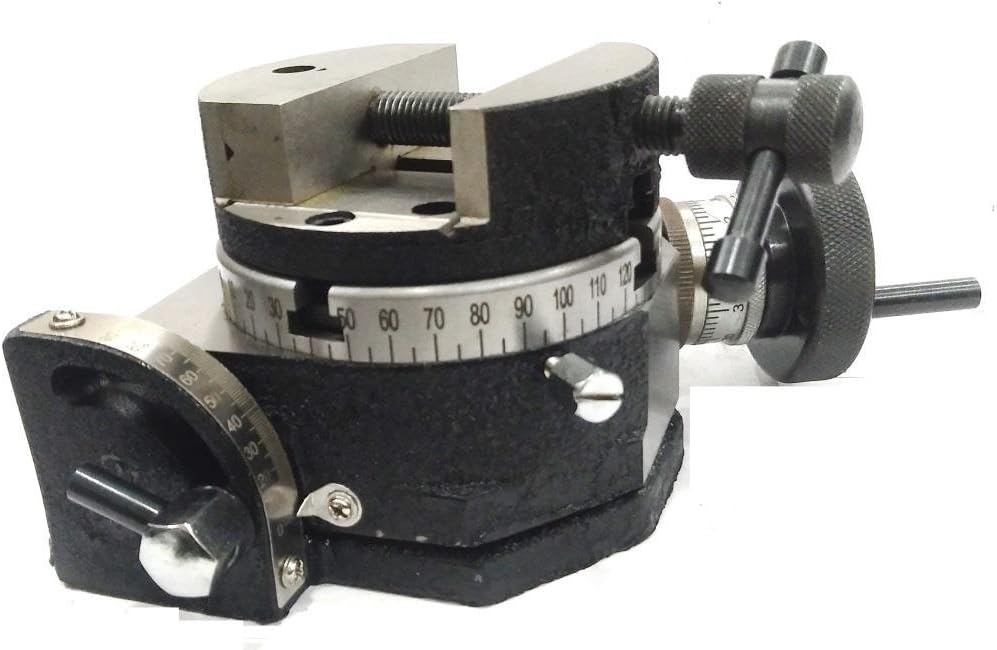

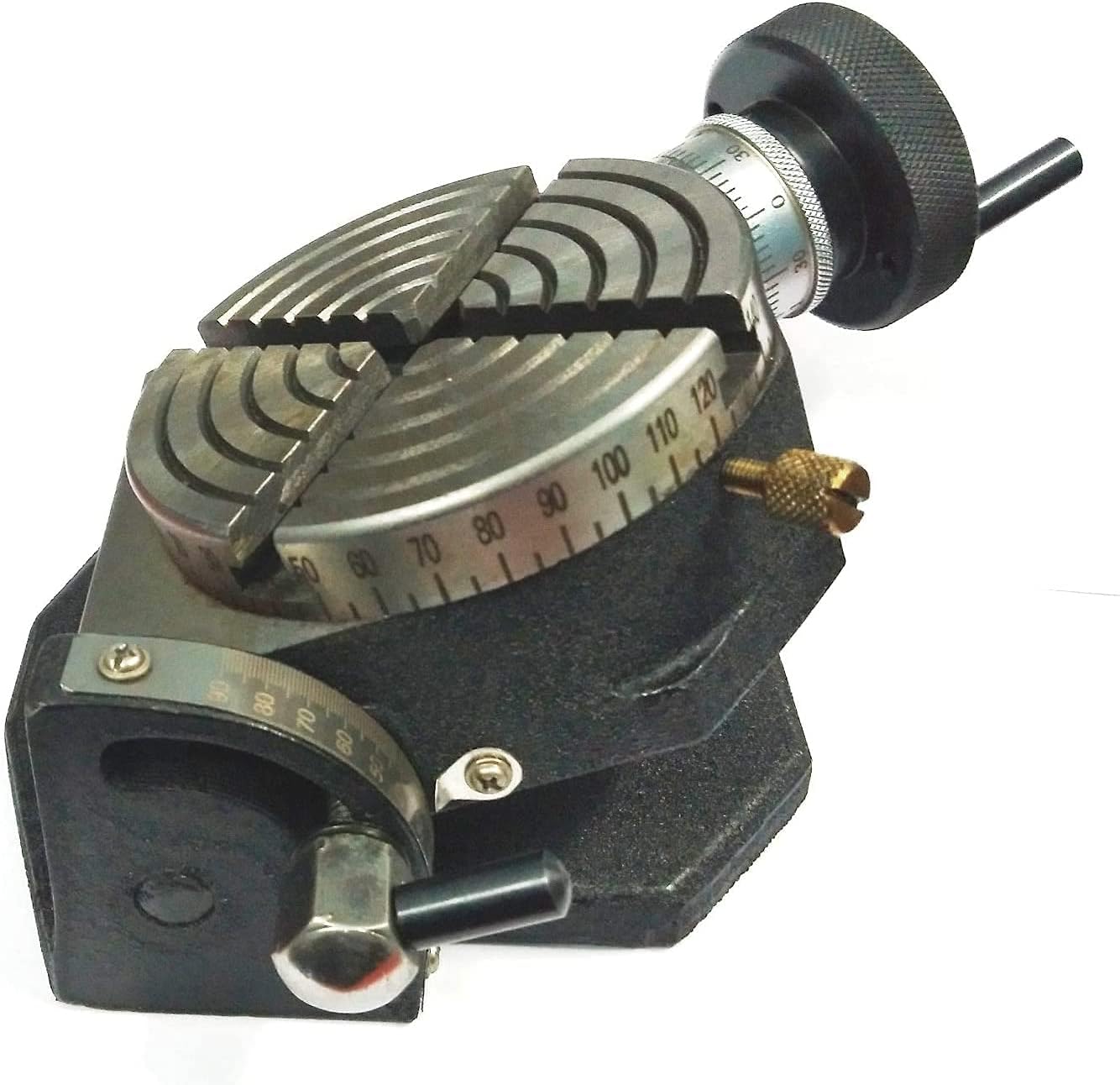

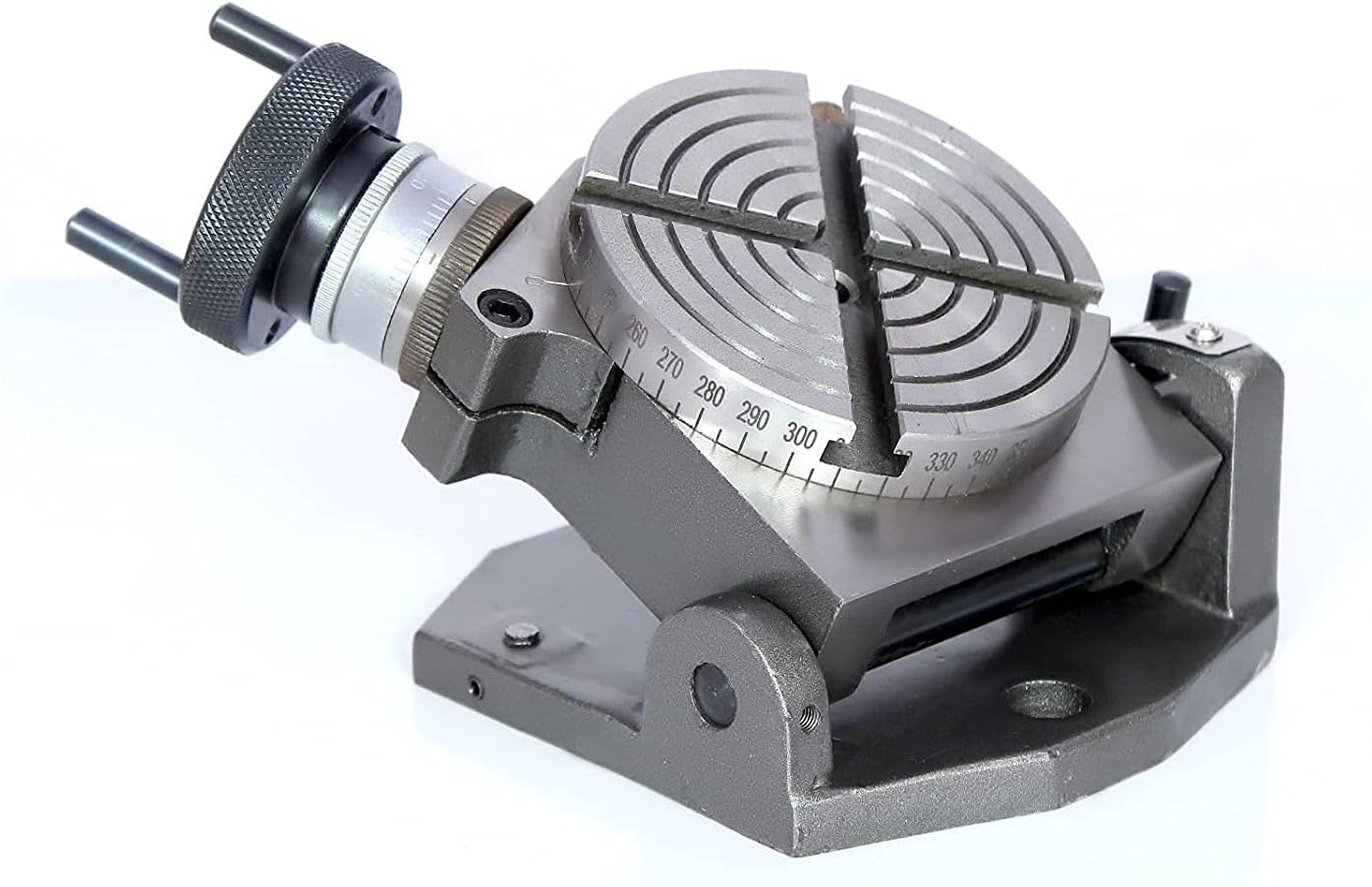

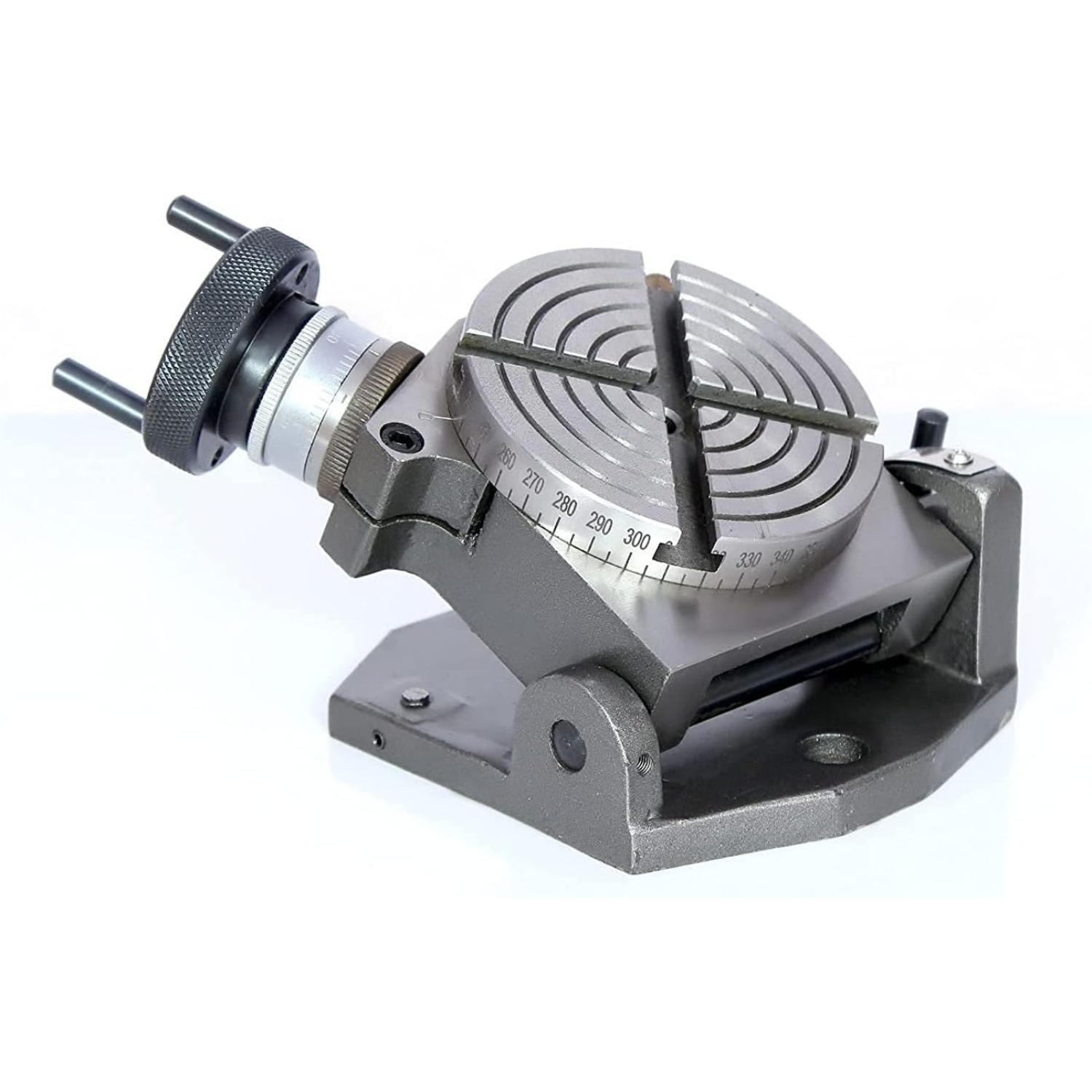

4" (100 mm) Rotary Table
-
Table Diameter: 4 inches (100 mm)
This size is ideal for handling small to medium-sized workpieces, offering a good balance between compactness and functionality.
-
360-Degree Graduation:
The table is graduated a full 360 degrees, allowing for precise control and positioning of the workpiece. The clear markings ensure easy and accurate angle setting for all your milling tasks.
-
Worm Gear Ratio: 1:36
The gear ratio means that one full rotation of the handle turns the table by 10 degrees, providing fine control over the movement and ensuring precision in every operation.
-
Vertical Position Center Height: 2-1/16" (50 mm approx)
The center height in the vertical position is 2-1/16 inches, which aligns perfectly with the smaller milling machine setups, offering versatility in workpiece positioning.
-
Handwheel Graduations:
The handwheel is graduated in divisions of 10 minutes, allowing for highly detailed adjustments. The scale can also be set to zero, making it easy to track and repeat your adjustments for consistent results.
-
Mounting Flexibility:
The Regular model can be mounted in both horizontal and vertical positions, enhancing its versatility for a wide range of applications. Whether you need flat or angled cuts, this rotary table can handle it with ease.

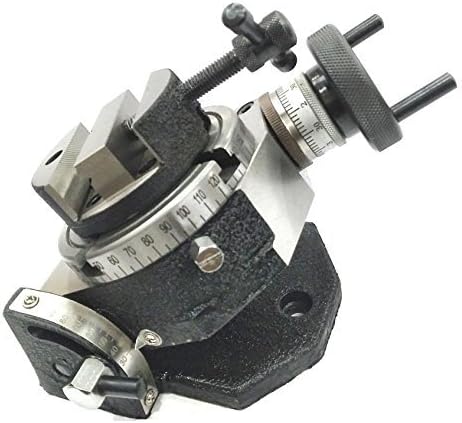

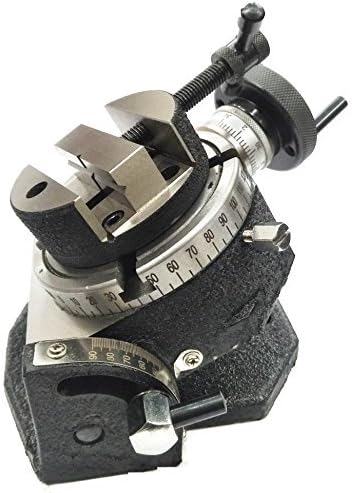

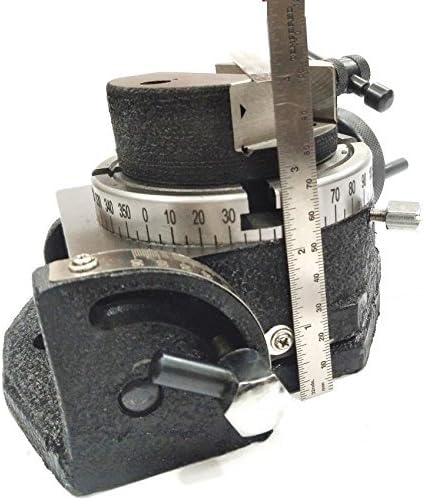

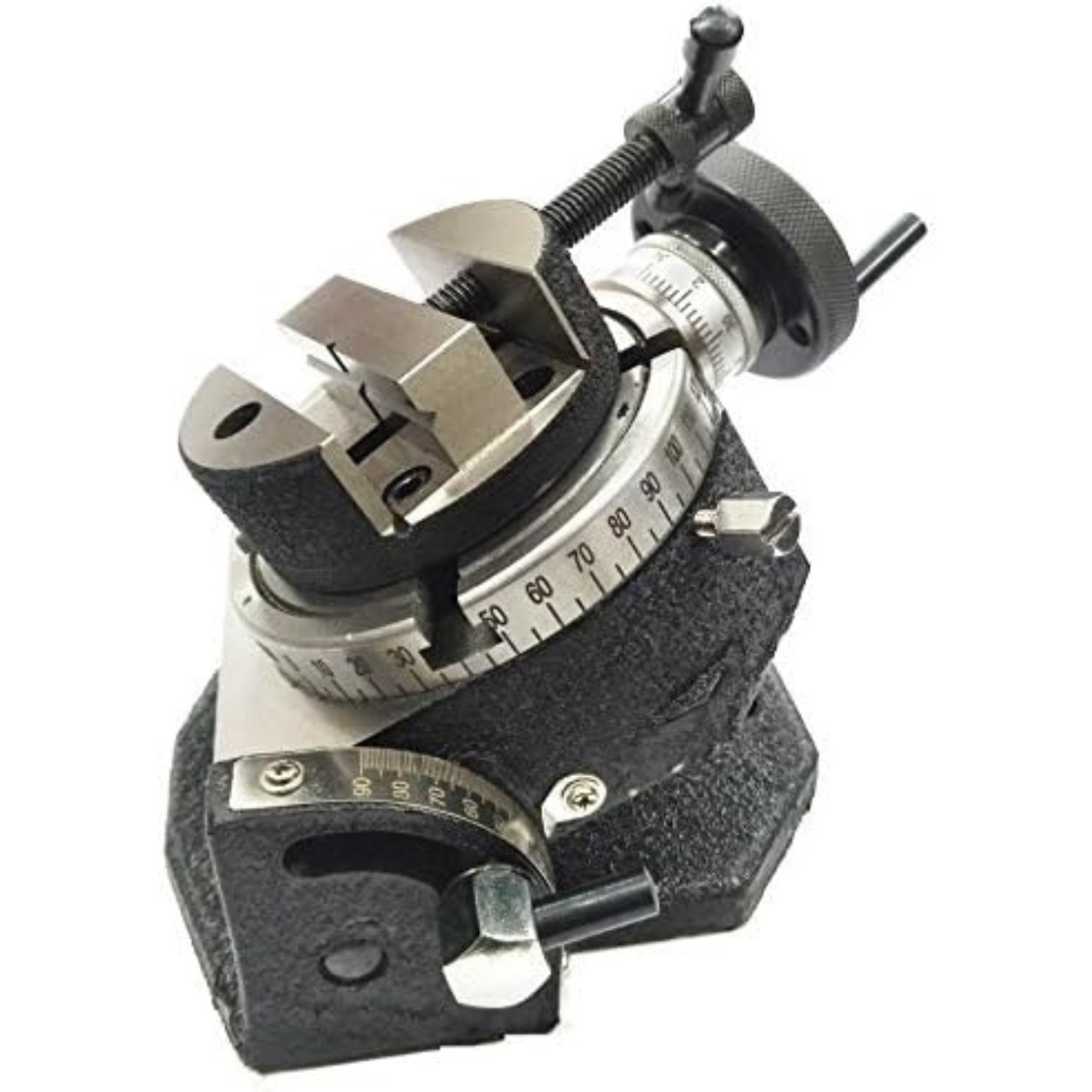

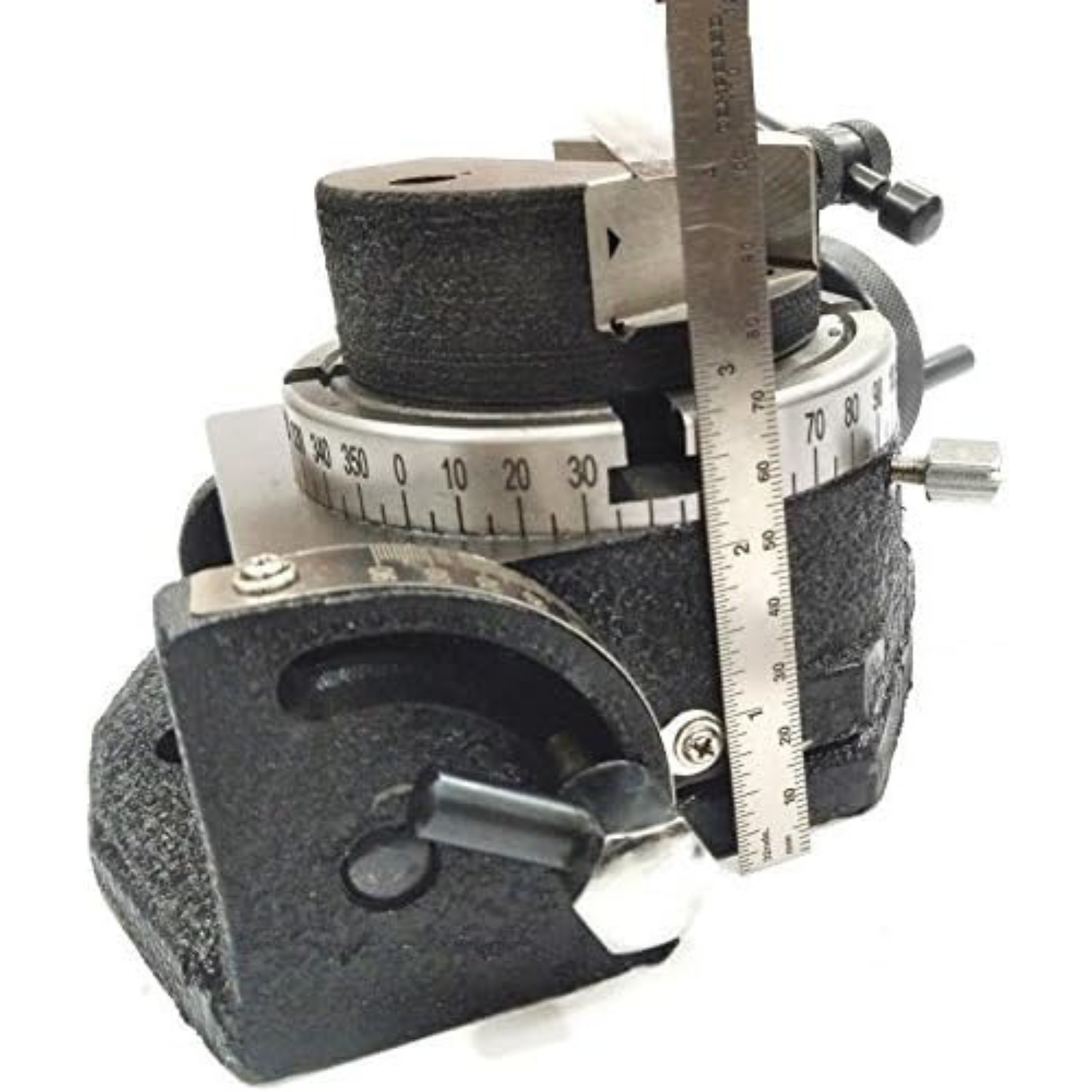

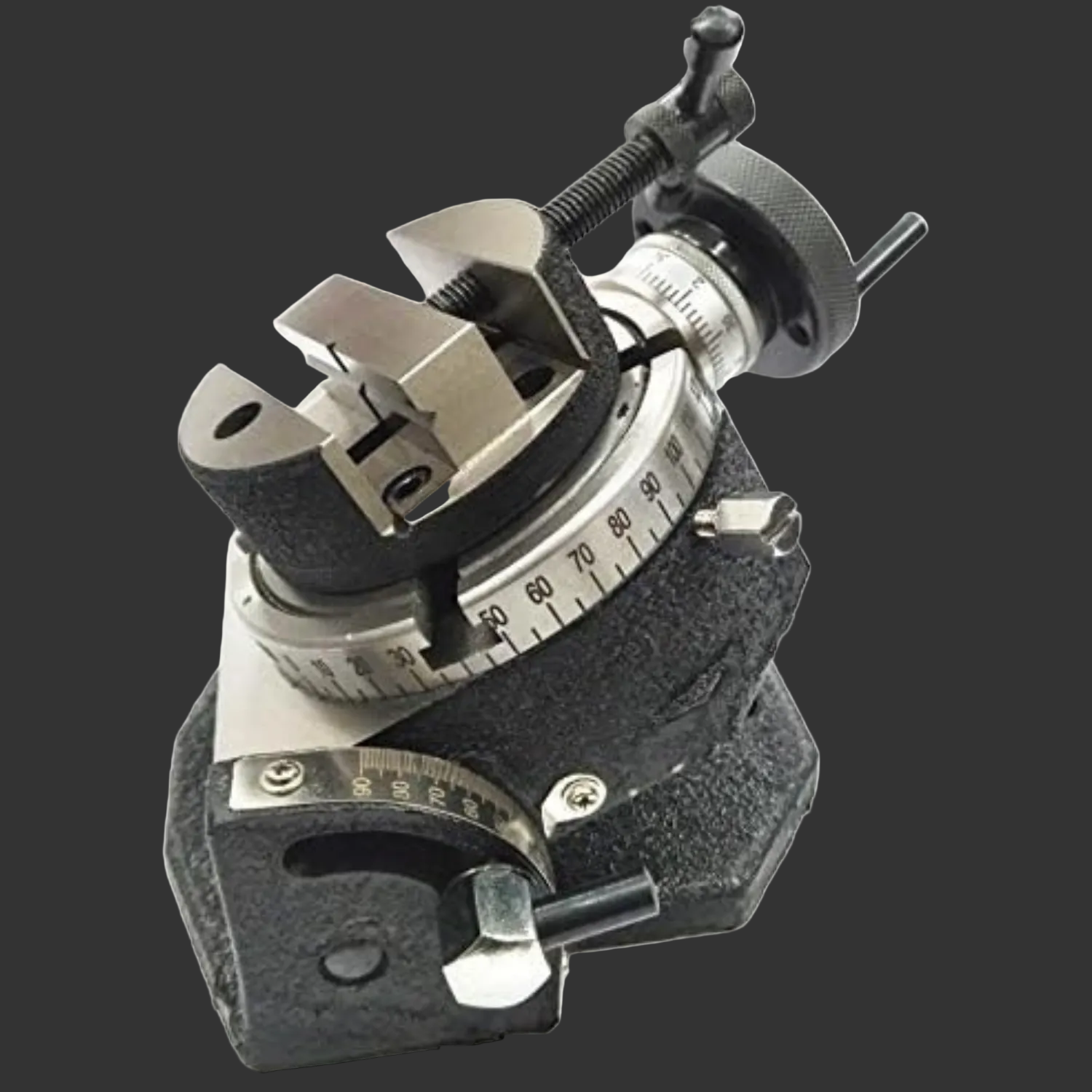

3" ROUND VICE
- Made form Quality close grain Caste Iron -Designed to fit our 3" (75 mm) & 4"(100 mm) Rotary Tables
- Diameter of Base : 80 mm * Jaw Width : 54 mm * Jaw Depth: 20 mm * Jaw Opening : 32 mm * Height : 29 mm
- These vices are counter- drilled in a manner that these can fit to a 3 as well 4 slot table.
- The moving jaw has V-grooves to hold Round objects. Precisely Ground on Base,Top, Jaws & Base. Rest Body is painted for a long rust free life.

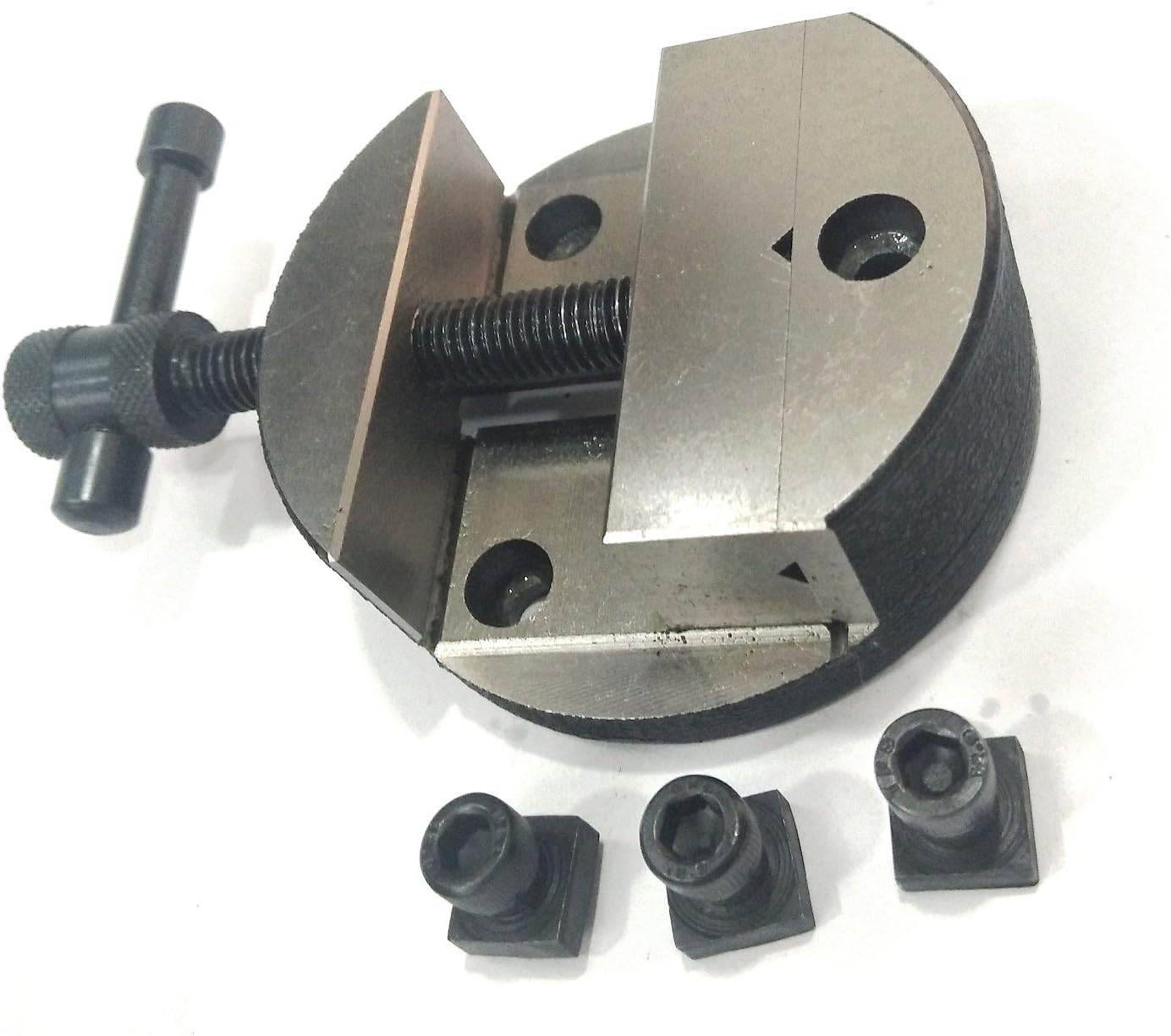

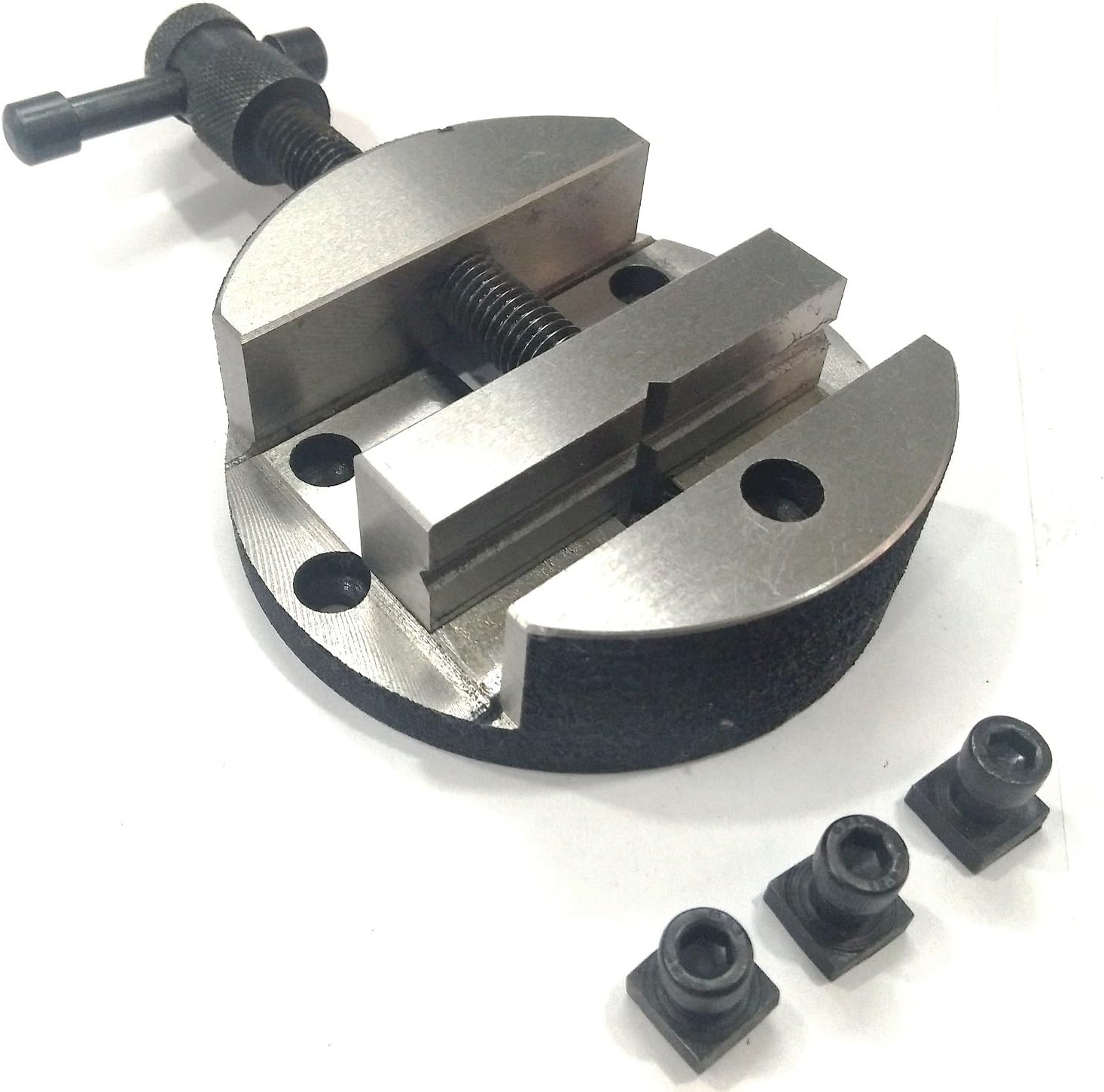

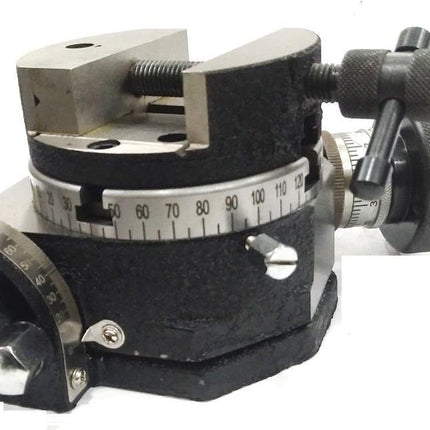

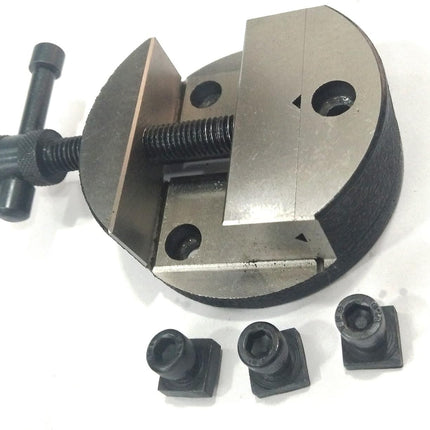

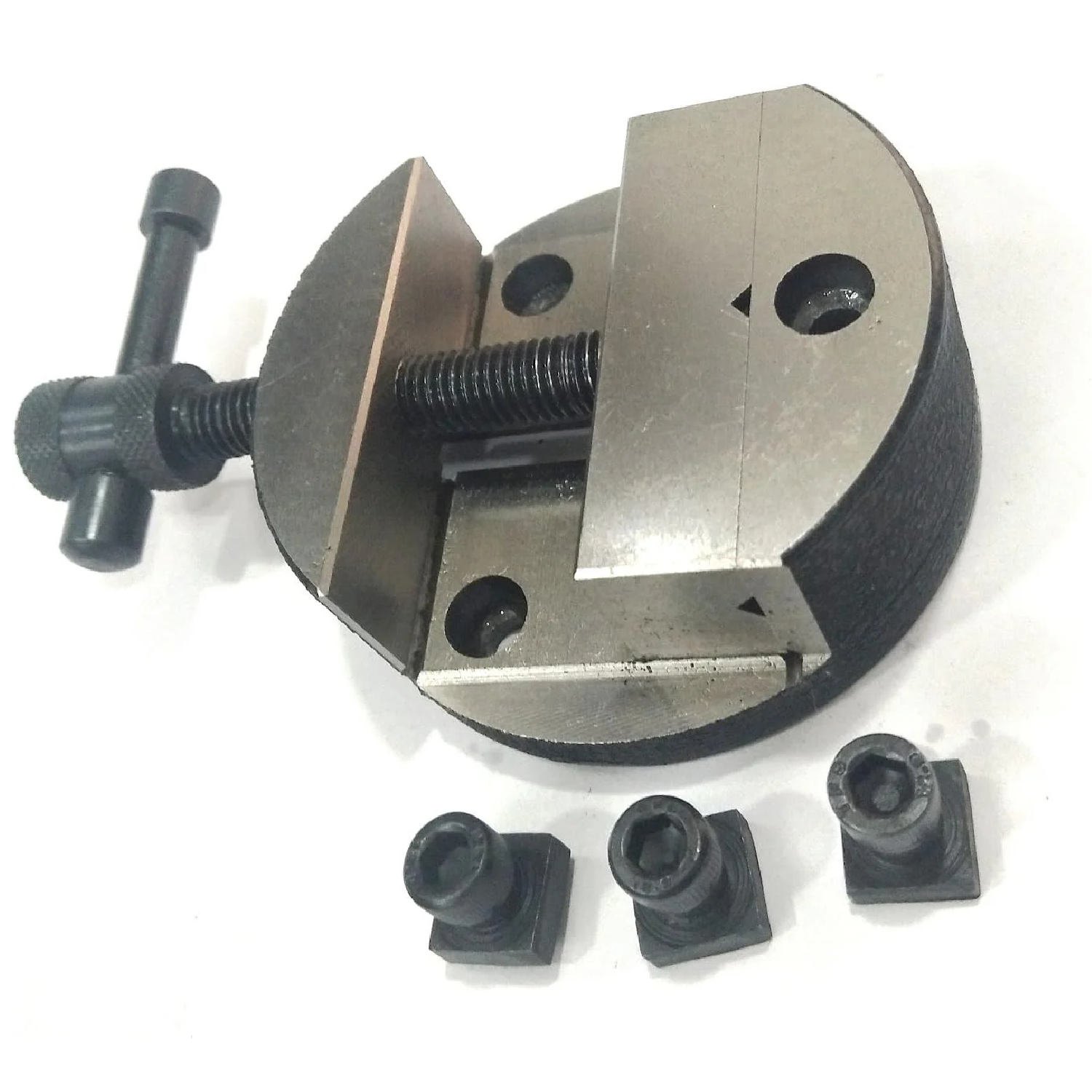

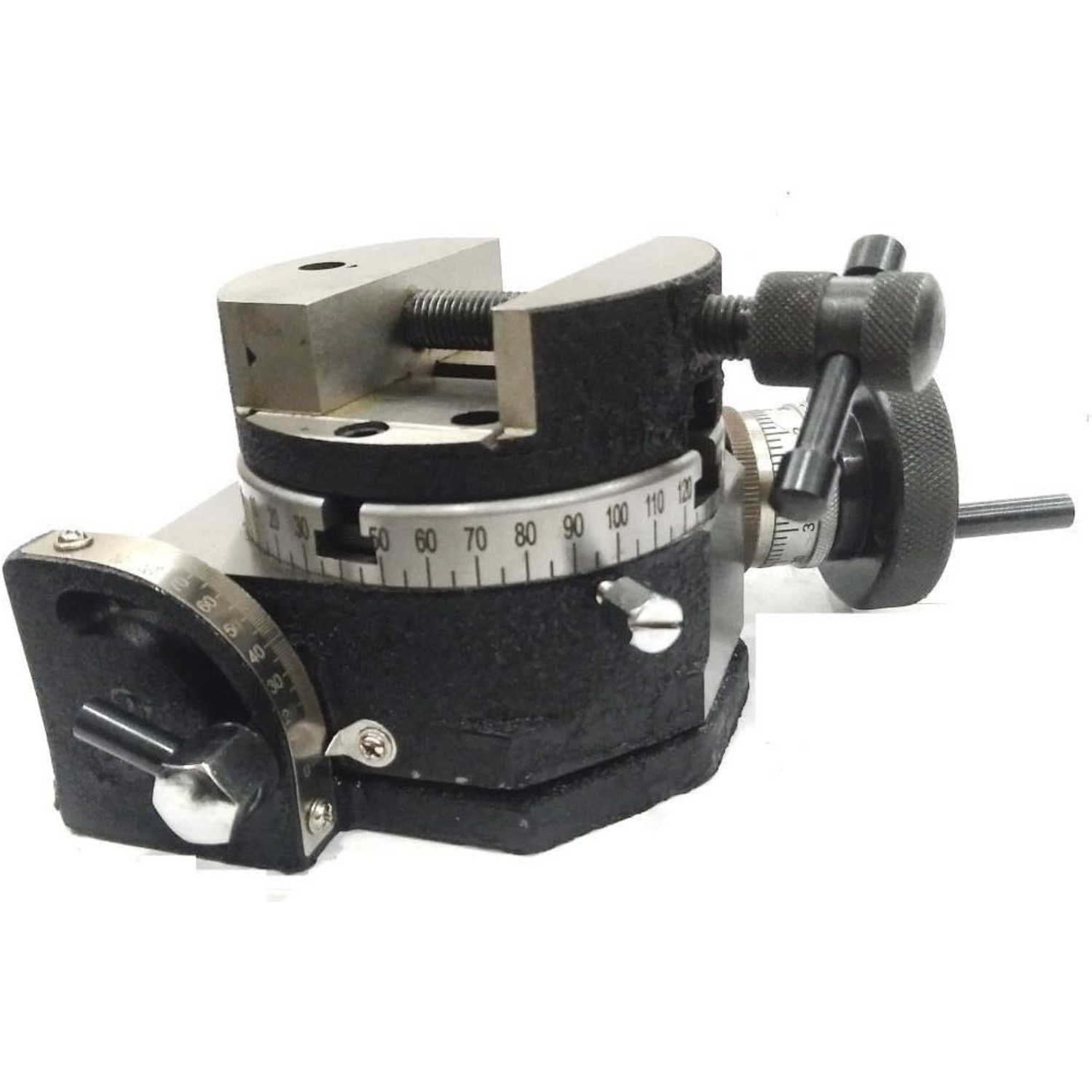

4" ROUND VICE
- 100 mm Diameter Caste Iron Round Vise vice -Made from Close grain Caste Iron
- Designed to fit our 4" (100 mm) Regular & tilting models of Rotary Table
- Vice is counter drilled in a manner that it can fit to both 3 as well as 4 Slots Rotary Table
- * Diameter of Base : 105 mm * Jaw Width : 75 mm * Jaw Depth: 21 mm * Jaw Opening : 40 mm * Height : 32 mm
- The moving jaw has V-grooves to hold Round objects.
