Description
A grinding vice, also known as a grinding clamp or grinding tool vice, is a device used to securely hold workpieces during grinding operations. It is specifically designed to grip and stabilize materials being ground on a surface grinder or a bench grinder. The primary purpose of a grinding vice is to provide a firm and stable grip on the workpiece, preventing it from moving or vibrating during the grinding process. This ensures accuracy, precision, and safety while grinding, allowing for the creation of smooth and uniform surfaces, precise angles, and consistent dimensions on the workpiece. Grinding vices are commonly used in metalworking, tool and die making, machining, and other industries where precision grinding is required.
-

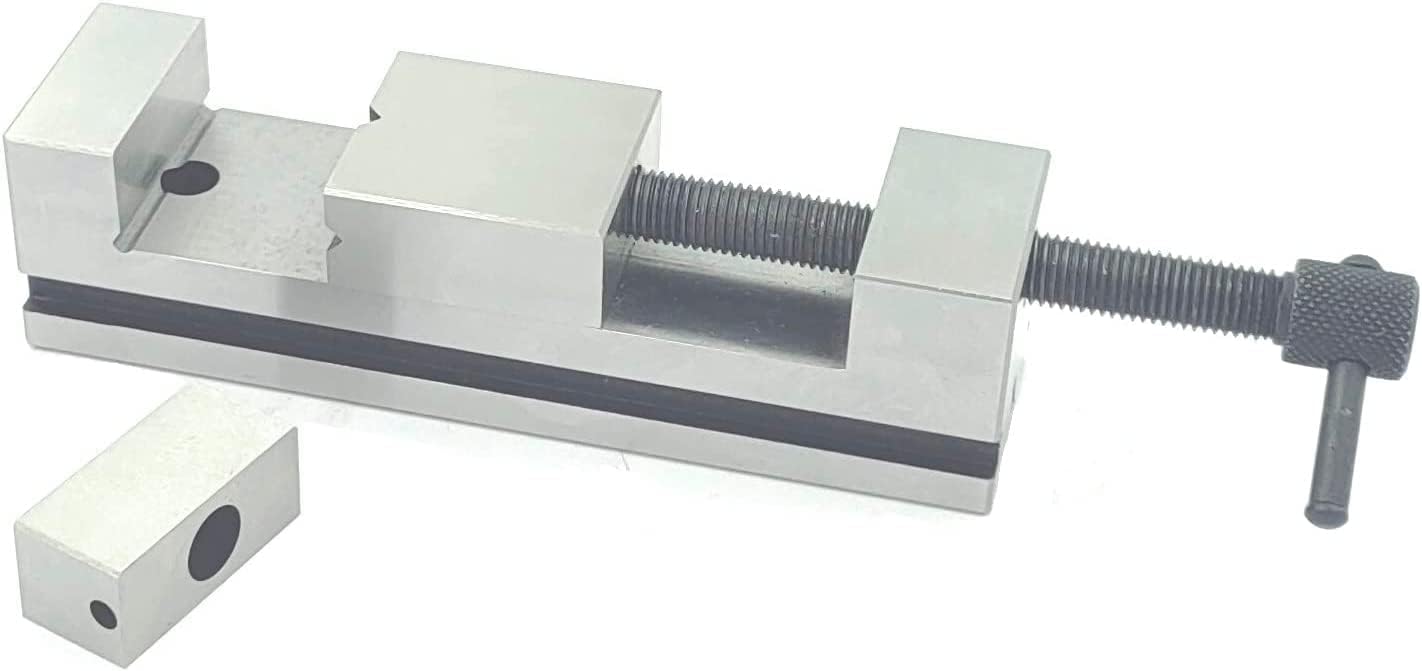

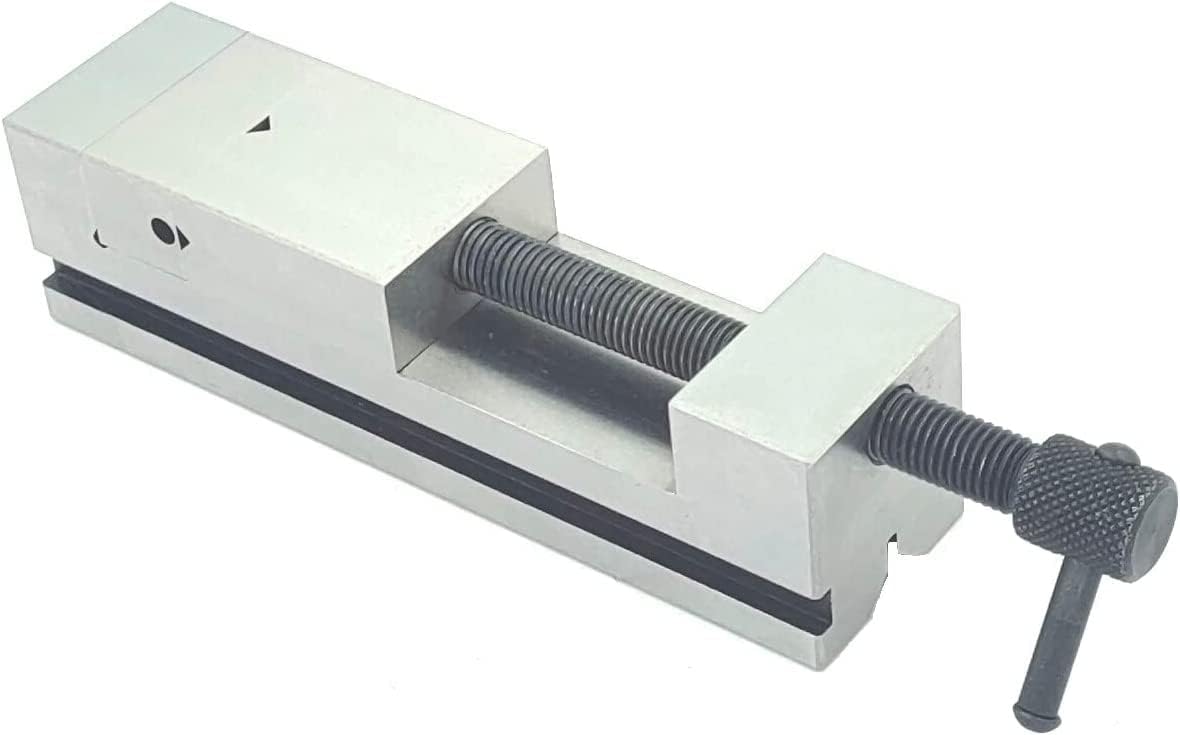

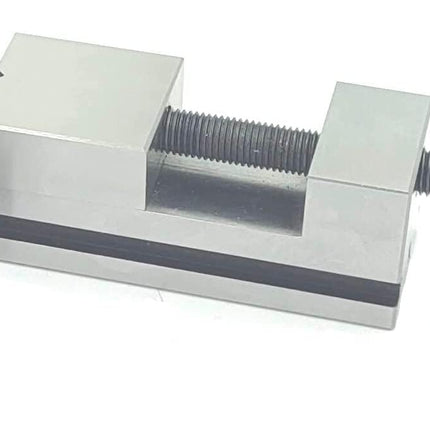

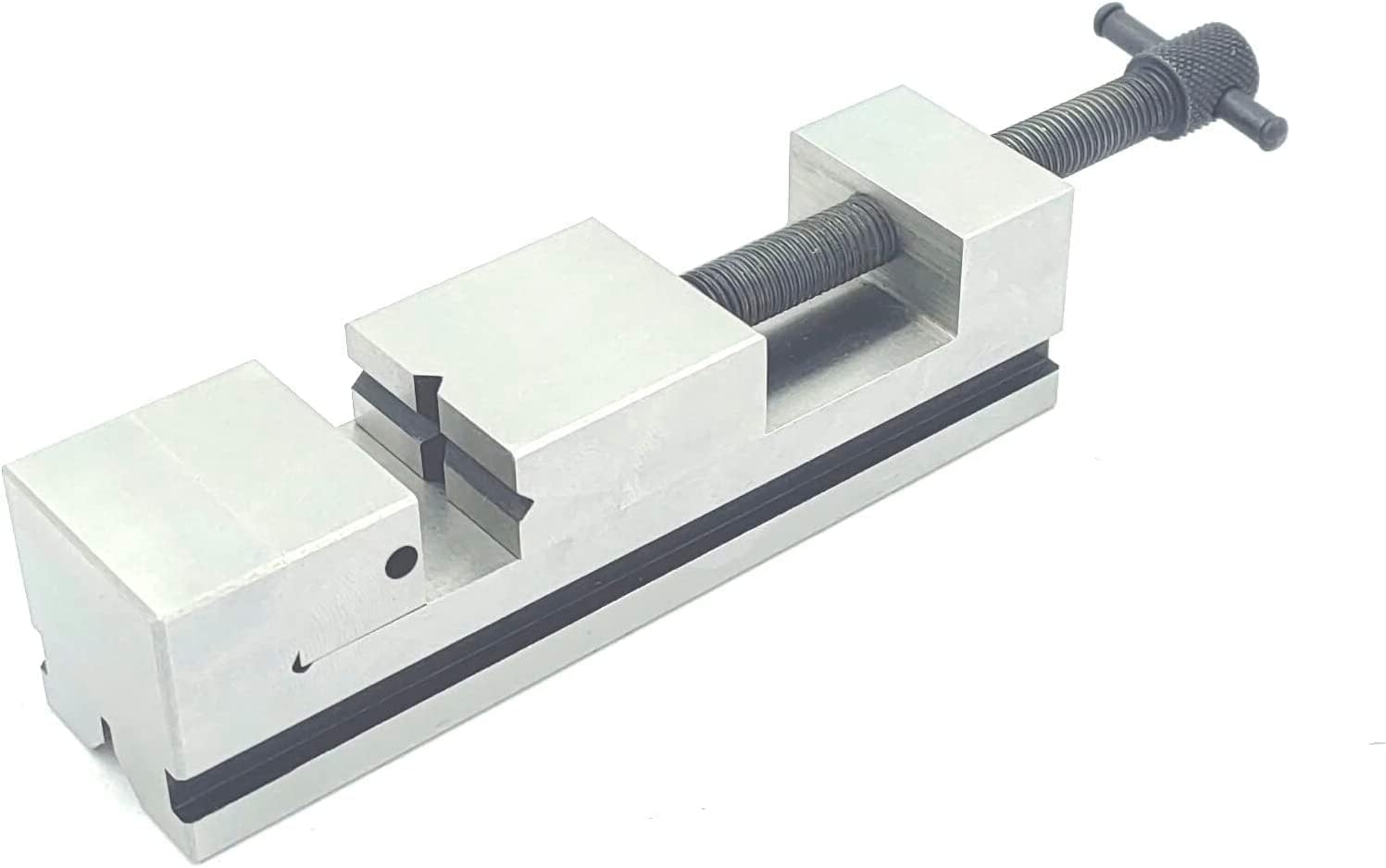

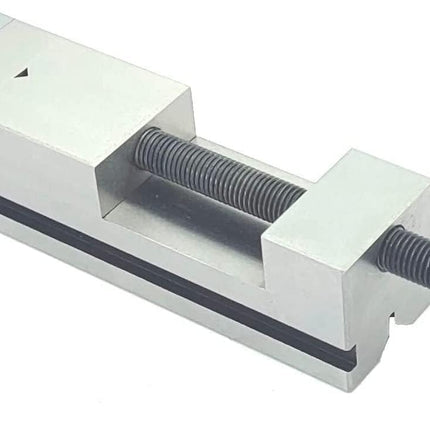

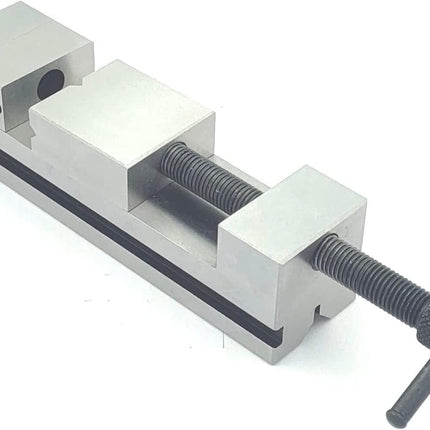

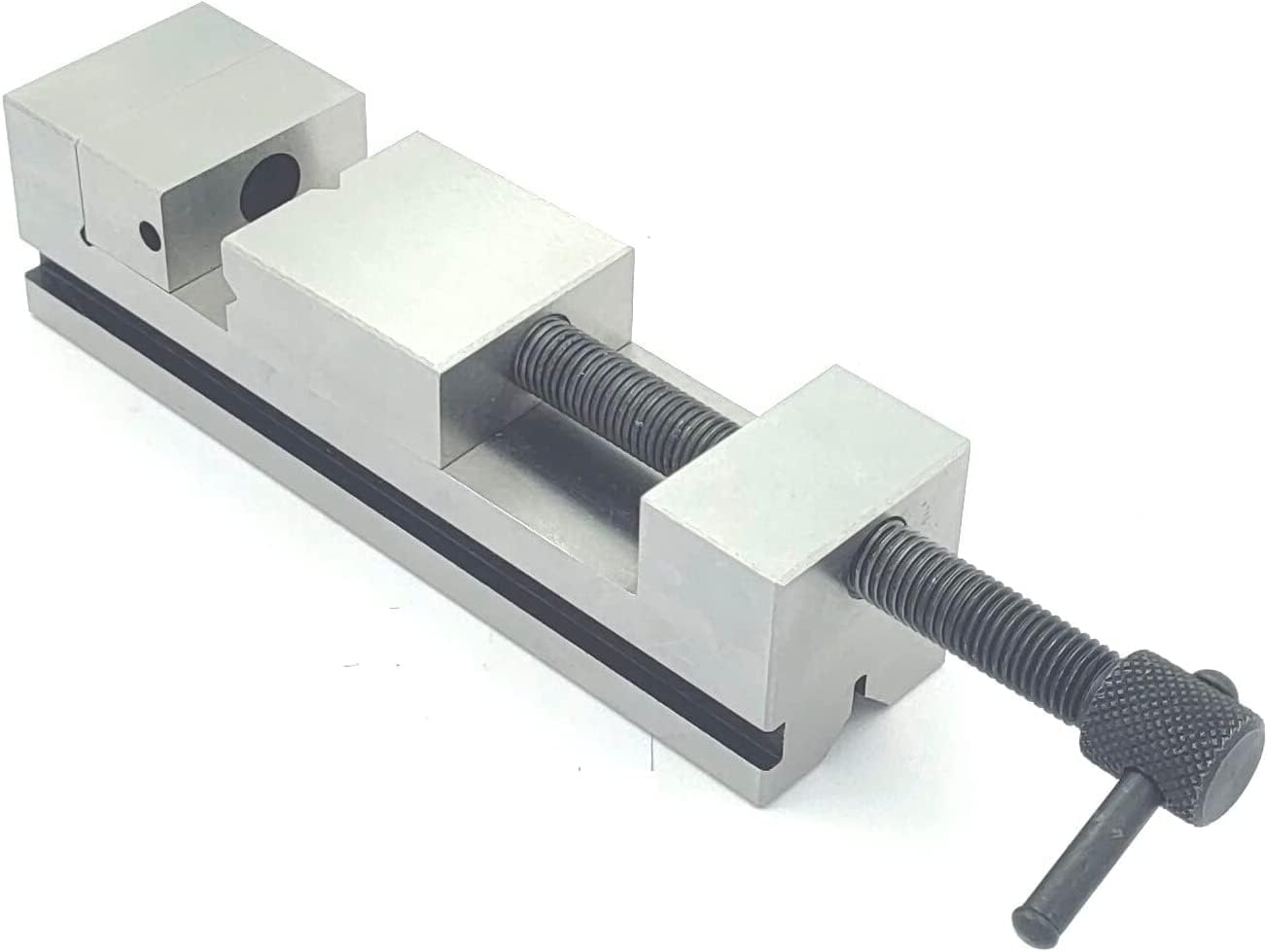

Product Name: Hardened Tool Maker's Multi-Purpose V Block Small Grinding Vice
-
Jaw Width: 33 mm
-
Material: High-quality hardened tool steel, heat-treated for enhanced durability and wear resistance.
-
Dimensions:
- Overall length: 125 mm
- Width: 33 mm
-

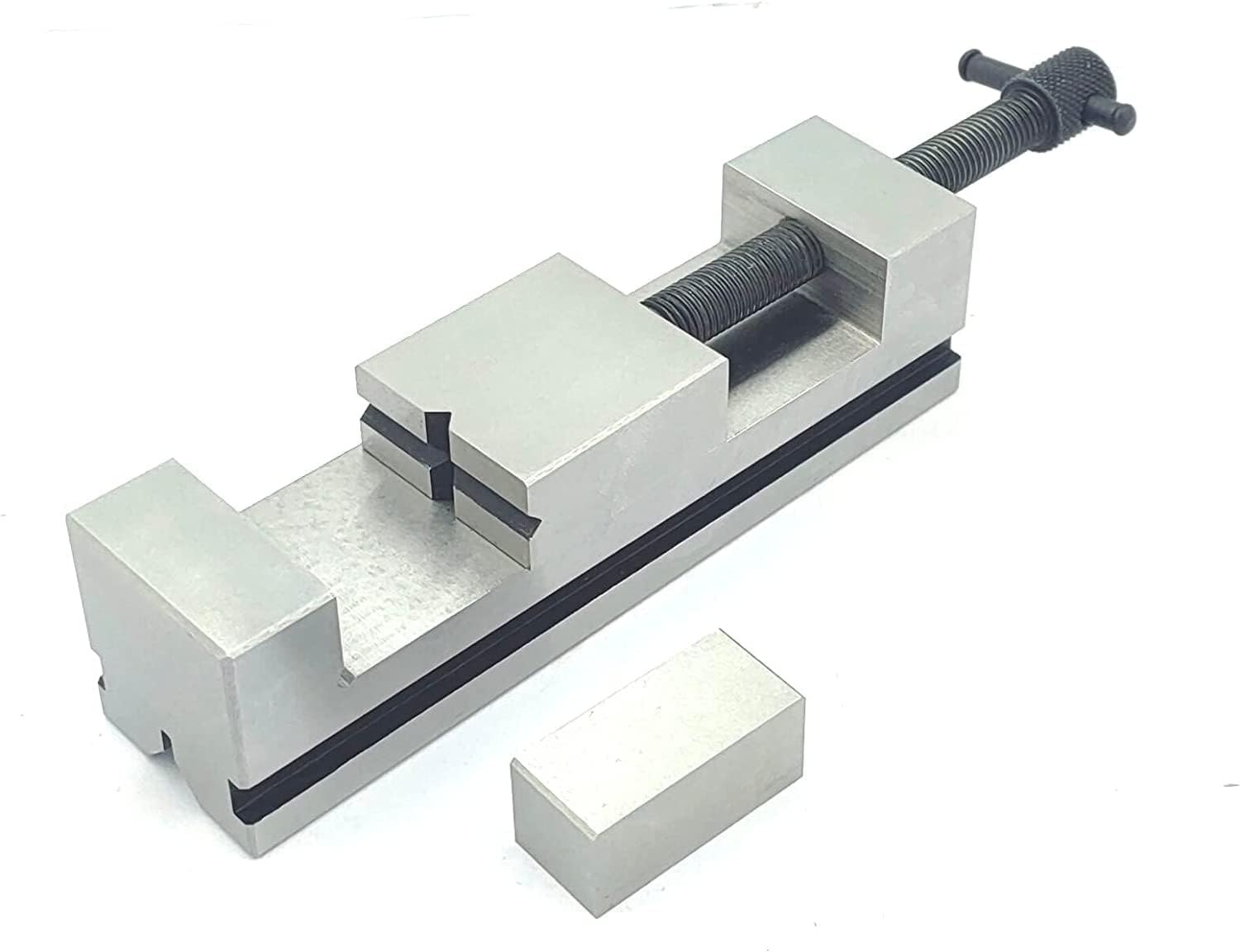

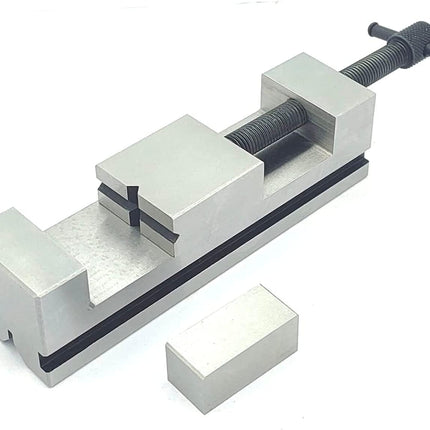

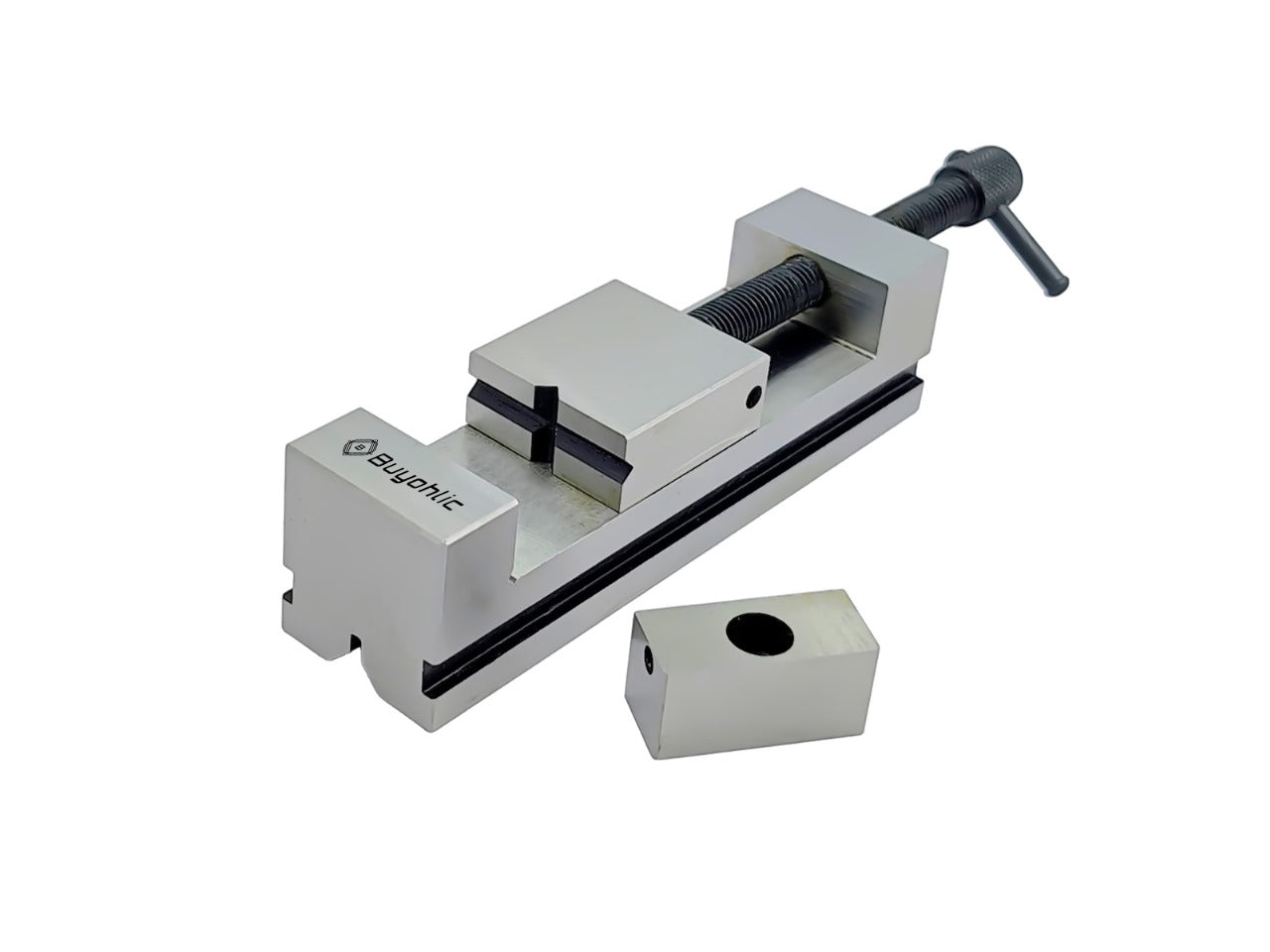

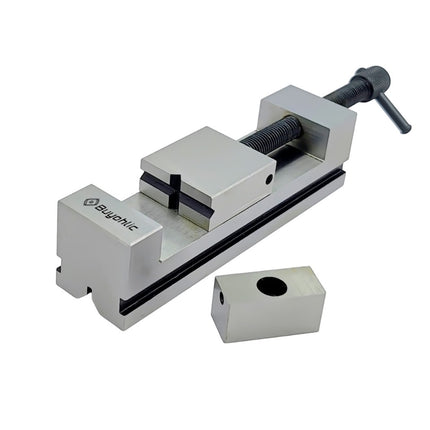

Jaw Opening: 80 mm ( Without the removable Jaw) & 42 mm (with the removable jaw)
-

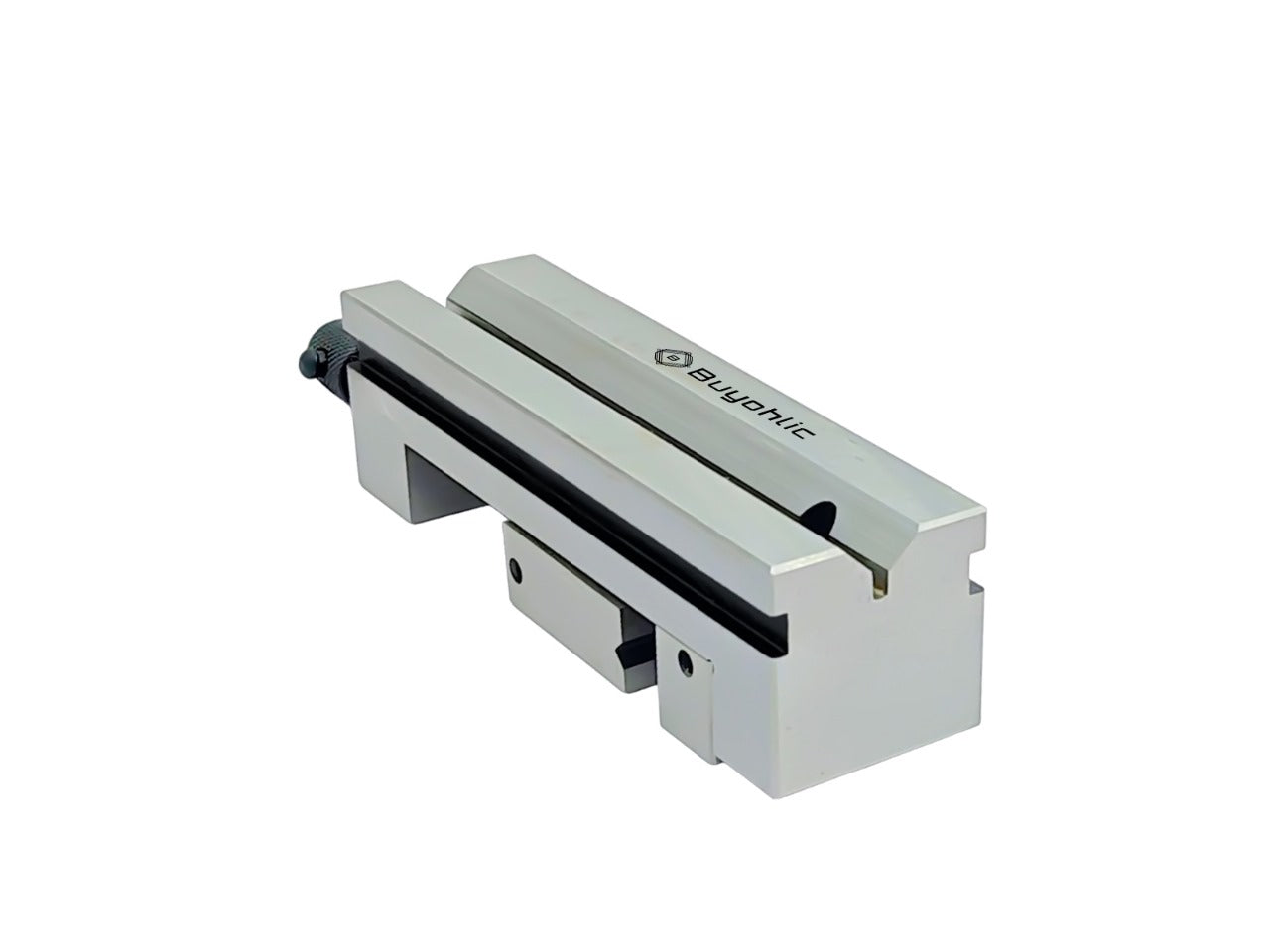

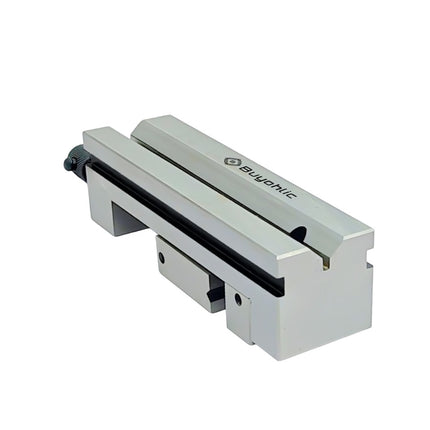

Jaw Depth: 13 mm Vee & clamp on reverse side will accept 35 mm diameter job.
-
Surface Finish: Precision ground to a mirror finish for maximum flatness and smoothness, ensuring high accuracy during machining operations.
-

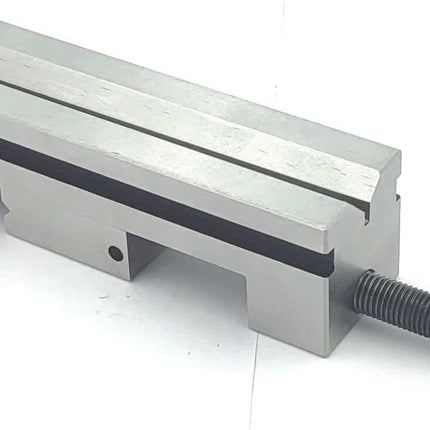

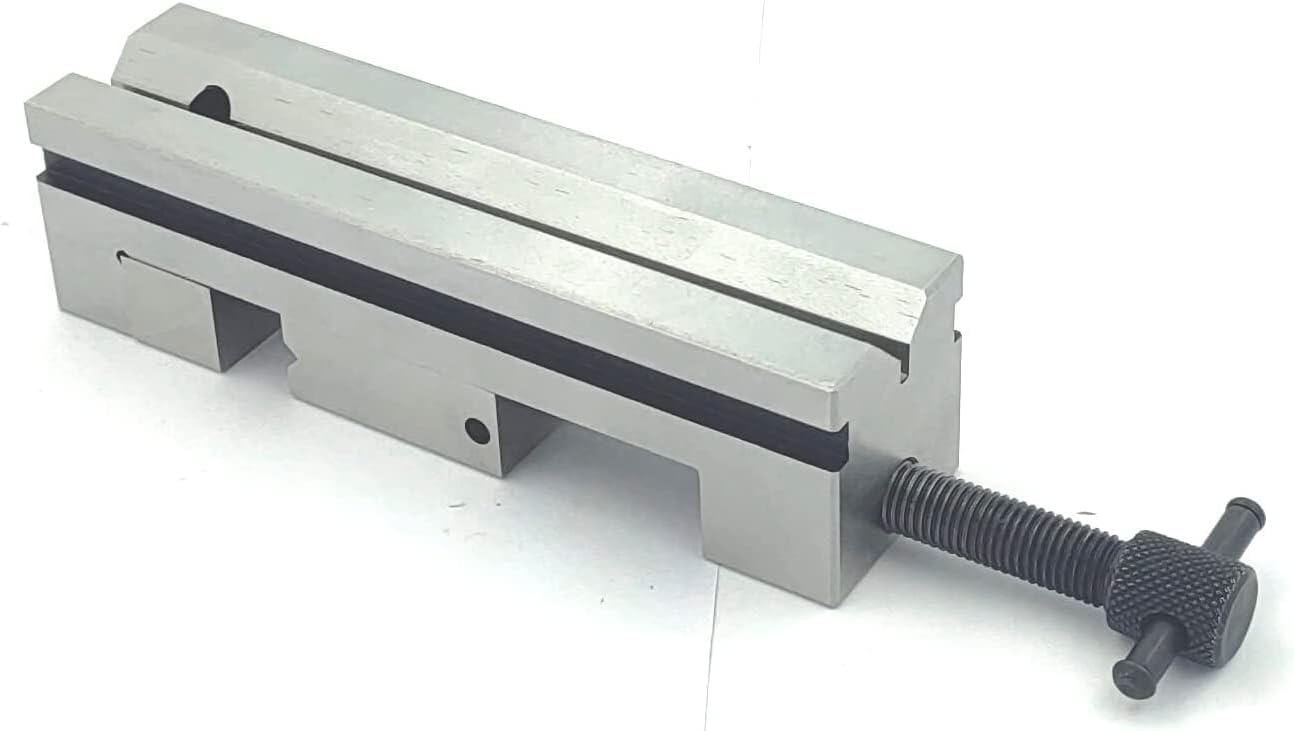

V-Block Design:
- Incorporates a V-block design for holding cylindrical workpieces securely.
- Multi-purpose functionality allows for versatile applications, including grinding, milling, and drilling.
-
Clamping Mechanism:
- Features a screw-type clamping mechanism for precise and adjustable clamping.
- Provides consistent and uniform pressure across the workpiece for secure holding.
-
Base Design:
- Solid, stable base designed to prevent tipping and ensure stability during use.
- Equipped with mounting holes for secure attachment to workbenches or machine tables.
-
Applications:
- Ideal for tool making, precision grinding, milling, drilling, and inspection tasks.
- Suitable for use in tool rooms, machine shops, and fabrication shops.
-
Maintenance:
- Easy to clean and maintain.
- Resistant to rust and wear due to high-quality material and finish.
-
Additional Features:
- Anti-slip serrated jaws for enhanced grip on workpieces.
- Precision lead screw for smooth operation and precise adjustments.
- Sturdy construction for long-lasting durability.
- Lightweight and compact design for easy handling and storage.
-
Package Contents:
- 1 x Hardened Tool Maker's Multi-Purpose V Block Small Grinding Vice (33 mm Jaw Width)
-
Warranty: Typically includes a 1-month manufacturer’s warranty.
-
Customer Support:
- Comprehensive customer support available.
- Detailed instruction manual included for easy setup and use.
-
Country of Manufacture: India
Usage Instructions:
-
Setup: Secure the vice to the workbench or machine table using the mounting holes.
-
Adjustment: Turn the screw handle to open the jaws to the desired width.
-
Clamping: Place the workpiece between the jaws, align it with the V-block if cylindrical, and tighten the screw handle until the workpiece is securely held.
-
Operation: Proceed with grinding, milling, drilling, or inspection tasks as required.
-
Maintenance: After use, clean the vice to remove any debris and apply a light coat of oil to prevent rust.
This Hardened Tool Maker's Multi-Purpose V Block Small Grinding Vice (33 mm Jaw Width) is designed for precision and versatility, making it an essential tool for any workshop focused on high-accuracy machining tasks.
