Description
ER collet adapters are used to expand the range of tool sizes that can be held by a machine tool or spindle that uses ER collets. By using ER collet adapters, machinists can utilize a wider range of cutting tools without needing separate dedicated tool holders for each collet size, thereby optimizing tooling flexibility, reducing costs, and streamlining setup and changeover times in manufacturing processes.
-
Introduction:

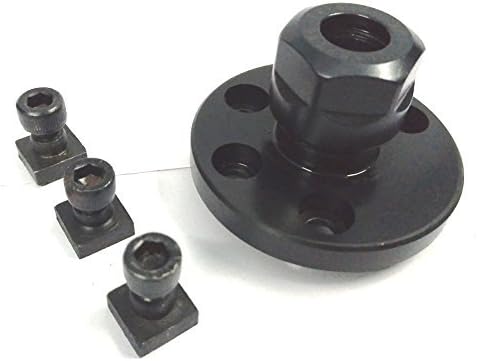

- ER collet adaptors are precision tool holders used to secure cutting tools in rotary milling tables.
- They provide a robust and versatile solution for various machining tasks, ensuring high accuracy and repeatability.
-
Design and Construction:
- Made from high-quality, hardened steel for durability and long-lasting performance.
- Precision ground to ensure a perfect fit and maximum concentricity.
- Available in various sizes to accommodate different tool shanks.
-
Compatibility:
- Designed to fit standard rotary milling tables.
- Compatible with a wide range of ER collet sizes (e.g., ER11, ER16, ER20)
- Suitable for use with CNC machines, lathes, and manual milling machines.
-
Clamping Range:
- ER collets offer a wide clamping range, typically from 1mm to 34mm, depending on the collet size.
- Provides a secure grip on the tool, minimizing vibration and runout during machining.
-
Advantages:
- High precision: Ensures accurate tool positioning and stable machining operations.
- Versatility: Can hold various types of tools, including end mills, drill bits, and taps.
- Ease of use: Simple to install and change tools quickly, reducing downtime.
- Improved productivity: Enhances machining efficiency by maintaining tool stability and reducing tool wear.
By following these points, users can understand the key features and benefits of ER collet adaptors for rotary milling tables, ensuring they select the right adaptor for their specific machining needs.
