Combo of Lathe Knurling Tool Attachment

Description

A lathe knurling tool is primarily used to create a textured surface on a workpiece, typically made of metal. This process, known as knurling, serves multiple functions. Firstly, it enhances grip by adding ridges to the surface, making it easier to handle or manipulate the workpiece. This is particularly useful for components like handles on tools or knobs on machinery where a secure grip is essential. Secondly, knurling can serve decorative purposes, adding visual interest to the finished product. Additionally, in industrial settings, knurling is sometimes used for identification purposes, providing a distinctive texture that helps differentiate between similar parts. In operation, the knurling tool is mounted on the lathe's tool post and pressed against the rotating workpiece to imprint the desired pattern onto its surface. Different knurling patterns, such as straight, diamond, or diagonal, can be achieved by using various knurling wheels or adjusting the tool setup accordingly.

Single Knurl - Linear Pitch - 1/2" x 1/2" x 4"

  •  Made of Tool Steel - Holder Size : 1/2" x 1/2" x 4" (12.7 mm x 12.7 mm x 100 mm)
  • Knurl Dimension: 3/4" x 1/4" x 1/4" (19 mm x 6.35 mm x 6.35 mm)

Single Knurl - Linear Pitch - 3/4" x 3/4' x  5"

  • Made of Tool Steel - Holder Size : 3/4" x 3/4" x 5" (19 mm x 19 mm x 127 mm)
  • Knurl Dimension: 3/4" x 3/8" x 1/4" (19mm x 9.52mm x 6.35mm)

Double End Wheel (Linear Pitch)

  • Holder Size (In Inches): 1/2 x1/2 x 5" Holder Size (In mm): 12.7 x 12.7 x 125 mm
  • Knurl Dim. (In Inches) : 3/4 x 1/4 x 1/4 " Knurl Dim. (In mm) : 19 x 6.35 x 6.35 mm

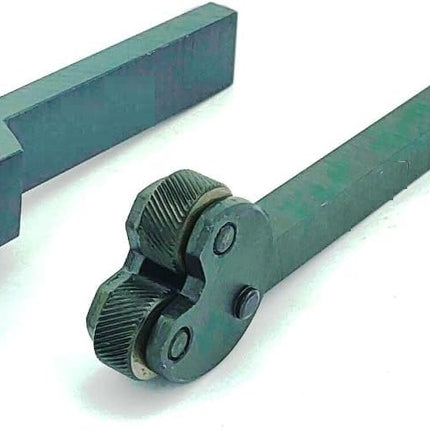

Pivot Head-2 Wheel

  • Holder Size : 1/2 x 1/2 x 4-1/2" Inch ( 12.7 x 12.7 x 115 mm), Knurl Dimensions: 3/4" Diameter x 3/8 Width x 1/4" (Hole) Inches (19 x 9.52 x 6.35 mm)
  • Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

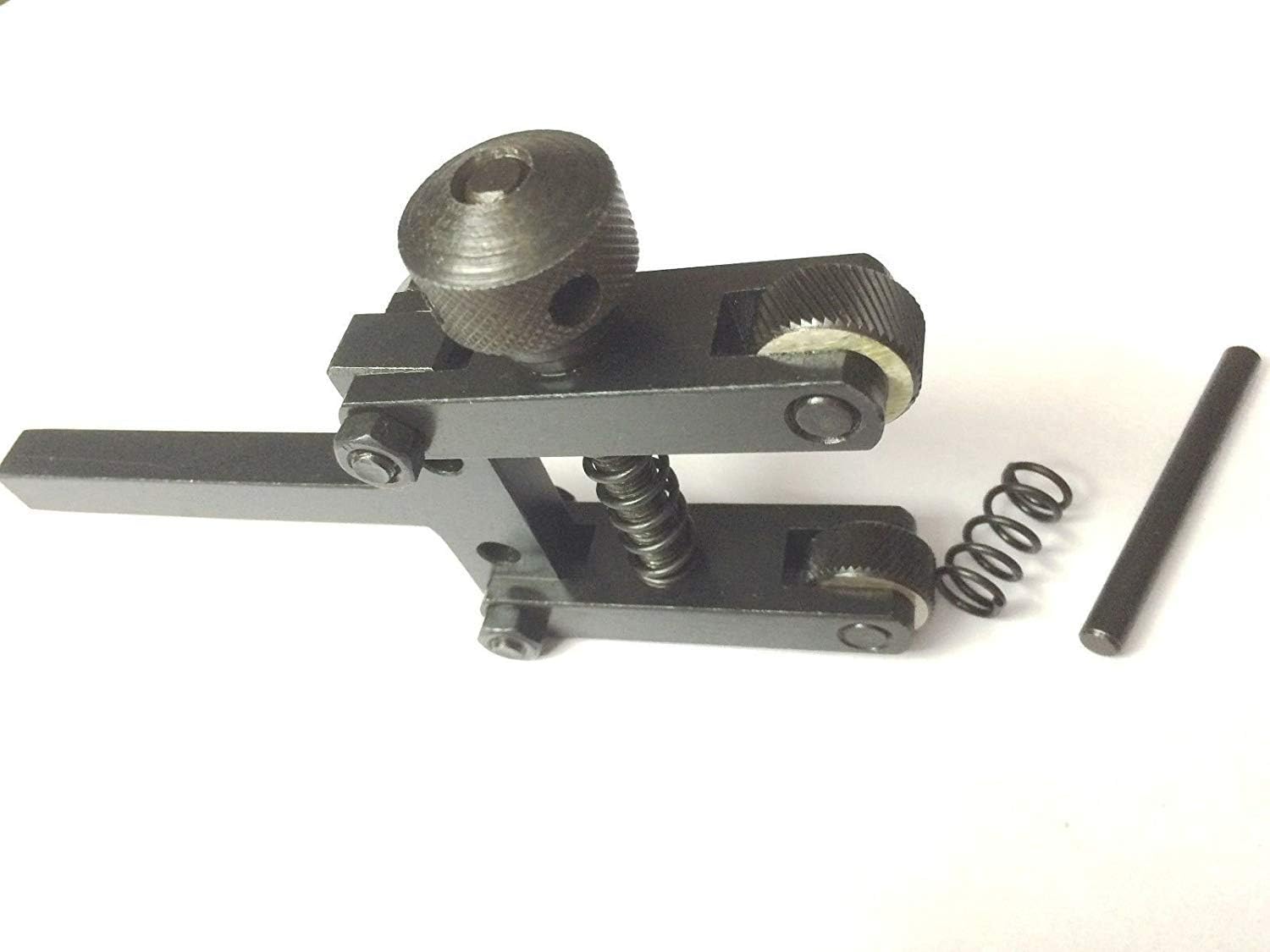

H Type Knurling Tool 2" Inch/ 50 mm

  • Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches
  • A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes.

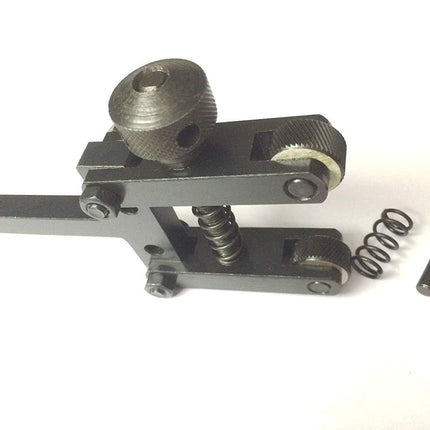

Knob Knurling Tool (3-25 mm)

  • Holder Size (Inch) : 3/8" x 3/8" Square Holder Size x 3" Long Tail Holder Size in MM : 16 x 9.5 x 75 mm.
  • Knurl Dim.(mm) : 19 x 9.5 x 6.35 mm Knurling Capacity (mm) : 3-25 mm. Pitch: Medium
  • Clamp Type Knurling Tool with knob. This design helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool

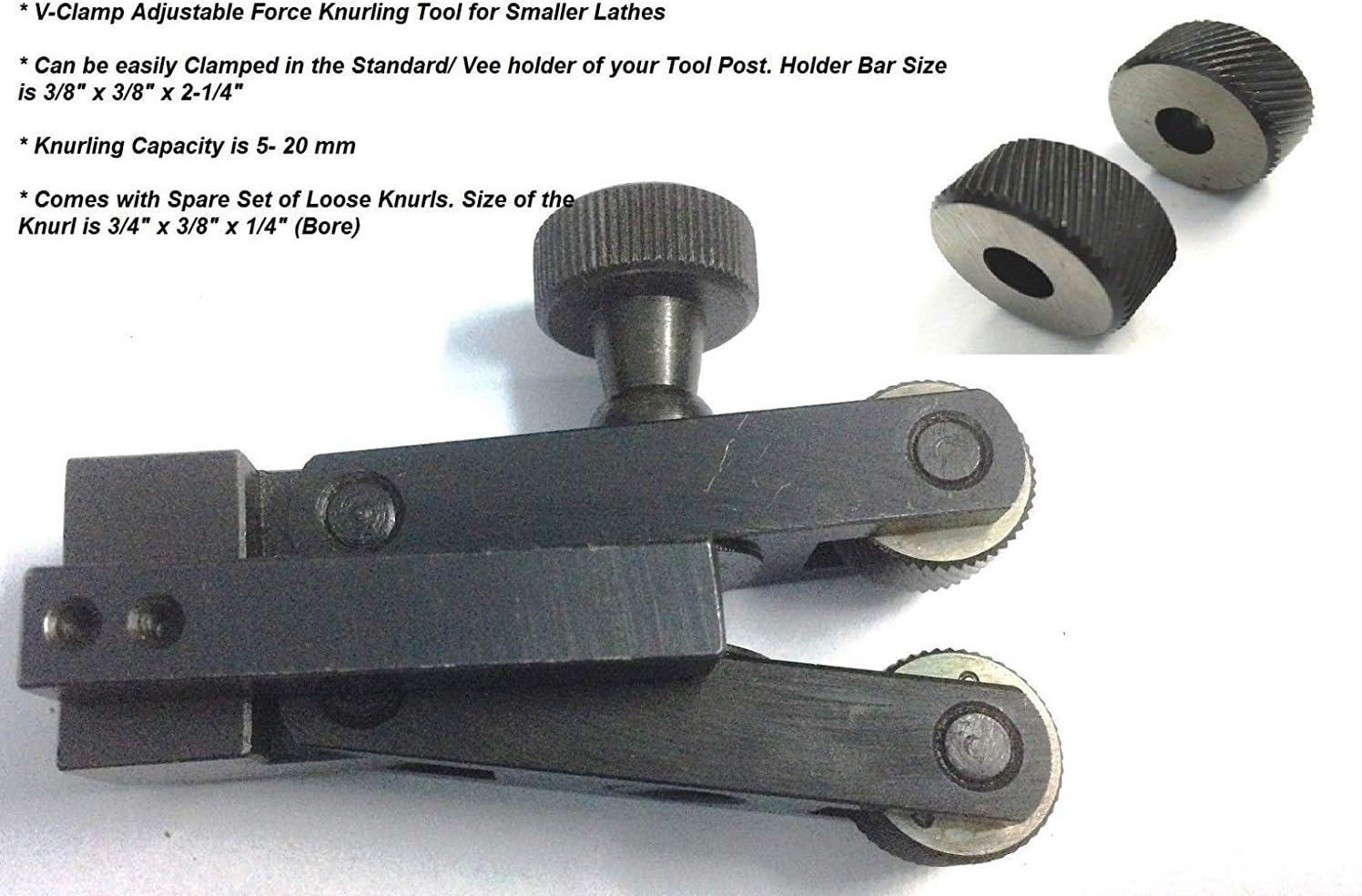

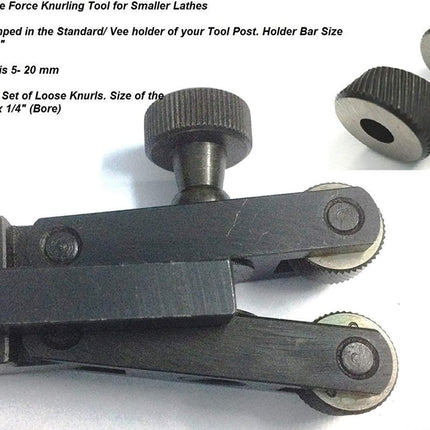

V Knurling Tool (5-20 mm)

  • Holder size : 3/8" x 3/8" x 2 -1/4" Paired with LH & RH diagonal lines to form a Diamond Pattern.
  • Hardened EN31 Grade Tool Steel Knurls of size - 3/4" x 3/8" x 1/4" bore.
  • Can be clamped in Standard Holder of the Quick change tool post on the lathe.
  • Quality Tool Steel Spring Action Clamp Type Knurling Tool Capacity 5-20 mm

6 Wheel -Multi Pitch Pattern

  • Holder Size : 3/8 x 7/8 x 5-1/2" Inches ( 9.5 x 22 x 140 mm ). Knurl Size : 3/4" x 3/8" x 1/4" (Bore)
  • This knurling tool has 3 set of knurl pair of different pitches which gives different pattern as required
  • Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

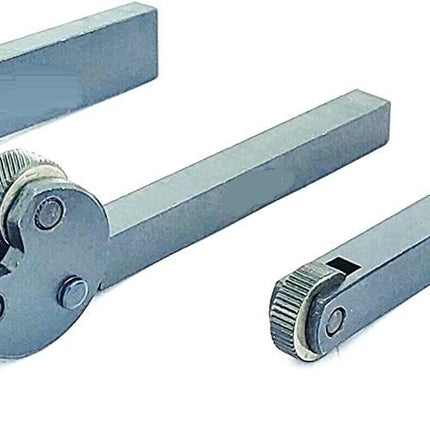

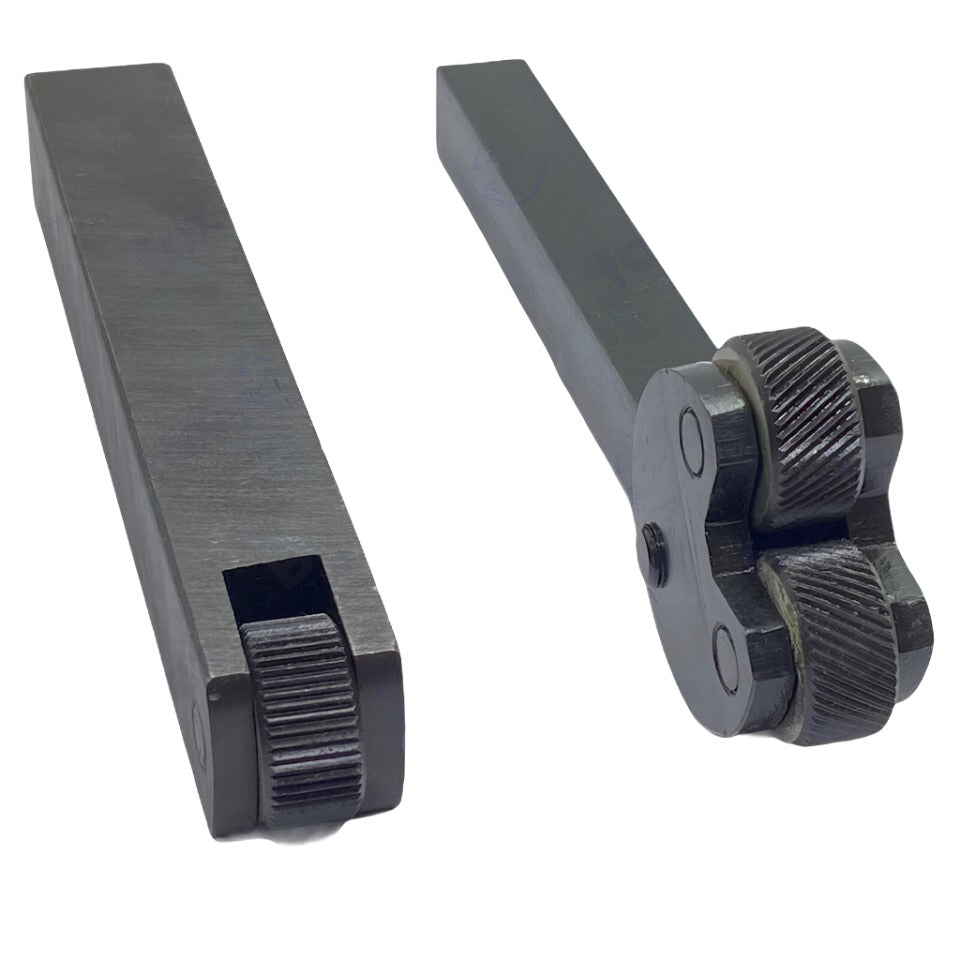

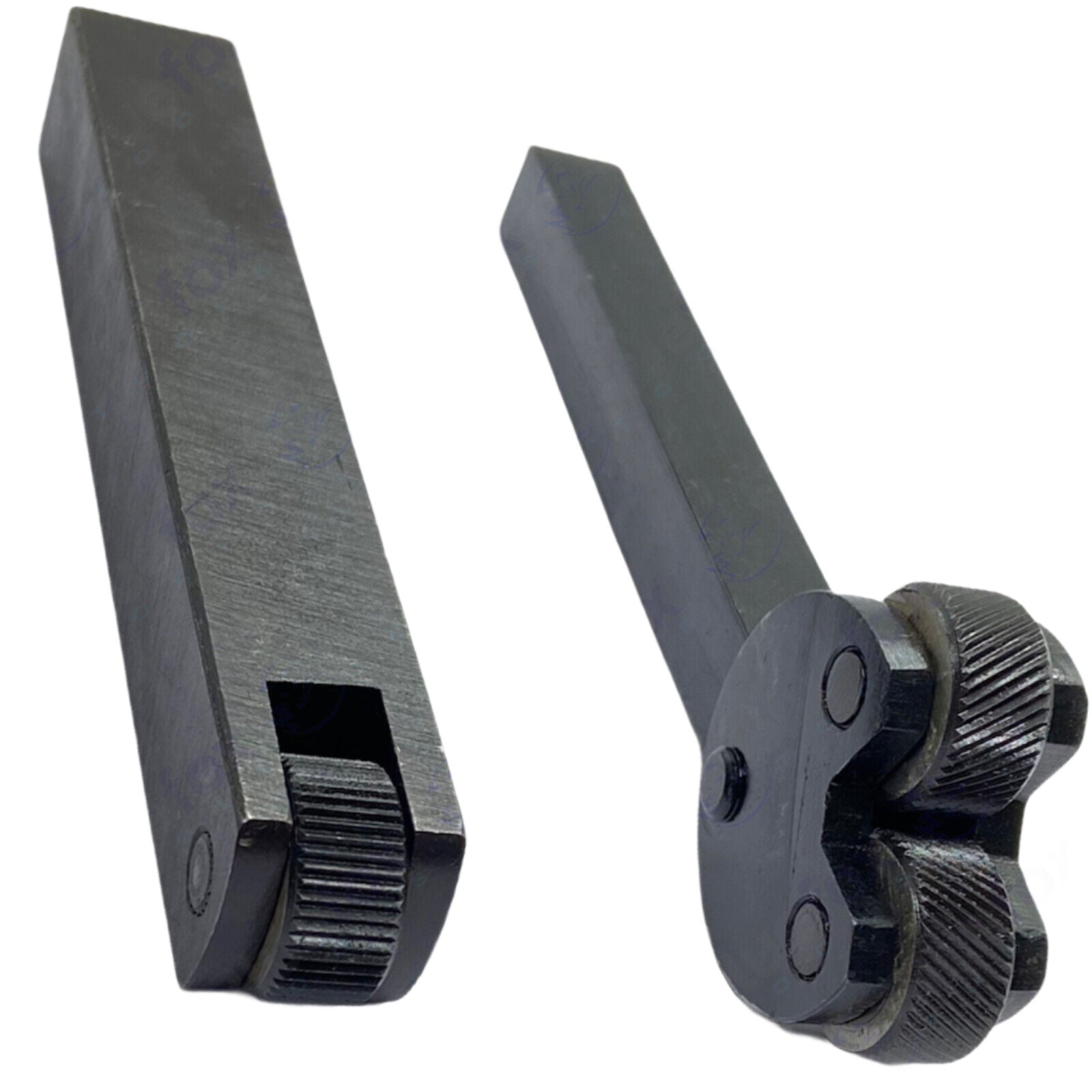

Combo 1-  (Set of 2) 1 Wheel and 2 Wheel Pivot Head

This combo contains one single wheel knurling tool (3/4" x 3/4" x 5") and tool and 2 wheel pivot head knurling tool

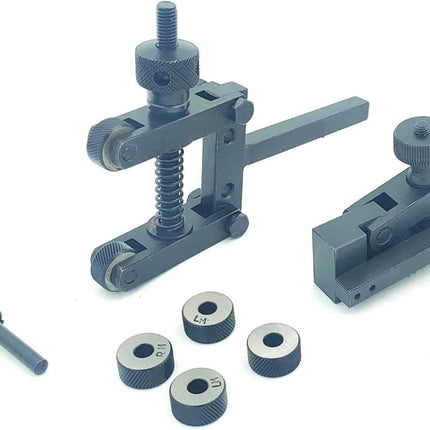

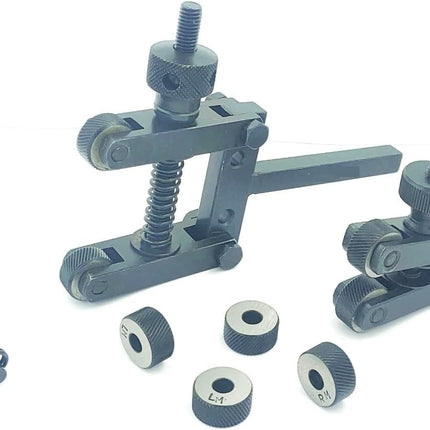

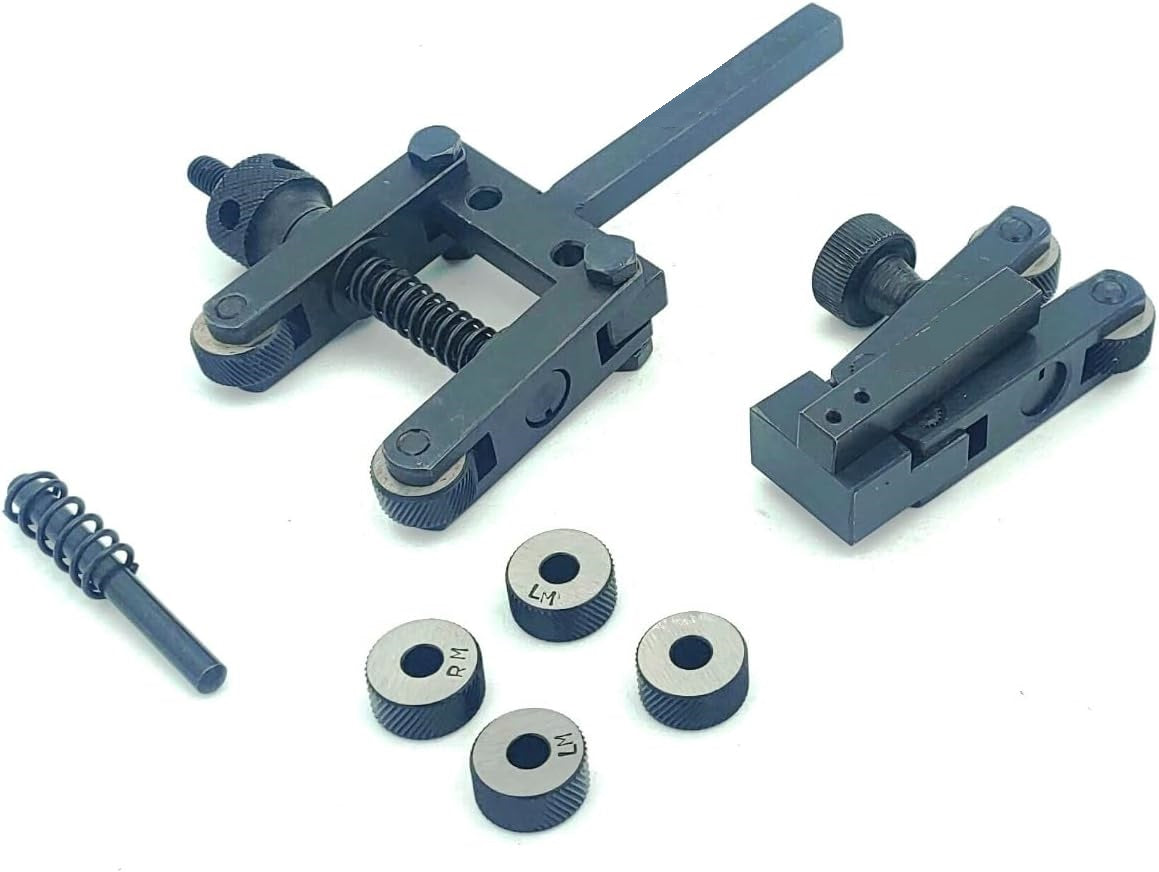

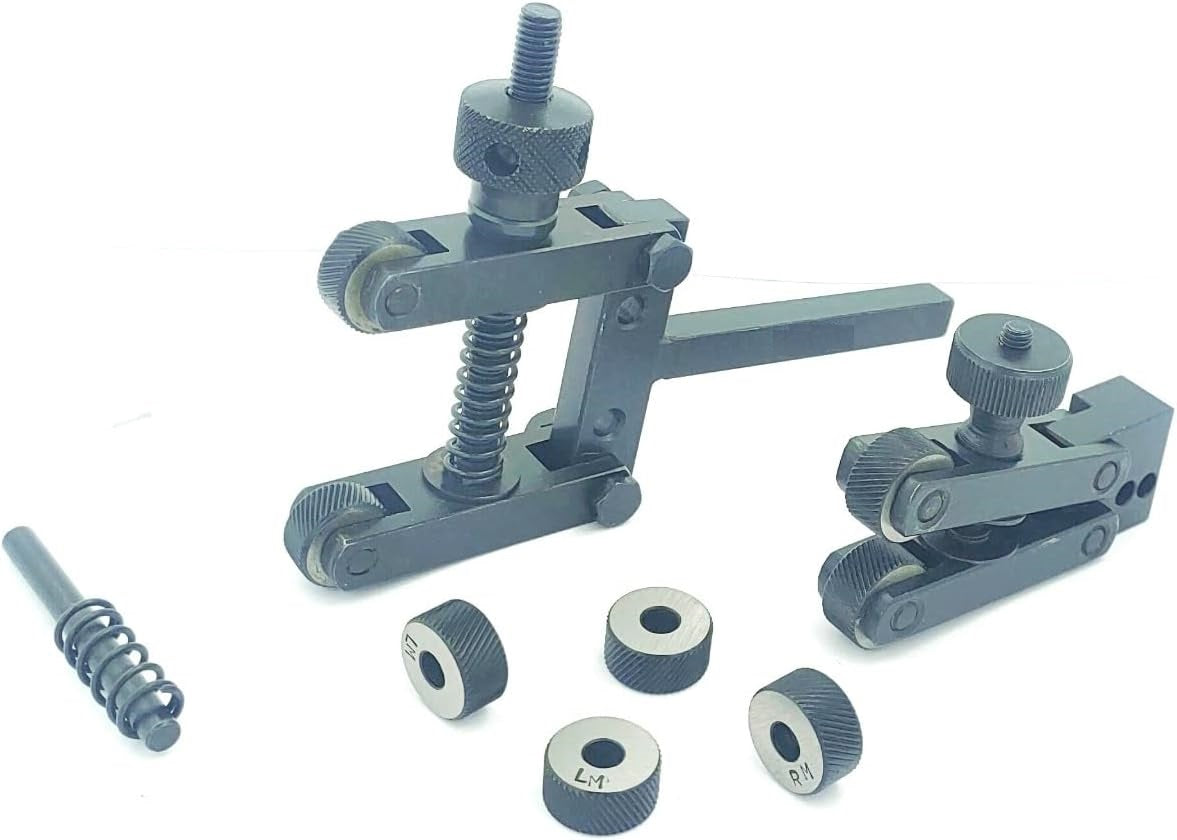

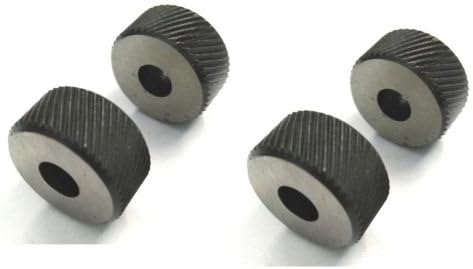

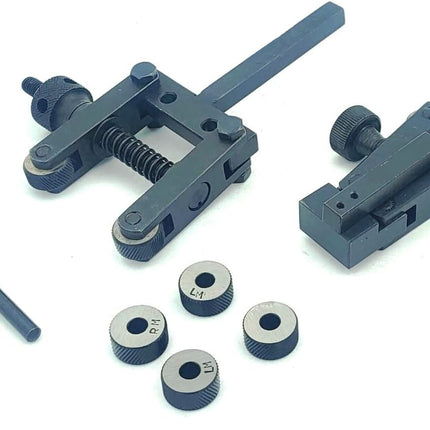

Combo 2- (Set of 2) Pack of 2 Pc with Spare Knurls

This combo contains H-Type clamp knurling tool 2" Inch/ 50 mm and V-Type clamp knurling tool with spare 4 knurls

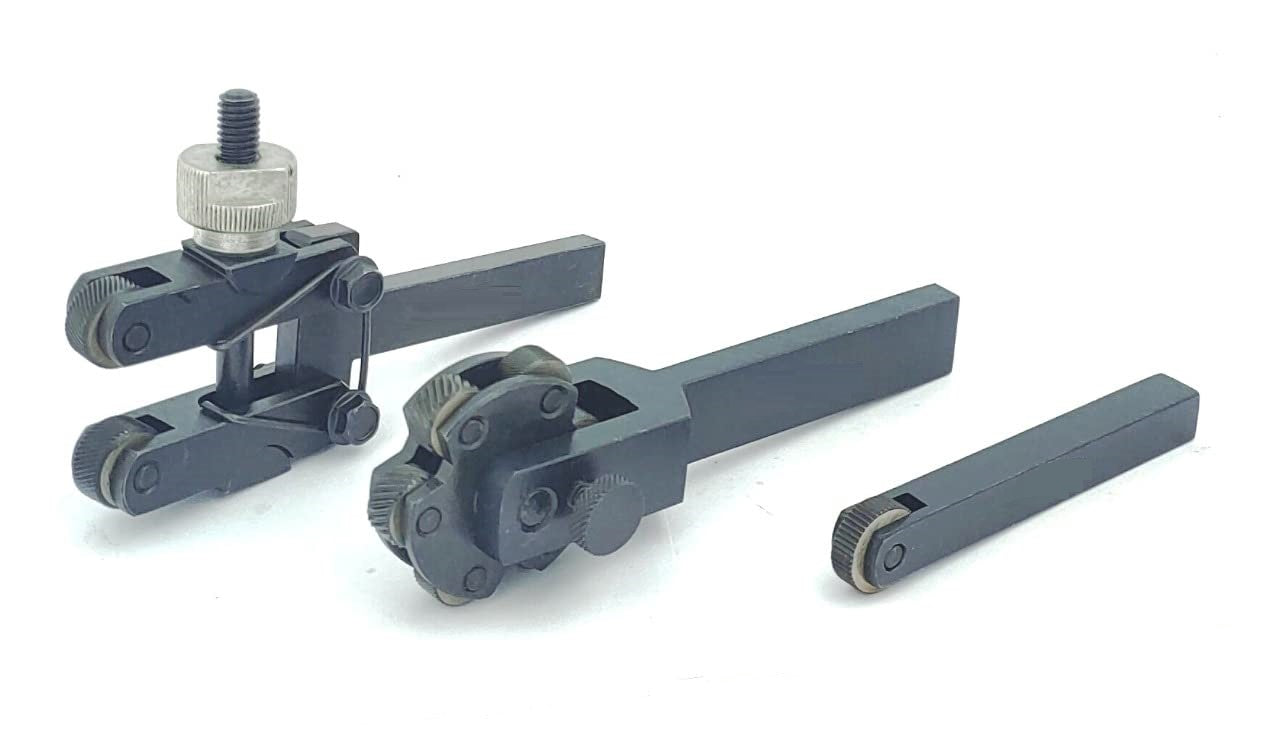

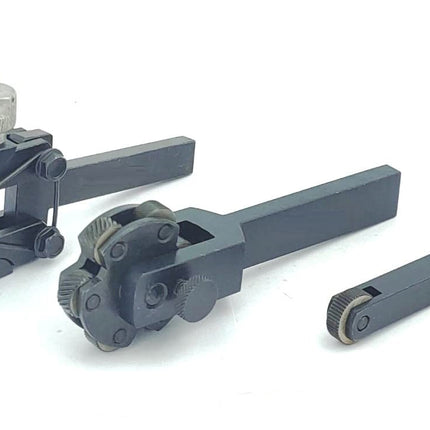

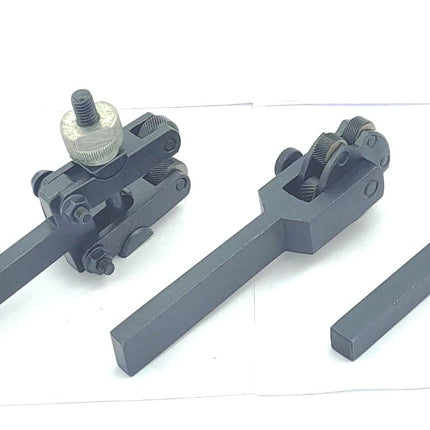

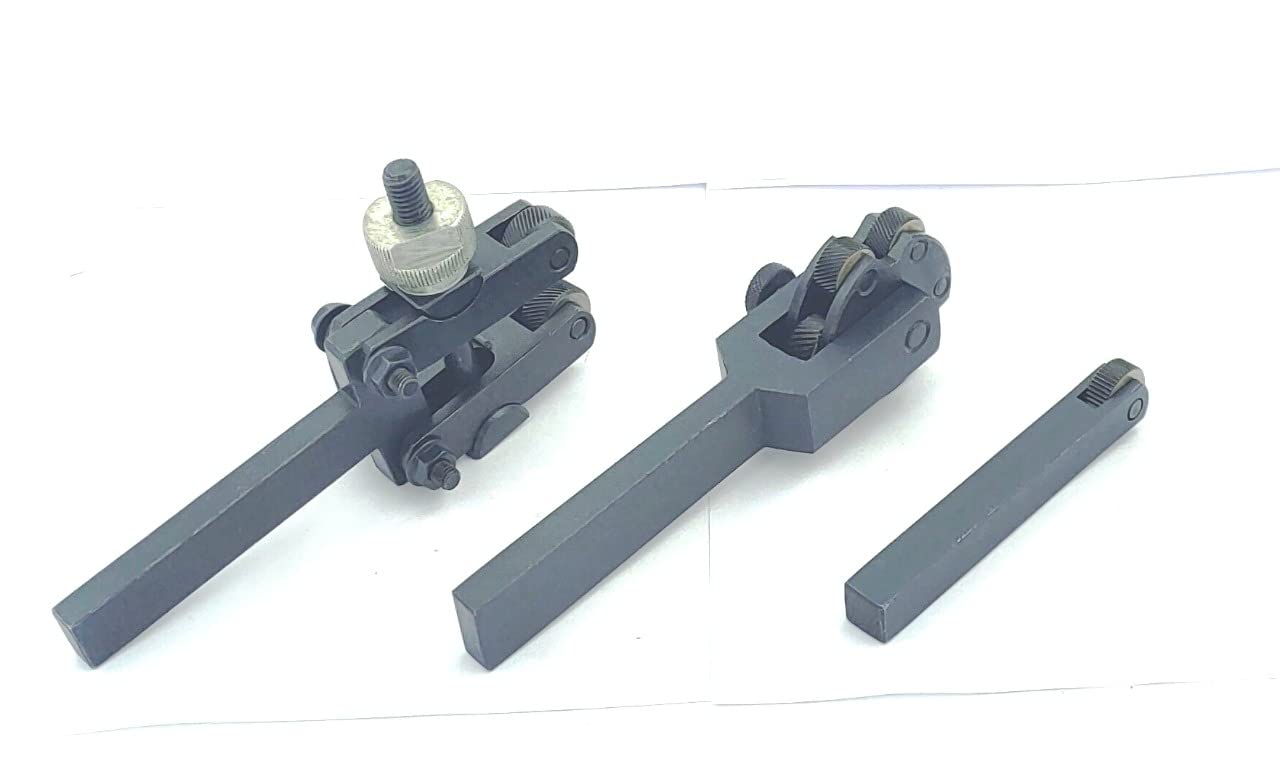

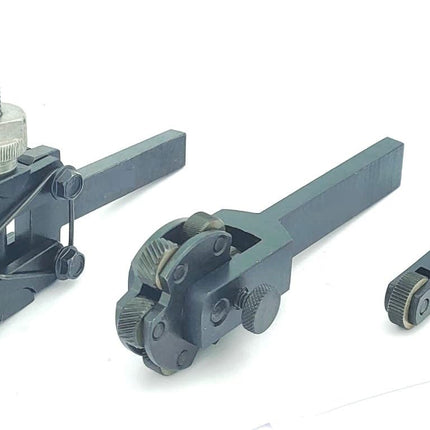

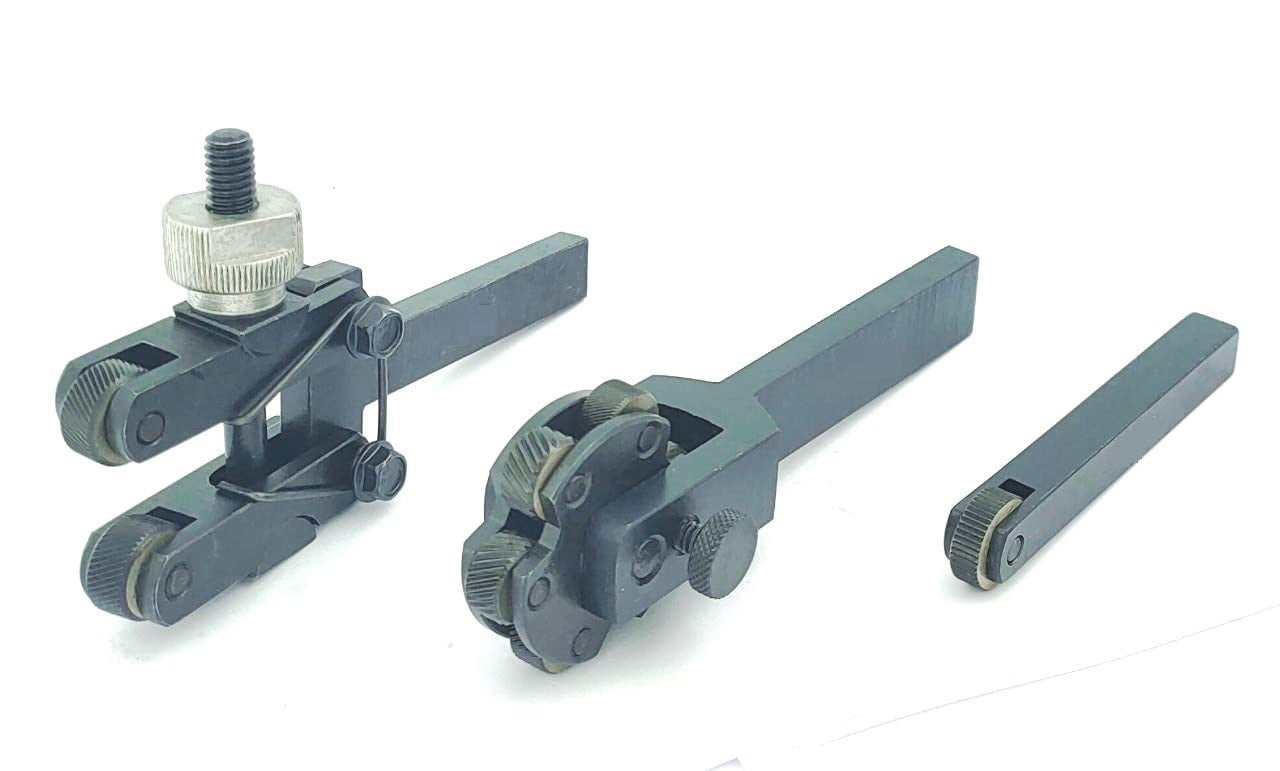

Combo 3- (Set of 3) 1 Wheel + 2 Wheels Knob + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 4"), Clamp Type Knurling Tool with an adjusting knob and 6 Wheels multi Head lathe Knurling Tool

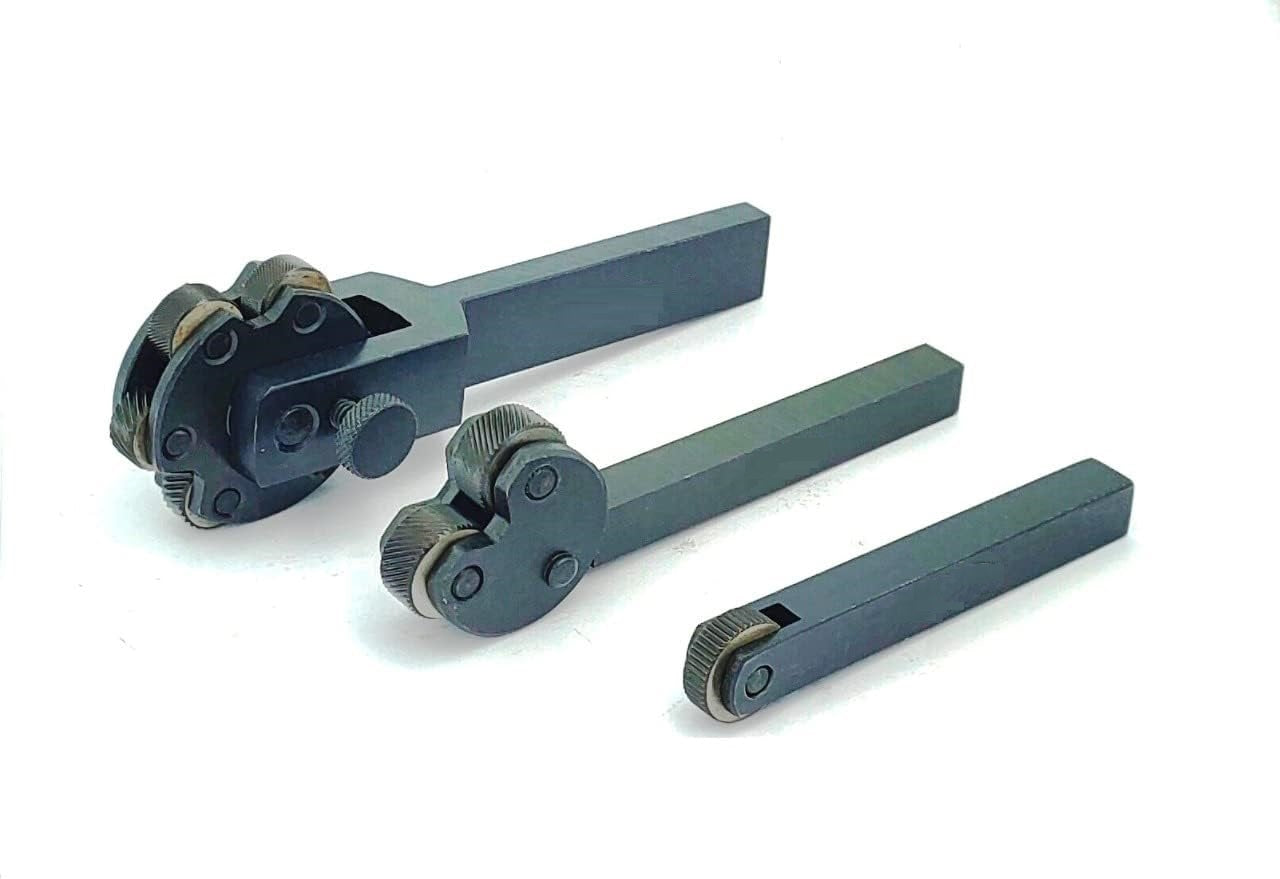

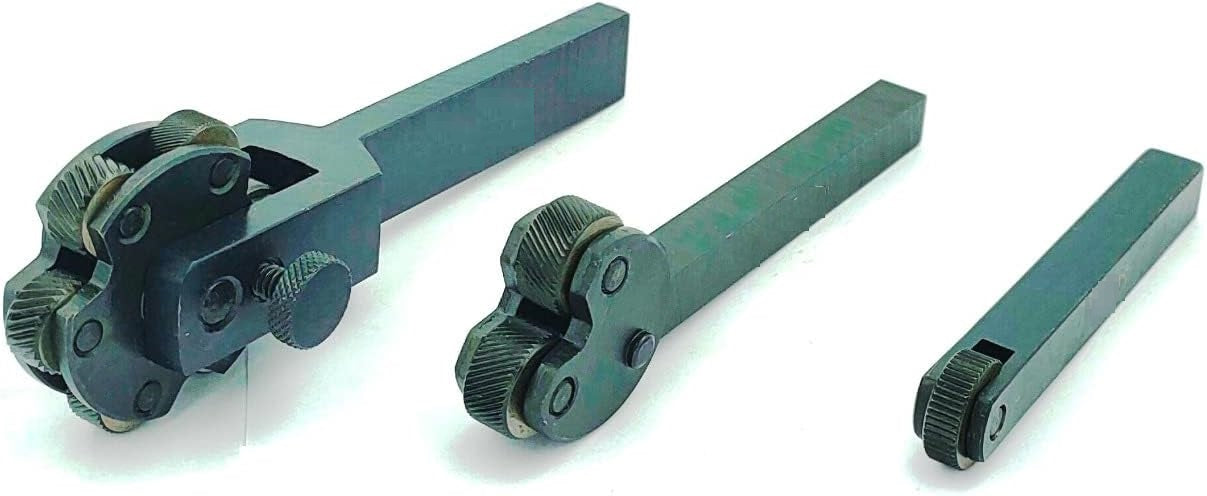

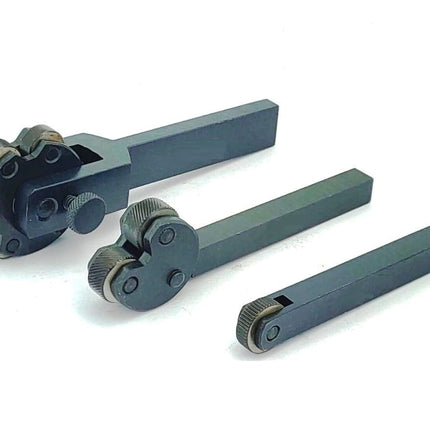

Combo 4- (Set of 3) 1 Wheel + 2 Wheels Pivot Head + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool and 6 Wheels multi Head lathe Knurling Tool

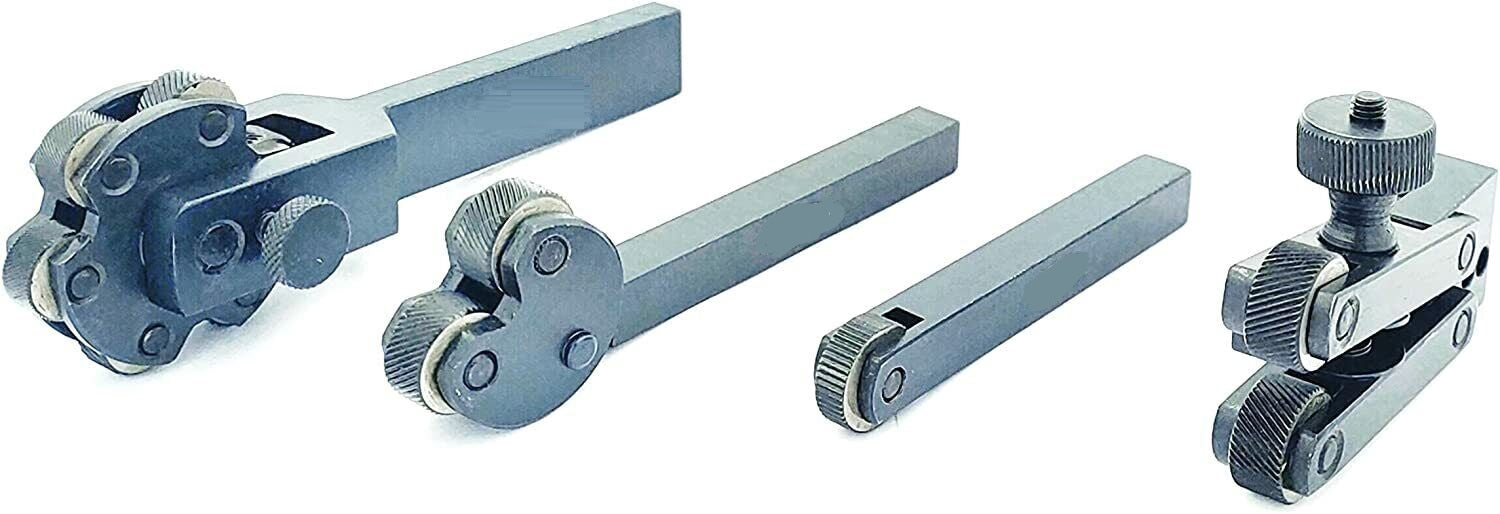

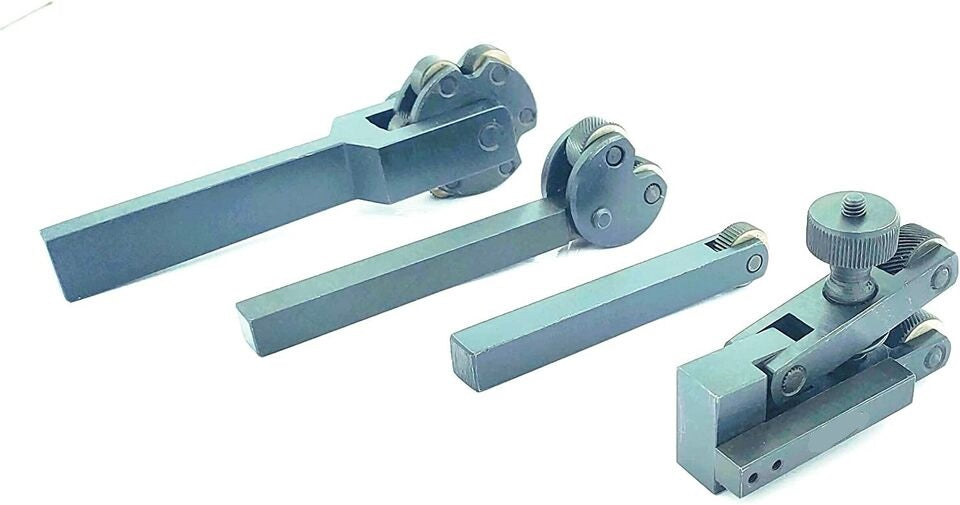

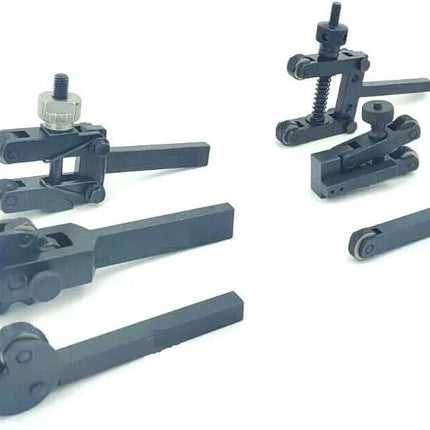

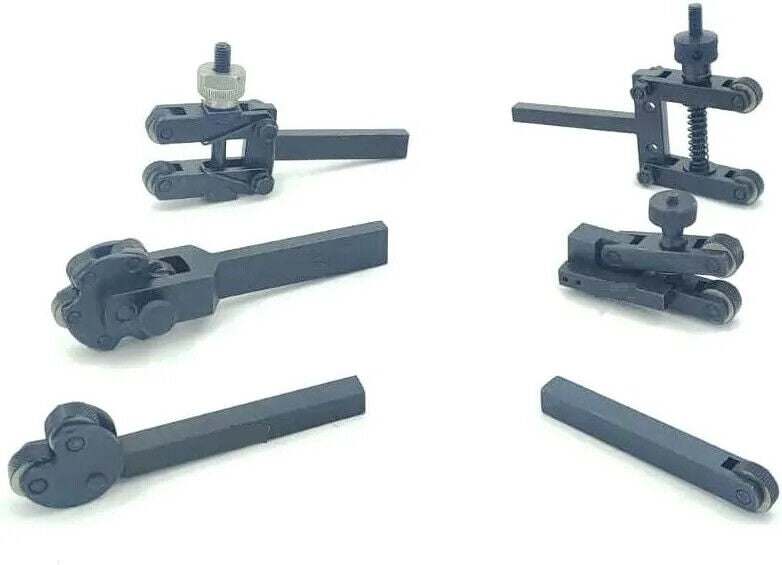

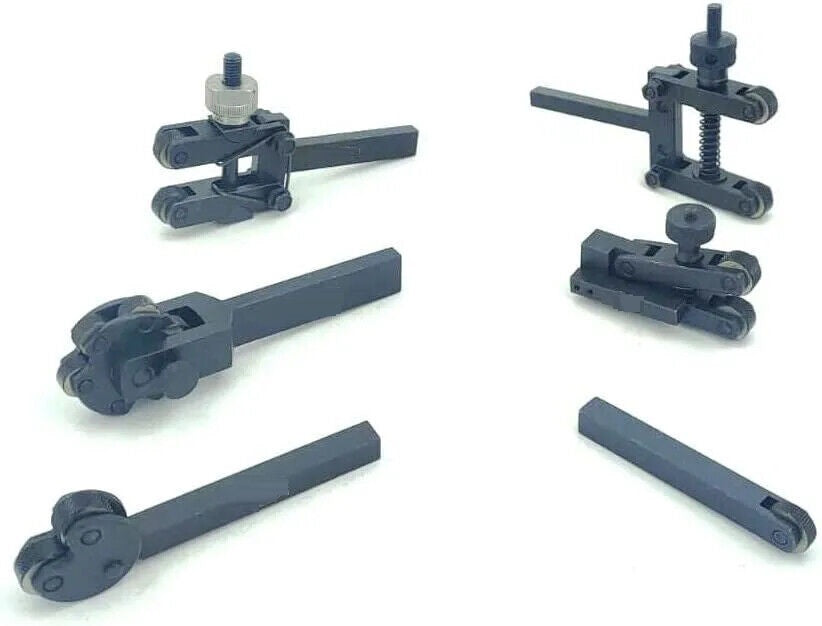

Combo 5- (Set of 4) 1 Wheel + 2 Wheels Pivot Head +2 Wheels Knob + 2 Wheel H-Type + V-Clamp Type + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

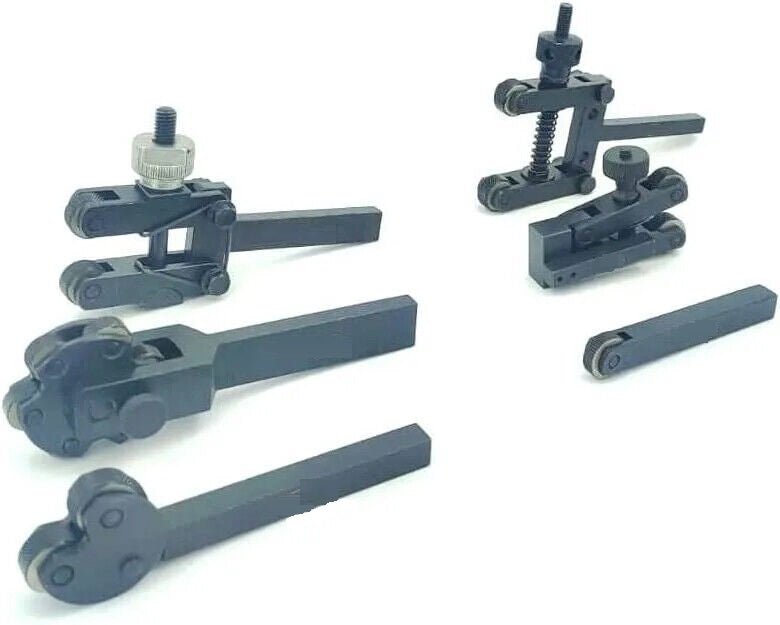

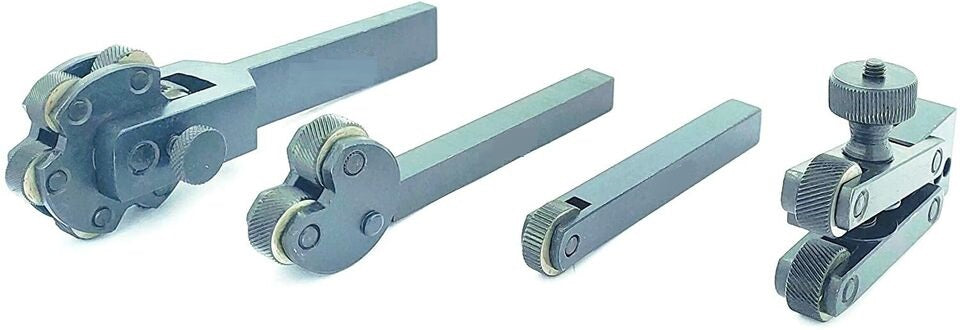

Combo 6- (Set of 6) 1 Wheel + 2 Wheels Pivot Head + V-Clamp Type + 6 Wheels Multi Pattern

This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool, Clamp Type Knurling Tool with an adjusting knob, Adjustable H Type Spring loaded clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

Product form

A lathe knurling tool is primarily used to create a textured surface on a workpiece, typically made of metal. This... Read more

SKU: 10-KT-901
Barcode: 8906183735901

20 in stock

$27.99$25.50 Excl. VAT

    • Tell a unique detail about this product
    • Tell a unique detail about this product
    • Tell a unique detail about this product

      Description

      A lathe knurling tool is primarily used to create a textured surface on a workpiece, typically made of metal. This process, known as knurling, serves multiple functions. Firstly, it enhances grip by adding ridges to the surface, making it easier to handle or manipulate the workpiece. This is particularly useful for components like handles on tools or knobs on machinery where a secure grip is essential. Secondly, knurling can serve decorative purposes, adding visual interest to the finished product. Additionally, in industrial settings, knurling is sometimes used for identification purposes, providing a distinctive texture that helps differentiate between similar parts. In operation, the knurling tool is mounted on the lathe's tool post and pressed against the rotating workpiece to imprint the desired pattern onto its surface. Different knurling patterns, such as straight, diamond, or diagonal, can be achieved by using various knurling wheels or adjusting the tool setup accordingly.

      Single Knurl - Linear Pitch - 1/2" x 1/2" x 4"

      •  Made of Tool Steel - Holder Size : 1/2" x 1/2" x 4" (12.7 mm x 12.7 mm x 100 mm)
      • Knurl Dimension: 3/4" x 1/4" x 1/4" (19 mm x 6.35 mm x 6.35 mm)

      Single Knurl - Linear Pitch - 3/4" x 3/4' x  5"

      • Made of Tool Steel - Holder Size : 3/4" x 3/4" x 5" (19 mm x 19 mm x 127 mm)
      • Knurl Dimension: 3/4" x 3/8" x 1/4" (19mm x 9.52mm x 6.35mm)

      Double End Wheel (Linear Pitch)

      • Holder Size (In Inches): 1/2 x1/2 x 5" Holder Size (In mm): 12.7 x 12.7 x 125 mm
      • Knurl Dim. (In Inches) : 3/4 x 1/4 x 1/4 " Knurl Dim. (In mm) : 19 x 6.35 x 6.35 mm

      Pivot Head-2 Wheel

      • Holder Size : 1/2 x 1/2 x 4-1/2" Inch ( 12.7 x 12.7 x 115 mm), Knurl Dimensions: 3/4" Diameter x 3/8 Width x 1/4" (Hole) Inches (19 x 9.52 x 6.35 mm)
      • Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

      H Type Knurling Tool 2" Inch/ 50 mm

      • Adjustable H Type Spring loaded clamp type knurling tool. Maximum Capacity- 2" ( 50 mm) Shank size 3/8" Square x 3-1/8" Inch Long II Knurl Dimensions- 3/4" (Diameter) x 3/8" (Wide) x 1/4" (Hole) Inches
      • A spare smaller rod with an extra spring is to reduce the capacity of the knurling tool by re-bolting the knurling arms in the lower inner holes.

      Knob Knurling Tool (3-25 mm)

      • Holder Size (Inch) : 3/8" x 3/8" Square Holder Size x 3" Long Tail Holder Size in MM : 16 x 9.5 x 75 mm.
      • Knurl Dim.(mm) : 19 x 9.5 x 6.35 mm Knurling Capacity (mm) : 3-25 mm. Pitch: Medium
      • Clamp Type Knurling Tool with knob. This design helps reducing the load on the lathe spindle bearings compared to any other standard knurling tool

      V Knurling Tool (5-20 mm)

      • Holder size : 3/8" x 3/8" x 2 -1/4" Paired with LH & RH diagonal lines to form a Diamond Pattern.
      • Hardened EN31 Grade Tool Steel Knurls of size - 3/4" x 3/8" x 1/4" bore.
      • Can be clamped in Standard Holder of the Quick change tool post on the lathe.
      • Quality Tool Steel Spring Action Clamp Type Knurling Tool Capacity 5-20 mm

      6 Wheel -Multi Pitch Pattern

      • Holder Size : 3/8 x 7/8 x 5-1/2" Inches ( 9.5 x 22 x 140 mm ). Knurl Size : 3/4" x 3/8" x 1/4" (Bore)
      • This knurling tool has 3 set of knurl pair of different pitches which gives different pattern as required
      • Comes fitted with Hardened knurls , made out of quality alloy steel grade of EN31

      Combo 1-  (Set of 2) 1 Wheel and 2 Wheel Pivot Head

      This combo contains one single wheel knurling tool (3/4" x 3/4" x 5") and tool and 2 wheel pivot head knurling tool

      Combo 2- (Set of 2) Pack of 2 Pc with Spare Knurls

      This combo contains H-Type clamp knurling tool 2" Inch/ 50 mm and V-Type clamp knurling tool with spare 4 knurls

      Combo 3- (Set of 3) 1 Wheel + 2 Wheels Knob + 6 Wheels Multi Pattern

      This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 4"), Clamp Type Knurling Tool with an adjusting knob and 6 Wheels multi Head lathe Knurling Tool

      Combo 4- (Set of 3) 1 Wheel + 2 Wheels Pivot Head + 6 Wheels Multi Pattern

      This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool and 6 Wheels multi Head lathe Knurling Tool

      Combo 5- (Set of 4) 1 Wheel + 2 Wheels Pivot Head +2 Wheels Knob + 2 Wheel H-Type + V-Clamp Type + 6 Wheels Multi Pattern

      This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool

      Combo 6- (Set of 6) 1 Wheel + 2 Wheels Pivot Head + V-Clamp Type + 6 Wheels Multi Pattern

      This combo contains a Single Wheel Straight Line Linear Pattern Knurling Tool Holder (1/2" x 1/2" x 5"), Pivot Head Knurling Tool, Sturdy V clamp type knurling tool, Clamp Type Knurling Tool with an adjusting knob, Adjustable H Type Spring loaded clamp type knurling tool and 6 Wheels multi Head lathe Knurling Tool
