Description

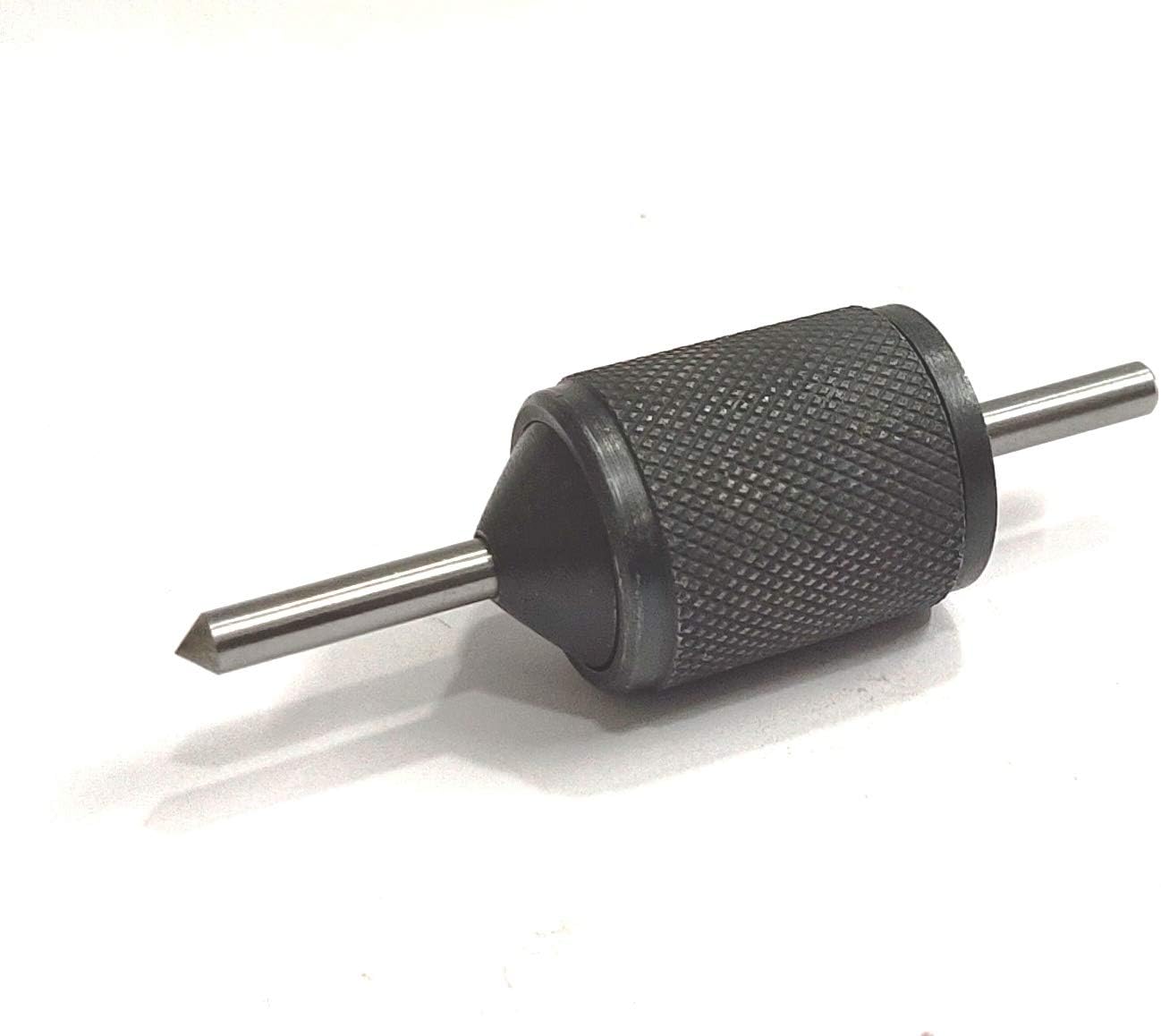

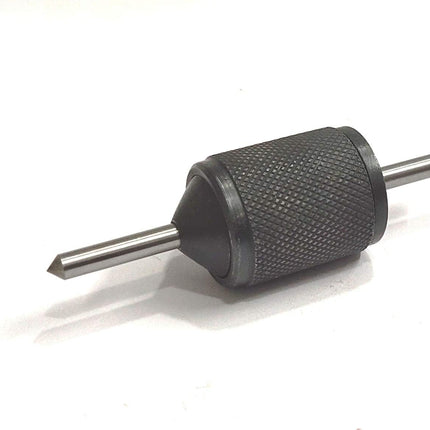

Universal transfer punches are precision tools used in metalworking and machining to transfer the precise location of holes or features from one workpiece to another. They ensure accuracy in drilling and machining processes by creating marks or indentations that guide the placement of subsequent operations, ensuring alignment and consistency across multiple parts or components.
Features:
-
Wide Range of Sizes: Covers hole sizes from 1/4" to 1", replacing the need for different-sized regular transfer punches.
-
Knurled Body: Provides a better grip, ensuring control and stability during use.
-
Automatic Alignment: Automatically accommodates itself to transfer center holes accurately, reducing the risk of errors.
-
CNC Made: Precision-engineered for accuracy and durability.
-

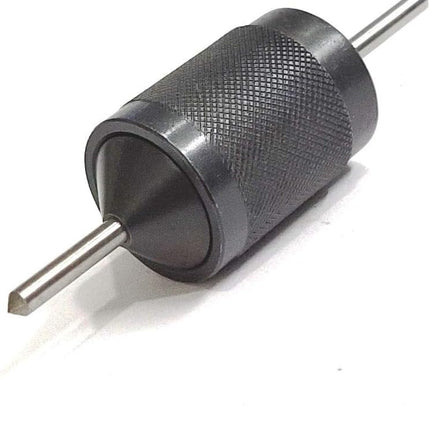

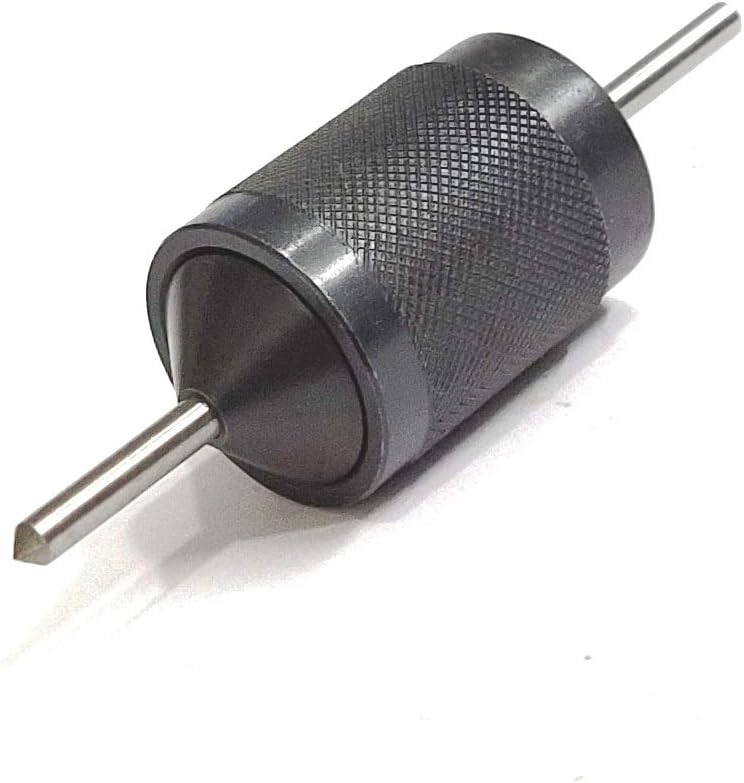

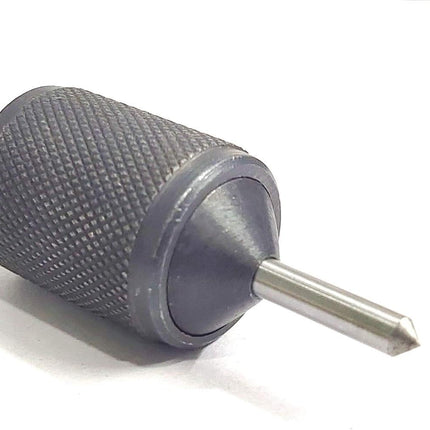

Hardened Guide Cone: Ensures precise placement into the clean edge of the hole to be transferred.
-

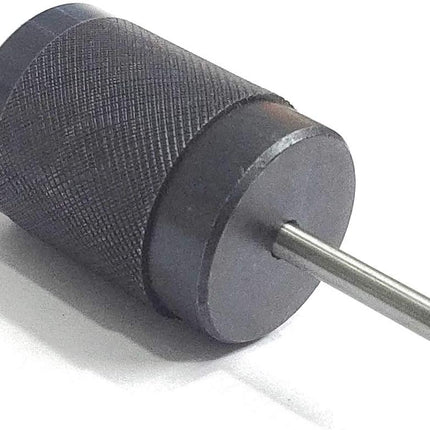

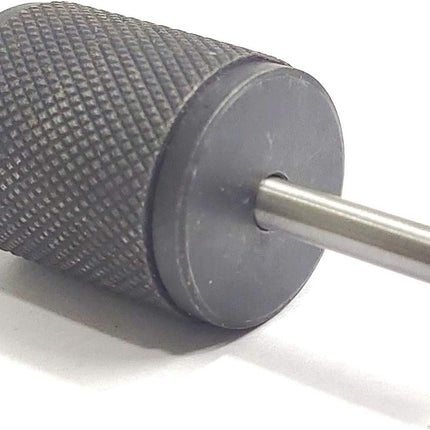

Oversized Pin Head: Prevents the pin from slipping out through the body, ensuring reliable performance.
-

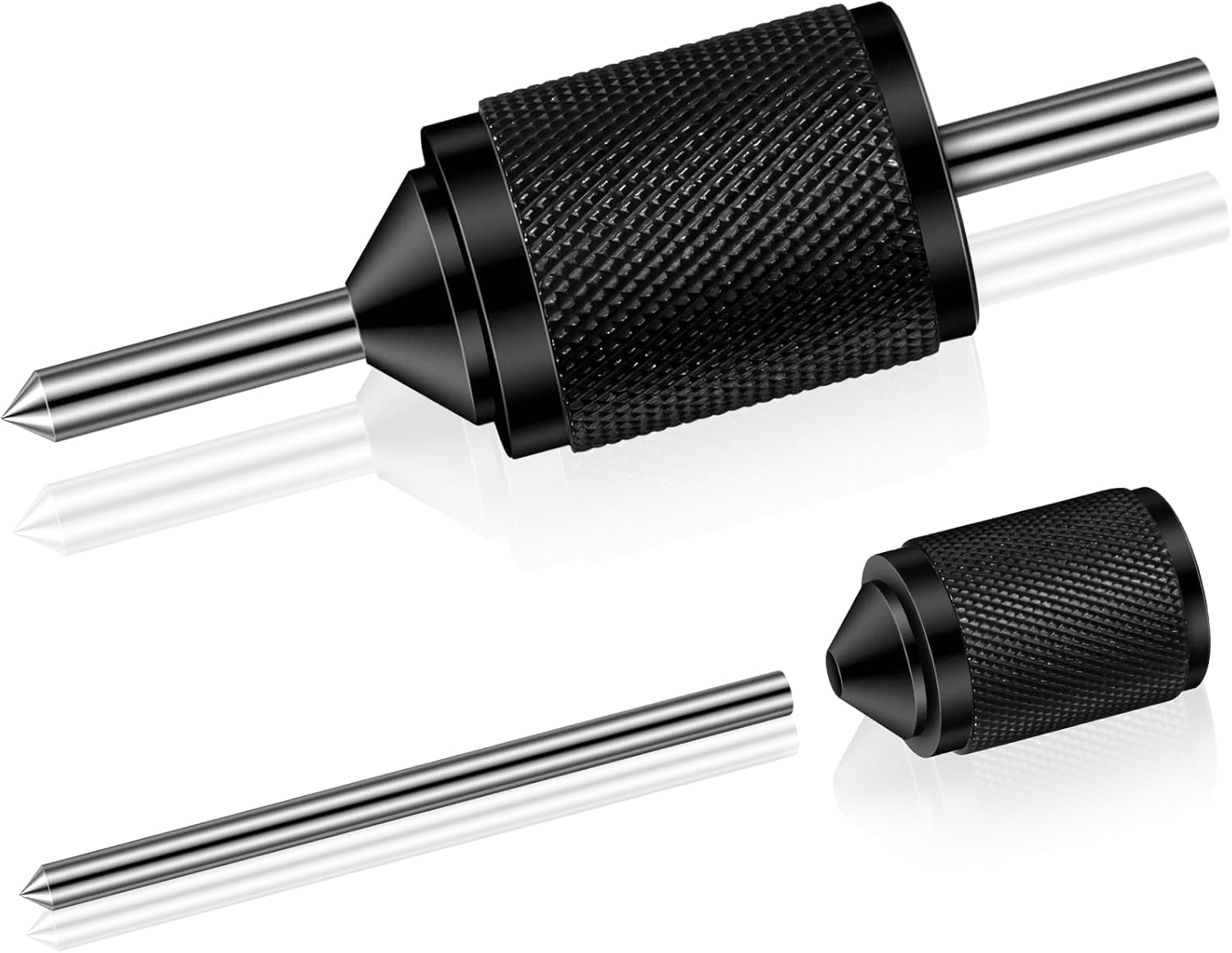

Sliding Centre Punch: Can be struck to mark the workpiece with precision.
Applications:
- Metalworking
- Woodworking
- Fabrication
- Machining
- DIY Projects
Specifications:
- Material: Alloy Steel

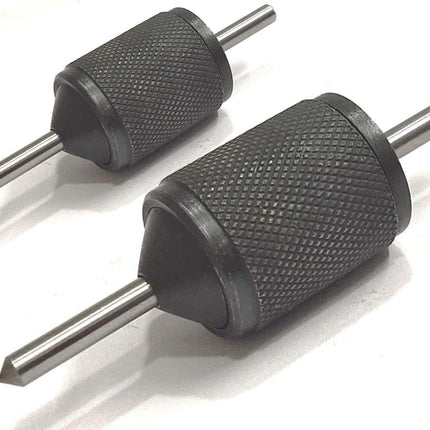

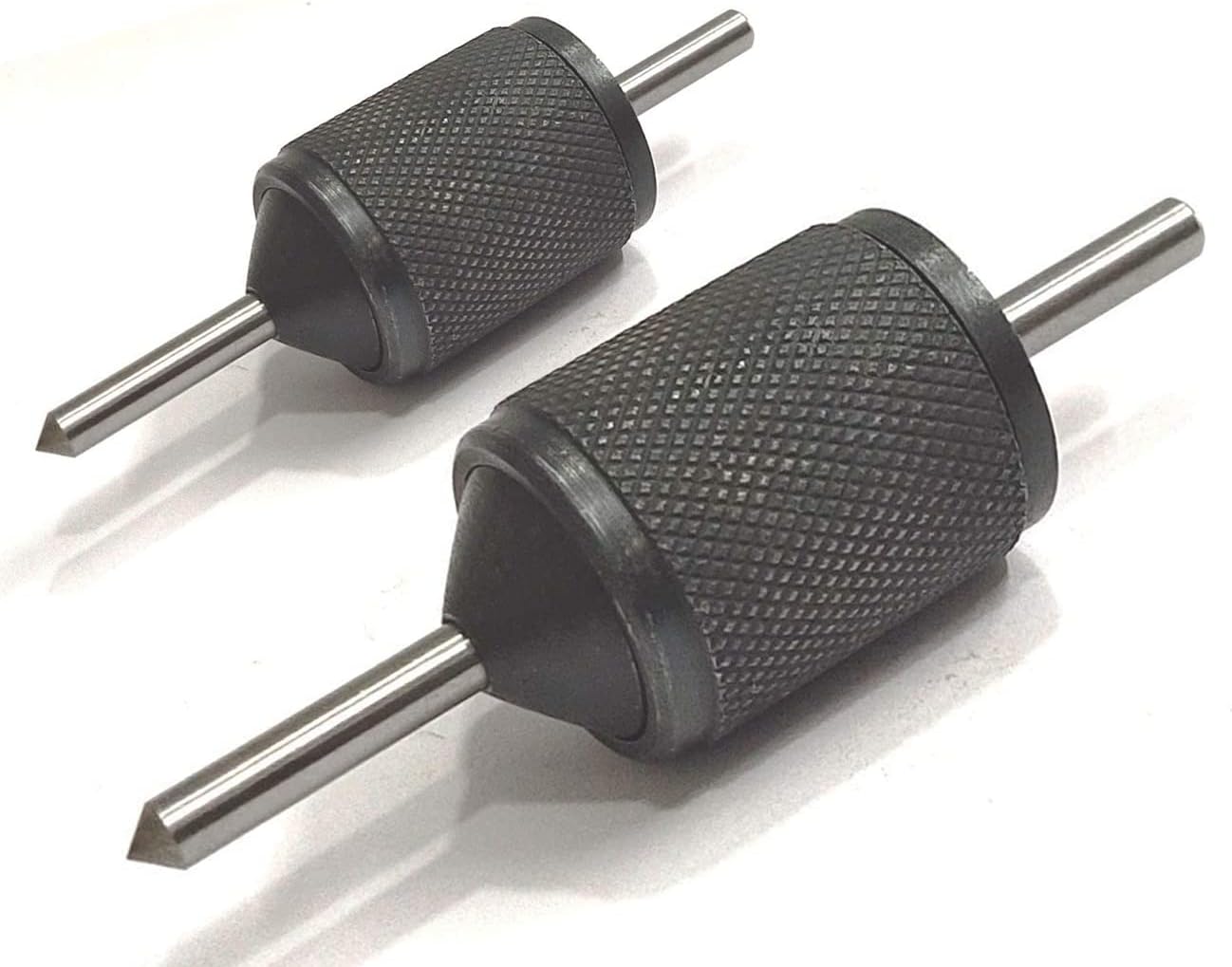

- Small Sizes: 1/4" to 5/8"
- Big Sizes: 3/8" to 1"
- Body: Knurled for better grip
- Guide Cone: Hardened for precise placement
- Pin Head: Oversized to prevent slipping
Benefits:
- Replaces multiple regular transfer punches, saving space and cost
- Ensures accurate transfer of center holes
- Reduces setup time and improves precision
- Minimizes errors and rework

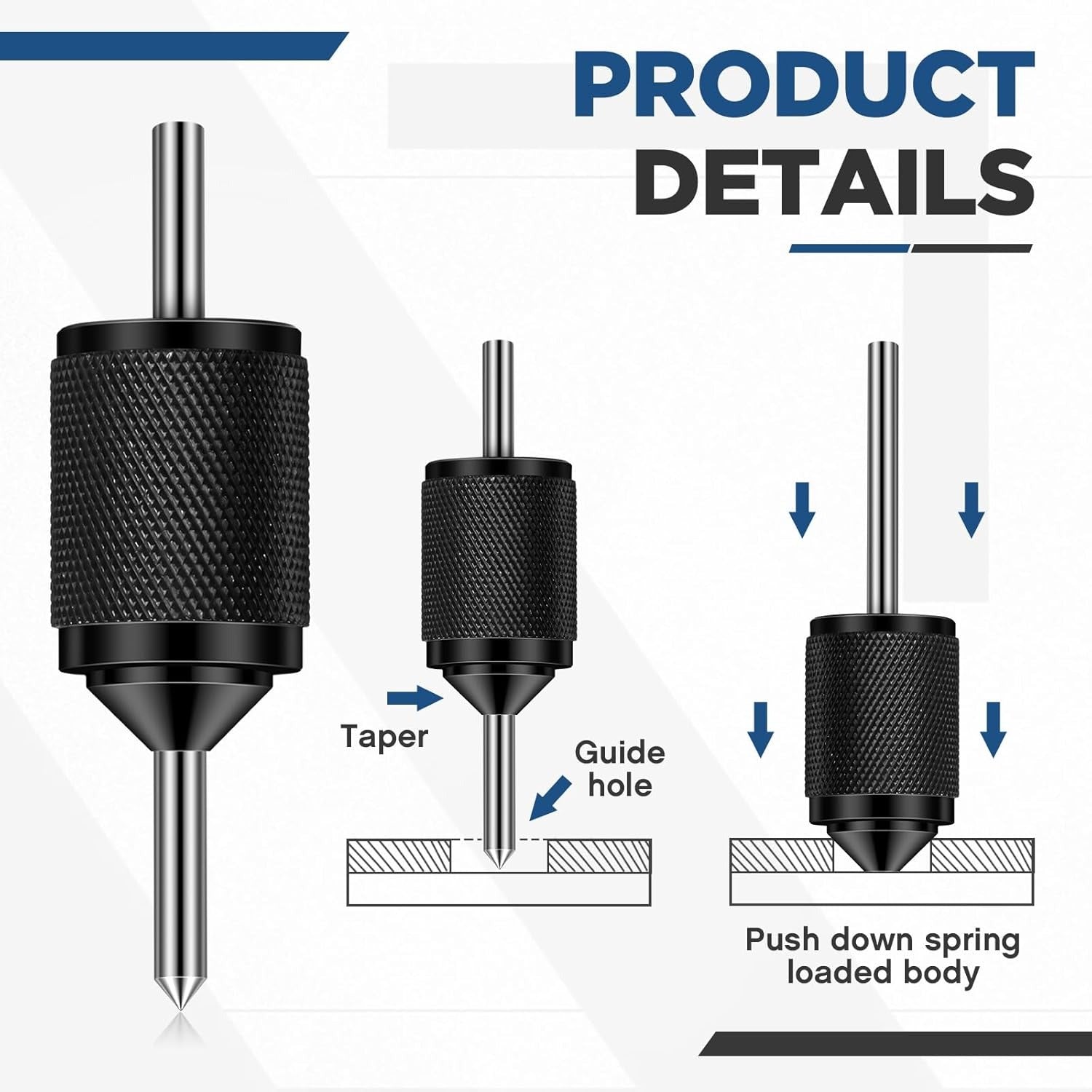

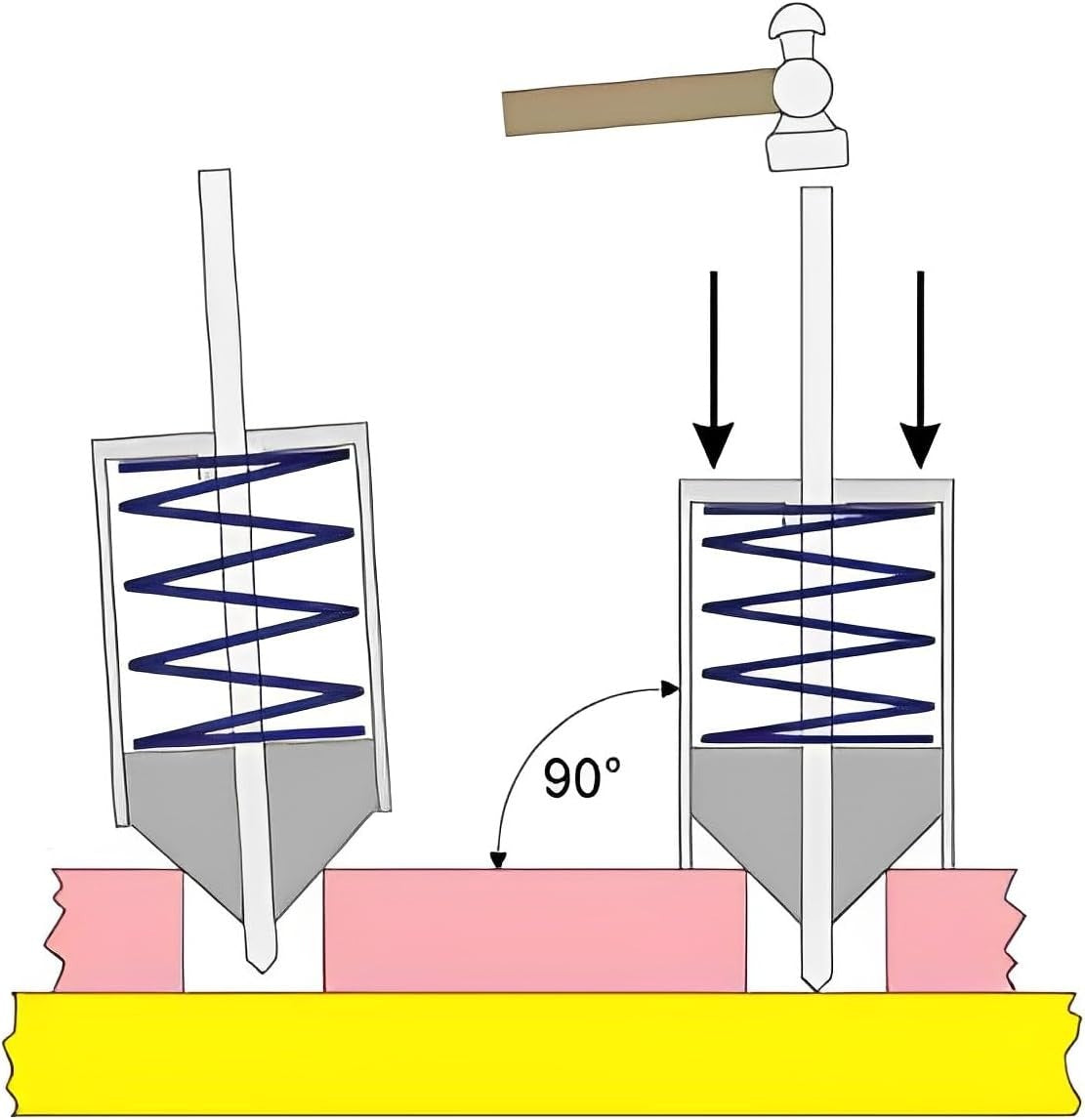

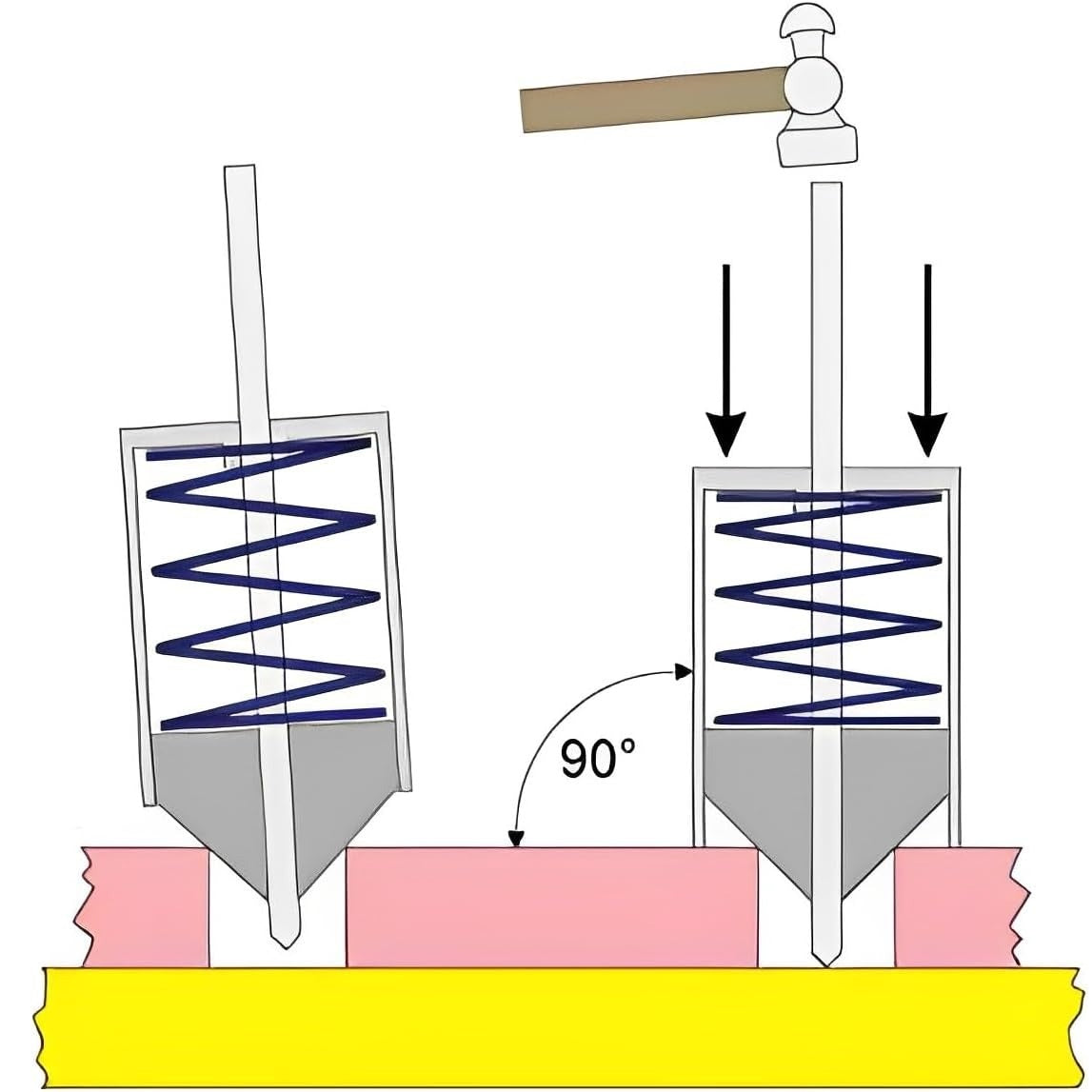

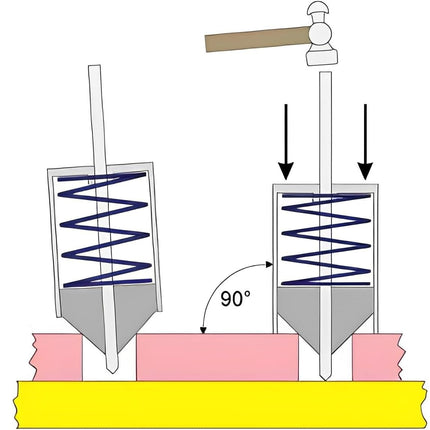

Usage Instructions: Insert the hardened guide cone into the clean edge of the hole to be transferred. Use the sliding center punch to mark the workpiece accurately. The oversized pin head ensures the punch remains securely in place during operation.
