Description

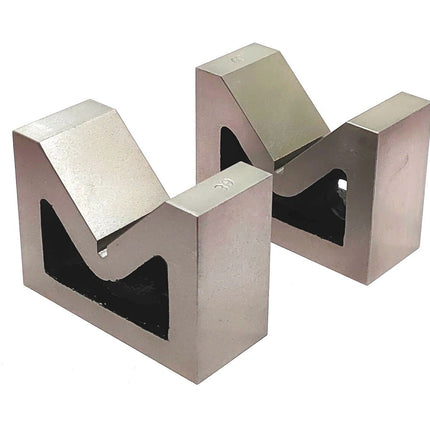

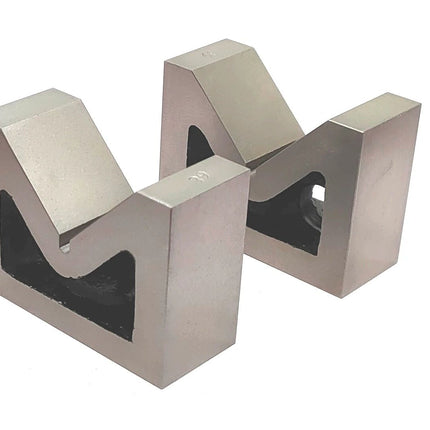

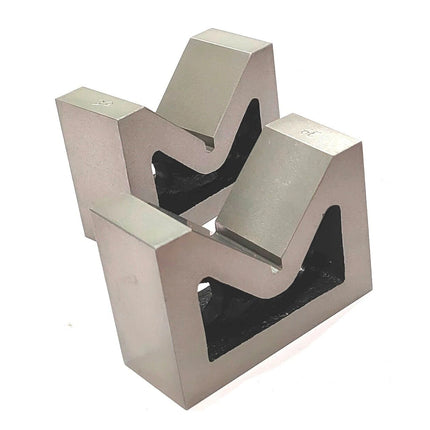

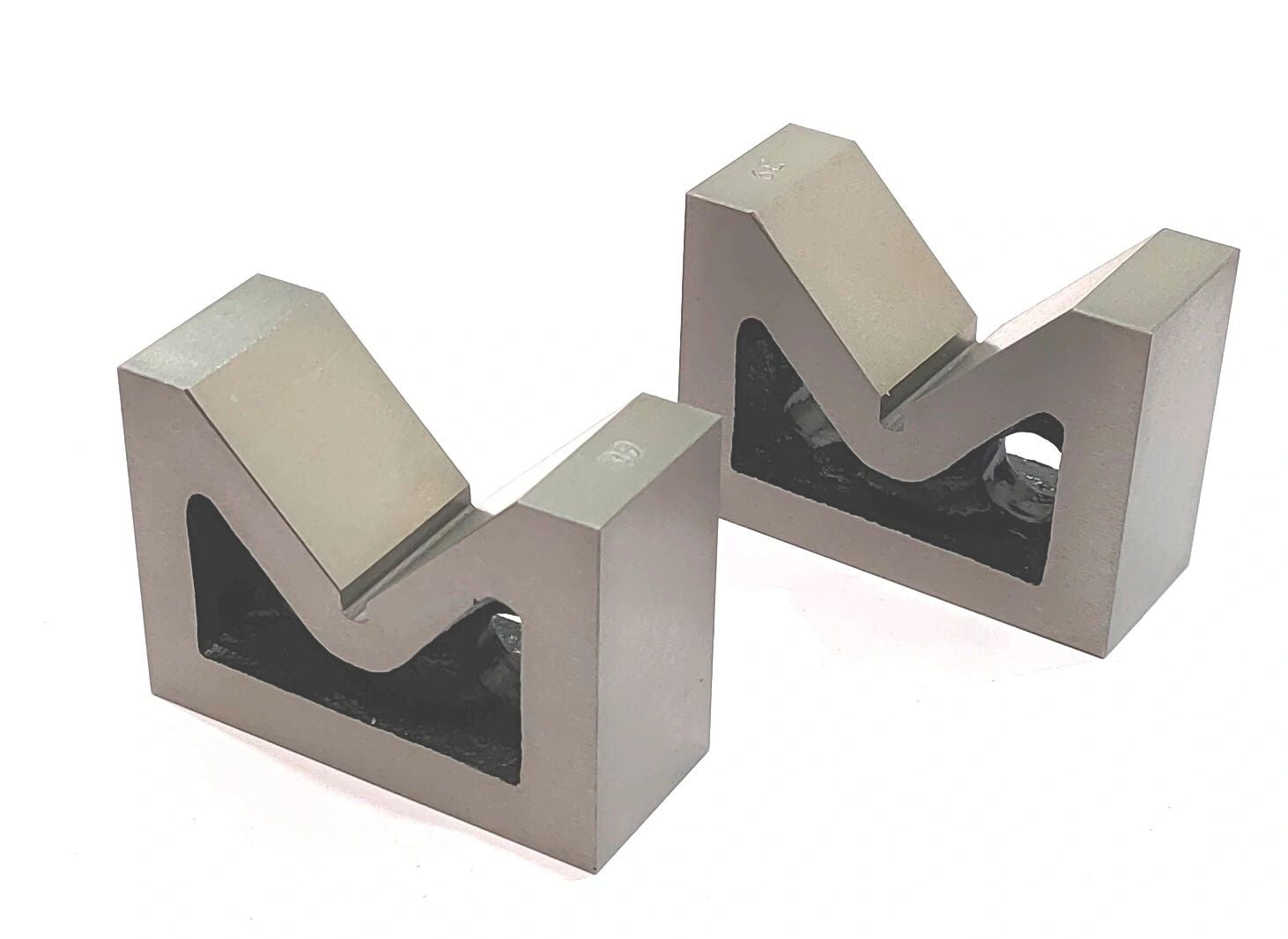

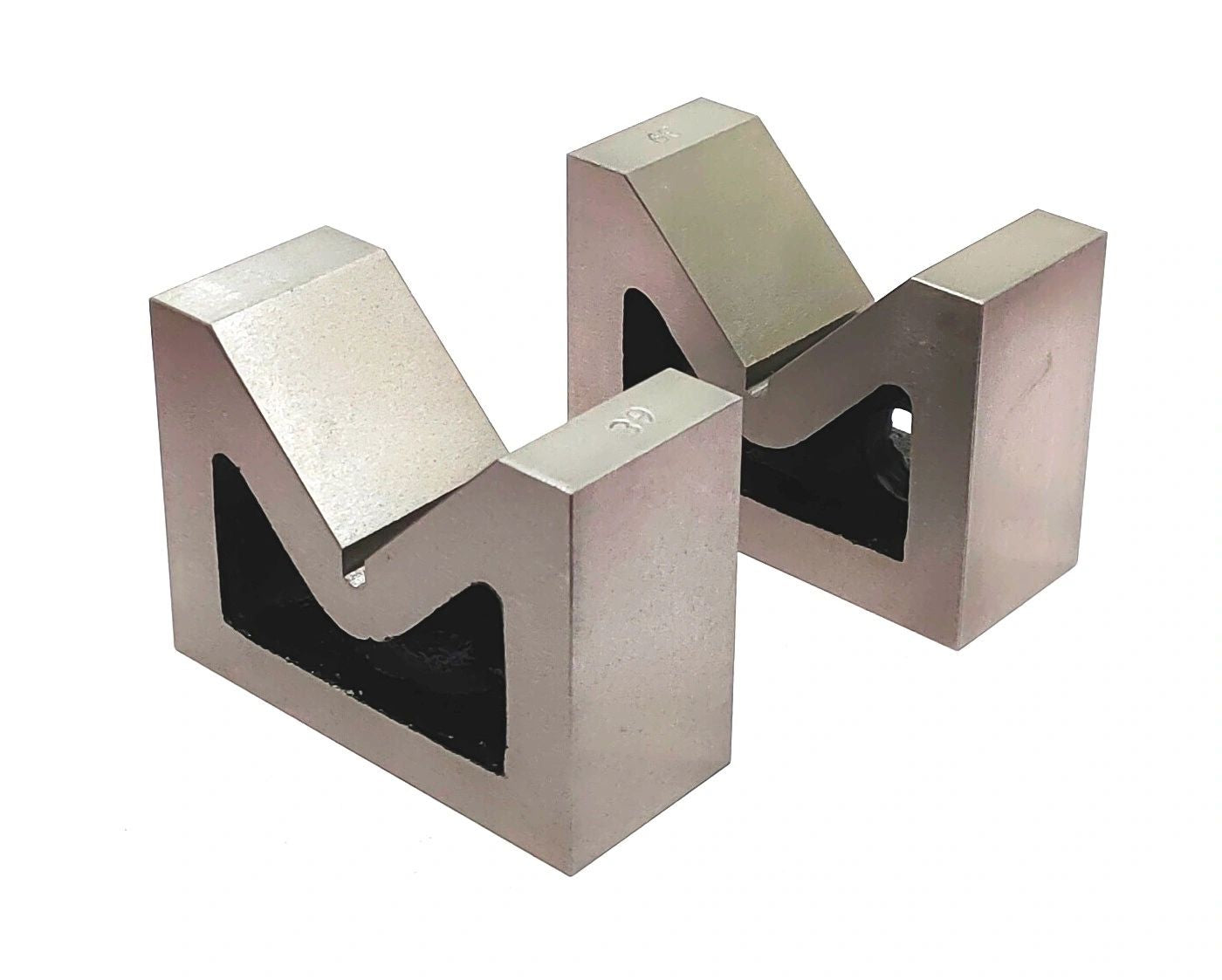

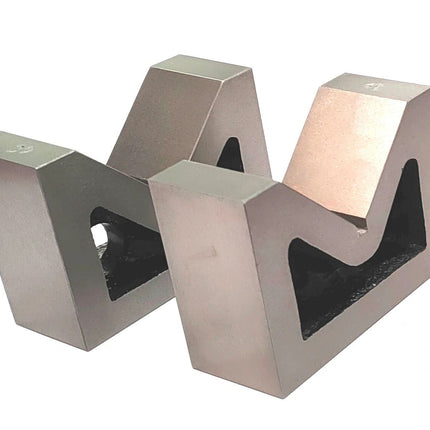

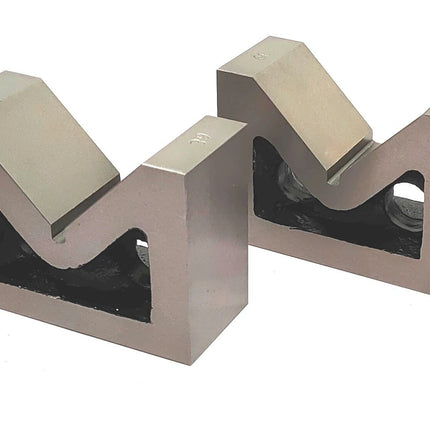

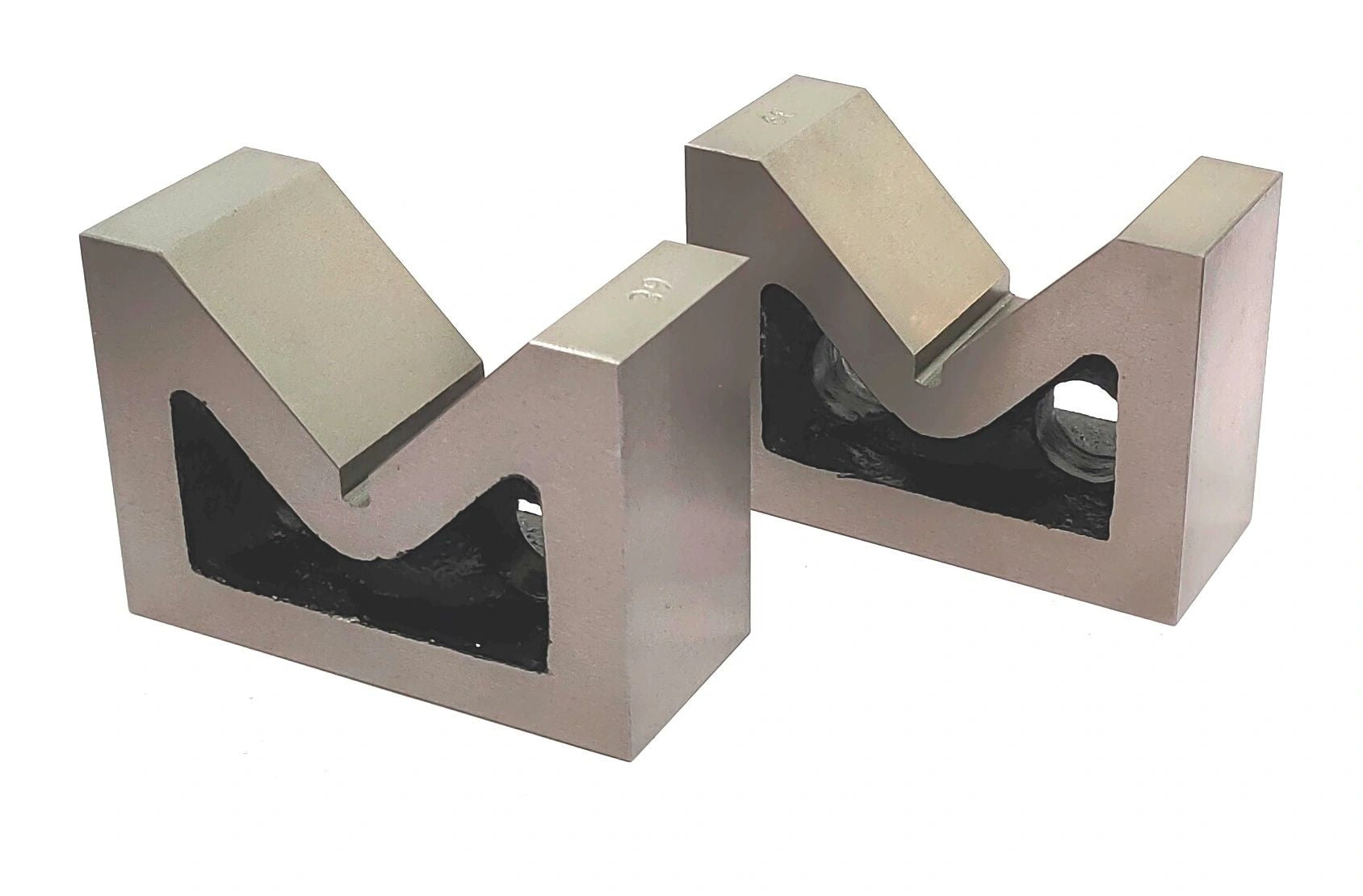

Caste iron V block pairs are precision tools used in machining and manufacturing processes to securely hold cylindrical or round workpieces in a fixed position for accurate machining operations. The V-shaped design of these blocks allows them to securely grip cylindrical objects, providing stability and precision during drilling, milling, grinding, or inspection tasks. They are commonly utilized in machine shops, tool and die making, metalworking, and various manufacturing industries where precise positioning and machining of cylindrical components are essential.
-
Material:
- Made from high-quality cast iron, providing durability and stability.
- Precision ground and hardened to ensure long-lasting performance.
-
Dimensions:
- Available in 2", 3" and 4" sizes to accommodate different workpiece
- Dimension of 2 inches Blocks are Length: 2" (50mm) x Width: 1" (25 mm) x Height:1-1/2" (38 mm)
- Dimension of 3 inches Blocks are Length: 3" (75 mm) x Width: 1-1/4" (31 mm) x Height: 2-3/16" (56 mm)
- Dimension of 4 inches Blocks are Length: 4" (100 mm) x Width: 1-5/8" (42 mm) x Height: 2-5/8" (66 mm)
-
V-Groove Design:
- Dual V-grooves at 90-degree angles for versatile usage.
- Ideal for holding round and cylindrical workpieces securely.
-
Base:
- Solid, stable base to minimize vibration and movement.
- Non-slip rubber pads on the base to prevent slipping and provide additional stability (if applicable).
-
Versatility:
- Suitable for a wide range of applications including drilling, milling, grinding, and inspection.
- Compatible with various machining tools and measuring instruments.
Applications:
-
Machining:
- Ideal for holding cylindrical workpieces during precision machining operations.
- Ensures accurate drilling, milling, and grinding processes.
-
Inspection:
- Perfect for inspection and measurement tasks.
- Facilitates the checking of roundness, concentricity, and straightness of workpieces.
-
Workshop Use:
- Essential tool for metalworking shops, machine shops, and manufacturing facilities.
- Suitable for both professional and hobbyist use.
Benefits:
-
High Precision:
- Ensures accurate and repeatable results in various machining and inspection tasks.
-
Durability:
- Made from caste iron for long-lasting use.
-
Stability:
- Provides a stable platform to hold workpieces securely, minimizing errors and enhancing safety.
Package Includes:
- Set of 2 Cast Iron V-Blocks.
- Adjustable clamps/straps.
- User manual with safety and maintenance instructions.
Maintenance:
- Regularly clean the V-blocks to remove any metal shavings or debris.
- Apply a light coat of oil to prevent rust and corrosion.
- Store in a dry, cool place when not in use.
Customer Reviews:
- Extremely precise and durable. Perfect for all my machining needs.
- Great value for money. The V-blocks are very stable and well-made.
Warranty:
- Comes with a 1-month manufacturer warranty
- Customer support available for any inquiries or issues.
