Description
An edge finder is a handy tool in machining, particularly in milling operations. Its primary purpose is to precisely locate the edges of a workpiece or the center of a hole. It works by being mounted in the spindle of the milling machine and brought into contact with the edge or surface being located. When the edge finder makes contact, it shifts slightly off-center, indicating the exact location. This helps machinists align their cutting tools accurately, ensuring that they begin machining at the correct position, thus improving precision and reducing errors in the manufacturing process.
Features:
-
Comprehensive Set:
- Includes four edge finders: EF-130, EF-132, EF-133, and EF-134, providing versatility for various milling tasks.
- Each edge finder is specifically designed to tackle different applications, ensuring you have the right tool for the job.
-
Precision Machining:
- Enables accurate and repeatable positioning of the workpiece.
- Enhances the quality and precision of your milling operations.
-
High-Quality Material:
- Made from premium, hardened steel for durability and long-lasting performance.
- Resistant to wear and corrosion, ensuring reliable use over time.
-
Ease of Use:
- Simple and intuitive to use, making it suitable for both beginners and experienced machinists.
- Clearly marked for easy identification and selection.
-
Versatile Application:
- Ideal for locating edges, shoulders, grooves, center points, and other critical points in milling and machining tasks.
- Suitable for use with a wide range of milling machines and CNC machines.
-
Compact and Organized:
- Comes in a compact storage case, keeping the edge finders organized and protected.
- Easy to store and transport, minimizing workspace clutter
Specifications:
-
Double End
- Type: Double End
- TIP Diameter: 1/2"
- Tip Diameter: 3/16'
- Features: Standard edge finder for general use
-
Single End
- Type: Single End
- Tip Diameter: 3/8" Inch
- Tip Diameter: 3/16"
Usage Instructions:
-
Setup: Insert the desired edge finder into the collet or chuck of your milling machine or CNC machine.
-
Alignment: Bring the edge finder close to the workpiece surface.
-
Edge Finding: Rotate the edge finder and carefully bring it into contact with the workpiece. The edge finder will jump or move slightly when it touches the edge, indicating the position.
-
Machining: Once the edge is located, proceed with the milling or machining operation, ensuring precise alignment.
Package Includes:

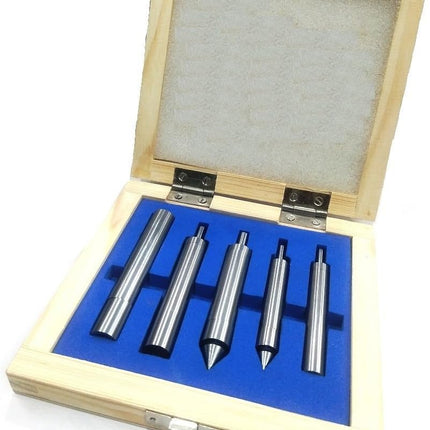

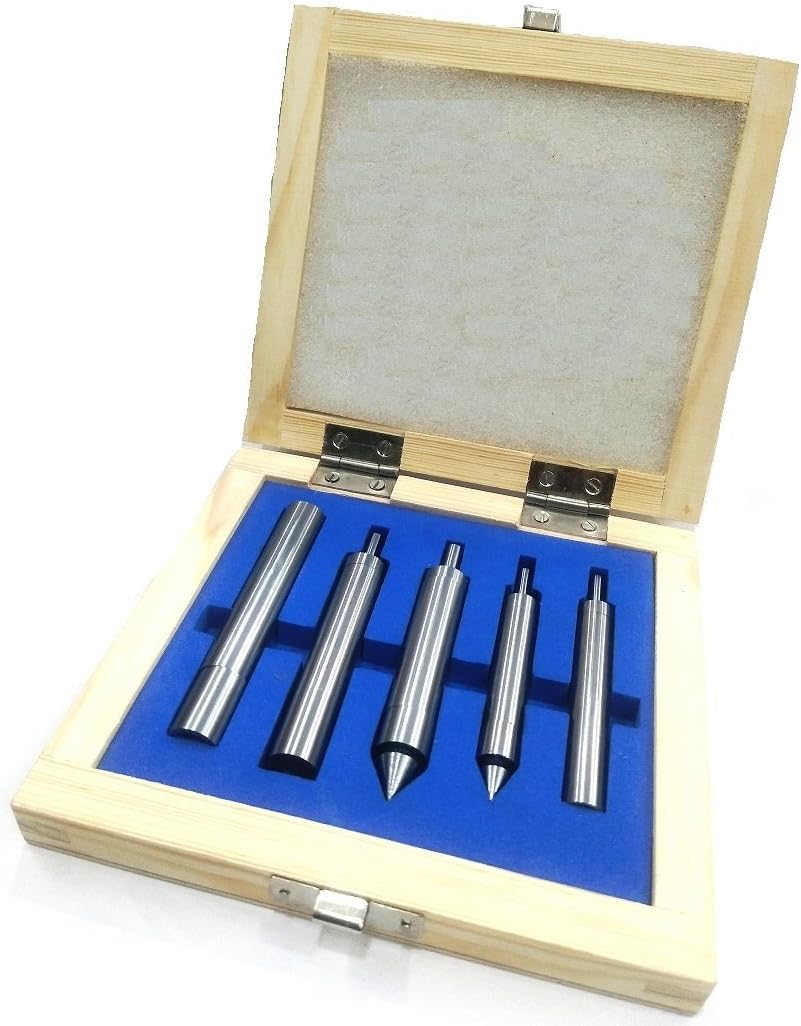

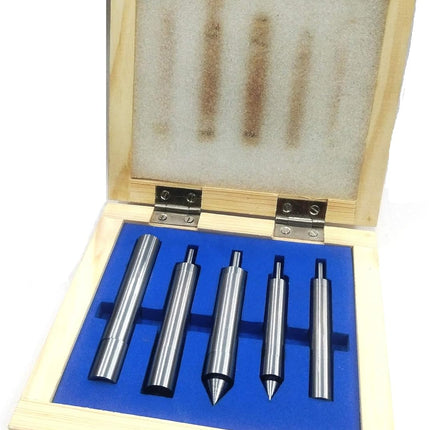

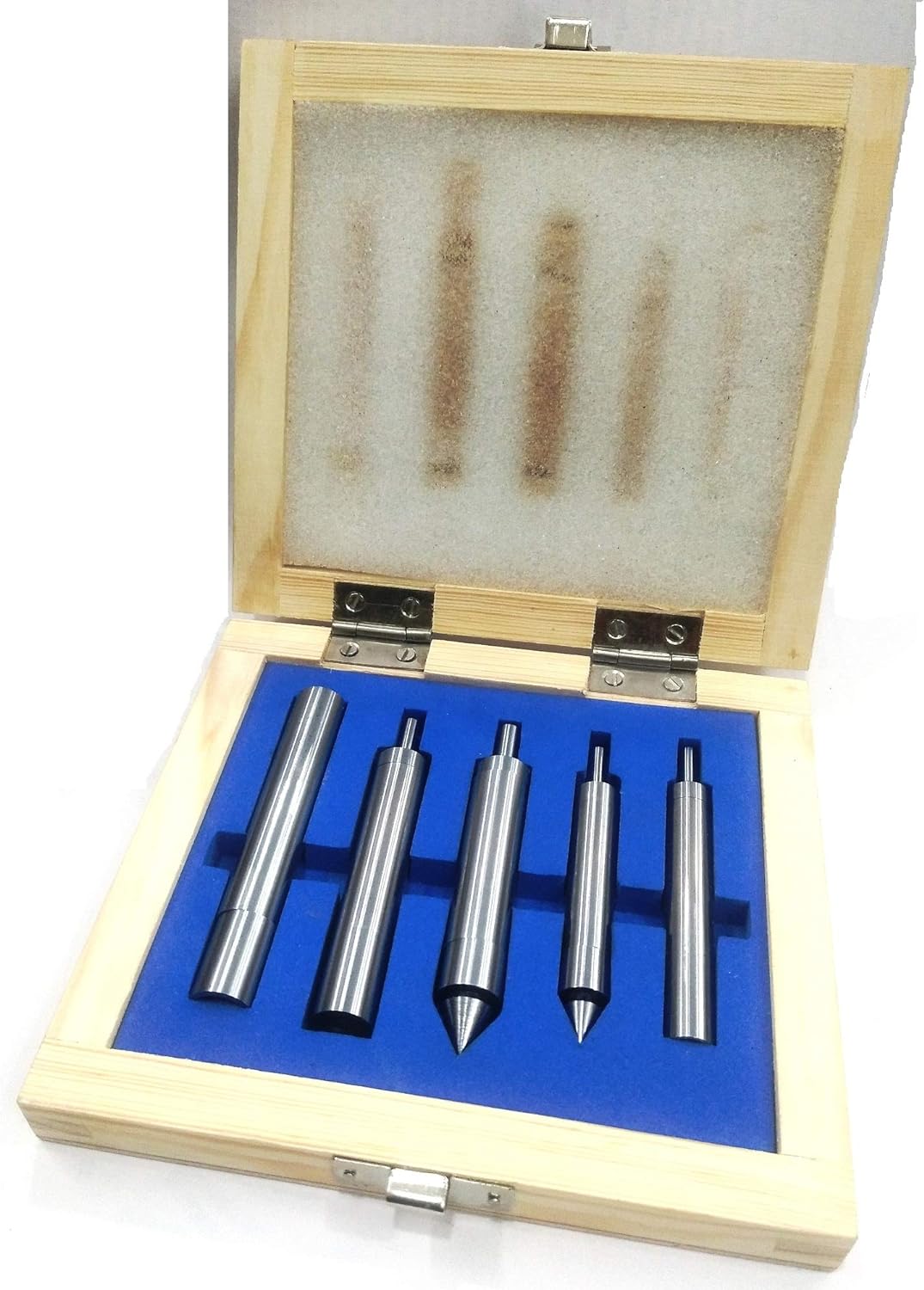

- 2 x Double End Edge Finder
- 3 x Single End Edge Finder

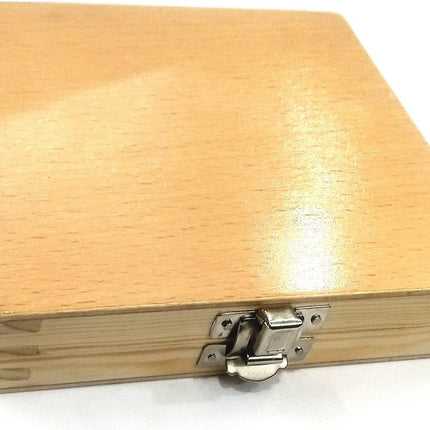

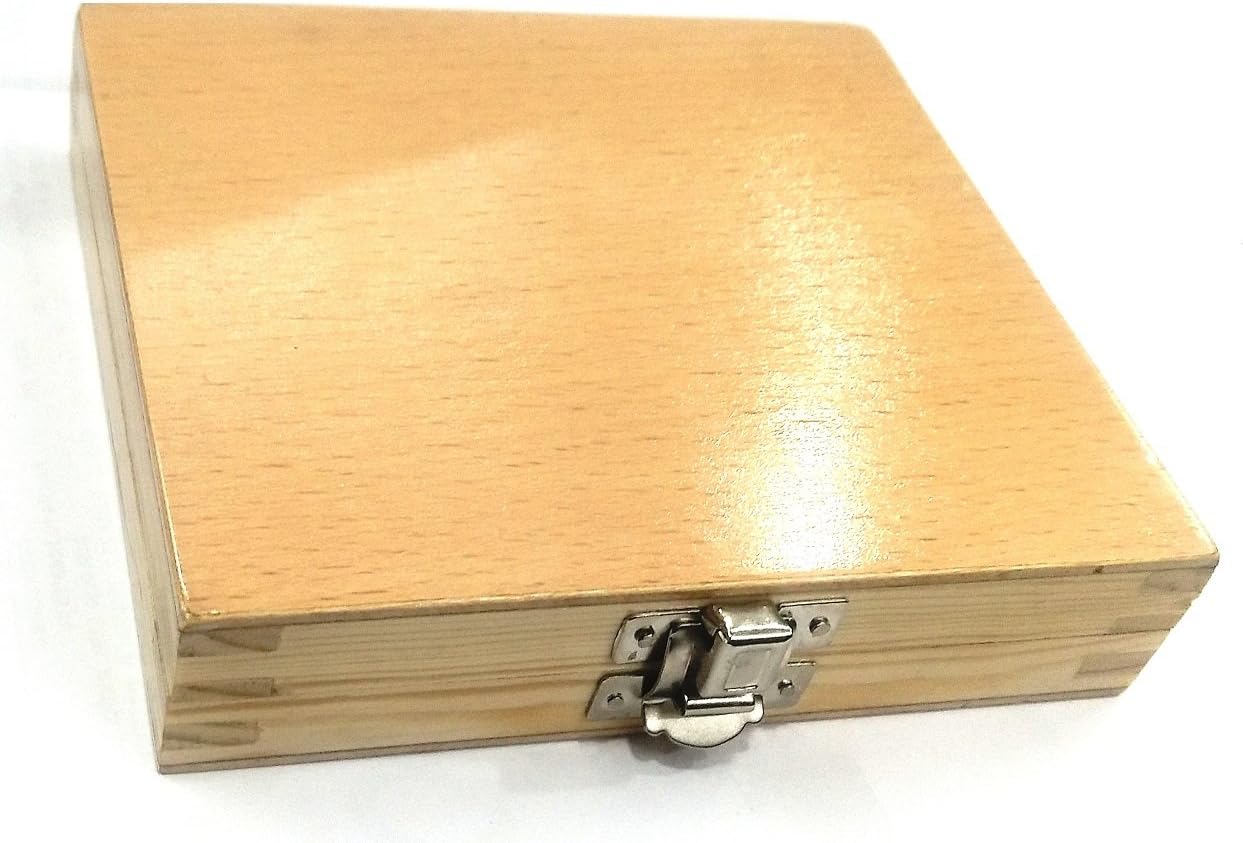

- 1 x Compact Storage Case
Applications:
- Suitable for metalworking, woodworking, and precision machining tasks.
- Ideal for use in manufacturing, repair workshops, and DIY projects.
Benefits:
- Provides a comprehensive solution for precise edge finding and alignment.
- Enhances accuracy and efficiency in milling operations.
- Durable and reliable tools for long-term use.
Equip your milling machine with the 4 Pieces Edge Finder Set today and achieve unparalleled precision and efficiency in your machining tasks.
