Use of Product- A rotary table is a precision tool used predominantly in metalworking, particularly in machining operations like milling and drilling. Its primary function lies in enabling machining at precise angular intervals around a fixed point, commonly referred to as indexing. This capability facilitates the creation of intricate geometries, circular features, and multi-sided machining without the need for manual repositioning of the workpiece. By mounting the workpiece on the rotary table and rotating it, machinists can execute complex operations such as gear cutting, spiral grooving, and helical cuts with high precision. Additionally, rotary tables are essential for tasks requiring circular or arc-shaped machining, offering versatility and efficiency in manufacturing processes.

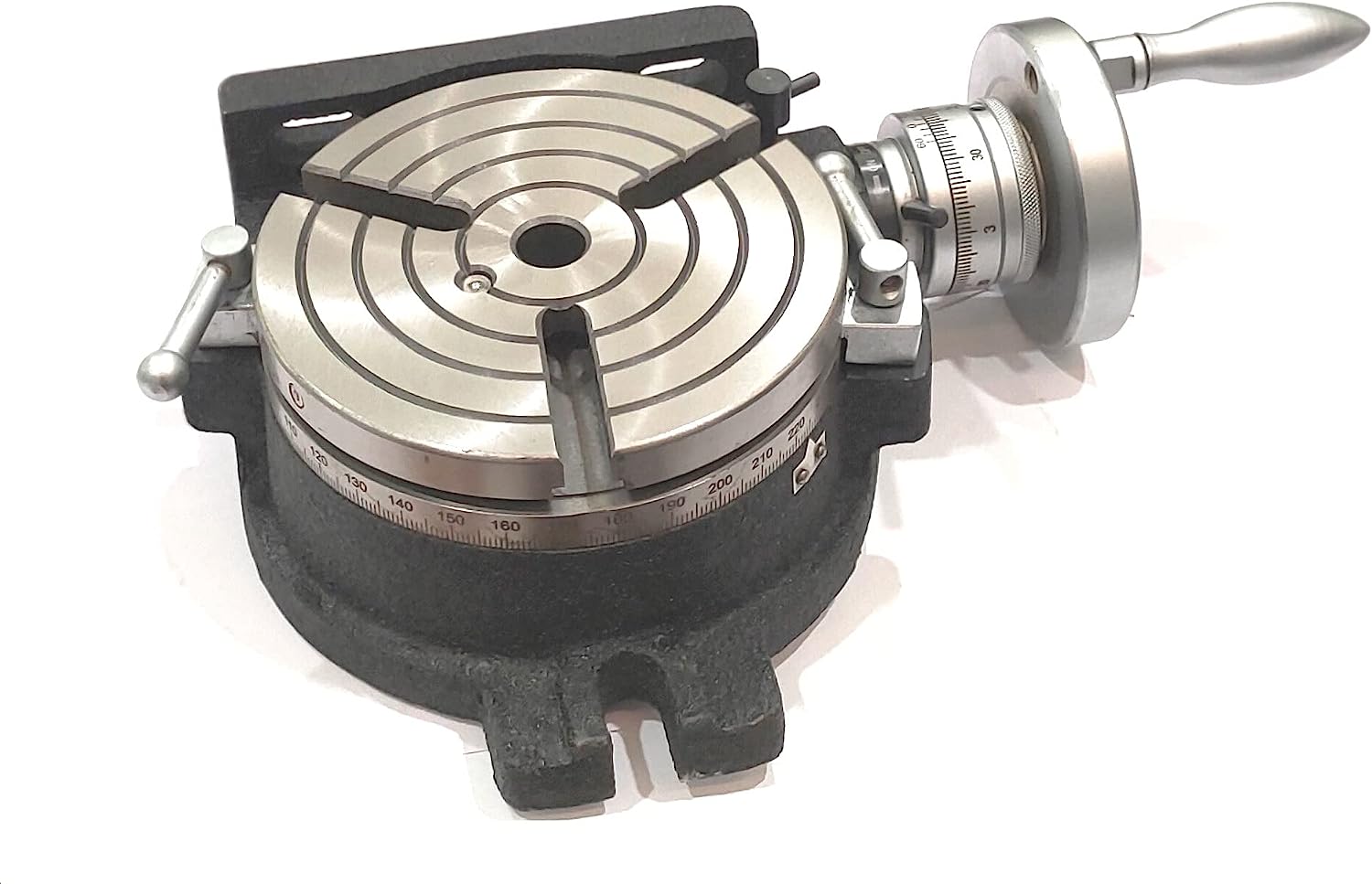

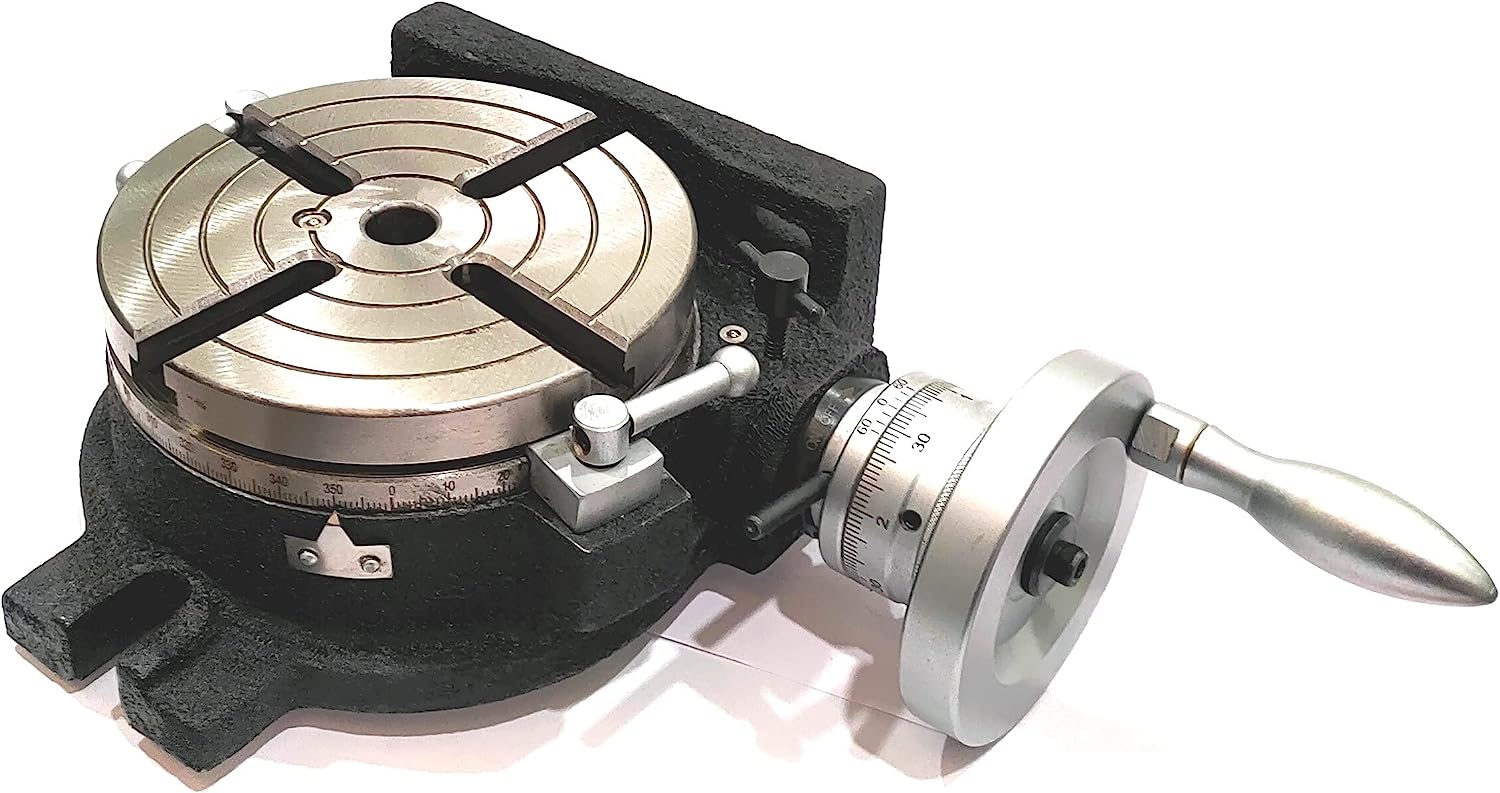

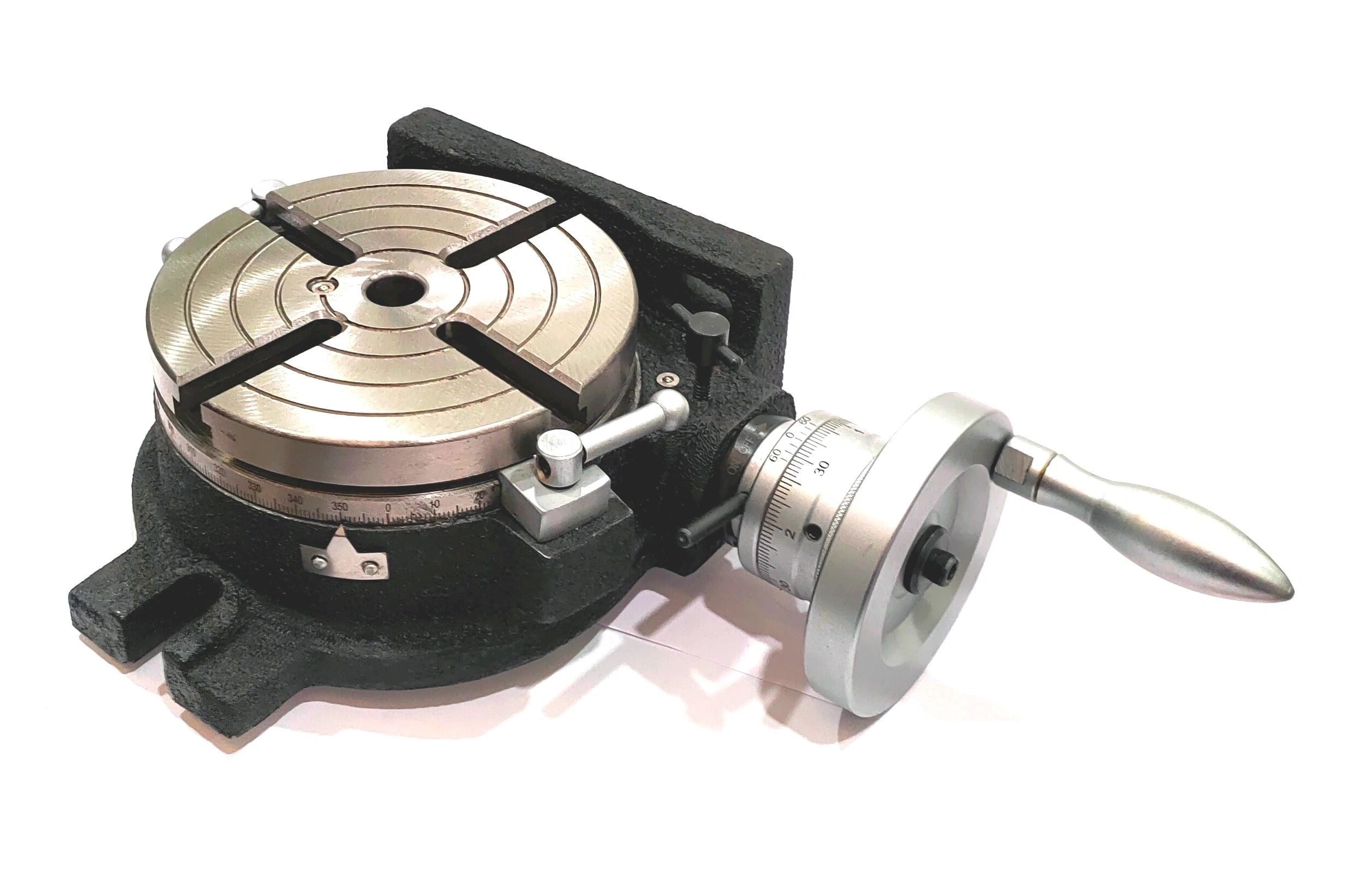

Introducing the HV6 Rotary Table, available in both 3-slot and 4-slot configurations. Expertly crafted from seasoned casting, this rotary table features a durable powder-coated wrinkled finish, ensuring long-lasting performance and a professional appearance.
Key Features:
-
Gear Ratio: 90:1 gear ratio for efficient table movement, with each handle rotation shifting the table by 4 degrees, enabling precise control.
-
Center Bore: Equipped with a Center Bore MT-2 and a 16 mm T-slot, ensuring seamless compatibility and secure clamping.
-
Versatile Clamping: Can be clamped both vertically and horizontally to accommodate diverse workpiece orientations.
-
Dimensions: The horizontal height is approximately 80mm from the base to the top surface of the chuck, ensuring stability and ease of use. In the vertical position, the center height is 105mm, providing ample clearance for machining operations.
-
Graduations: The table is graduated 360 degrees around its circumference, with a resettable dial and a handwheel graduated in seconds for precise angular adjustments.
-
Lubrication: Equipped with two oiling points for direct lubrication, enhancing the rotary table's longevity and performance.
-
Comprehensive Solutions: Our store offers a range of compatible accessories, including dividing plates, tailstocks, chucks, and clamp kit sets, for a complete machining solution.
This HV6 Rotary Table is designed to meet the demands of precision machining, making it an essential tool for any workshop.
