Product Overview:

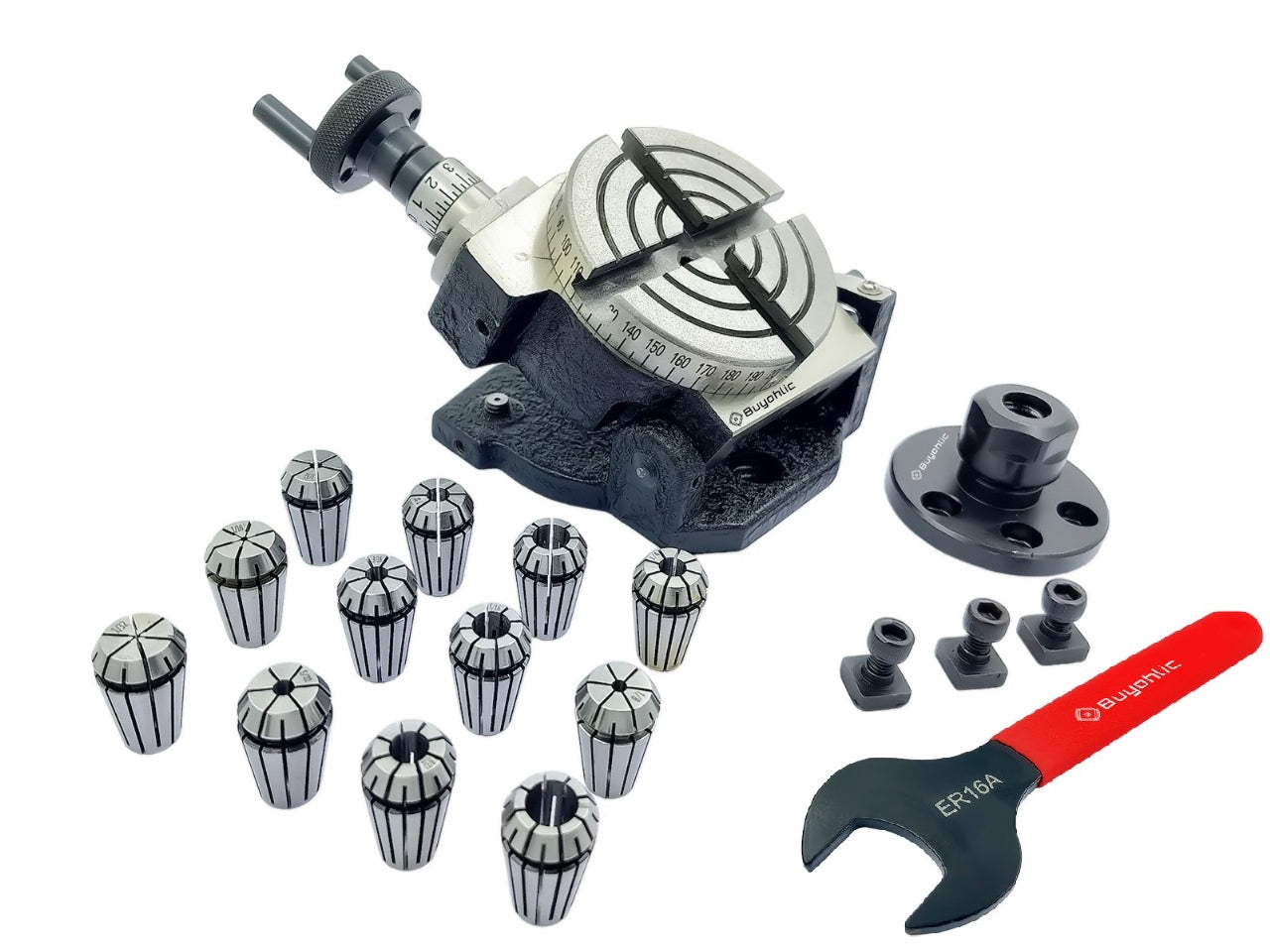

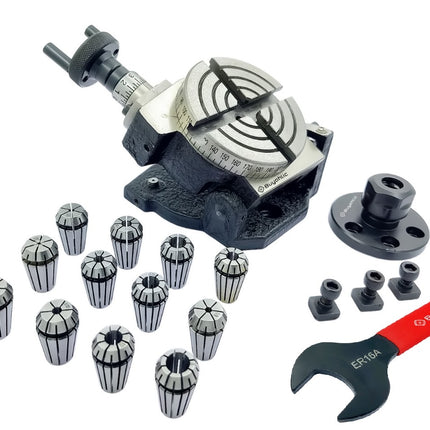

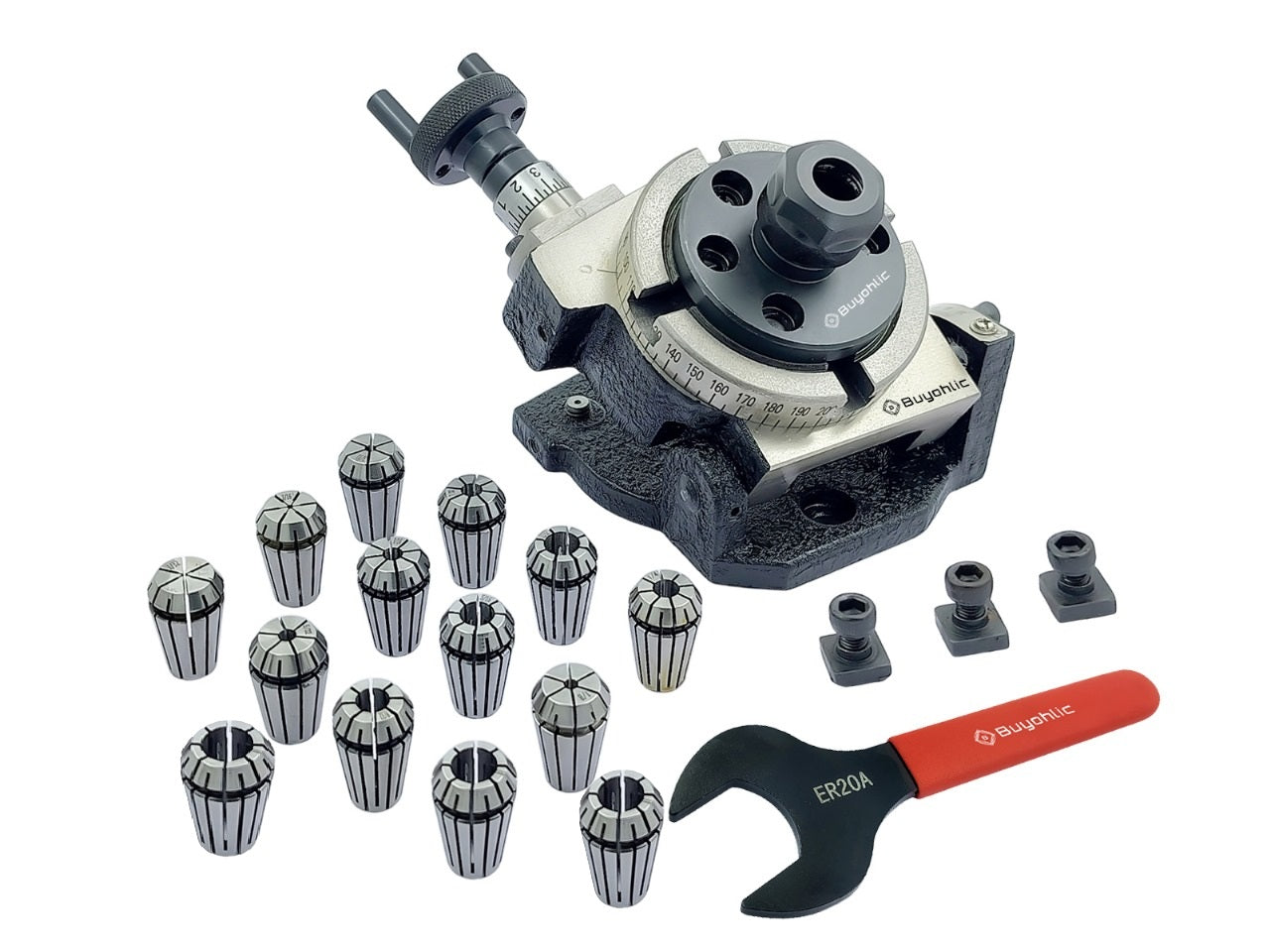

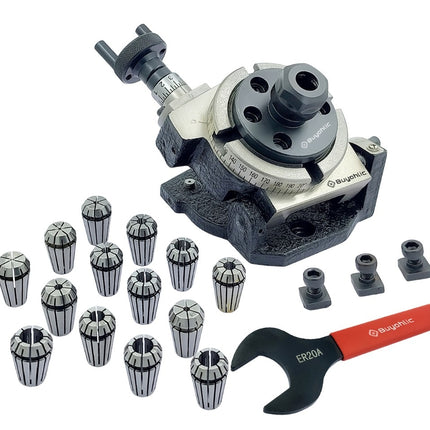

Enhance your precision machining capabilities with this 3" (80mm) Tilting 4-Slot Rotary Indexing Table, designed for milling, drilling, and indexing applications. The tilting feature allows for angular adjustments, making it perfect for machining complex angles and intricate patterns.

Equipped with an ER Collet Adaptor, this rotary table provides a secure clamping system for various tool sizes. The set also includes a spanner for easy adjustments and installation.

Key Features:

✅ Tilting Rotary Table (0°–90° Adjustable) – Enables precise angular machining.
✅ Compact & High-Precision 3" (80mm) Design – Ideal for small to medium-sized projects.
✅ 4-Slot Mounting – Ensures versatile workpiece positioning.
✅ ER Adaptor Compatibility – Supports ER16, ER20, and ER25 collet sets.
✅ Heavy-Duty Construction – Made from high-grade hardened steel for durability.
✅ Includes Spanner – For easy collet changes and adjustments.

Collet Set Options & Sizes:

Choose from three different ER collet sets, depending on your machining needs:

🔹 ER16 – 12-Piece Collet Set (Range: 1/32" – 3/8")

1/32", 1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8"

🔹 ER20 – 14-Piece Collet Set (Range: 1/16" – 1/2")

1/16", 3/32", 1/8", 5/32", 3/16", 7/32", 1/4", 9/32", 5/16", 11/32", 3/8", 13/32", 7/16", 1/2"

🔹 ER25 – 12-Piece Collet Set (Range: 1/8" – 5/8")

1/8", 3/16", 7/32", 1/4", 5/16", 3/8", 13/32", 7/16", 1/2", 17/32", 9/16", 5/8"

Applications:

✔️ Precision Milling & Indexing
✔️ Angular Drilling, Slotting & Engraving
✔️ Circular & Multi-Angle Machining
✔️ Industrial & Hobbyist Use

Why Choose This Tilting Rotary Indexing Table?

🔹 Enables complex angle machining with tilting functionality
🔹 Compatible with various ER collets for flexible tool holding
🔹 Sturdy and reliable for long-term machining applications

📦 What’s Included?

1x 3" (80mm) Tilting 4-Slot Rotary Indexing Table
1x ER Adaptor
1x Spanner
1x Collet Set (Choose from ER16, ER20, or ER25)

🚀 Ships Within 1 Business Day – Order Now! 🚀
